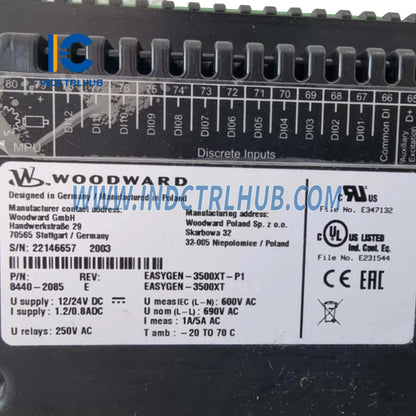

Woodward 8440-2085 easYgen-3500XT-P1 Genset Controller

Woodward 8440-2085 easYgen-3500XT-P1 Genset Controller

  • Manufacturer: Woodward

  • Product No.: 8440-2085

  • Condition:1000 in stock

  • Product Type: easYgen-3500XT-P1 Genset Controller

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 2100g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Woodward 8440-2085 easYgen-3500XT-P1 Genset Controller

  • Manufacturer: Woodward
  • Model/Part Number: 8440-2085
  • Description: easYgen-3500XT-P1 Genset Controller, 12/24 VDC, Paralleling Operation, 1 A/5 A CT Inputs, for Diesel/Gas Engine Generator Sets

Overview

  • The Woodward 8440-2085 is an easYgen-3500XT-P1 genset controller from the easYgen-3000XT series, designed for advanced control and protection of diesel or gas engine generator sets in paralleling and standalone applications. It supports peer-to-peer paralleling for up to 32 gensets, automatic mains failure (AMF), peak shaving, cogeneration, and import/export control, making it ideal for power generation, marine, and industrial applications. The XT series offers enhanced features like Ethernet connectivity and customizable logic.

Technical Specifications

Specification Details
Model 8440-2085
Series easYgen-3500XT-P1
Type Microprocessor-based genset controller
Input Voltage 12/24 VDC (8–40 VDC range)
Power Consumption < 15 W
PT Input Up to 690 VAC (L-L), 600 VAC (L-N)
CT Input 0–1 A or 0–5 A RMS (configurable)
Speed Input Magnetic Pickup Unit (MPU) or engine ECU via CAN
Measuring Frequency 50/60 Hz (40–85 Hz)
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Storage Temperature -30°C to +80°C (-22°F to +176°F)
Relative Humidity 5% to 95%, non-condensing
Protection Rating IP66/IP67 (front panel), IP20 (housing)
Dimensions 282 mm x 217 mm x 99 mm (11.1 in x 8.5 in x 3.9 in)
Weight Approximately 2.1 kg (6.3 lbs)
Mounting Front panel mount

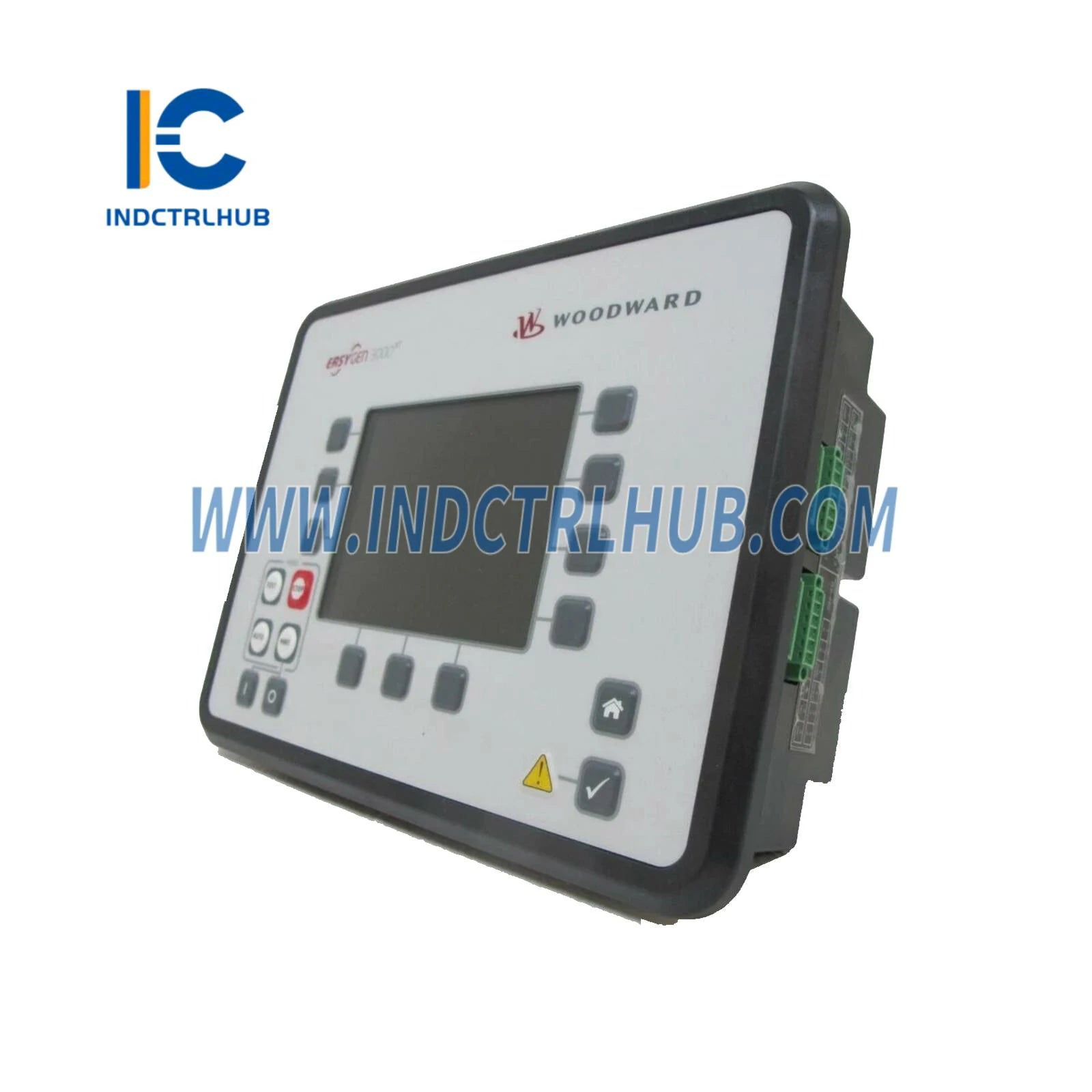

Display 5.7-inch backlit color LCD, multilingual (English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Danish, Swedish, etc.)

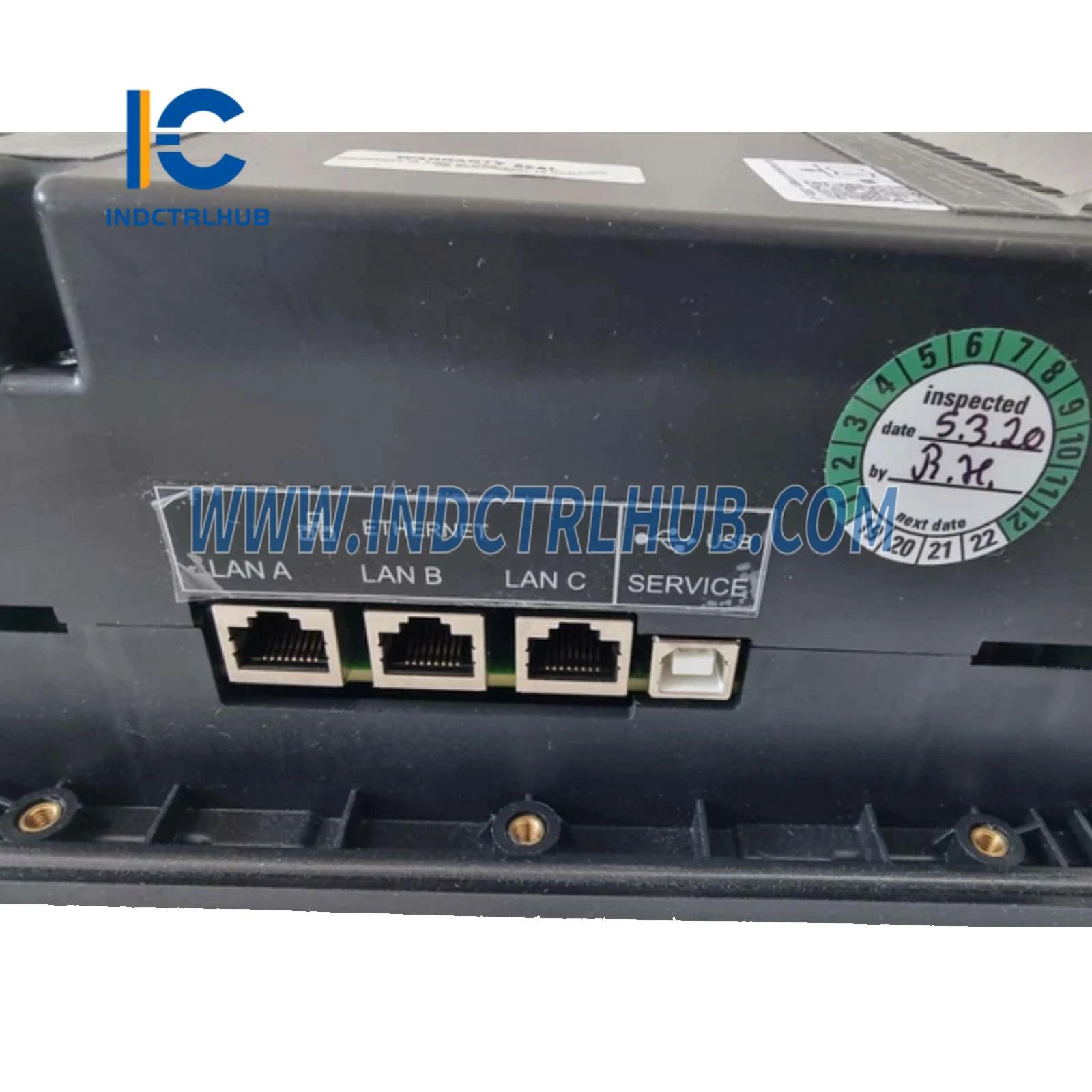

Communication CANopen, SAE J1939, Modbus RTU/TCP, Ethernet, USB
Inputs Up to 10 discrete inputs, 3 analog inputs (configurable via FlexIn)
Outputs Up to 12 discrete relay outputs, 2 analog outputs (±10 V, ±20 mA, PWM)
I/O Expansion Up to 16 external discrete I/Os via CANopen (e.g., Woodward IKD 1)
PID Controllers 3 freely configurable
Event Recorder Up to 300 events with a real-time clock (battery-backed, ~5 years)
Power Measurement Class 1 accuracy
Certifications CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register
System Compatibility Diesel/gas engine generator sets, SAE J1939-compatible ECUs (e.g., Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5, RP-3500XT Remote Panel



View full details

Product Description

Woodward 8440-2085 easYgen-3500XT-P1 Genset Controller

  • Manufacturer: Woodward
  • Model/Part Number: 8440-2085
  • Description: easYgen-3500XT-P1 Genset Controller, 12/24 VDC, Paralleling Operation, 1 A/5 A CT Inputs, for Diesel/Gas Engine Generator Sets

Overview

  • The Woodward 8440-2085 is an easYgen-3500XT-P1 genset controller from the easYgen-3000XT series, designed for advanced control and protection of diesel or gas engine generator sets in paralleling and standalone applications. It supports peer-to-peer paralleling for up to 32 gensets, automatic mains failure (AMF), peak shaving, cogeneration, and import/export control, making it ideal for power generation, marine, and industrial applications. The XT series offers enhanced features like Ethernet connectivity and customizable logic.

Technical Specifications

Specification Details
Model 8440-2085
Series easYgen-3500XT-P1
Type Microprocessor-based genset controller
Input Voltage 12/24 VDC (8–40 VDC range)
Power Consumption < 15 W
PT Input Up to 690 VAC (L-L), 600 VAC (L-N)
CT Input 0–1 A or 0–5 A RMS (configurable)
Speed Input Magnetic Pickup Unit (MPU) or engine ECU via CAN
Measuring Frequency 50/60 Hz (40–85 Hz)
Operating Temperature -20°C to +70°C (-4°F to +158°F)
Storage Temperature -30°C to +80°C (-22°F to +176°F)
Relative Humidity 5% to 95%, non-condensing
Protection Rating IP66/IP67 (front panel), IP20 (housing)
Dimensions 282 mm x 217 mm x 99 mm (11.1 in x 8.5 in x 3.9 in)
Weight Approximately 2.1 kg (6.3 lbs)
Mounting Front panel mount
Display 5.7-inch backlit color LCD, multilingual (English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Danish, Swedish, etc.)
Communication CANopen, SAE J1939, Modbus RTU/TCP, Ethernet, USB
Inputs Up to 10 discrete inputs, 3 analog inputs (configurable via FlexIn)
Outputs Up to 12 discrete relay outputs, 2 analog outputs (±10 V, ±20 mA, PWM)
I/O Expansion Up to 16 external discrete I/Os via CANopen (e.g., Woodward IKD 1)
PID Controllers 3 freely configurable
Event Recorder Up to 300 events with a real-time clock (battery-backed, ~5 years)
Power Measurement Class 1 accuracy
Certifications CE, UL/cUL, CSA, BDEW, ABS, Lloyd’s Register
System Compatibility Diesel/gas engine generator sets, SAE J1939-compatible ECUs (e.g., Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5, RP-3500XT Remote Panel
