Product Description

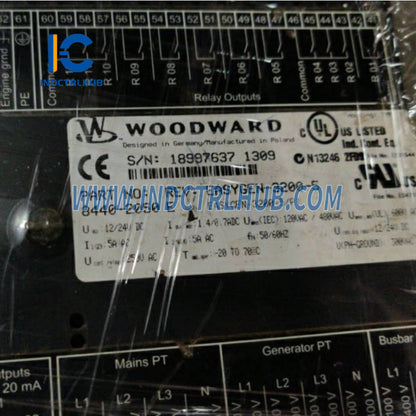

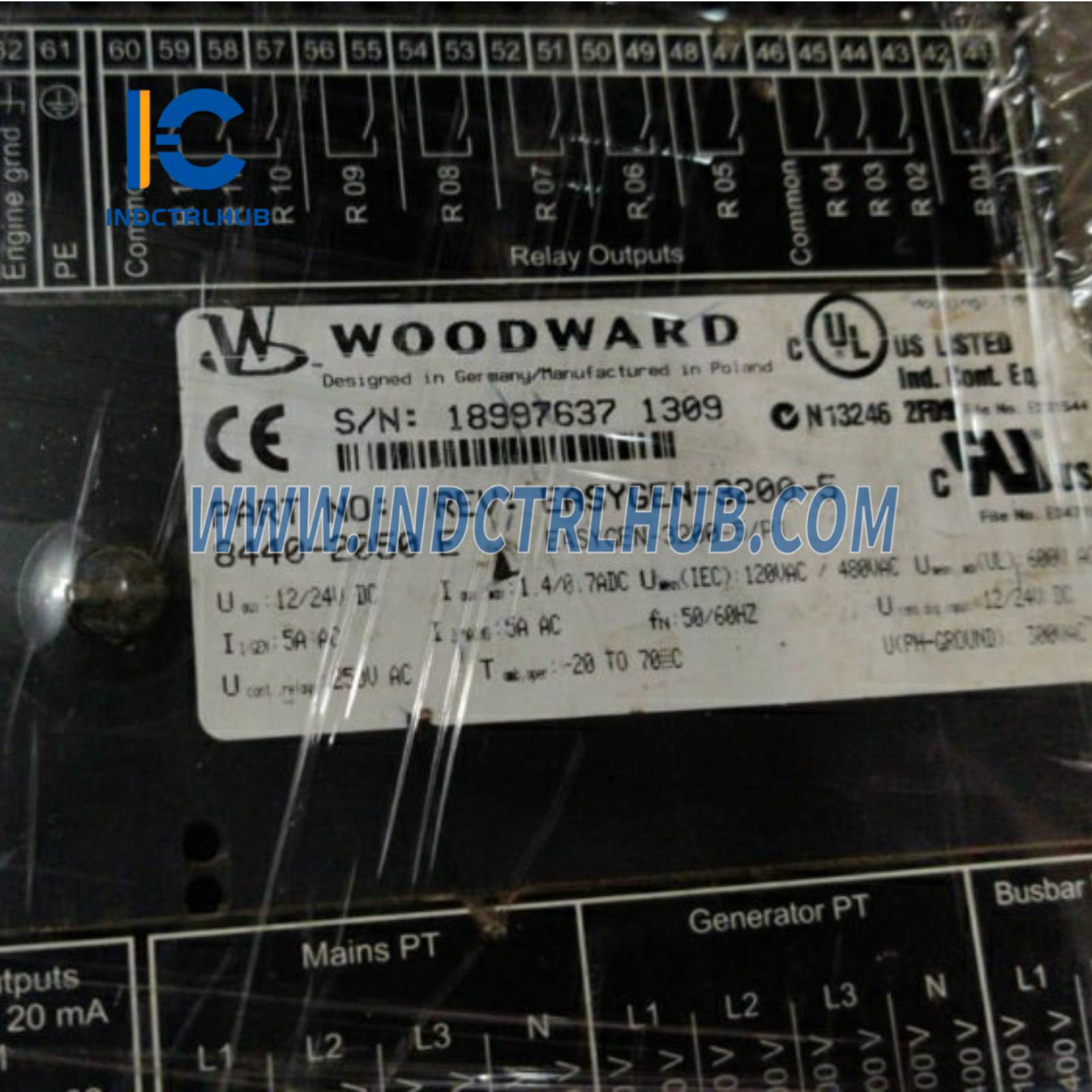

Woodward 8440-2050E EasyGen-3200-5 Genset Controller
Product Overview
- The Woodward 8440-2050E is an EasyGen-3200-5 Genset Controller designed for advanced control and monitoring of single or multiple generator sets in industrial applications, such as power plants, marine systems, and critical backup power facilities. Part of Woodward’s EasyGen-3000 series, this microprocessor-based controller offers comprehensive engine and generator management, including automatic start/stop, synchronization, load sharing, and power management for diesel, gas, or dual-fuel engines. The 8440-2050E model, denoted with the “E” suffix, likely indicates specific hardware or firmware configurations, such as extended communication options or environmental ratings. It supports parallel operation with up to 16 gensets and seamless integration with utility grids or islanded systems. Compared to the EasyGen-1500 or EasyGen-3500-5 (e.g., 8440-2087), the EasyGen-3200-5 provides a balance of advanced features and flexibility for medium-scale applications. It is distinct from Woodward’s protection relays (e.g., XD1G11), MicroNet CPU modules (e.g., 5501-381), excitation systems (e.g., DECS-100-B15), electronic governors (e.g., DYN1-10784-003-0-12), and actuators (e.g., 8408-921).
Technical Specifications
- The 8440-2050E has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 8440-2050E |
| Manufacturer | Woodward |
| Description | Genset Controller for Single or Multiple Generator Sets |
| Series | EasyGen-3000 (EasyGen-3200-5) |
| Function | Controls and monitors generator sets; manages engine, generator, and power distribution |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 8–16 MB (for firmware and configuration) RAM: 4–8 MB (for runtime data) |
| Display | Graphical LCD, 320x240 pixels, multilingual interface |
| Inputs | 10 analog inputs (configurable for 4–20 mA, 0–10 V, RTD, or thermocouple) 12 discrete inputs (24 VDC) 2 speed inputs (magnetic pickup or proximity probes) |
| Outputs | 4 analog outputs (4–20 mA or 0–10 V) 12 relay outputs (dry contact, up to 250 VAC/2 A) 1 actuator output (compatible with Woodward actuators, 4–20 mA or 0–200 mA) |
| Communication Interfaces | 2 serial ports (RS-232 or RS-485, Modbus RTU) 1 Ethernet port (Modbus TCP, optional IEC 61850) 2 CANbus ports (for engine and genset communication) USB (for configuration and data logging) |
| Control Modes | Auto/manual start/stop, isochronous/droop load sharing, active/reactive power control, power factor control, automatic synchronization, islanded or grid-parallel operation |
| Redundancy | Non-redundant (redundant configurations possible with additional units) |
| Diagnostics | Fault detection, event logging (up to 500 events), real-time data trending, status LEDs |
| Compatibility | Woodward actuators (e.g., UG-8, ProAct, 8408-921), speed sensors, circuit breakers, and third-party devices via Modbus or CANbus; integrates with SCADA/DCS systems |
| Power Supply | 12–36 VDC (24 VDC nominal) |
| Power Consumption | Approx. 15–25 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 219 mm (H) x 171 mm (W) x 61 mm (D) |
| Weight | Approx. 1.5–2 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, Lloyd’s Register); ATEX/IECEx Zone 2 (configuration-dependent) |
