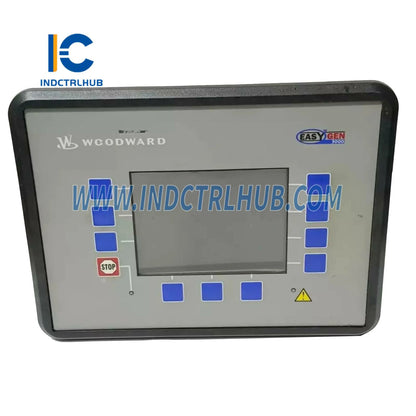

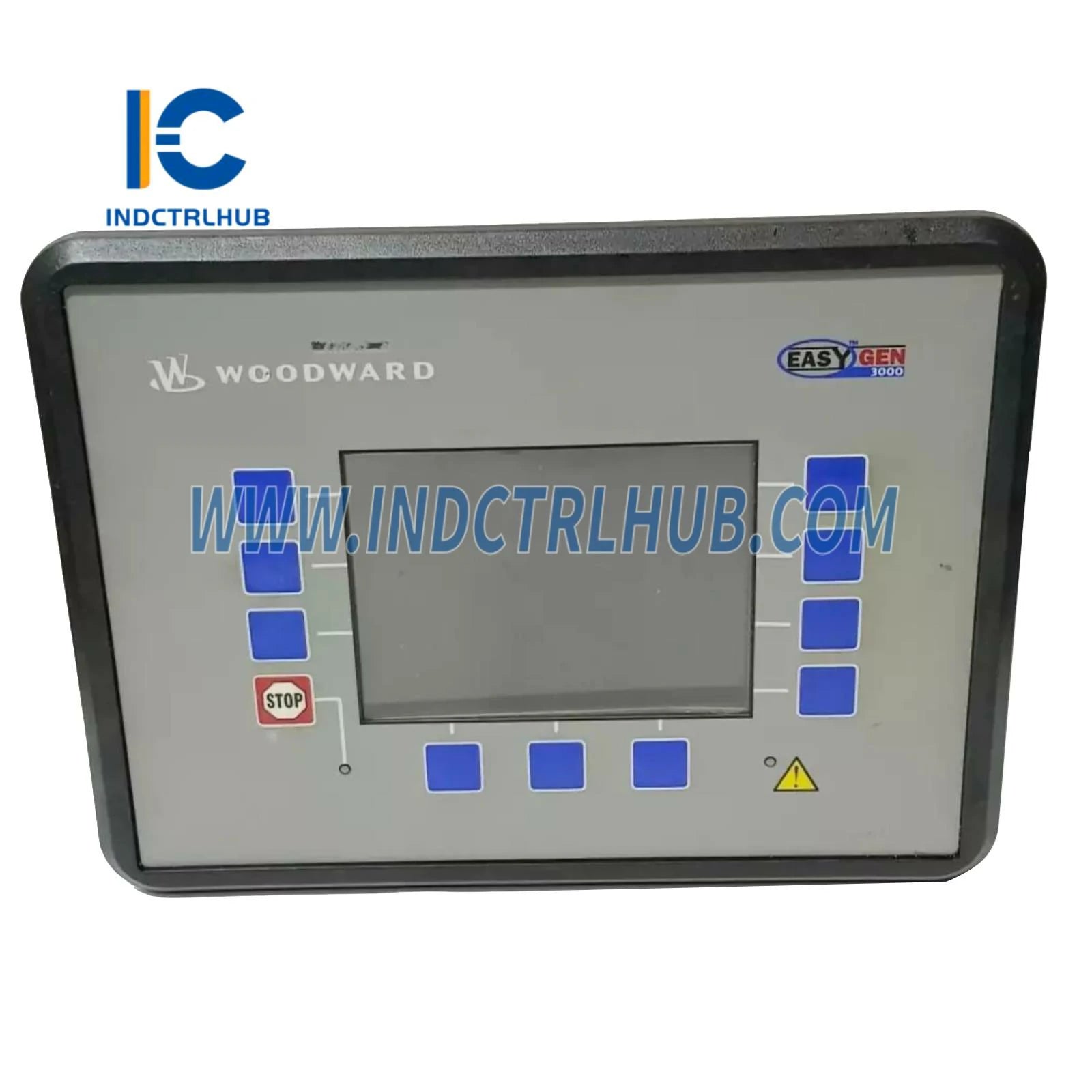

Woodward 8440-2050 easYgen-3200-5/P1 Genset Controller
Woodward 8440-2050 easYgen-3200-5/P1 Genset Controller
Manufacturer: Woodward
Product No.: 8440-2050
Condition:1000 in stock
Product Type: easYgen-3200-5/P1 Genset Controller
Product Origin: USA
Payment: T/T, Western Union
Weight: 1850g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Woodward 8440-2050 easYgen-3200-5/P1 Genset Controller
- Manufacturer: Woodward
- Model/Part Number: 8440-2050
- Description: easYgen-3200-5/P1 Genset Controller, Front Panel Mounting, 12/24 VDC Power Supply, 5.7-inch LCD, for Diesel/Gas Engine and Turbine Generator Sets
Overview
- The Woodward 8440-2050 is an easYgen-3200-5/P1 genset controller designed for industrial gas/diesel engines, steam turbines, and compressor modules. It offers comprehensive engine-generator control, protection, and advanced peer-to-peer paralleling for up to 32 gensets. With a 5.7-inch LCD and multi-lingual support, it is ideal for applications like standby power, automatic mains failure (AMF), peak shaving, cogeneration, and distributed generation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8440-2050 (easYgen-3200-5/P1) |
| Series | easYgen-3000 |
| Type | Genset Controller |
| Power Supply | 12/24 VDC (8_40 VDC), max. 19 W consumption |
| Display | 5.7-inch color LCD, 320 x 240 pixels |
| Analog Inputs | Up to 3 (4_20 mA or 0_10 V, configurable) |
| Analog Outputs | Up to 2 (±10 V, ±20 mA, PWM) |
| Discrete Inputs/Outputs | Max. 12 discrete outputs, 16/16 external I/Os via CANopen |
| Current Transformer (CT) Inputs | 5 A |
| Speed Input | Magnetic/switching pickup, 0.5_25,000 Hz |
| Communication | CANopen, RS-485, Modbus RTU/TCP, Ethernet (optional) |
| Languages | English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish |
| Operating Modes | Auto, Stop, Manual, Load/No Load test |
| Protection Functions | Over-/underspeed, over-/underfrequency, over-/undervoltage, overload, unbalanced load, speed/frequency mismatch, auxiliary excitation failure |
| Breaker Control | Slip frequency/phase matching synchronization, GCB/MCB open-close control, breaker monitoring |
| Load Sharing | Isochronous or droop, up to 32 gensets |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -30°C to +80°C (-22°F to +176°F) |
| Relative Humidity | 95% non-condensing |
| Vibration | 4 G, 5_500 Hz |
| Shock | 20 G peak |
| Ingress Protection | IP20 (front), IP54 with gasket |
| Dimensions | 282 mm x 217 mm x 99 mm (11.1 in x 8.5 in x 3.9 in) |
| Weight | Approximately 1.85 kg (4.08 lbs) |
| Mounting | Front panel mounting |
| Certifications | CE, UL/cUL, CSA, BDEW, ABS, Lloyd__ Register |
| System Compatibility | Woodward IKD 1, Phoenix Contact IL series, Scania S6, MTU ADEC ECU7/8, Volvo EMS2 & EDC4, Deutz EMR2 & EMR3, MAN MFR/EDC7, SISU EEM, Cummins, Woodward EGS02 ECU |
_
