Product Description

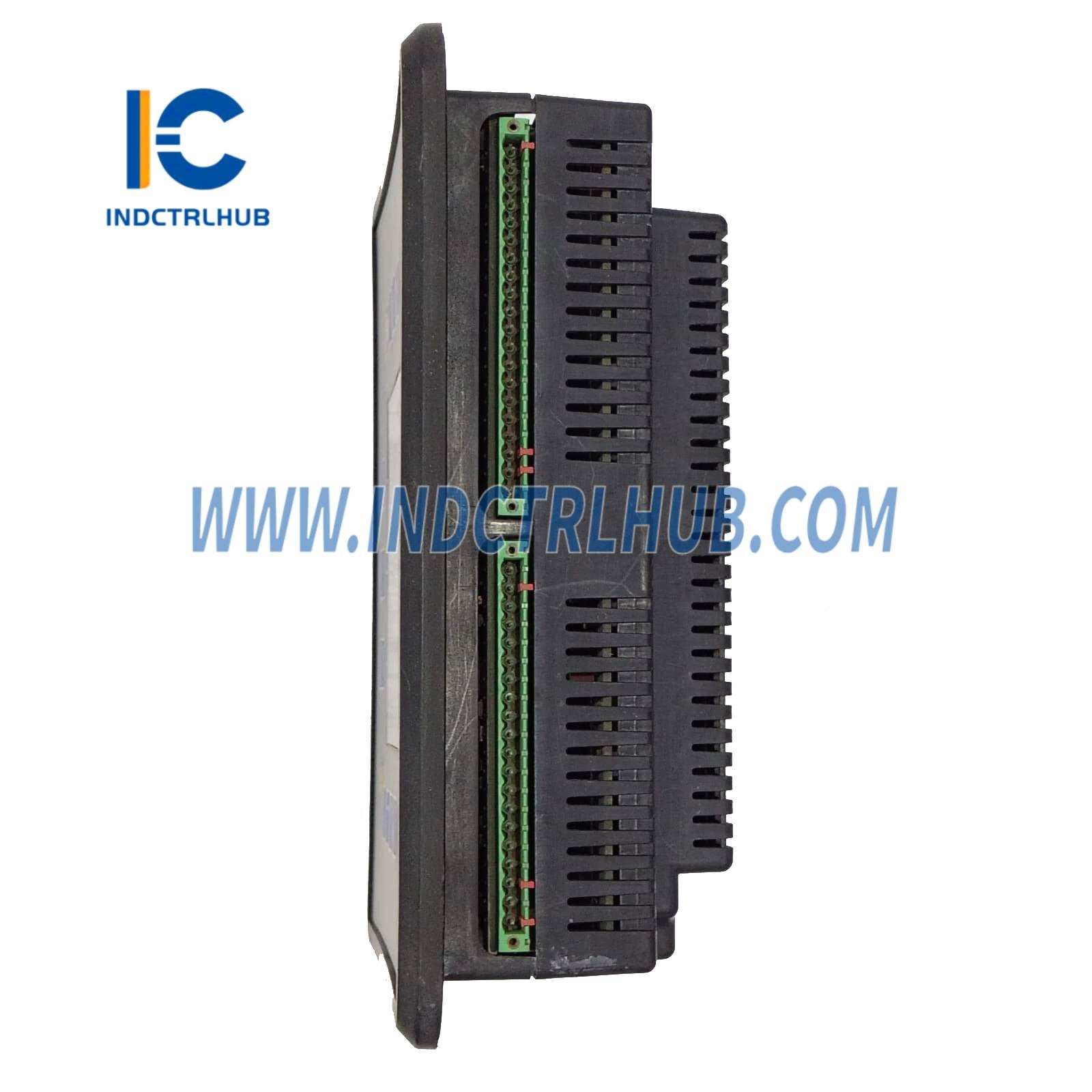

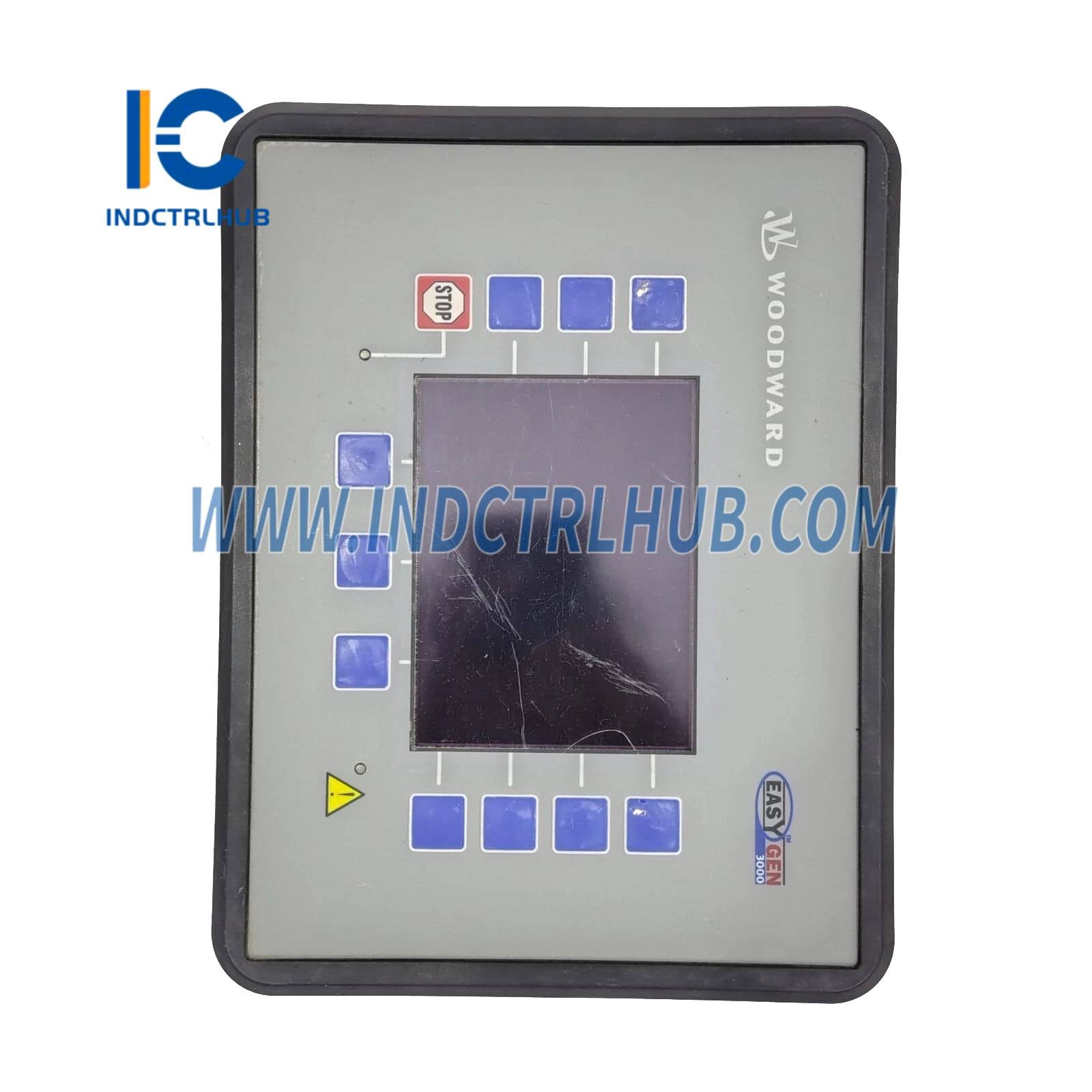

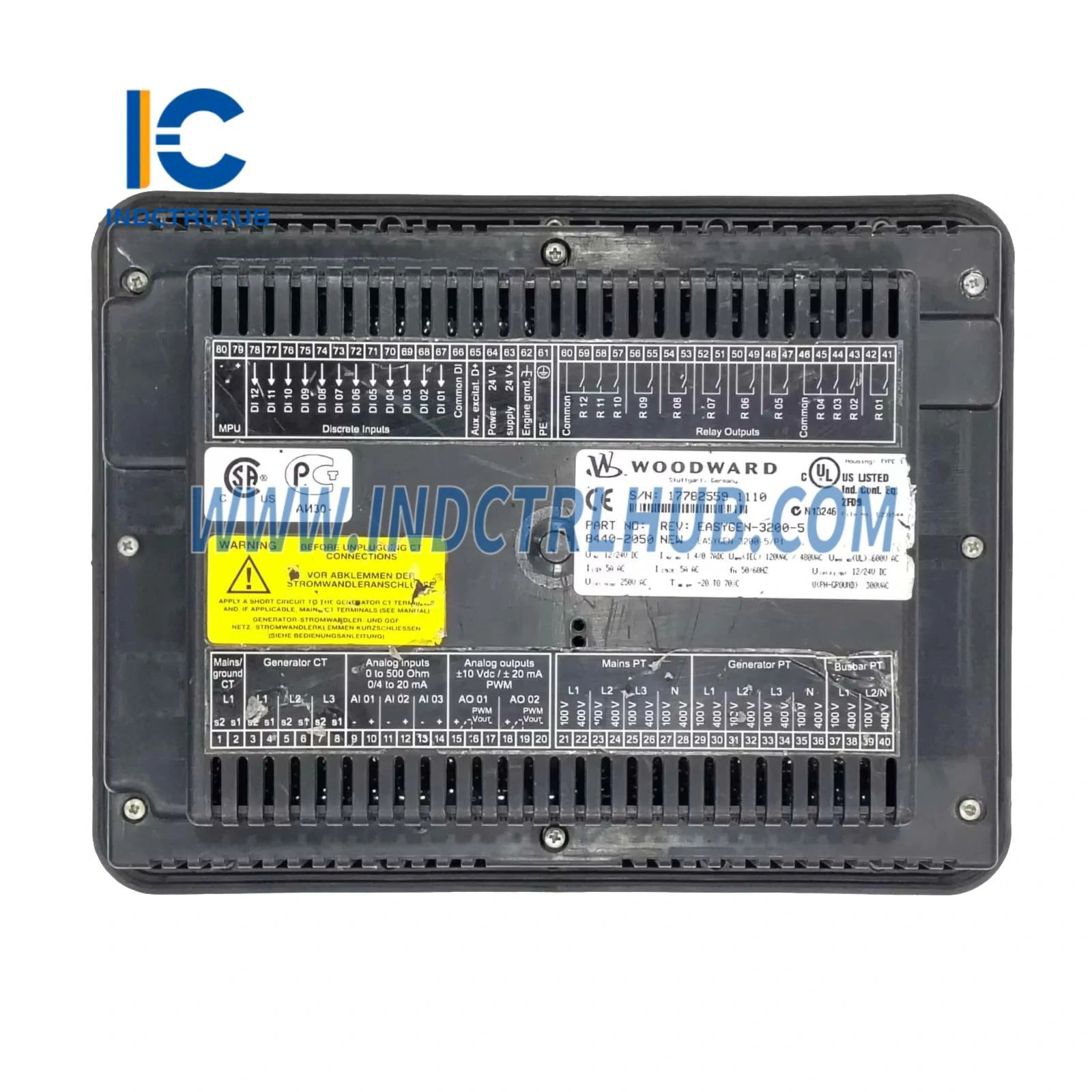

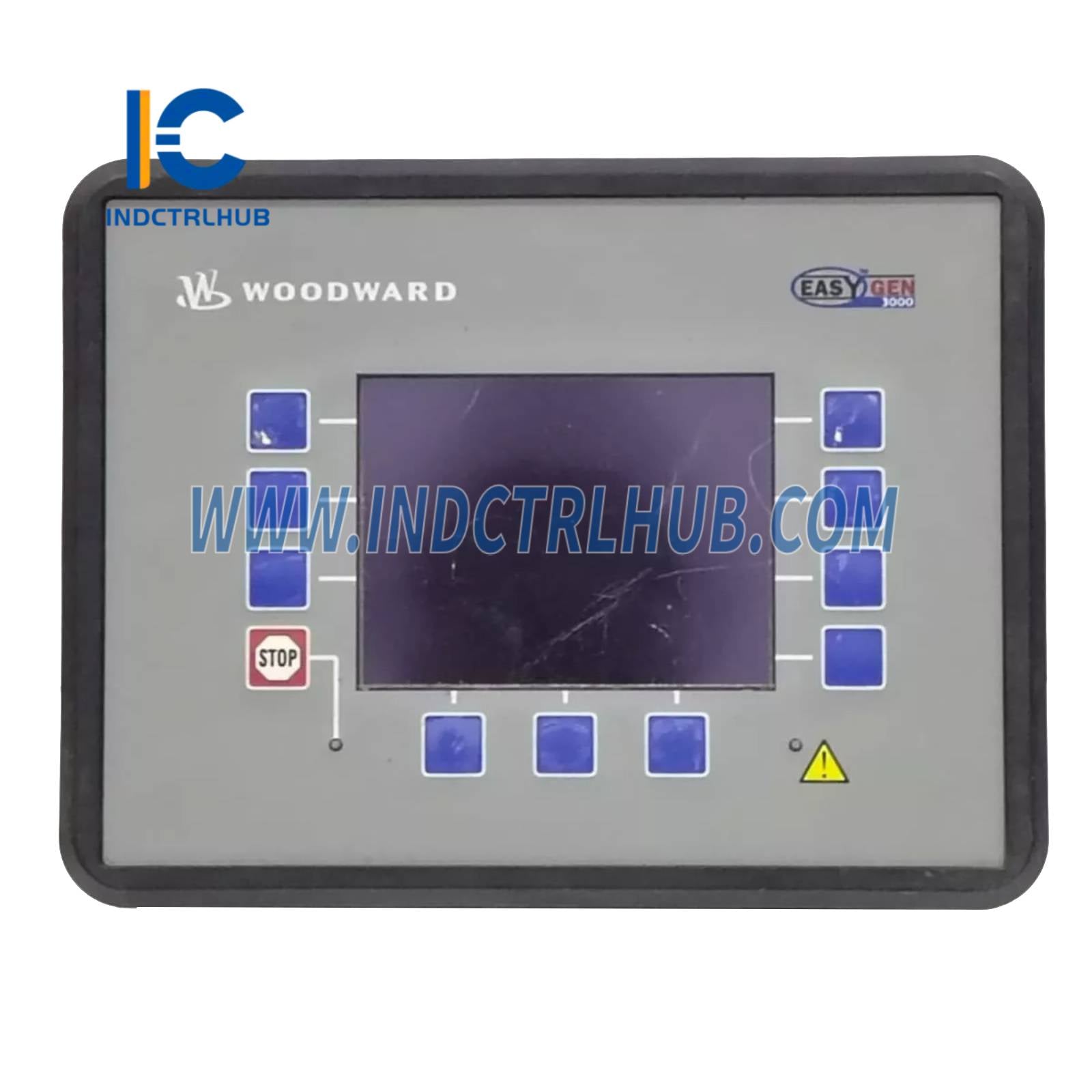

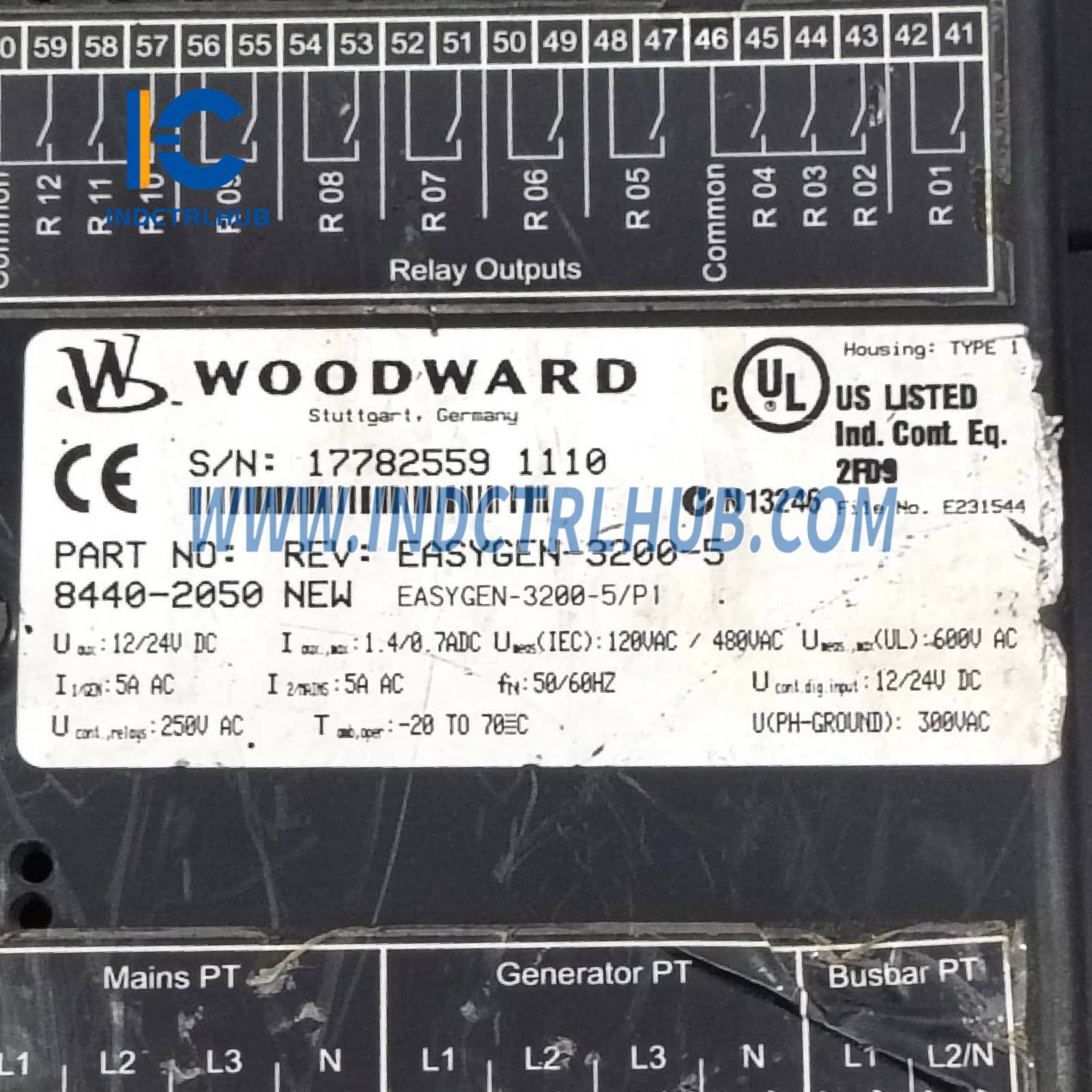

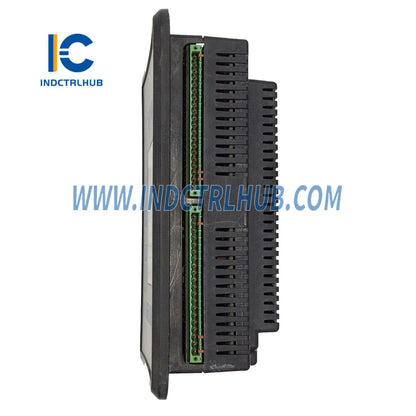

Woodward 8440-2050 EasyGen-3200-5 Genset Controller
Product Overview
- The Woodward 8440-2050 is an EasyGen-3200-5 Genset Controller, designed for advanced control and monitoring of generator sets in industrial applications such as power generation, marine propulsion, and critical backup systems.
Technical Specifications
- The 8440-2050 has the following specifications
| Specification | Details |
|---|---|
| Model/Part Number | 8440-2050 |
| Manufacturer | Woodward |
| Description | EasyGen-3200-5 Genset Controller for Generator Sets |
| Series | EasyGen-3000 |
| Function | Controls and monitors generator sets; manages engine, generator, and power distribution |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 16–32 MB (for firmware and configuration) RAM: 8–16 MB (for runtime data) |
| Display | Graphical LCD, 320x240 pixels, multilingual interface |
| Inputs | 12 analog inputs (configurable for 4–20 mA, 0–10 V, or RTD/thermocouple) 16 discrete inputs (24 VDC) 3 speed inputs (magnetic pickup or proximity probes) |
| Outputs | 8 analog outputs (4–20 mA or 0–10 V) 16 relay outputs (dry contact, up to 250 VAC/2 A) 1 actuator output (compatible with Woodward actuators, 4–20 mA or 0–200 mA) |

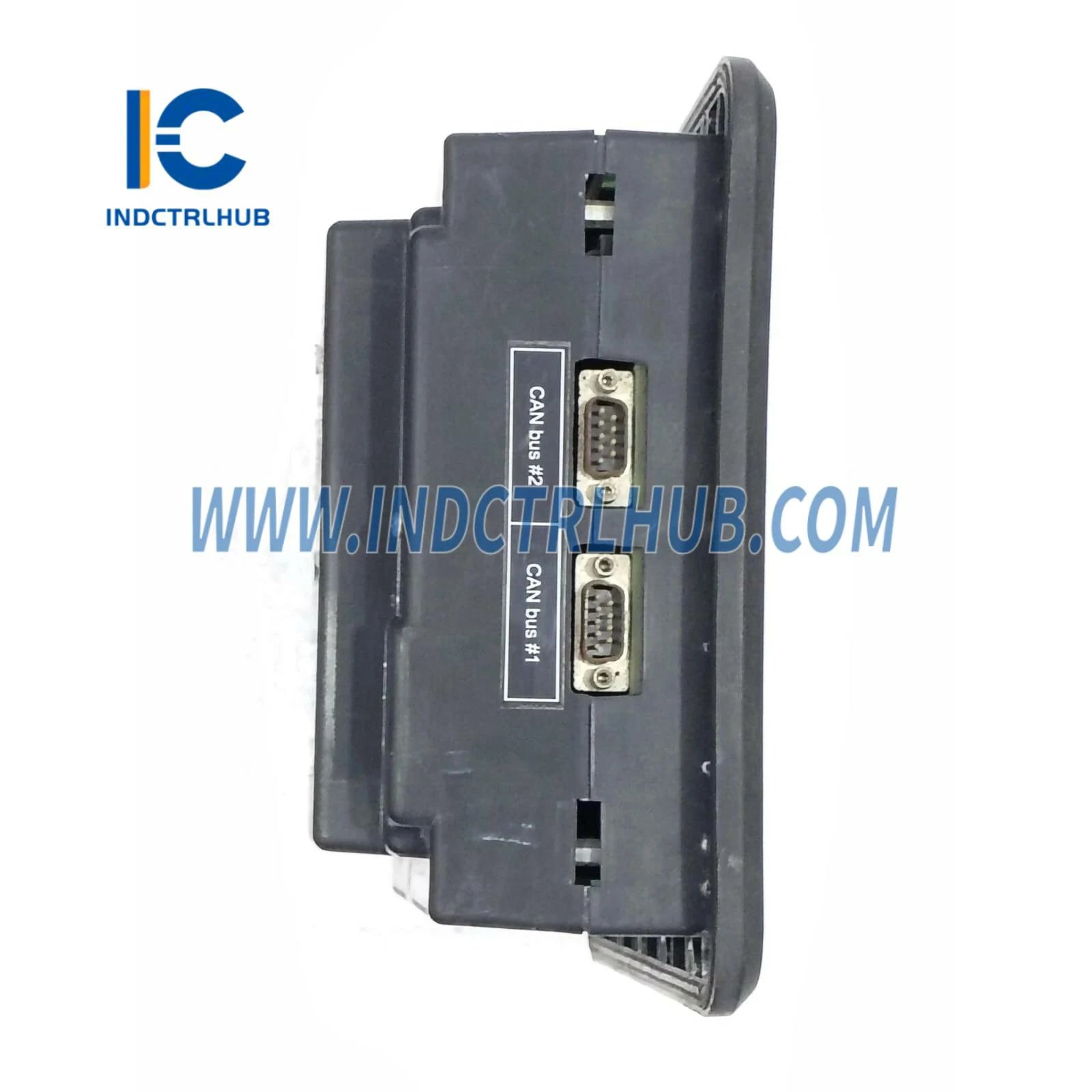

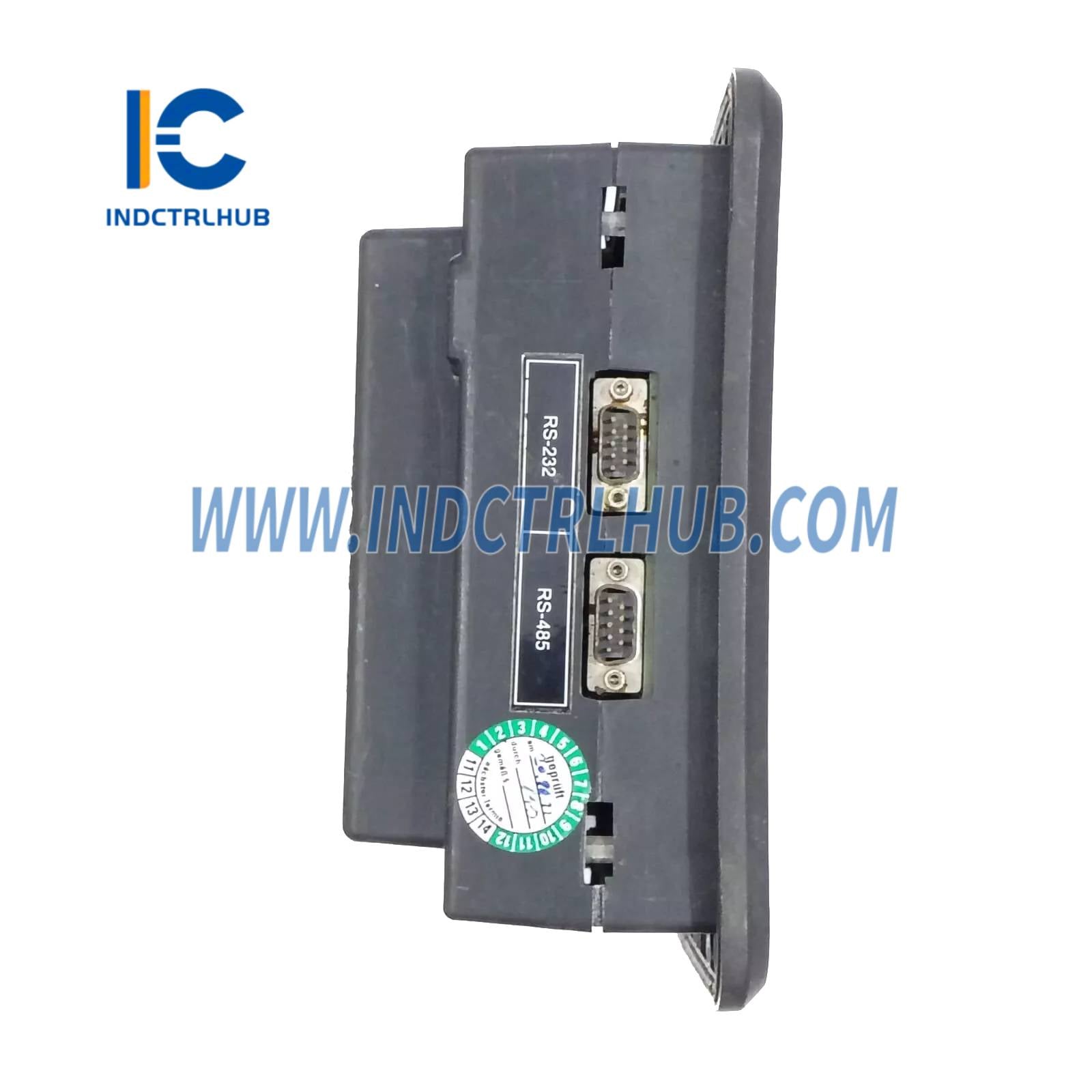

| Communication Interfaces | 2 serial ports (RS-232 or RS-485, Modbus RTU/TCP) 2 CANopen ports (for engine and genset communication) Ethernet (Modbus TCP, Woodward protocols) USB (for configuration and data logging) |
| Control Modes | Auto/manual start/stop, isochronous/droop load sharing, active/reactive power control, power factor control |
| Redundancy | Non-redundant (redundant configurations possible with additional units) |
| Diagnostics | Fault detection, event logging (up to 1000 events), real-time data trending, status LEDs |
| Compatibility | Woodward actuators (e.g., UG-8, ProAct, 8408-921), speed sensors, circuit breakers, and third-party devices via standard protocols; integrates with SCADA/DCS systems |
| Power Supply | 12–36 VDC (24 VDC nominal) |
| Power Consumption | Approx. 15–30 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 250 mm (H) x 230 mm (W) x 80 mm (D) |
| Weight | Approx. 2–3 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, Lloyd’s Register); ATEX/IECEx Zone 2 (configuration-dependent) |
