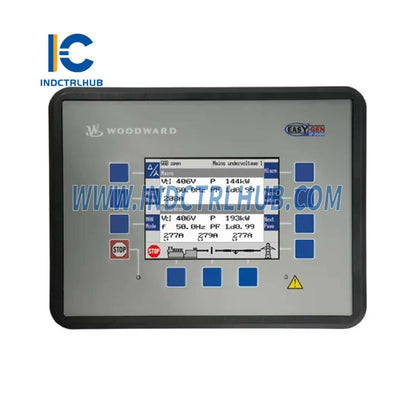

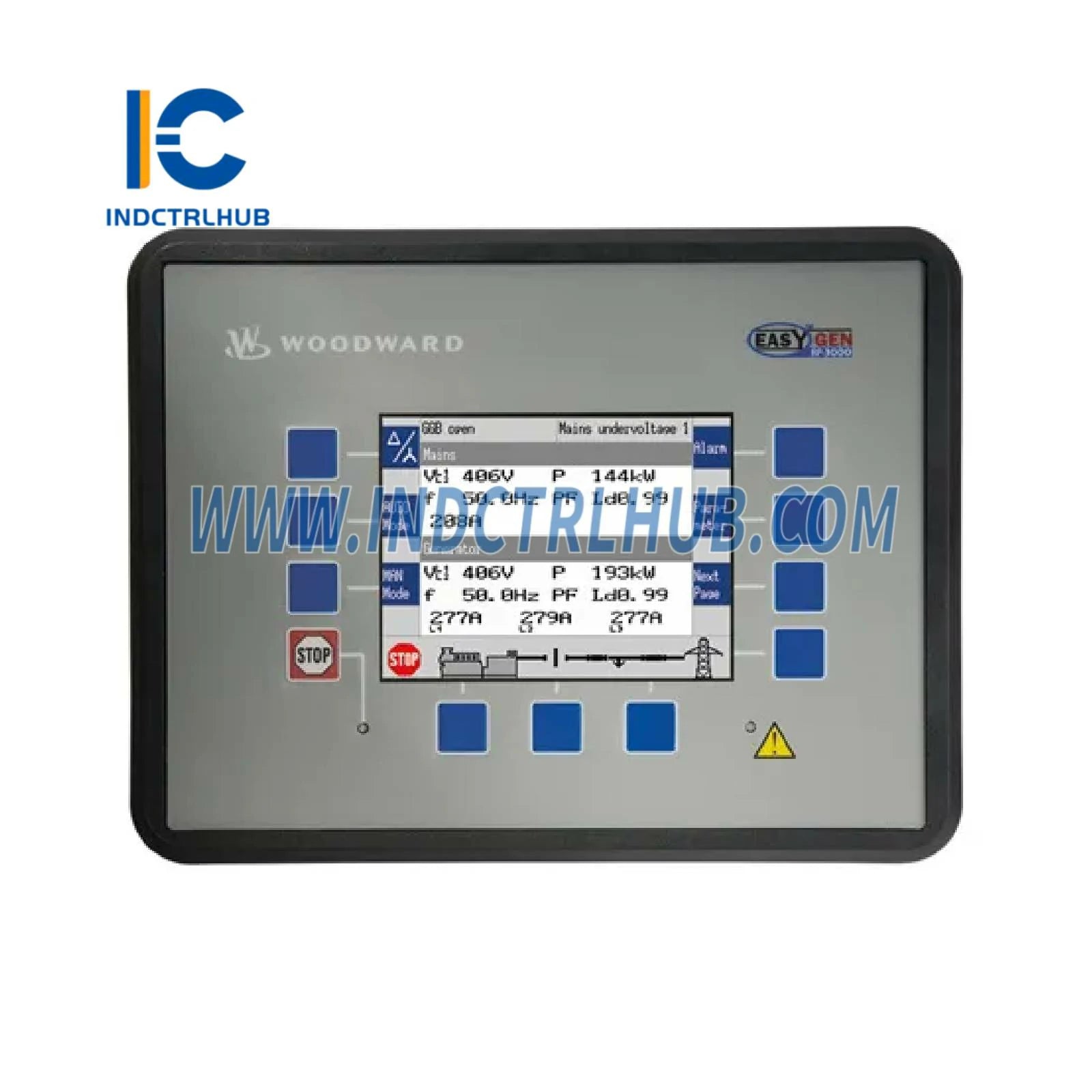

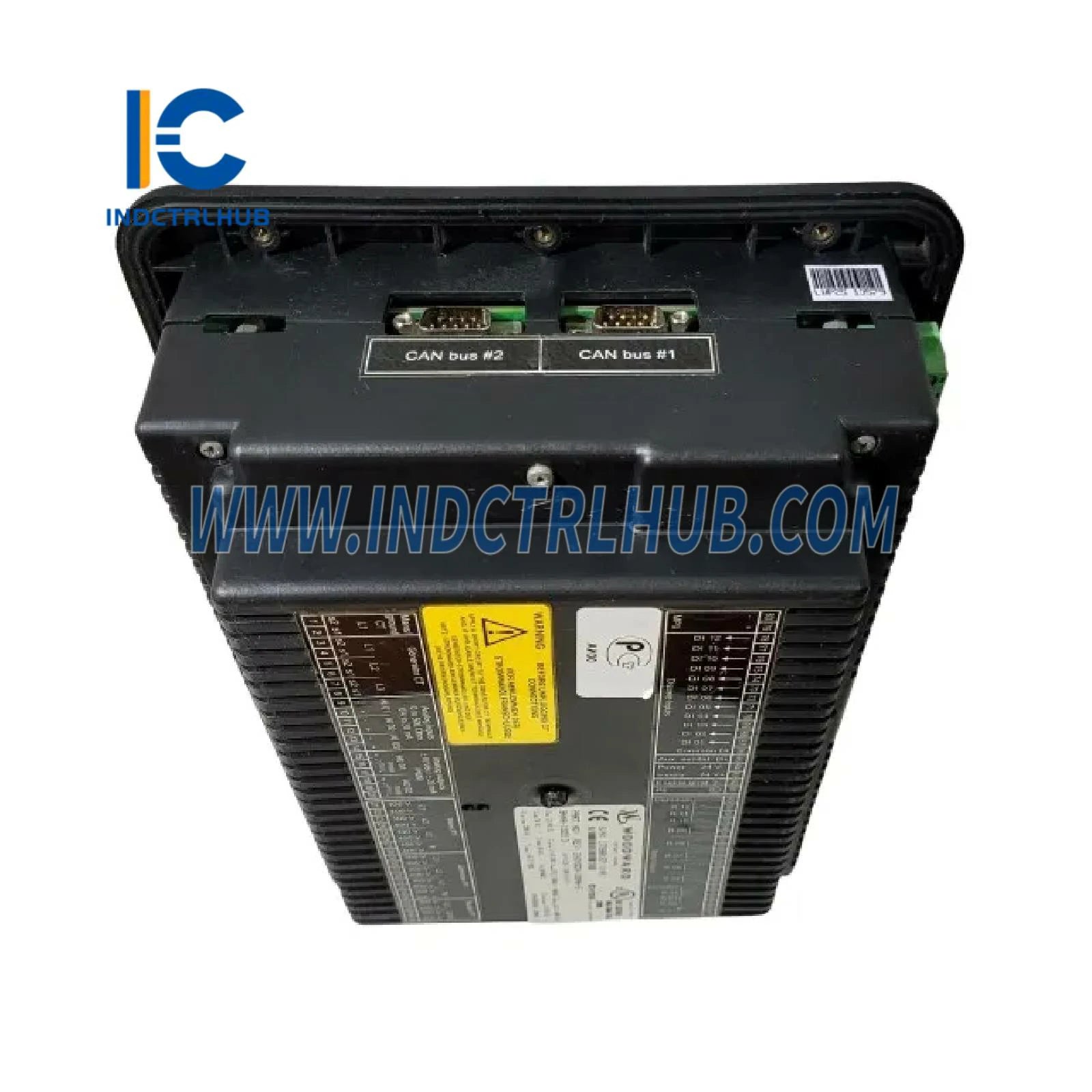

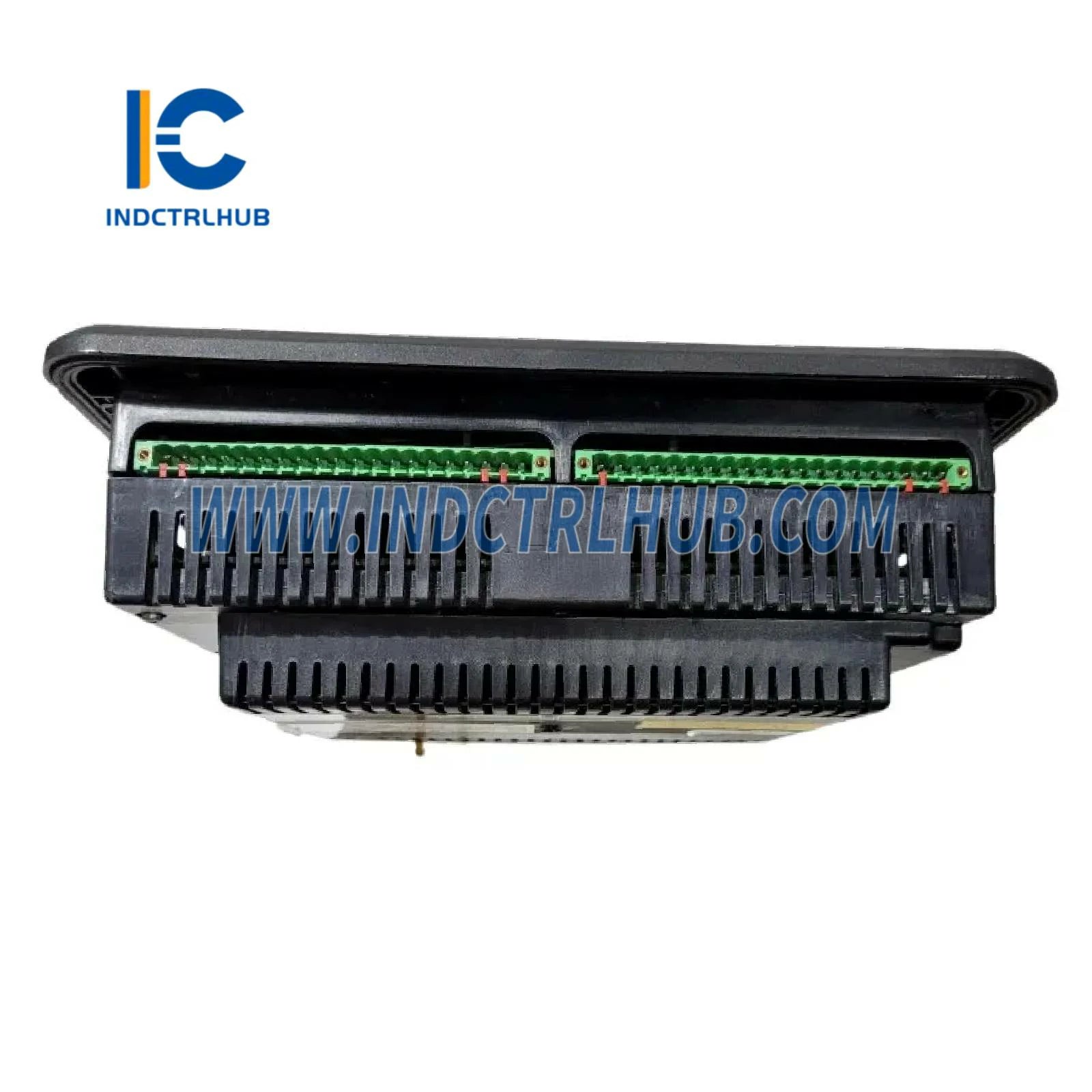

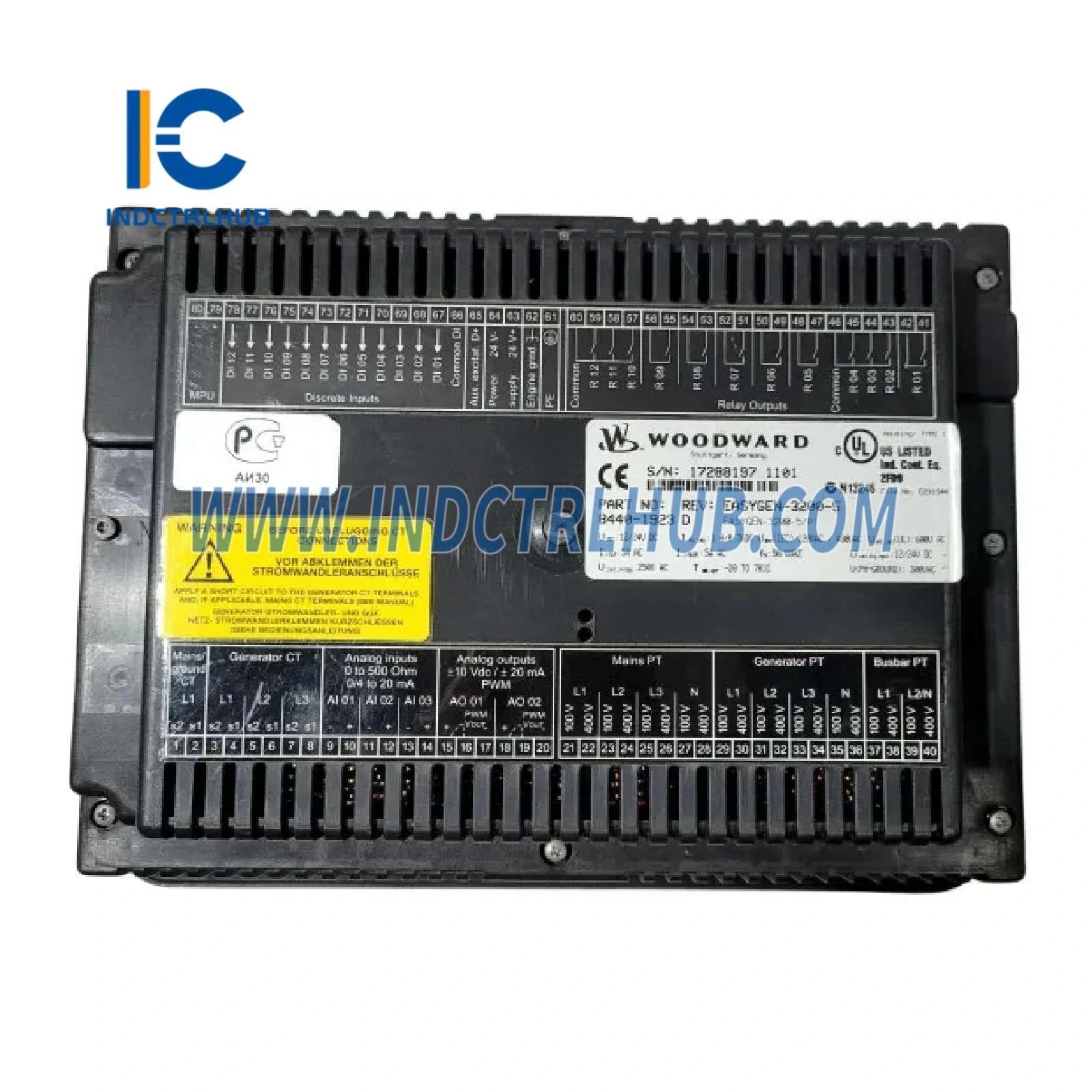

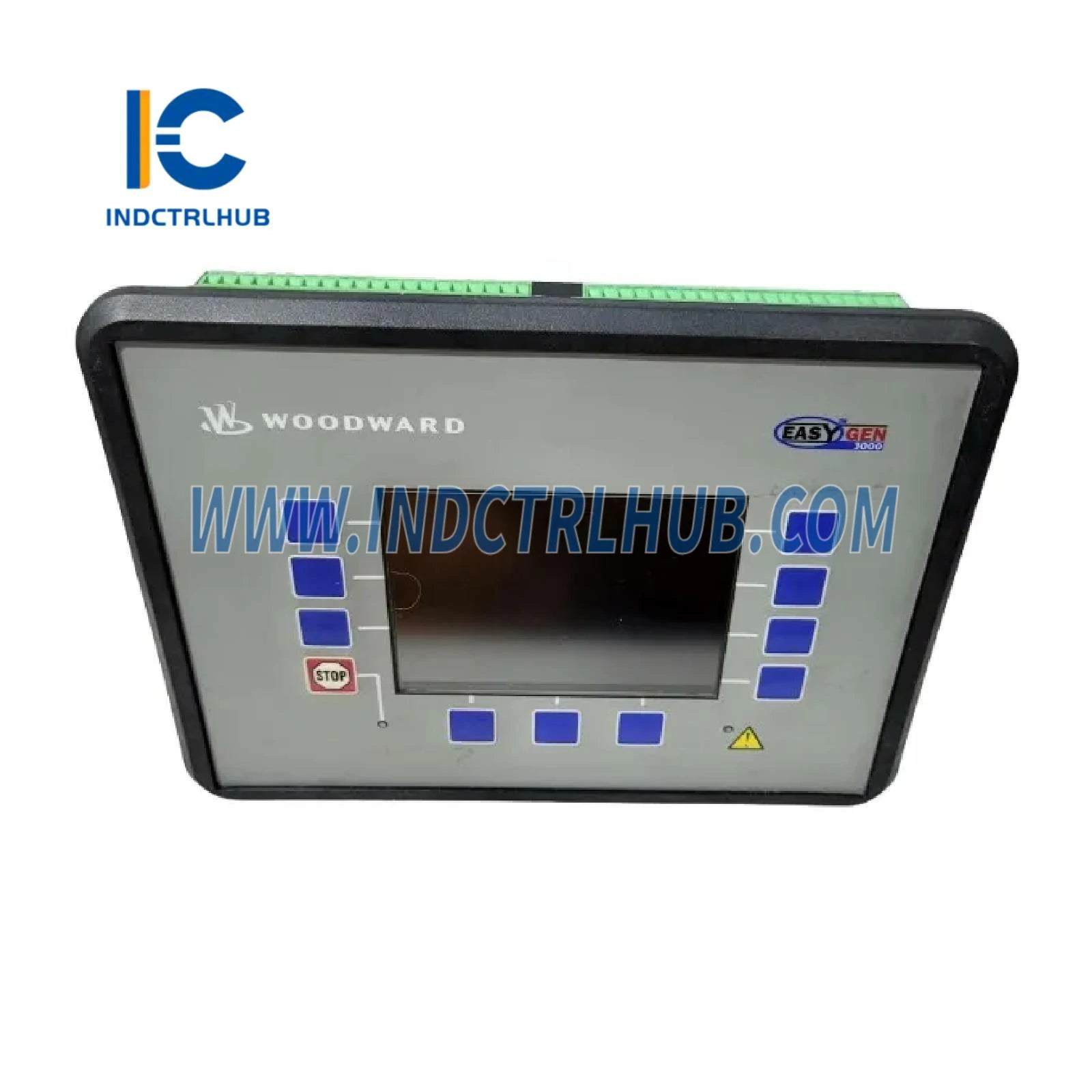

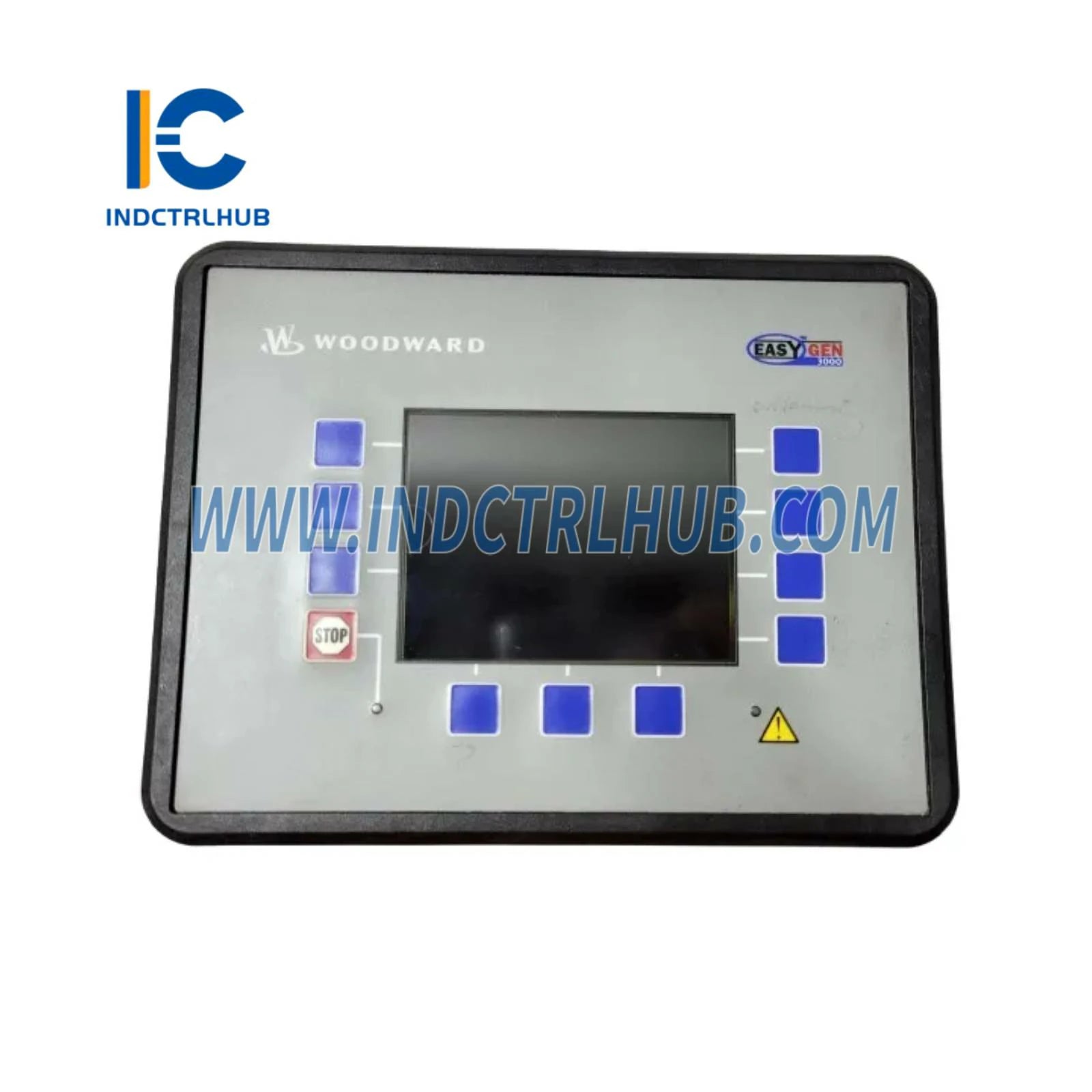

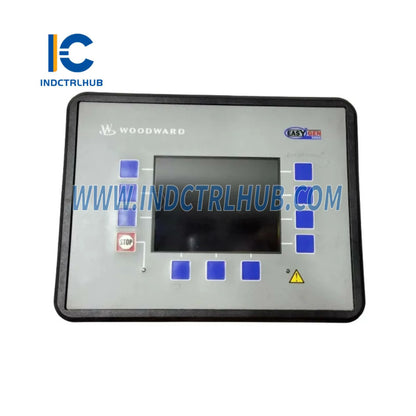

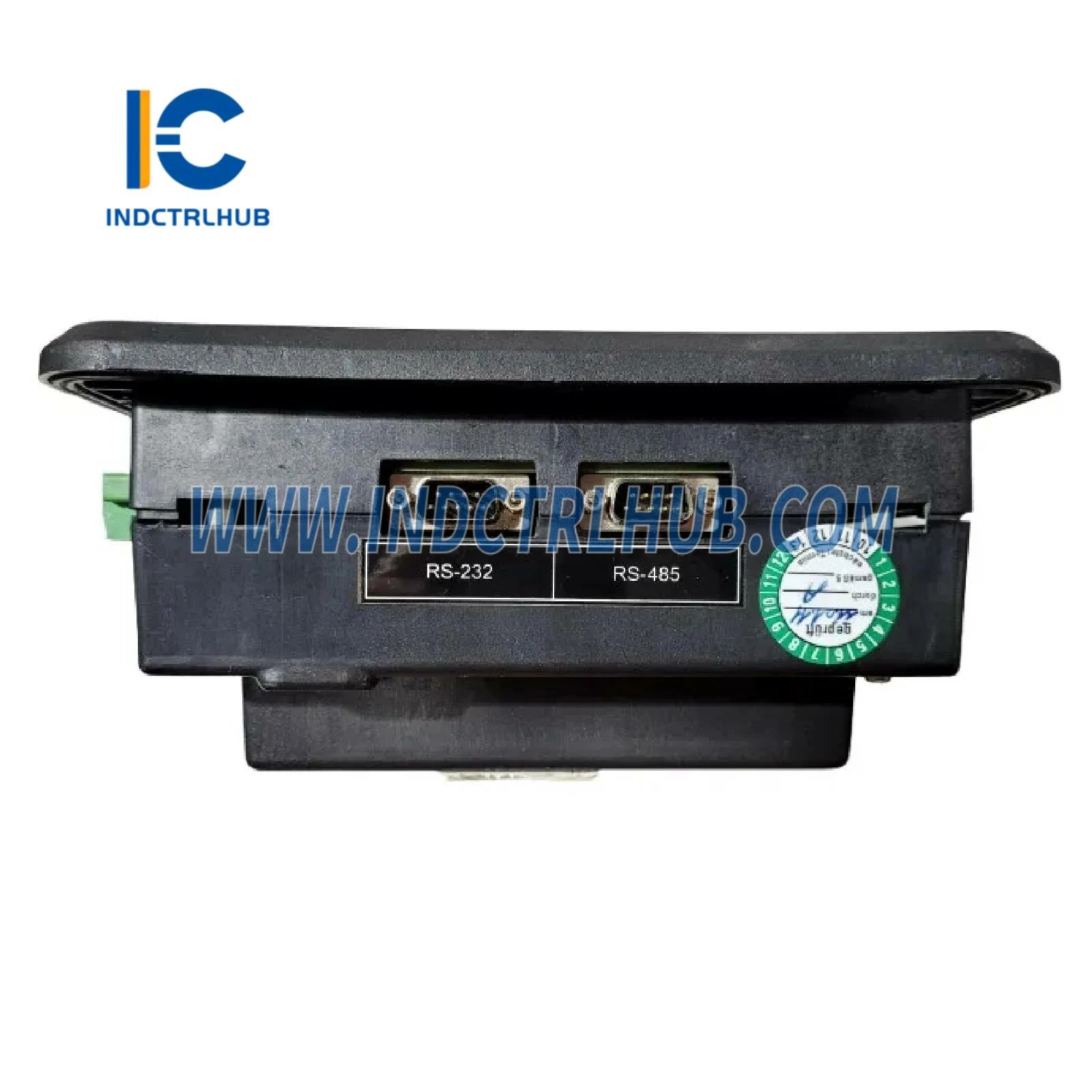

Woodward 8440-1923D easYgen-3200-5 Genset Controller

Quantity

Manufacturer: Woodward
Model/Part Number: 8440-1923D
Description: easYgen-3200-5 Genset Controller, 12/24 VDC, Paralleling Operation, 5 A CT Inputs, for Diesel/Gas Engine Generator Sets

The Woodward 8440-1923D is an easYgen-3200-5 genset controller from the easYgen-3000 series, designed for advanced control and protection of diesel or gas engine generator sets in paralleling and standalone applications. It supports automatic mains failure (AMF), peak shaving, and load sharing, making it suitable for power generation, marine, and industrial applications. The "D" revision indicates a specific firmware or hardware update, typically maintaining core functionality with minor enhancements.

Specification	Details
Model	8440-1923D
Series	easYgen-3200-5
Type	Microprocessor-based genset controller
Input Voltage	12/24 VDC (8–35 VDC range)
Power Consumption	< 15 W
PT Input	Up to 690 VAC
CT Input	0–5 A RMS
Speed Input	Magnetic Pickup Unit (MPU) or engine ECU via CAN
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Storage Temperature	-30°C to +80°C (-22°F to +176°F)
Relative Humidity	5% to 95%, non-condensing
Protection Rating	IP20 (IP54 with front panel seal)
Dimensions	282 mm x 358 mm x 69 mm (11.1 in x 14.1 in x 2.7 in)
Weight	Approximately 1.85 kg (4 lbs)
Mounting	Front panel mount
Display	5.7-inch backlit LCD, multilingual (English, Spanish, Chinese, Japanese, German, French, Portuguese, Russian, Italian, Turkish)
Communication	CANopen, SAE J1939, Modbus RTU, Ethernet, USB
Inputs	Up to 10 discrete inputs, 3 analog inputs
Outputs	Up to 12 discrete relay outputs
I/O Expansion	Up to 16 external discrete I/Os via CANopen (e.g., Woodward IKD 1)
Event Recorder	Up to 300 events with real-time clock (battery-backed, ~5 years)
Certifications	CE, UL/cUL, CSA, GL, LR Marine
System Compatibility	Diesel/gas engine generator sets, SAE J1939-compatible ECUs (e.g., Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5

Product Description

Manufacturer: Woodward
Model/Part Number: 8440-1923D
Description: easYgen-3200-5 Genset Controller, 12/24 VDC, Paralleling Operation, 5 A CT Inputs, for Diesel/Gas Engine Generator Sets

The Woodward 8440-1923D is an easYgen-3200-5 genset controller from the easYgen-3000 series, designed for advanced control and protection of diesel or gas engine generator sets in paralleling and standalone applications. It supports automatic mains failure (AMF), peak shaving, and load sharing, making it suitable for power generation, marine, and industrial applications. The "D" revision indicates a specific firmware or hardware update, typically maintaining core functionality with minor enhancements.

Specification	Details
Model	8440-1923D
Series	easYgen-3200-5
Type	Microprocessor-based genset controller
Input Voltage	12/24 VDC (8–35 VDC range)
Power Consumption	< 15 W
PT Input	Up to 690 VAC
CT Input	0–5 A RMS
Speed Input	Magnetic Pickup Unit (MPU) or engine ECU via CAN
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Storage Temperature	-30°C to +80°C (-22°F to +176°F)
Relative Humidity	5% to 95%, non-condensing
Protection Rating	IP20 (IP54 with front panel seal)
Dimensions	282 mm x 358 mm x 69 mm (11.1 in x 14.1 in x 2.7 in)
Weight	Approximately 1.85 kg (4 lbs)
Mounting	Front panel mount
Display	5.7-inch backlit LCD, multilingual (English, Spanish, Chinese, Japanese, German, French, Portuguese, Russian, Italian, Turkish)
Communication	CANopen, SAE J1939, Modbus RTU, Ethernet, USB
Inputs	Up to 10 discrete inputs, 3 analog inputs
Outputs	Up to 12 discrete relay outputs
I/O Expansion	Up to 16 external discrete I/Os via CANopen (e.g., Woodward IKD 1)
Event Recorder	Up to 300 events with real-time clock (battery-backed, ~5 years)
Certifications	CE, UL/cUL, CSA, GL, LR Marine
System Compatibility	Diesel/gas engine generator sets, SAE J1939-compatible ECUs (e.g., Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5
