| Specification |
Details |
| Model |
8440-1923 |
| Series |
easYgen-3200-5 |
| Type |
Microprocessor-based genset controller |
| Input Voltage |
12/24 VDC (8–35 VDC range) |
| Power Consumption |
< 15 W |
| PT Input |
Up to 690 VAC |
| CT Input |
0–5 A RMS |
| Speed Input |
Magnetic Pickup Unit (MPU) or engine ECU via CAN |
| Operating Temperature |
-20°C to +70°C (-4°F to +158°F) |
| Storage Temperature |
-30°C to +80°C (-22°F to +176°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Protection Rating |
IP20 (IP54 with front panel seal) |
| Dimensions |
282 mm x 358 mm x 69 mm (11.1 in x 14.1 in x 2.7 in) |
| Weight |
Approximately 1.85 kg (4 lbs) |
| Mounting |
Front panel mount |

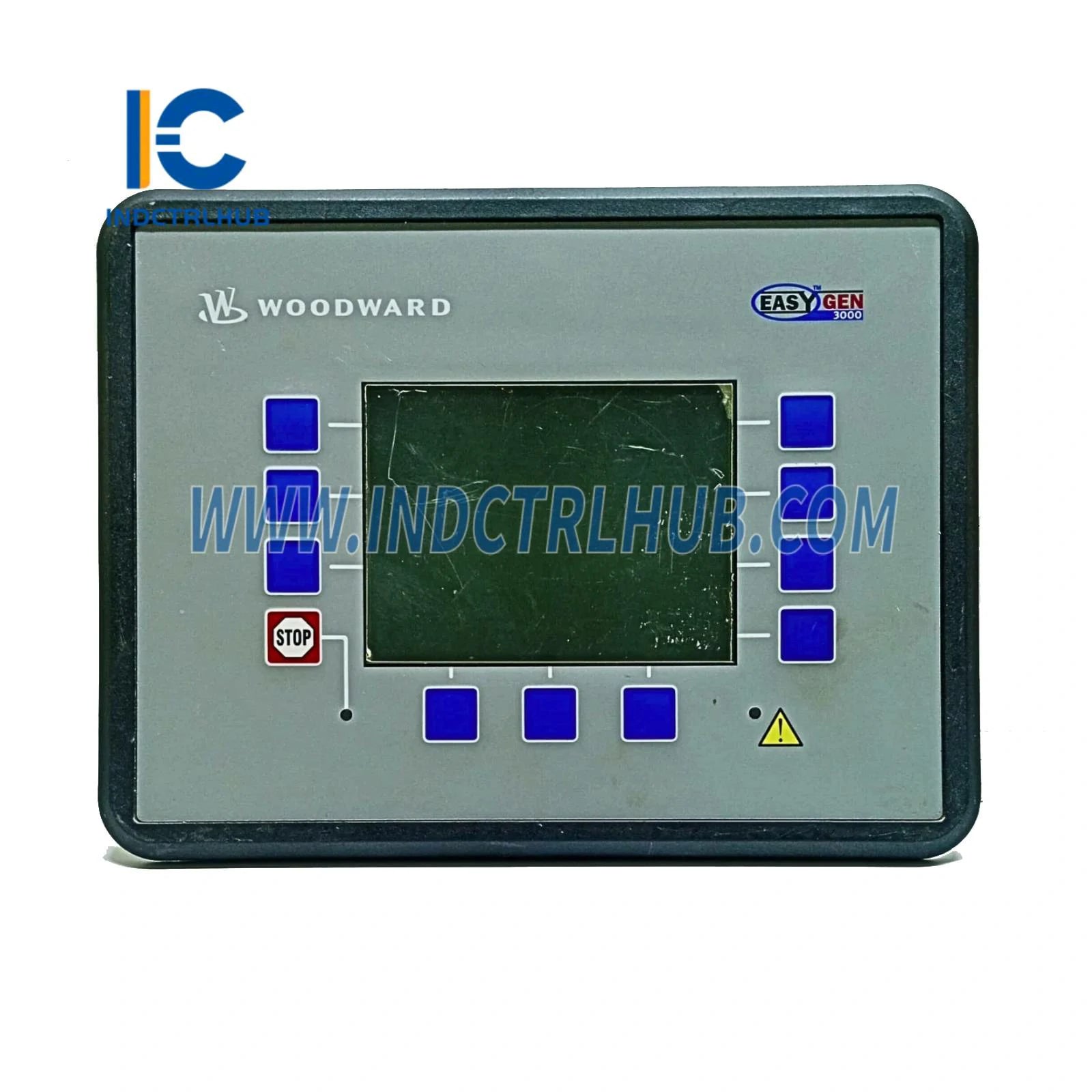

| Display |
5.7-inch backlit LCD, multilingual (English, Spanish, Chinese, Japanese, German, French, Portuguese, Russian, Italian, Turkish) |

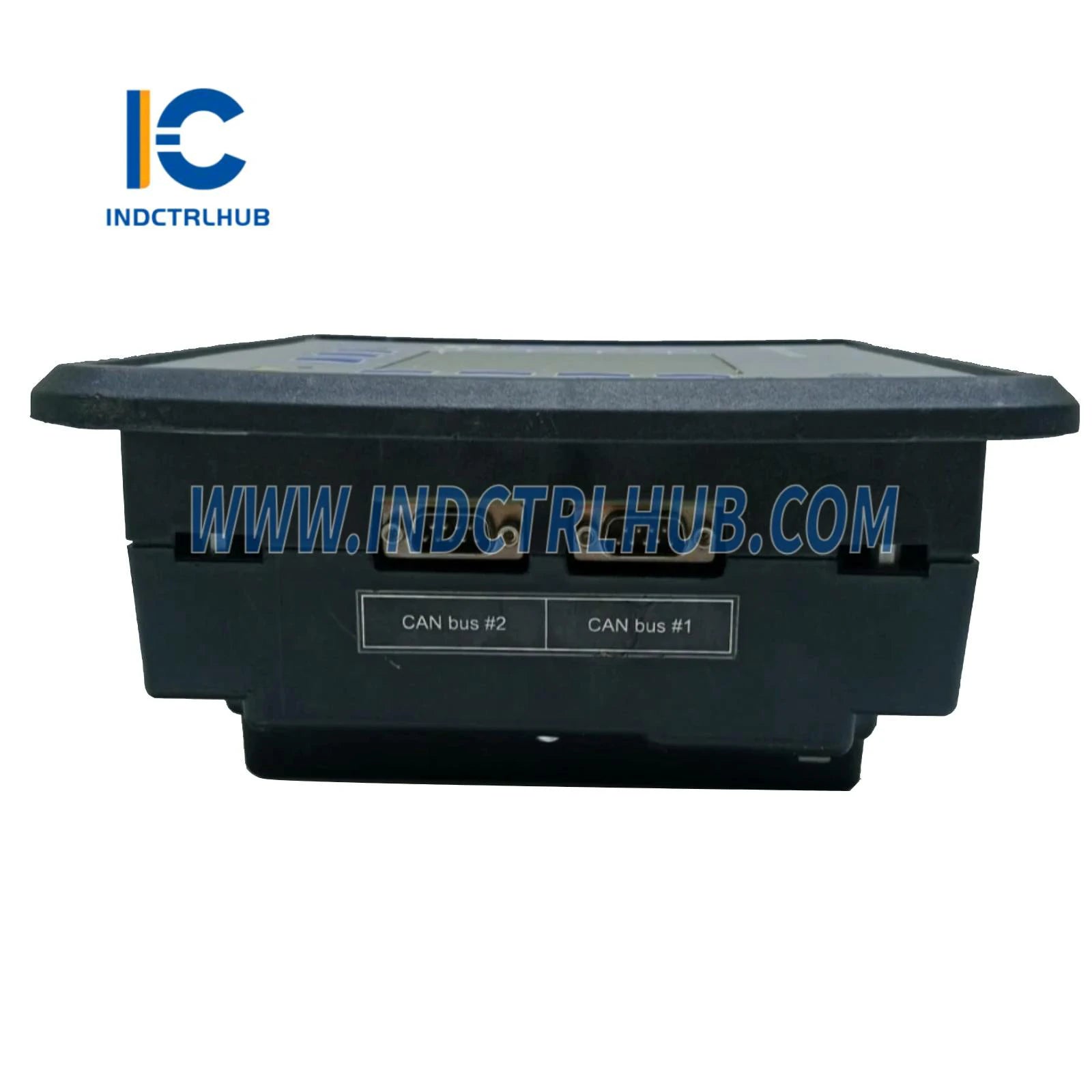

| Communication |
CANopen, SAE J1939, Modbus RTU, Ethernet, USB |
| Inputs |
Up to 10 discrete inputs, 3 analog inputs |
| Outputs |
Up to 12 discrete relay outputs |
| I/O Expansion |
Up to 16 external discrete I/Os via CANopen (e.g., Woodward IKD 1) |
| Event Recorder |
Up to 300 events with real-time clock (battery-backed, ~5 years) |
| Certifications |
CE, UL/cUL, CSA, GL, LR Marine |
| System Compatibility |
Diesel/gas engine generator sets, SAE J1939-compatible ECUs (e.g., Scania, MTU, Volvo, Deutz, Cummins), Woodward LS-5 |
