Woodward 8404-201 Actuator
Woodward 8404-201 Actuator
Manufacturer: Woodward
Product No.: 8404-201
Condition:1000 in stock
Product Type: Actuator
Product Origin: USA
Payment: T/T, Western Union
Weight: 4500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping

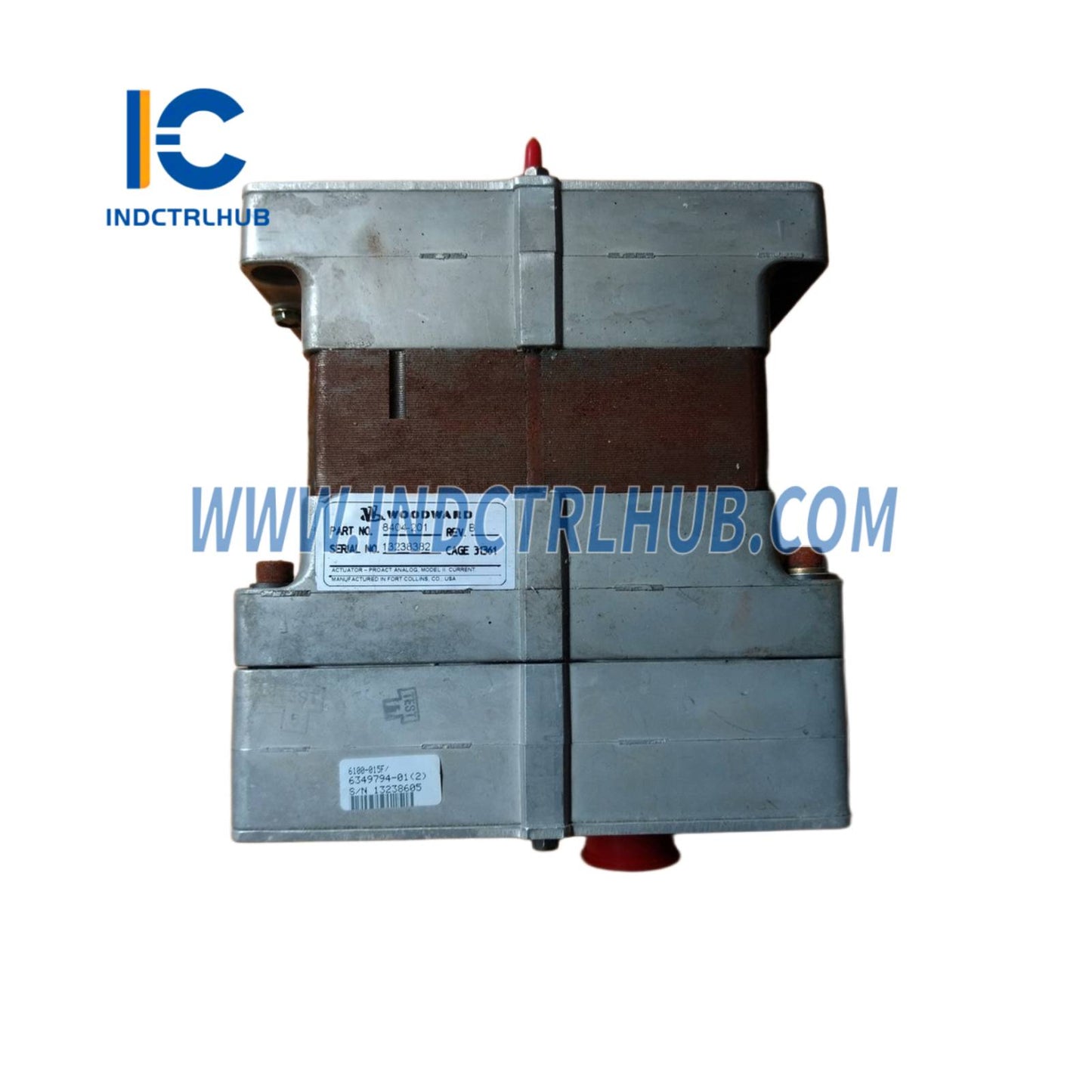

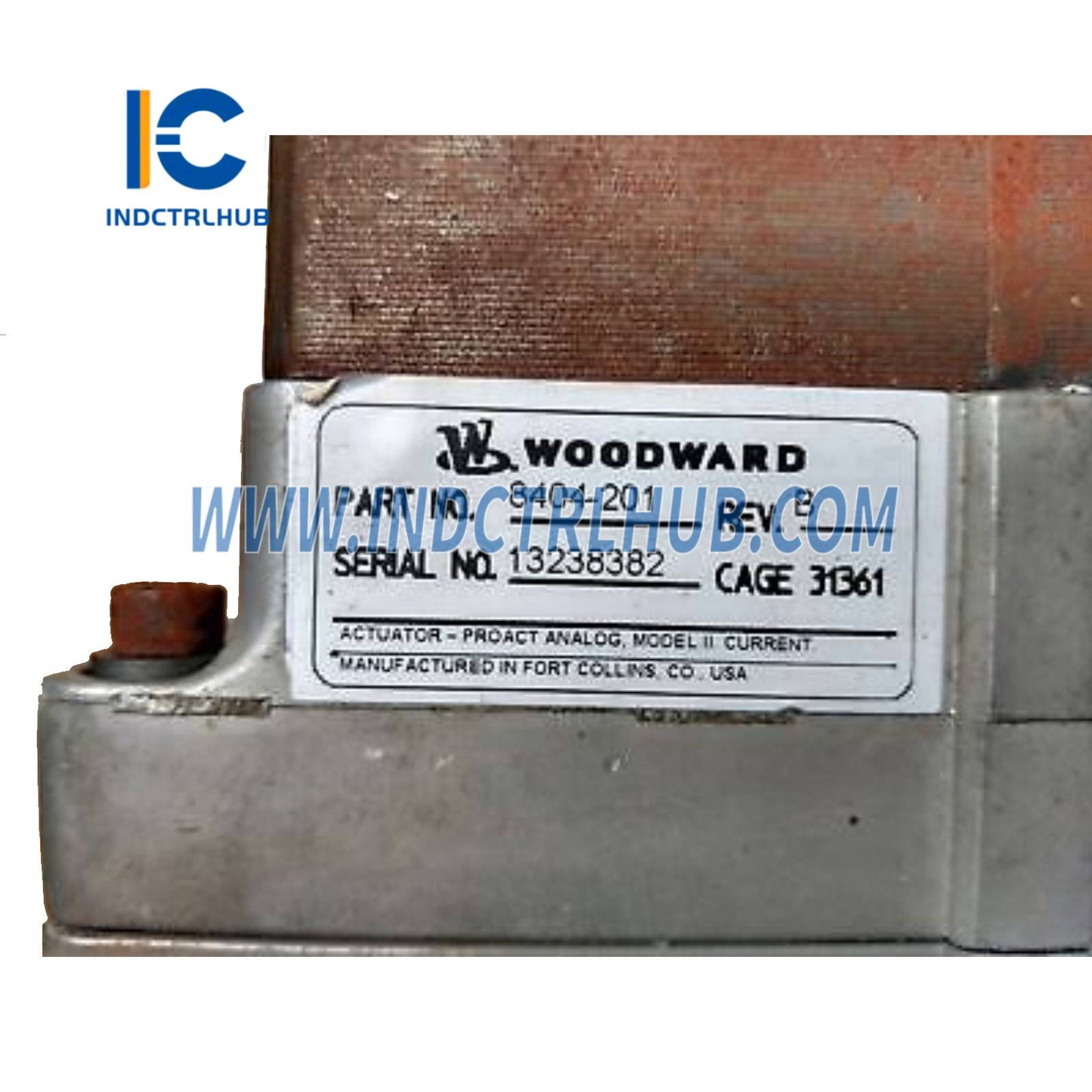

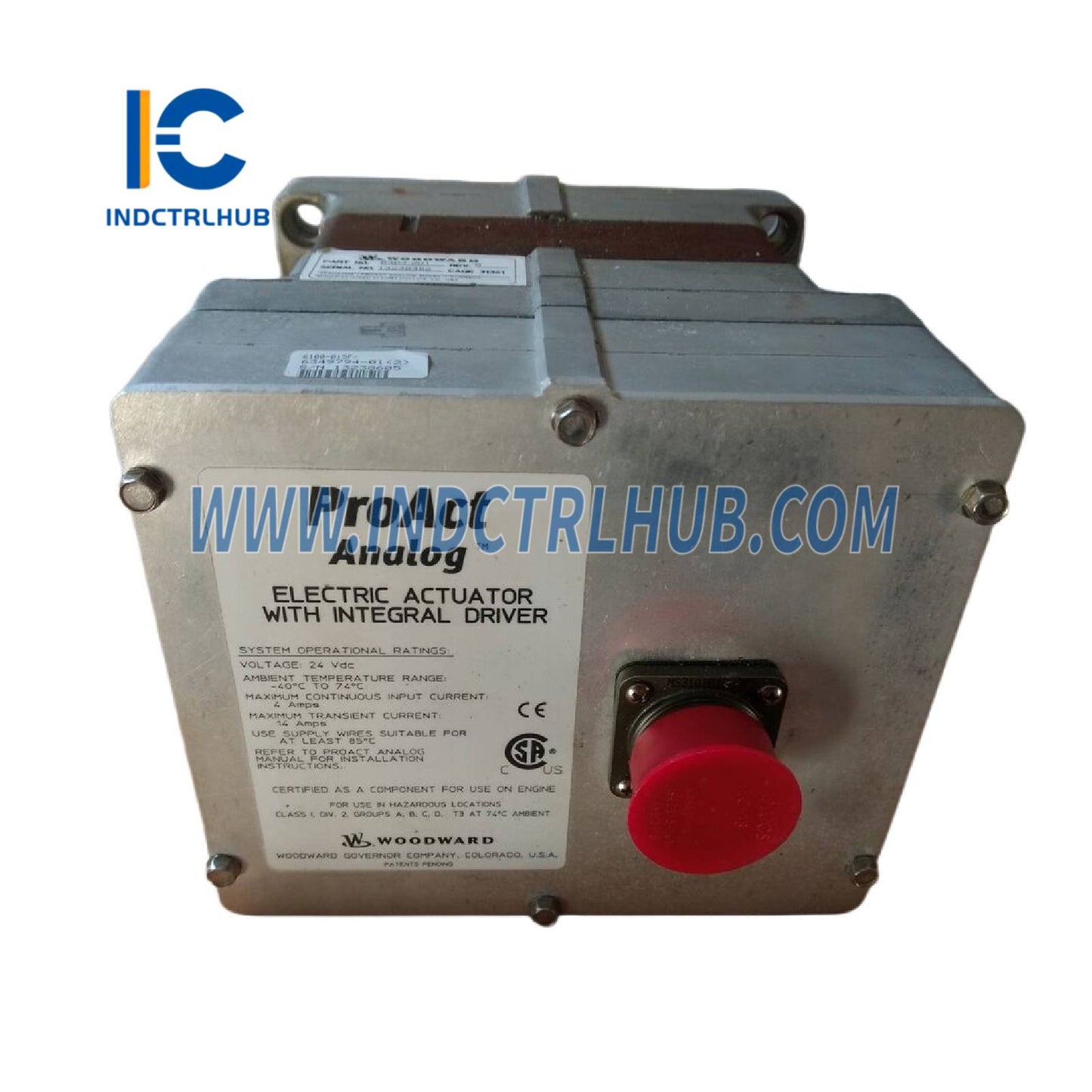

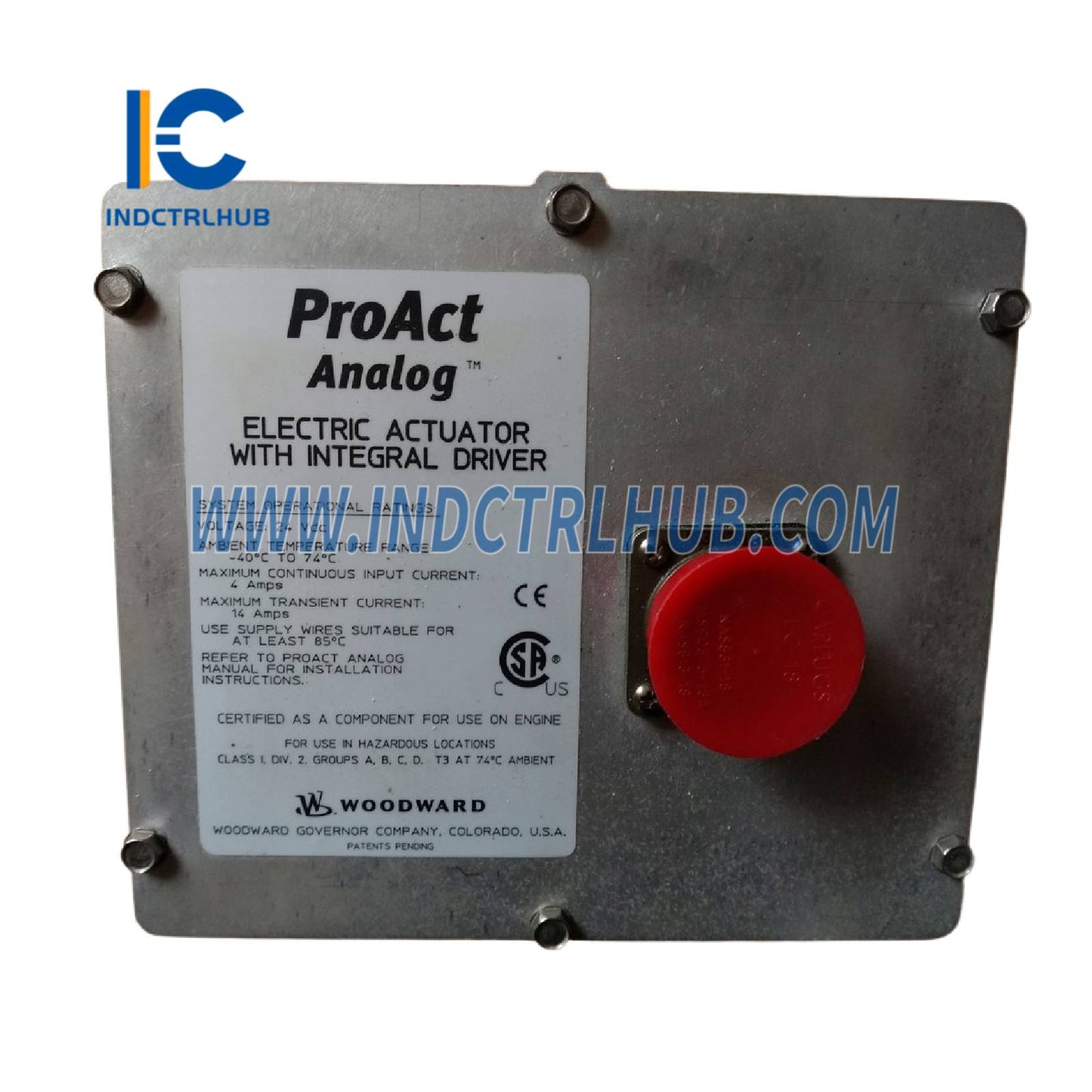

Woodward 8404-201 Actuator
Product Overview
- The Woodward 8404-201 is an electrically powered actuator, part of Woodward__ actuator family designed for precise control of engine or turbine fuel systems in industrial applications such as power generation, marine propulsion, and industrial processes. This actuator is typically used with Woodward__ electronic governors or control systems (e.g., 2301D, ProAct, or 723PLUS series) to regulate fuel or air flow for diesel, gas, or dual-fuel engines, or small turbines. The 8404-201 provides reliable and responsive positioning with a robust design suitable for demanding environments. It is distinct from Woodward__ digital control systems (e.g., 8273-1011, 8200-1300), Peak150 series (e.g., 8200-176), ProAct series controls (e.g., 8237-2595), and other actuators like the EPG series (e.g., 8290-195), focusing specifically on actuation for precise throttle or valve control.
Technical Specifications
- The 8404-201 has the following specifications_
| Specification | Details |
|---|---|
| Model/Part Number | 8404-201 |
| Manufacturer | Woodward |
| Description | Electrically Powered Actuator for Engine/Turbine Control |
| Series | Not part of a specific named series (general actuator) |
| Function | Controls fuel or air flow for diesel, gas, or dual-fuel engines, or small turbines |
| Actuator Type | Rotary or linear (specific type not publicly detailed, likely rotary) |
| Output Torque/Work | Approx. 0.5_2 Nm (4_18 in-lb) for rotary; or equivalent work for linear |
| Rotation/Stroke | Up to 60° (rotary); or 10_20 mm (linear, if applicable) |
| Response Time | Approx. 50_100 ms (full stroke) |
| Input Signal | 4_20 mA or 0_200 mA (from compatible Woodward control system) |
| Feedback | Optional position feedback (potentiometer or LVDT, configuration-dependent) |
| Power Supply | 18_32 VDC (24 VDC nominal) |
| Power Consumption | Approx. 10_20 W (depending on load) |
| Environmental Specifications | Operating Temperature: -40°C to +85°C (-40°F to +185°F) Storage Temperature: -40°C to +100°C (-40°F to +212°F) Relative Humidity: 5% to 95% non-condensing Vibration: MIL-STD-810 compliant Shock: MIL-STD-810 compliant |
| Enclosure | IP56 (dust and water-resistant, suitable for harsh environments) |
| Dimensions | Approx. 150 mm (H) x 100 mm (W) x 100 mm (D) |
| Weight | Approx. 1_2 kg |
| Mounting | Flange or bracket mounting (engine/turbine-specific) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, configuration-dependent); ATEX Zone 2 (optional) |
_
