| Specification |
Details |

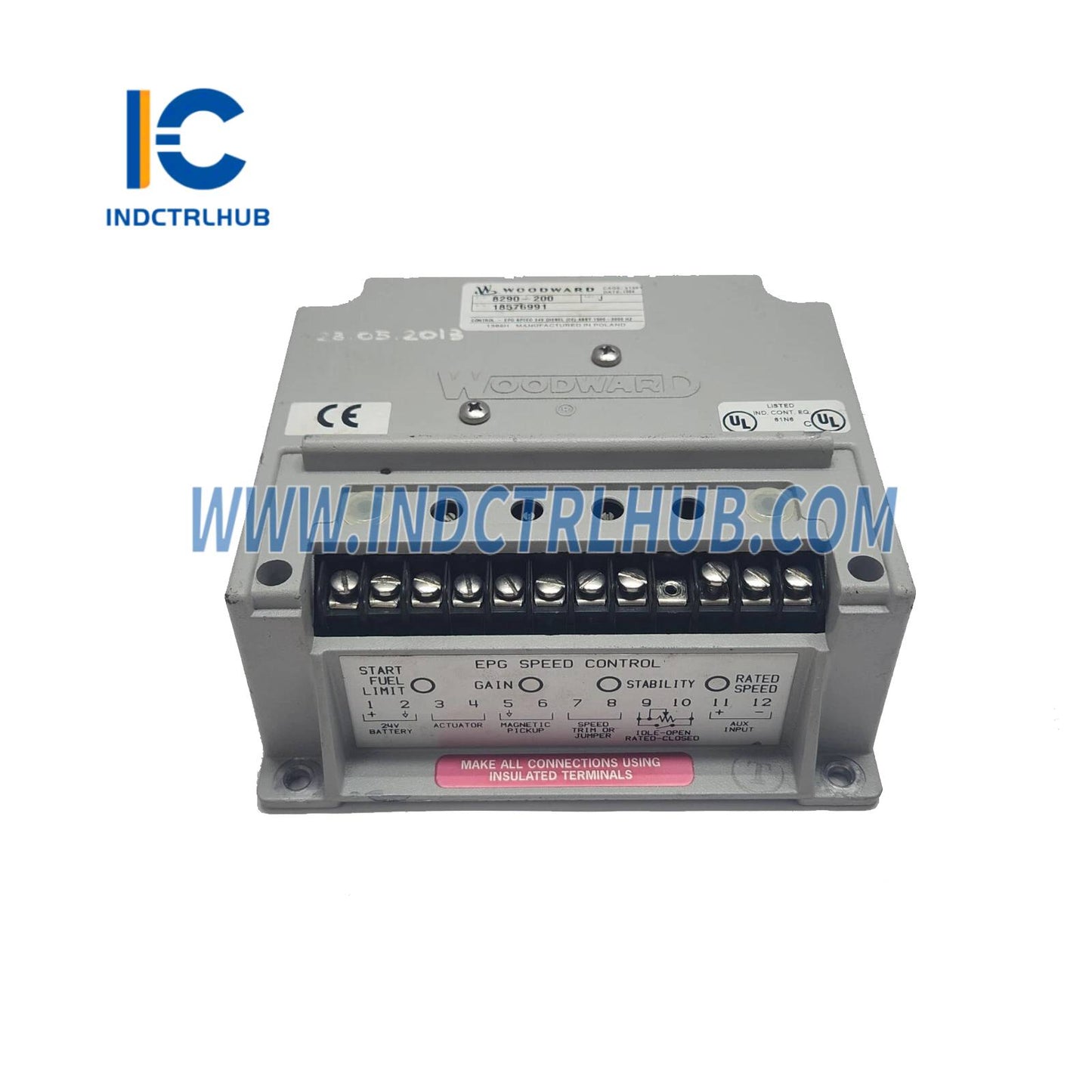

| Model |
8290-200 |
| Series |
Electrically Powered Governor (EPG) |
| Type |
Speed control module |
| Input Voltage |
24 VDC (20–32 VDC range) |
| Power Consumption |
Up to 95 W |
| Battery Charger |
Minimum 5 A |
| Fuse Rating |
10 A slow blow |
| Control Mode |
Isochronous |
| Speed Range |
1500–3000 Hz |
| Speed Sensor |
Magnetic Pickup Unit (MPU), minimum 1.5 VRMS |
| Compatible Actuators |
512, 524, 1712, 1724, 8256-021 (Model 524, 1.0 J, 30° travel), 8256-016 (Model 724, 2.3 J, 35° travel) |
| Start Fuel Limit |
Yes, adjustable for smoke control |
| Wire Size |
12 AWG (up to 75 ft), 14 AWG (up to 35 ft) |
| Operating Temperature |
-40°C to +75°C (-40°F to +167°F) |
| Storage Temperature |
-55°C to +105°C (-67°F to +221°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Protection Rating |
IP20 |
| Weight |
Approximately 0.74 kg (1.63 lbs) |
| Dimensions |
Approximately 20 cm x 15 cm x 5 cm |
| Mounting |
Engine skid or panel mount, near actuator and battery |
| Certifications |
CE, EU Directives |
| System Compatibility |
Diesel engines, Woodward EPG systems |
