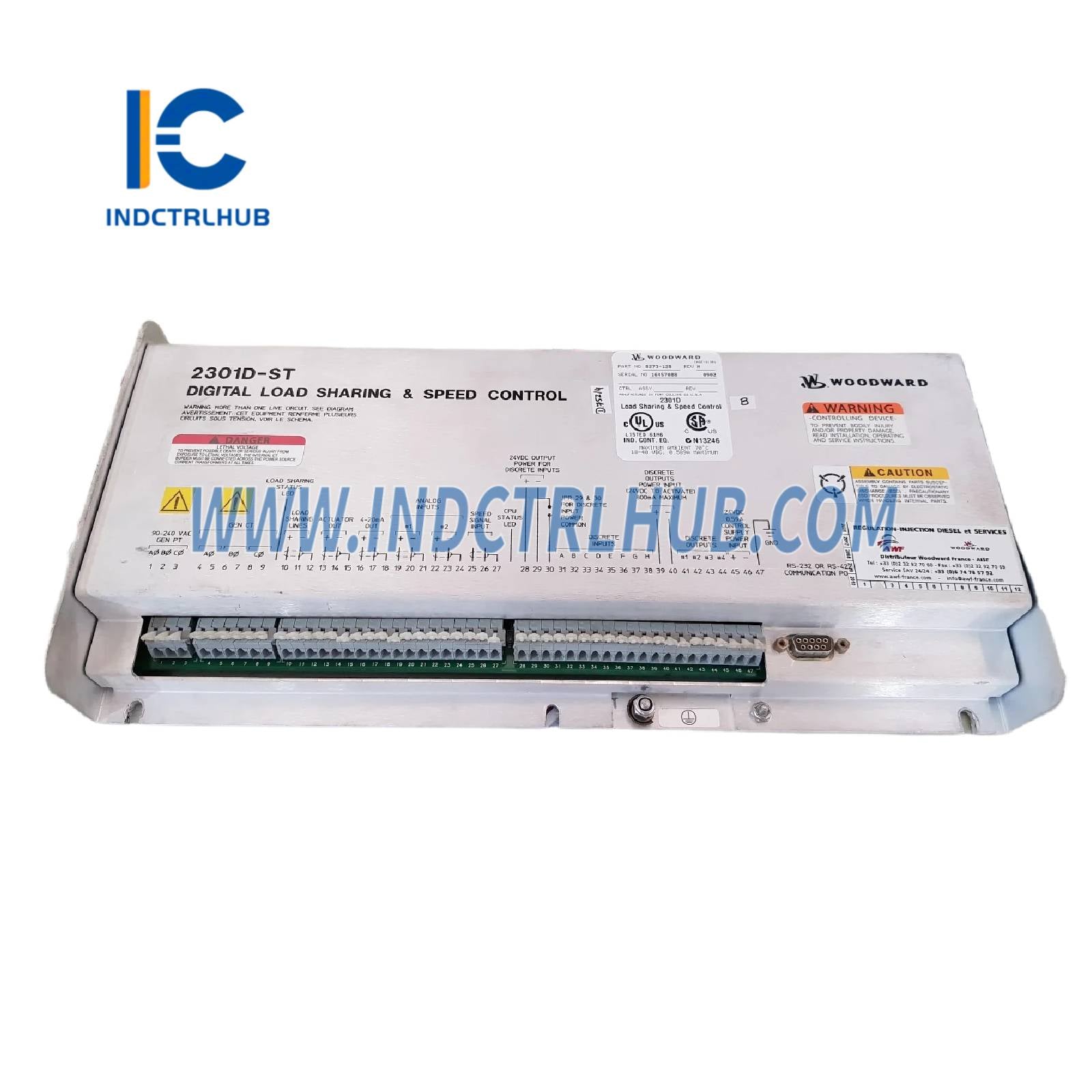

⚡ Woodward 8273-128 Digital Load Sharing & Speed Control Module

The Woodward 8273-128 is an advanced digital control module from the 2301D-ST series, engineered for precise load sharing and speed governing in multi-unit turbine and generator installations. This industrial-grade controller ensures optimal power distribution and synchronized operation across parallel systems.

🔧 Technical Specifications

• Model Number: 8273-128
• Series: 2301D-ST Digital Control Platform
• Primary Function: Load Sharing & Speed Control
• Control Type: Digital PID with adaptive tuning
• Input Voltage: 18-32 VDC nominal (24 VDC standard)
• Speed Range: 100-9999 RPM programmable
• Load Sharing Accuracy: ±1% of rated load
• Communication: Modbus RTU, CAN bus compatible
• Display: Integrated LCD with real-time diagnostics
• Operating Temperature: -40°C to +70°C
• Enclosure Rating: NEMA 4X / IP65 (panel-mounted)
• Certifications: UL, CE, CSA approved

🏭 Industrial Applications

• Power Generation: Synchronizing multiple diesel or gas turbine generators in utility and co-generation plants
• Marine Propulsion: Load balancing for ship engine rooms with redundant power systems
• Oil & Gas: Controlling compressor and pump drive turbines in offshore platforms and refineries
• Data Centers: Managing backup generator paralleling for uninterrupted power supply
• Manufacturing: Coordinating steam turbine drives in chemical and paper production facilities

💡 Advanced Solutions

Intelligent Load Distribution: Proprietary algorithms automatically balance electrical or mechanical loads across multiple units, preventing overload conditions and maximizing system efficiency while reducing fuel consumption by up to 8%.

Isochronous & Droop Modes: Seamlessly switches between standalone isochronous operation and droop mode for grid-parallel applications, maintaining frequency stability within ±0.25% under varying load conditions.

Predictive Diagnostics: Built-in health monitoring tracks actuator response times, sensor drift, and control loop performance, triggering maintenance alerts before failures occur—reducing unplanned downtime by 40%.

Hot-Swap Redundancy: Supports N+1 redundant configurations with bumpless transfer capability, ensuring continuous operation during module replacement or system upgrades without process interruption.

Retrofit Compatibility: Direct replacement for legacy 2301A series controllers with backward-compatible wiring harnesses, enabling modernization of existing installations without extensive re-engineering.

📋 Package Includes

• 1× Woodward 8273-128 Control Module
• Comprehensive installation and programming manual
• Configuration software license (ProTech GII compatible)
• Mounting bracket and terminal block kit

Genuine Woodward OEM component with full factory calibration. Trusted by system integrators and plant engineers worldwide for mission-critical turbine control applications.
