| Specification |
Details |

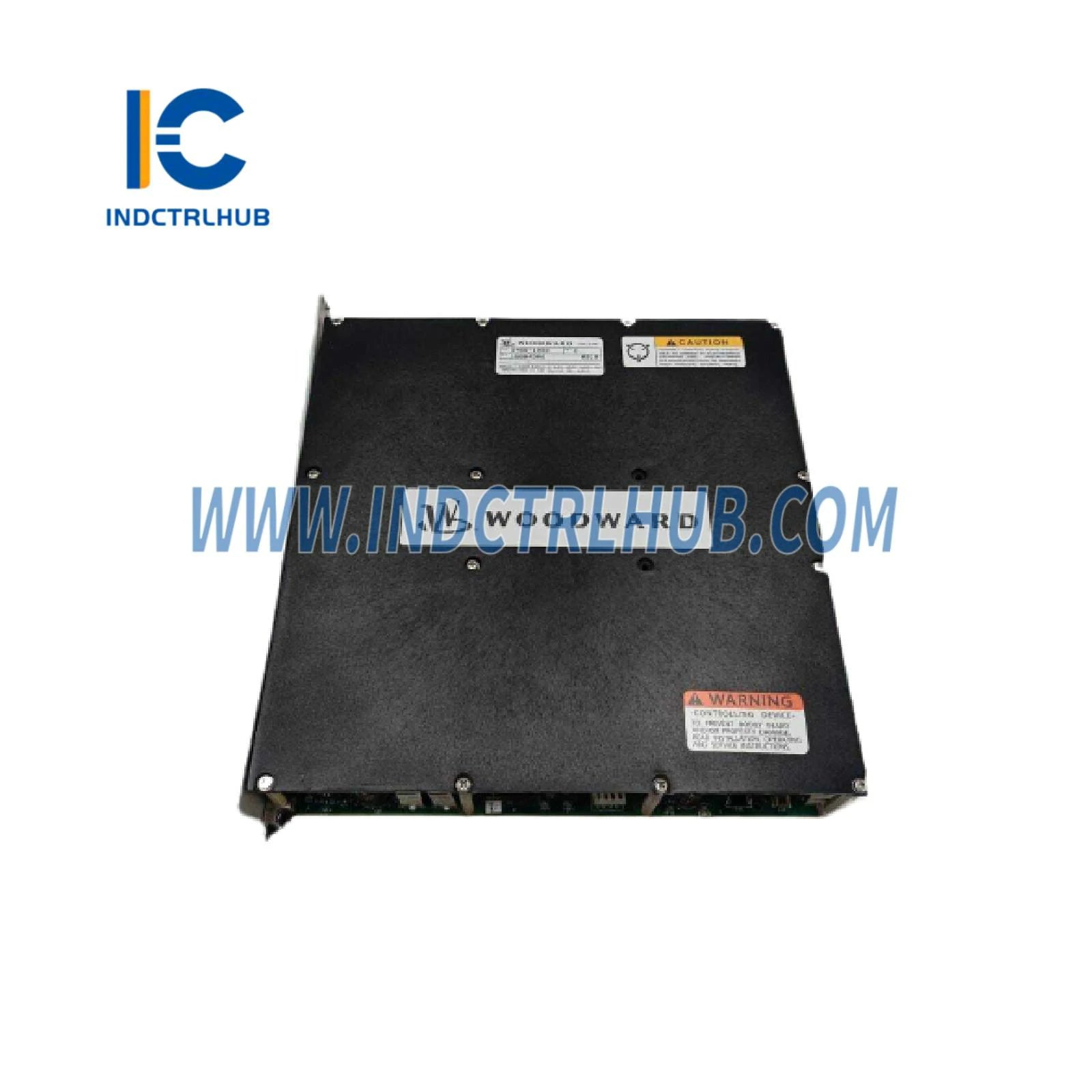

| Model |
5466-658 |
| Series |
MicroNet |
| Type |
Analog Combo Module |
| Analog Inputs |
8 channels, 4–20 mA or 0–5 VDC (configurable) |
| Analog Outputs |
4 channels, 4–20 mA |
| Resolution |
16 bits (estimated, based on similar MicroNet modules) |
| Accuracy |
±0.1% of full scale (estimated) |
| Update Rate |
5 ms (estimated, based on MicroNet standards) |
| Power Supply |
Supplied by MicroNet chassis (typically 24 VDC) |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-40°C to +105°C (-40°F to +221°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Vibration |
4 G, 5–500 Hz |
| Shock |
20 G peak |
| Protection Rating |
Not specified (designed for control cabinet use) |
| Dimensions |
Approximately 305 mm x 178 mm x 51 mm (12 in x 7 in x 2 in, estimated) |
| Weight |
Approximately 1 kg (2.2 lbs, estimated) |
| Mounting |
Chassis slot (VMEbus compatible) |
| Certifications |
CE, UL/cUL, Class 1 Div. 2 (estimated) |
| System Compatibility |
Woodward MicroNet, MicroNet Plus, turbine/engine control systems |
