Product Description

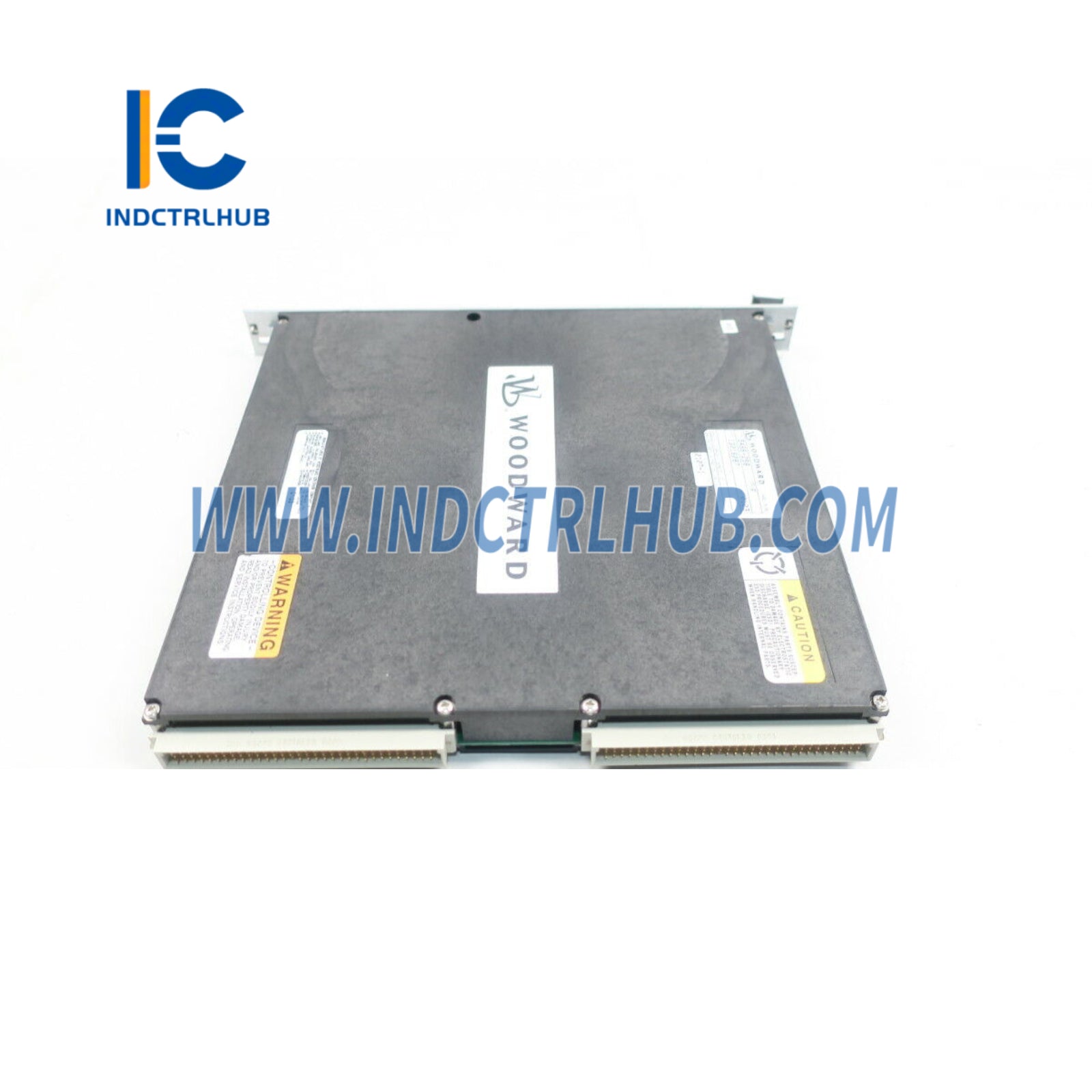

Woodward 5466-258M MicroNet Simplex Control Module
Product Overview
- The Woodward 5466-258M is a Simplex Control Module designed for Woodward’s MicroNet Control System, specifically for non-redundant (simplex) configurations. This module serves as a central processing unit for the MicroNet platform, executing control algorithms and managing I/O communications in industrial applications such as gas and steam turbines, compressors, and power generation systems. Unlike the TMR (Triple Modular Redundant) CPU modules, the 5466-258M is optimized for applications where high reliability is needed without the redundancy of TMR systems. It is commonly used in industries like power generation, oil and gas, aerospace, and marine, recognized for its robust performance and integration with Woodward’s control ecosystem. The "M" suffix likely indicates a specific modification or variant, possibly with enhanced features or firmware compared to the standard 5466-258.
Technical Specifications
- The 5466-258M has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 5466-258M |
| Manufacturer | Woodward |
| Description | Simplex Control Module for MicroNet Control Systems |
| Series | MicroNet Simplex |
| Function | Executes control algorithms and manages I/O for simplex control applications |
| Processor | High-performance microprocessor (e.g., Freescale PowerPC-based or similar) |
| Memory | Flash: 16–32 MB (for firmware and application) RAM: 64–128 MB (for runtime data) |
| Communication Interfaces | Ethernet (single or dual ports, 10/100 Mbps), Modbus TCP/RTU, CANopen, RS-232, RS-485, Woodward proprietary protocols |
| Redundancy | Non-redundant (simplex configuration) |
| I/O Interface | Interfaces with MicroNet I/O modules via internal high-speed bus |
| Control Software | Woodward GAP (Graphical Application Programmer), MicroNet Toolkit, Control Assistant |
| Diagnostics | Processor health monitoring, fault detection, event logging (up to 500 events), status LEDs |
| Compatibility | Woodward MicroNet Simplex systems, I/O modules (e.g., 5464-658 digital input, 5458-051 analog I/O, 5464-337 speed sensor), actuators, and third-party devices via standard protocols |
| Power Supply | 18–32 VDC (24 VDC nominal, via MicroNet chassis backplane) |
| Power Consumption | Approx. 15–25 W |
| Environmental Specifications | Operating Temperature: -40°C to +70°C (-40°F to +158°F) Storage Temperature: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 5% to 95% non-condensing Vibration: MIL-STD-810 compliant Shock: MIL-STD-810 compliant |
| Enclosure | IP20 (installed in MicroNet chassis, higher IP ratings with enclosures) |
| Dimensions | Approx. 300 mm (H) x 50 mm (W) x 150 mm (D) |
| Weight | Approx. 0.6–1.0 kg |
| Mounting | Plugs into MicroNet Simplex chassis |
| Certifications | CE, UL, CSA, ATEX (for hazardous areas, configuration-dependent), marine certifications (e.g., DNV, ABS) |
