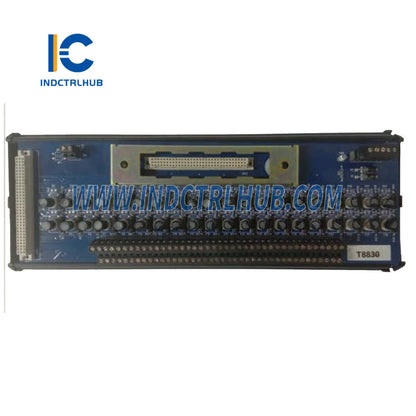

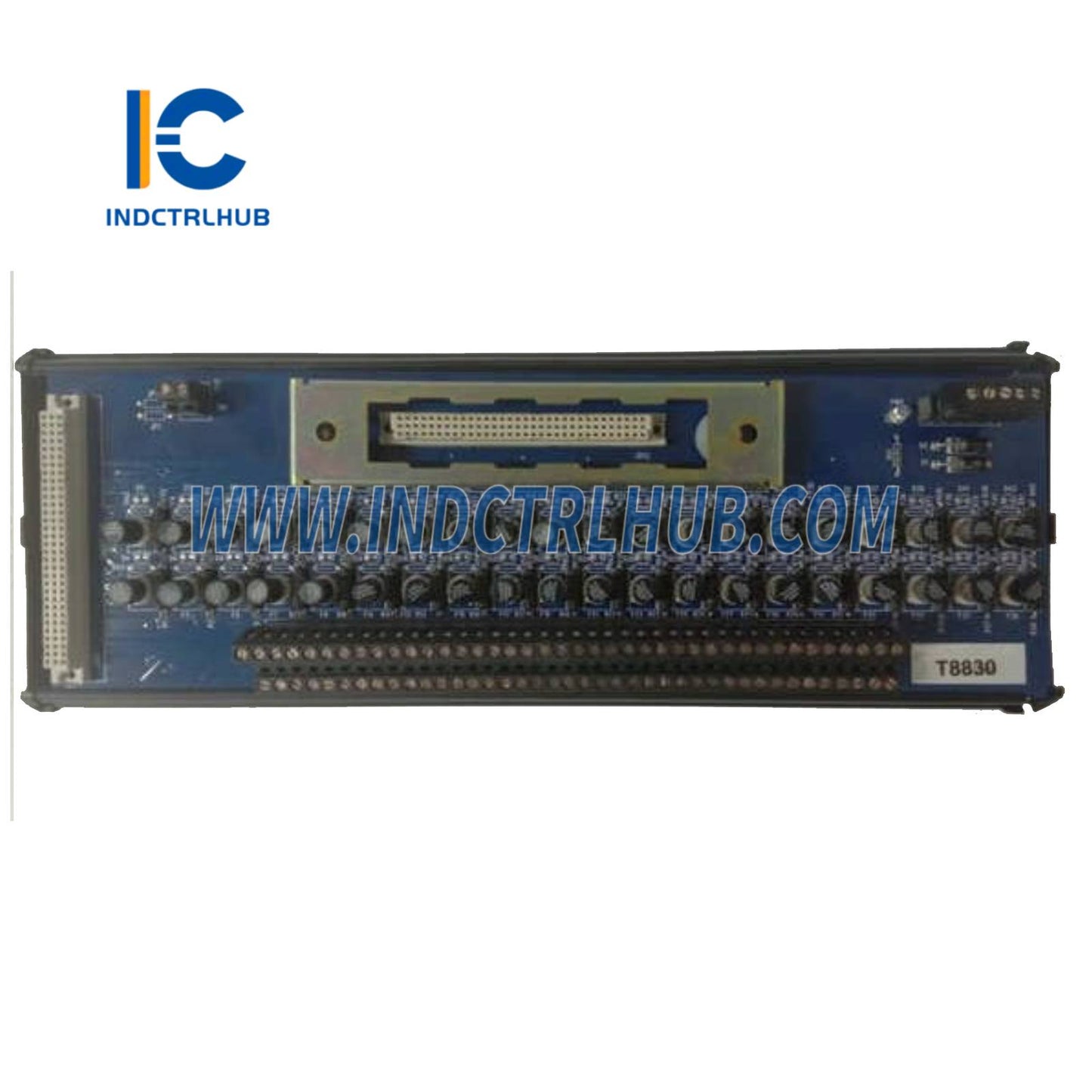

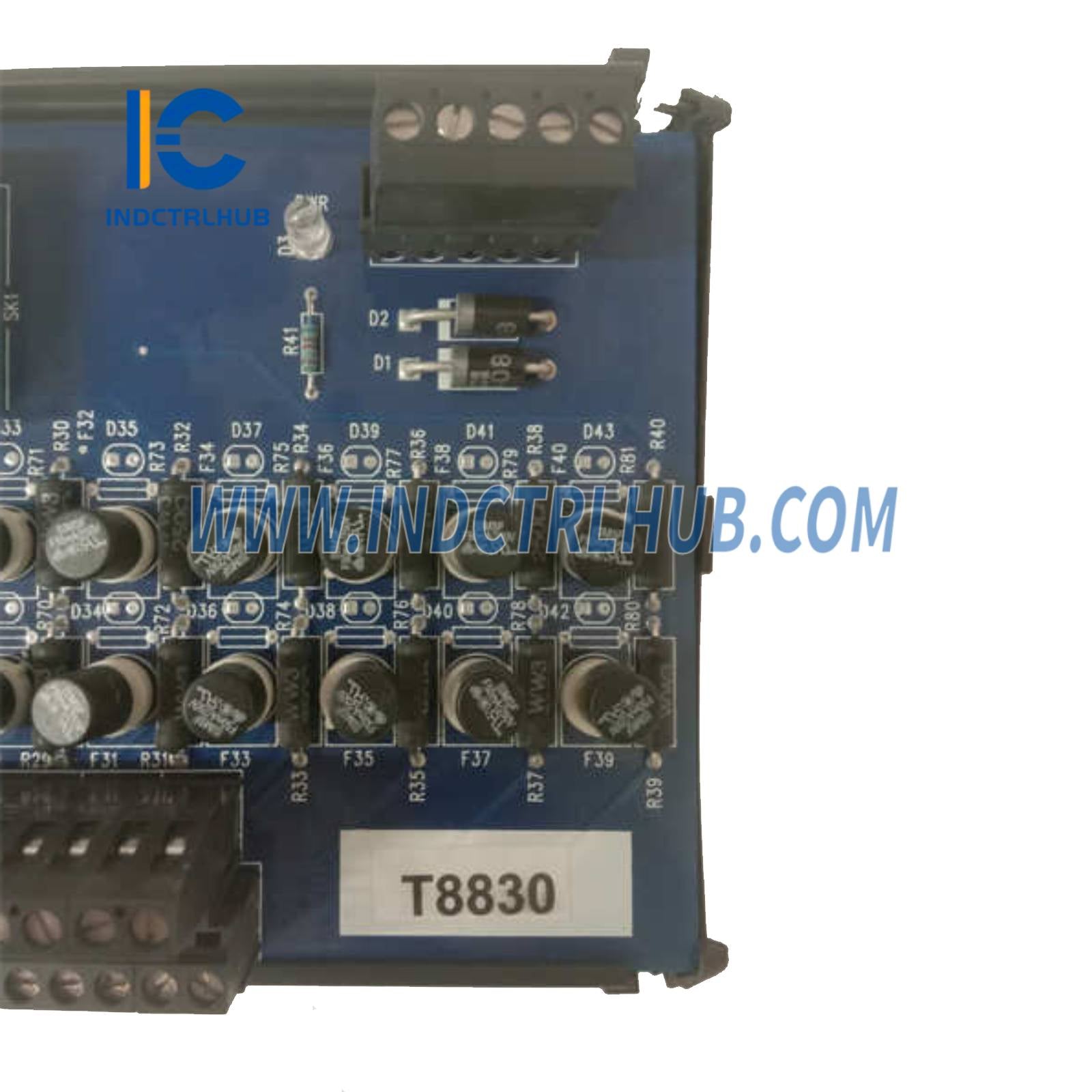

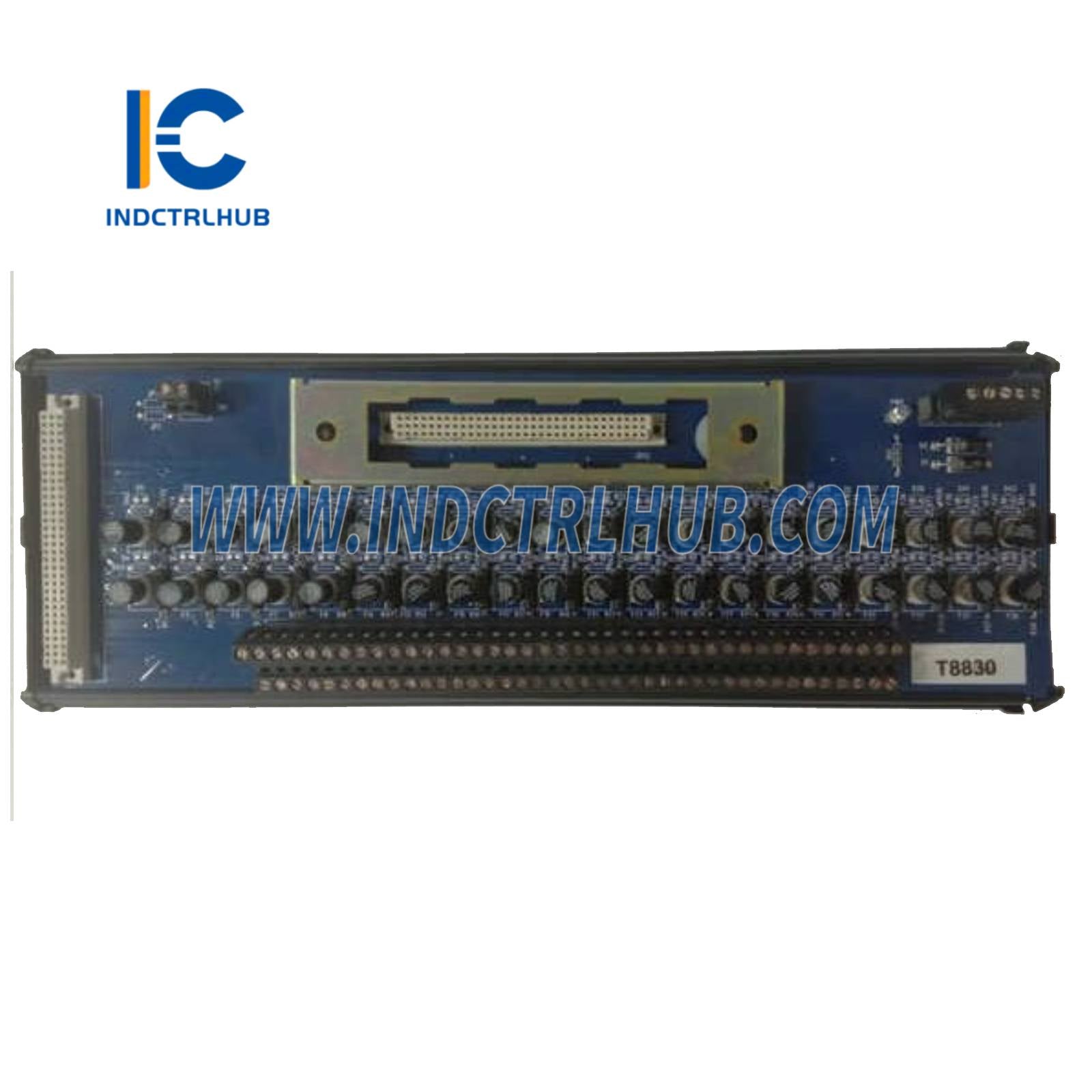

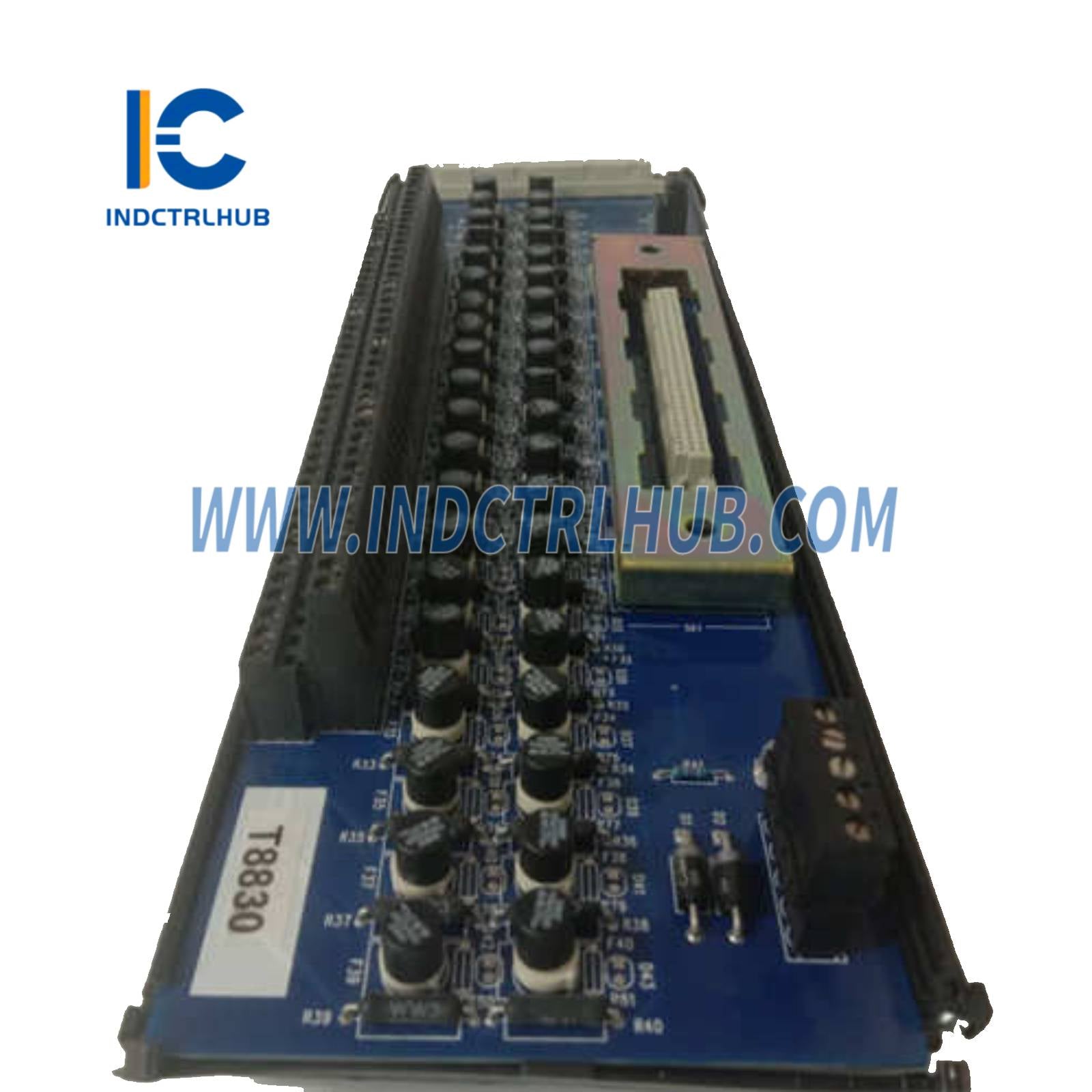

Triconex T8830 Trusted 40 Channel Analogue Input FTA
- Manufacturer: Triconex (Schneider Electric)
- Series: Trusted
- Model/Part Number: T8830
- Description: 40 Channel Analogue Input Field Termination Assembly (FTA) for Trusted systems
Overview
The Triconex T8830 is a 40 Channel Analogue Input Field Termination Assembly (FTA) designed for use in Triconex’s Trusted safety instrumented systems (SIS), part of Schneider Electric’s portfolio. It serves as the primary interface between field devices generating analog signals (e.g., pressure, temperature
Technical Specifications
| Specification | Details |
|---|---|
| Model | T8830 |
| Series | Trusted |
| Type | Analogue Input Field Termination Assembly (FTA) |
| Function | Interfaces analog field devices to Trusted TMR Analog Input Module (e.g., T8431) |
| Input Channels | 40 analog input channels |
| Input Signal Types | 4–20 mA (2-wire), 0–5 VDC, 0–10 VDC (module-dependent) |
| Isolation | Electrical isolation for noise immunity and safety |
| Connectors | Industry-standard 2-wire terminal blocks for field wiring, proprietary interconnect cable to T8431 module |
| Fused Field Power Supply | Each channel has a fused power supply for enhanced safety |
| Diagnostic Indicators | LED indicators for field power supply status |
| Compatible Modules | Trusted TMR Analog Input Module T8431 |
| Compatibility | Trusted systems, integrates with Trusted Controllers and TriStation software |
| Mounting | DIN-rail or panel mounting in Trusted marshalling cabinet |
| Power Supply | Powered via connected T8431 module (typically 24 VDC from Trusted chassis backplane) |
| Power Consumption | Approx. 1–3 W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for harsh industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 250 mm x 200 mm x 50 mm (9.8 x 7.9 x 2.0 in) |
| Weight | Approx. 1.0 kg (2.2 lbs) |
| Certifications | TÜV-certified for SIL 3 (IEC 61508), CE, UL, CSA, marine-certified |
| Manual | Trusted System Field Termination Guide, Trusted System Planning and Installation Guide |
