Product Description

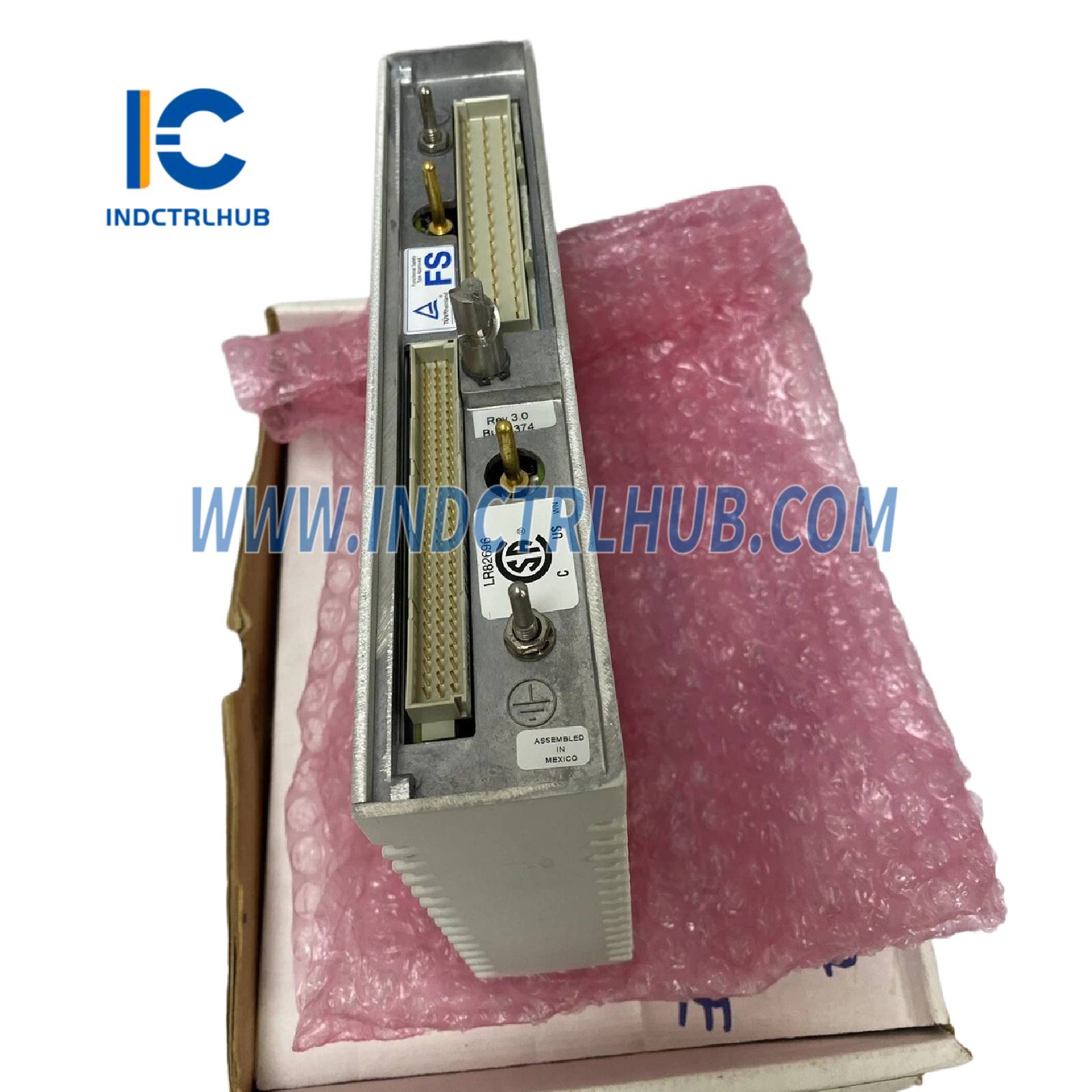

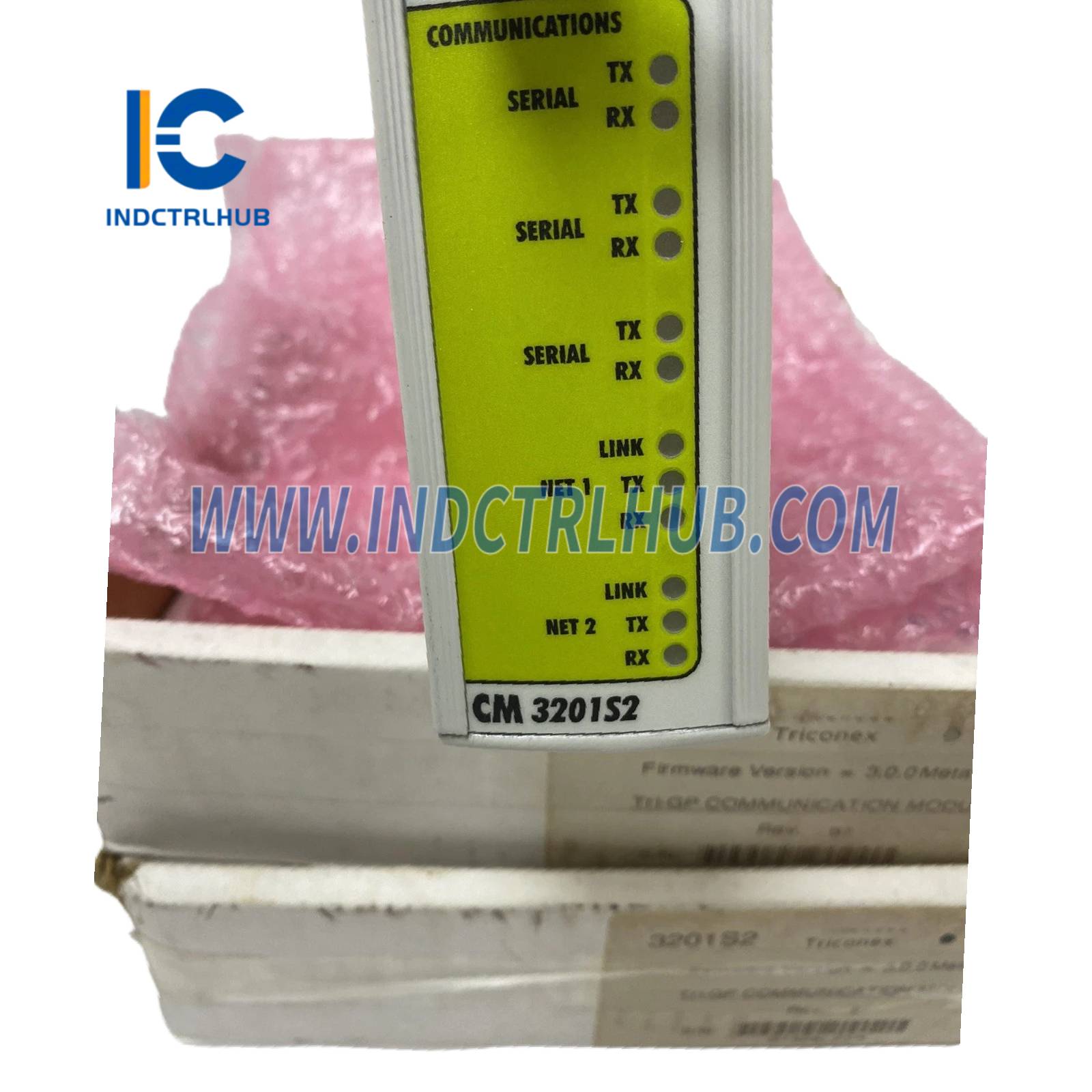

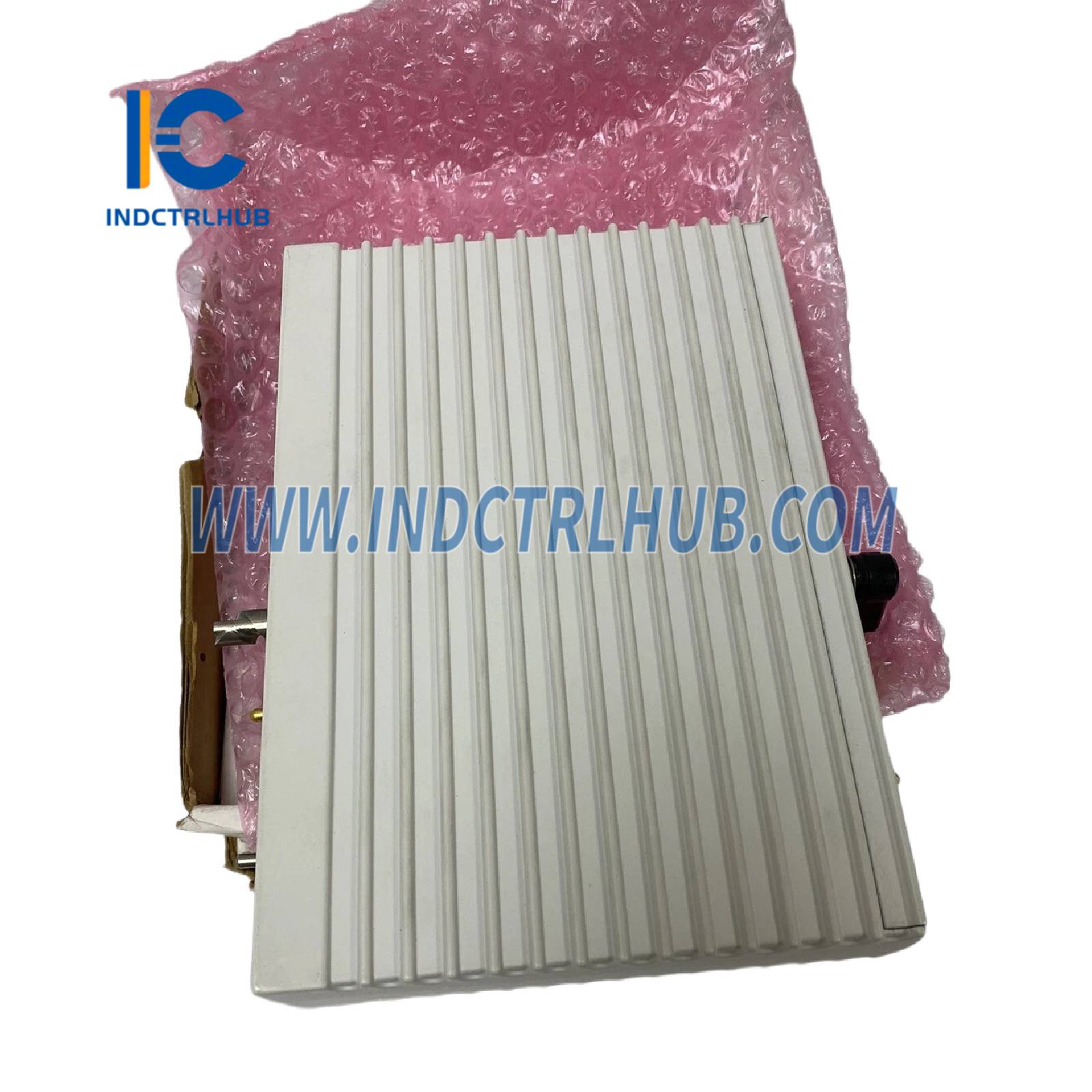

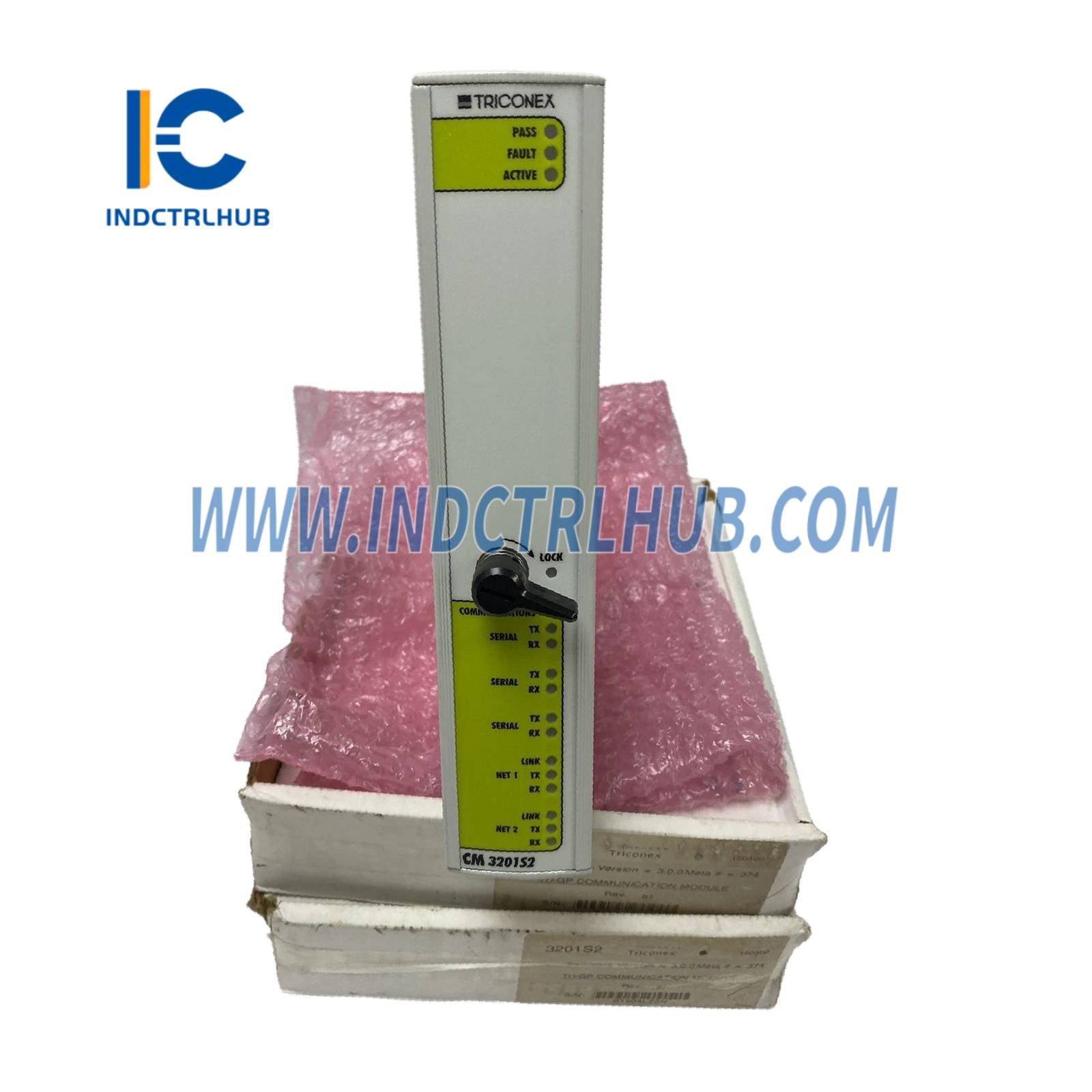

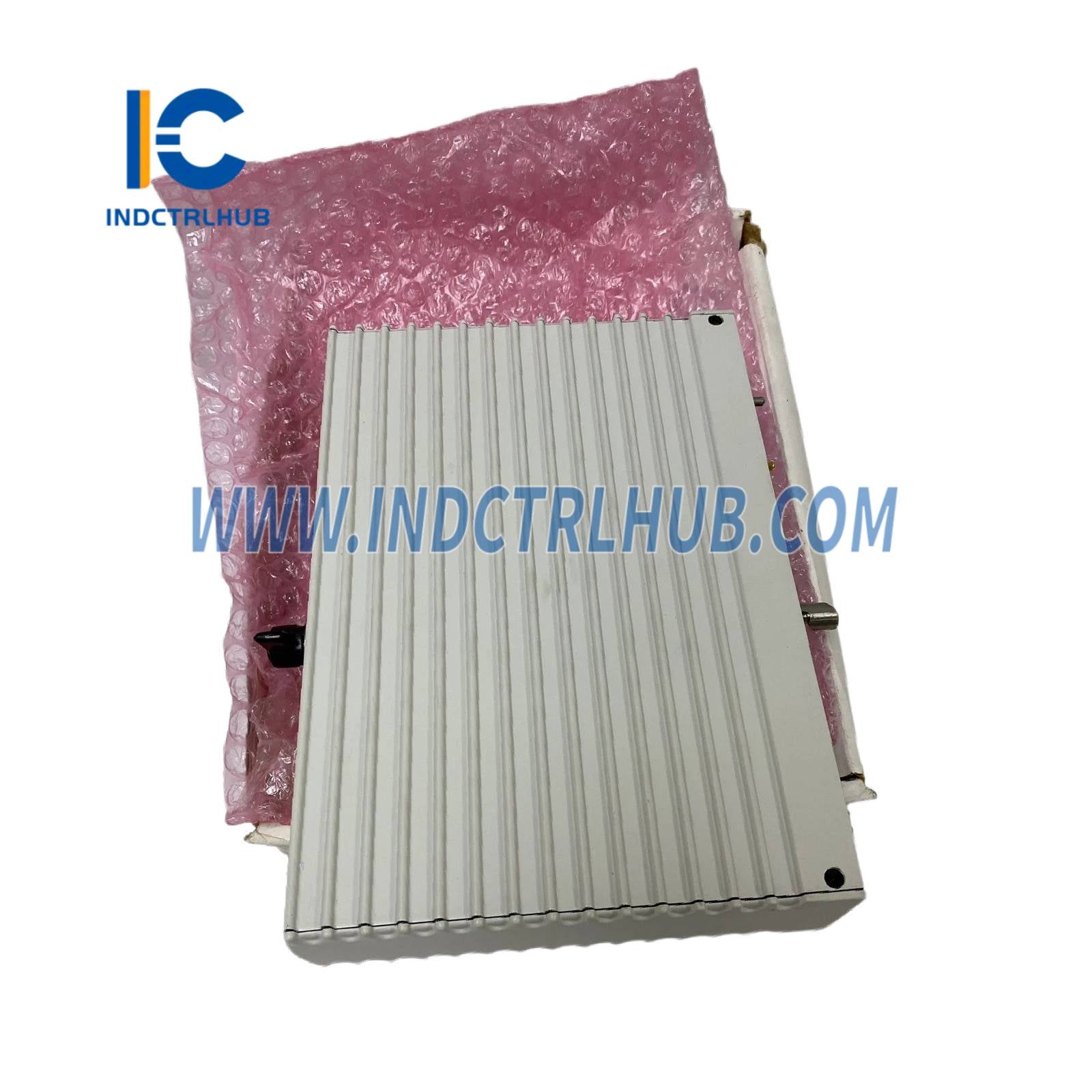

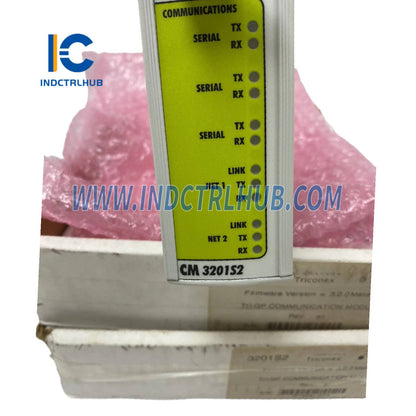

Triconex CM3201S2 Communication Module
- Manufacturer: Triconex (Schneider Electric)
- Series: Tricon
- Model/Part Number: CM3201S2
- Description: Tricon Communication Module (TCM) for Tricon systems
Overview
The Triconex CM3201S2 is a Tricon Communication Module (TCM) designed for use in Triconex’s Tricon safety instrumented systems (SIS)
Technical Specifications
| Specification | Details |
|---|---|
| Model | CM3201S2 |
| Series | Tricon |
| Type | Tricon Communication Module (TCM) |
| Function | Enables communication between Tricon controllers and external systems/devices |
| Ports | 4 serial ports (RS-232/RS-485), 2 Ethernet ports (100 Mbps), 1 debug port (for Triconex use) |
| Communication Protocols | Modbus TCP/IP, Ethernet/IP, OPC UA, Profibus DP, Triconex peer-to-peer |
| Serial Port Configuration | Each port uniquely addressed, configurable as Modbus master or slave Serial port #1: Modbus or Trimble GPS interface Serial port #4: Modbus or TriStation interface |
| Data Rate | Aggregate 460.8 kbps for all four serial ports |
| Isolation | Electrical isolation for noise immunity and safety |
| Connectors | Requires external termination panel (e.g., 3000793-001) with terminal blocks |
| Compatible Modules | Triconex termination panels (e.g., 3000793-001) |
| Compatibility | Tricon v10.0 and later systems, integrates with Triconex Main Processors (e.g., 3008) and TriStation 1131 software |
| Mounting | Plugs into Tricon chassis |
| Power Supply | Supplied by Tricon chassis backplane (typically 24 VDC) |
| Power Consumption | Approx. 5–8 W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for harsh industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 22 cm x 16.9 cm x 4.4 cm (8.7 x 6.7 x 1.7 in) |
| Weight | Approx. 0.8 kg (1.76 lbs) |
| Certifications | TÜV-certified for SIL 3 (IEC 61508), CE, UL, CSA, marine-certified, nuclear 1E-certified |
| Manual | Tricon Communication Module (TCM) Guide, Tricon Planning and Installation Guide |
