Product Description

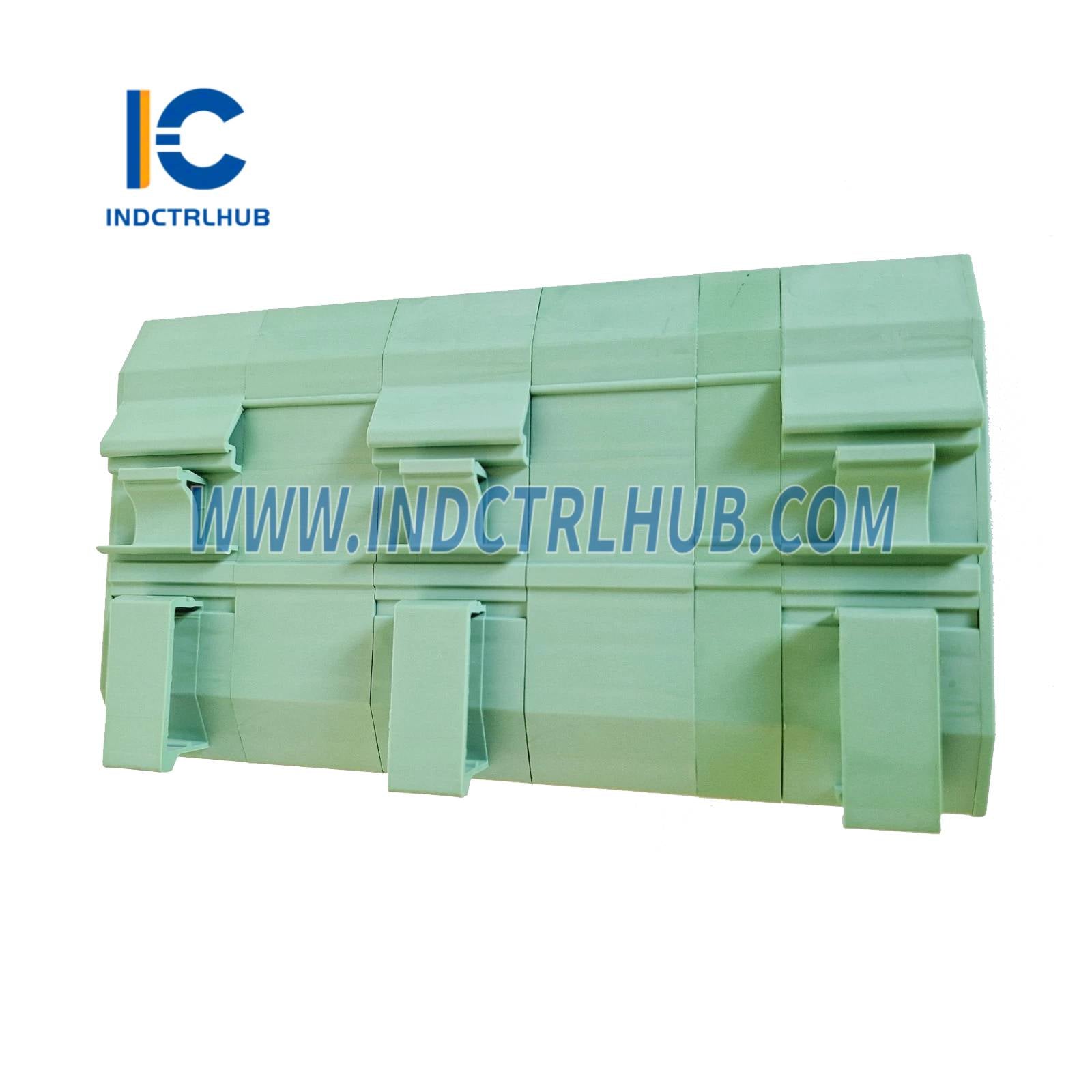

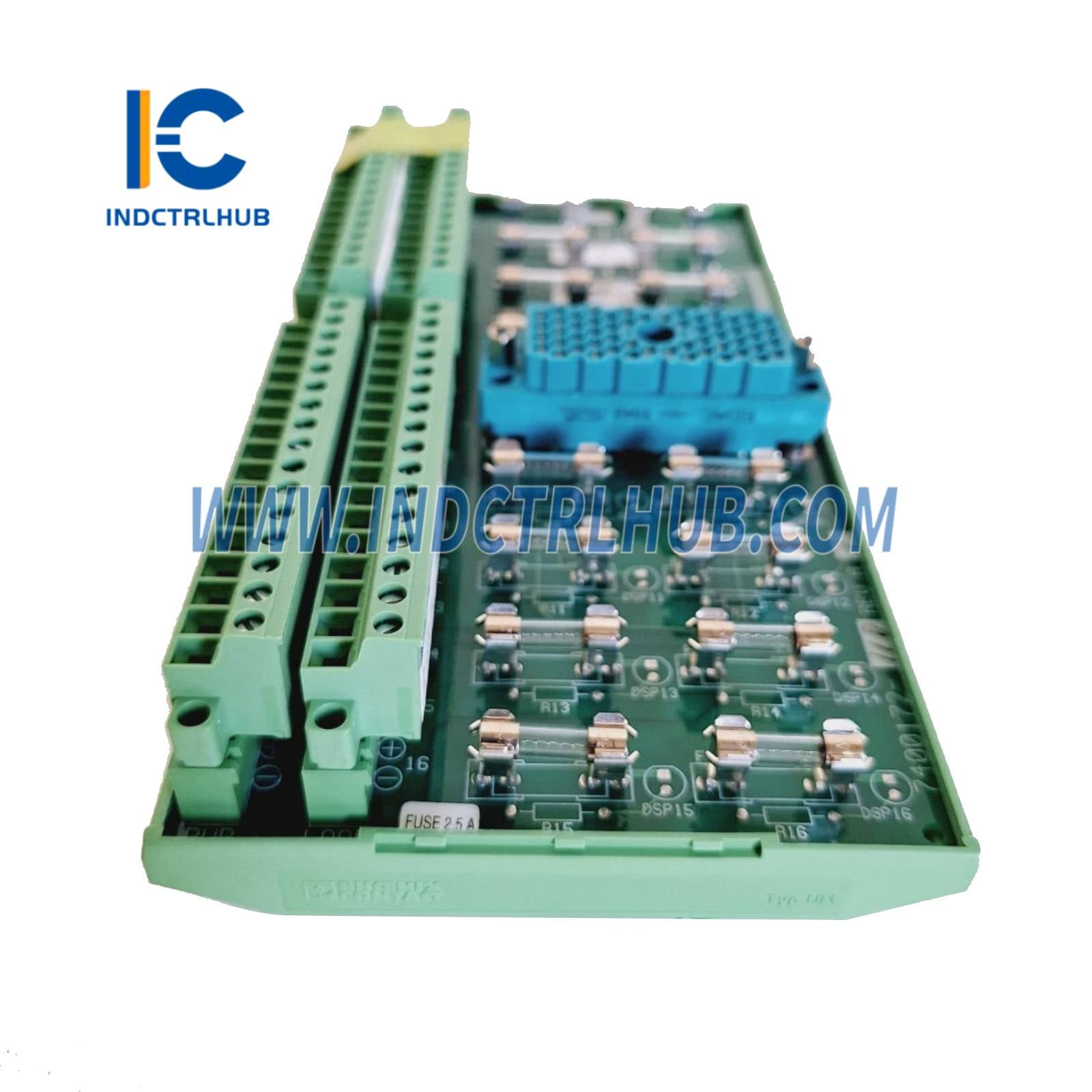

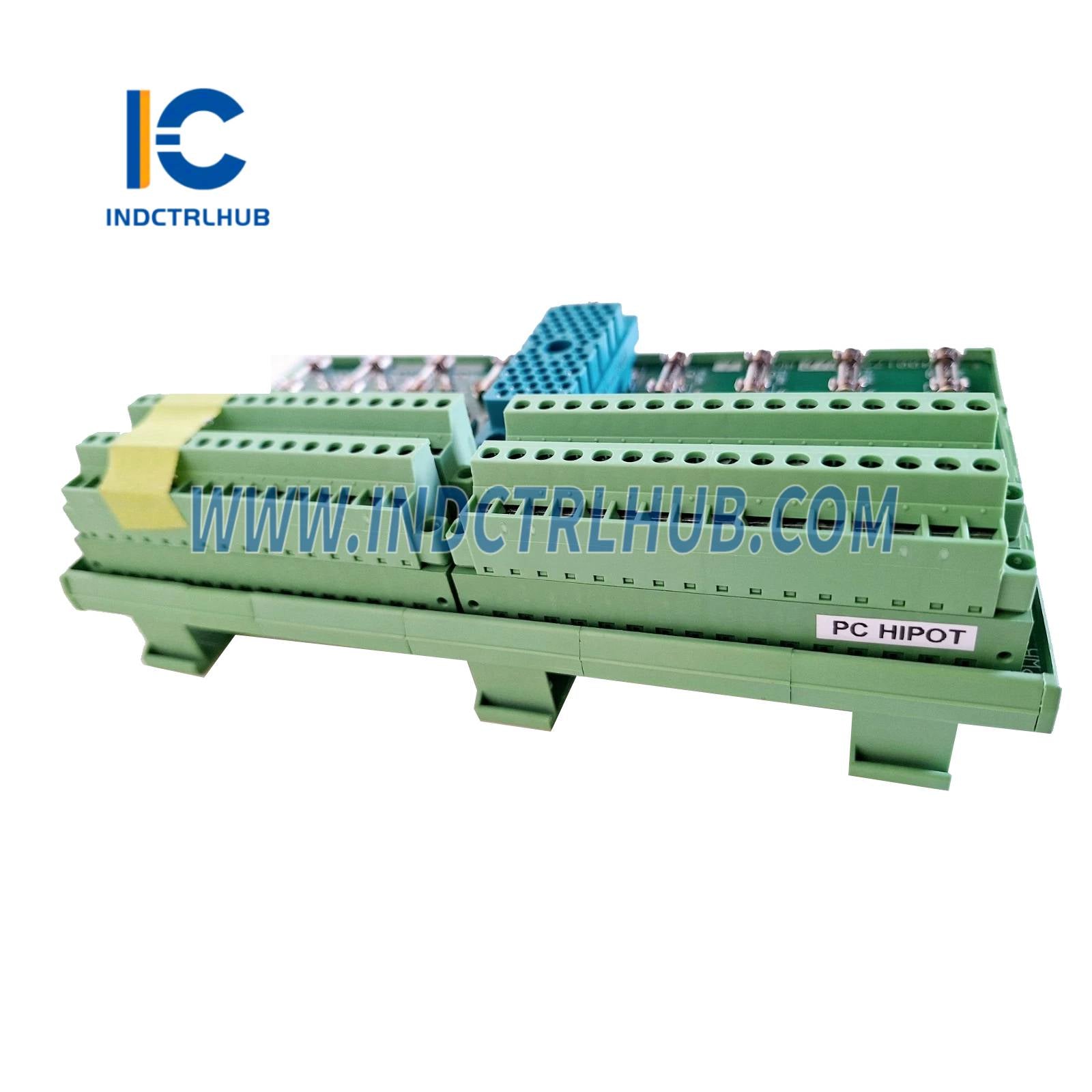

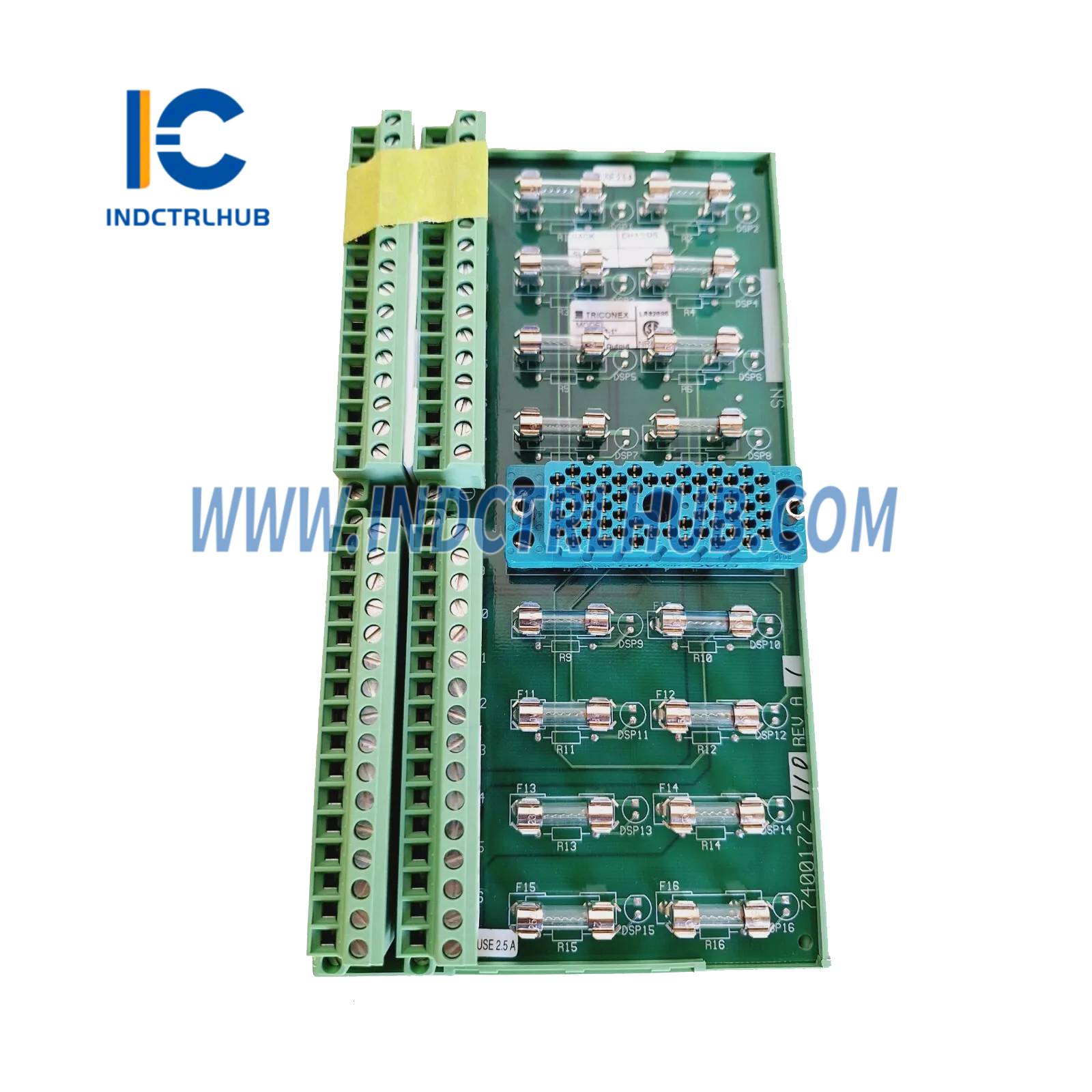

Triconex 9863-710F Analog Output Termination Panel
Product Overview
- Description: The Triconex 9863-710F is an Analog Output Termination Panel designed for use in Triconex safety instrumented systems (SIS), part of Schneider Electric’s Triconex product line. It serves as an external interface for connecting Triconex analog output modules (e.g., 3805E, 3806E) to field devices
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Triconex Safety Instrumented Systems (SIS) |
| Model/Part Number | 9863-710F |
| Model Type | Analog Output Termination Panel |
| Function | Interfaces analog output signals from Triconex I/O modules to field devices |
| Display | Not applicable (no integrated display) |
| Inputs | Analog output signals from Triconex I/O modules (e.g., 4–20 mA) |
| Outputs | Analog signals to field devices (typically 8–16 channels, 4–20 mA) |
| Communication Interfaces | Connects to Triconex I/O modules via proprietary system cables |
| Signal Conditioning | Signal isolation, noise suppression |
| Accuracy | Not applicable (signal routing) |
| Redundancy | Supports Triple Modular Redundant (TMR) architecture |
| Diagnostics | Supported via Triconex system diagnostics |
| Compatibility | Triconex safety systems (e.g., Tricon, Trident, Tri-GP), specifically analog output modules |
| Power Supply | Passive (powered via connected I/O modules or external 24 VDC, if required) |
| Power Consumption | Minimal (passive panel, typically <1 W) |
| Environmental Specifications | Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in Triconex cabinet or enclosure) |
| Dimensions | Approx. 300 mm (H) x 200 mm (W) x 50 mm (D) (estimated) |
| Weight | Approx. 0.8–1.2 kg |
| Mounting | DIN rail or panel-mounted in Triconex cabinet or marshalling enclosure |
| Certifications | CE, UL, CSA (system-dependent) |
