Product Description

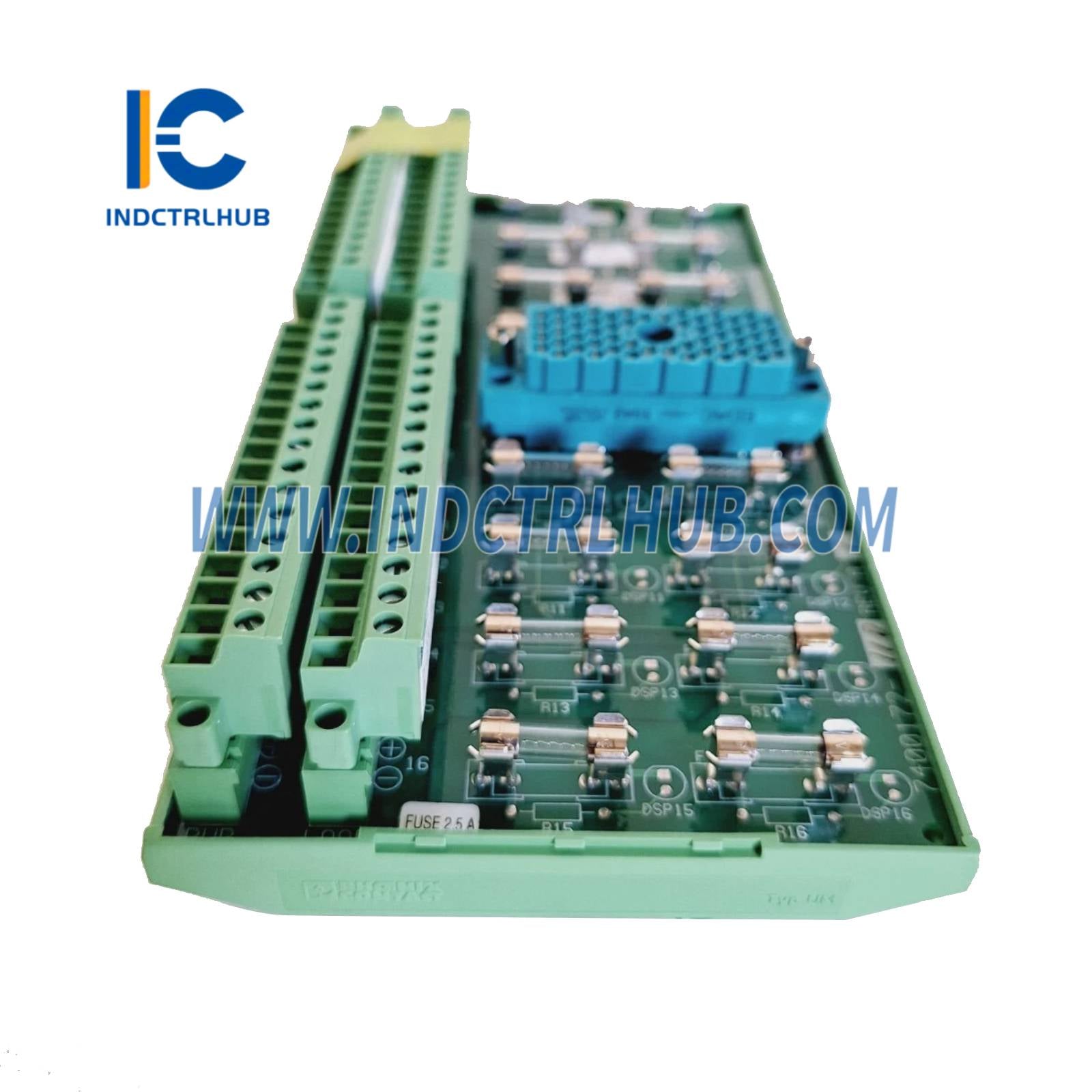

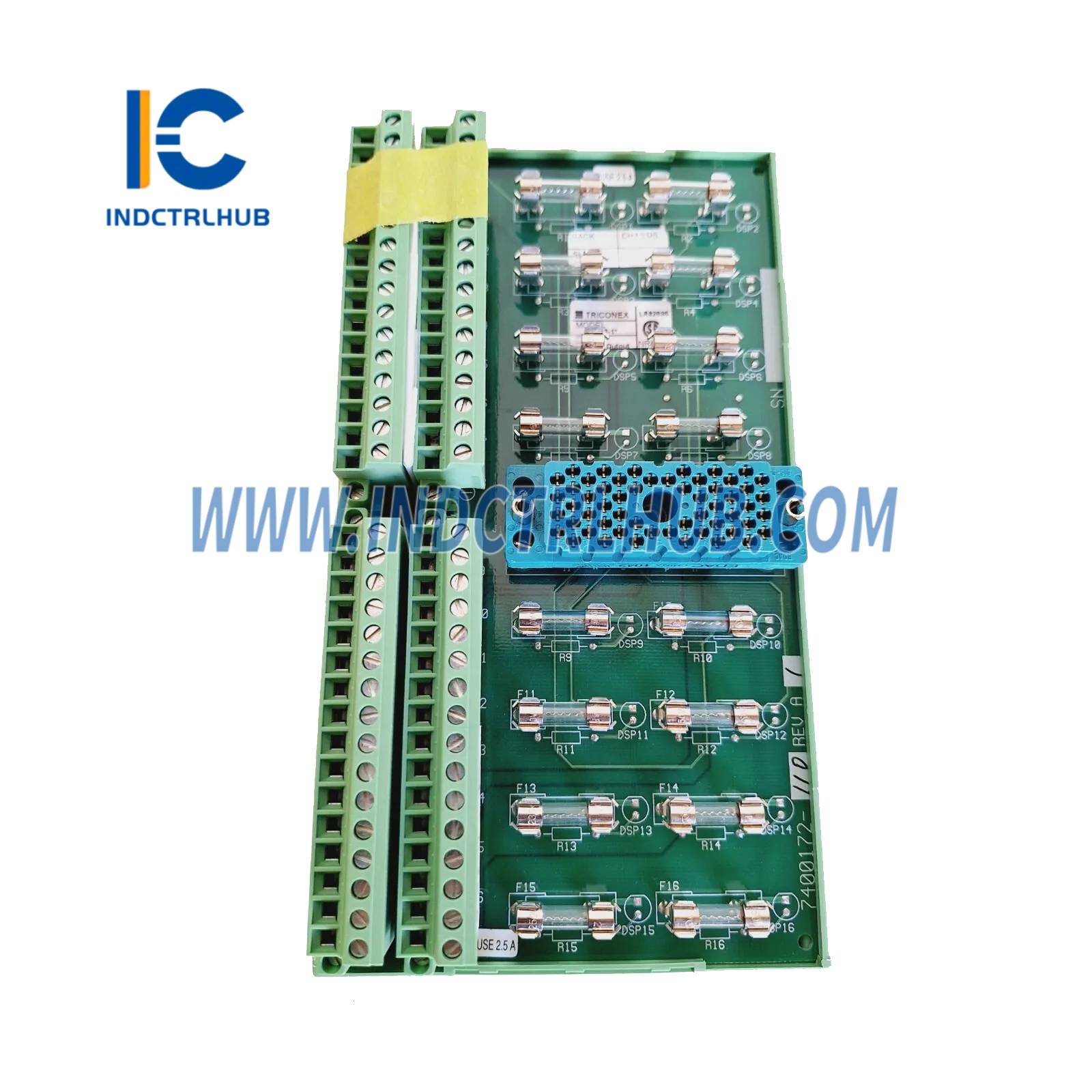

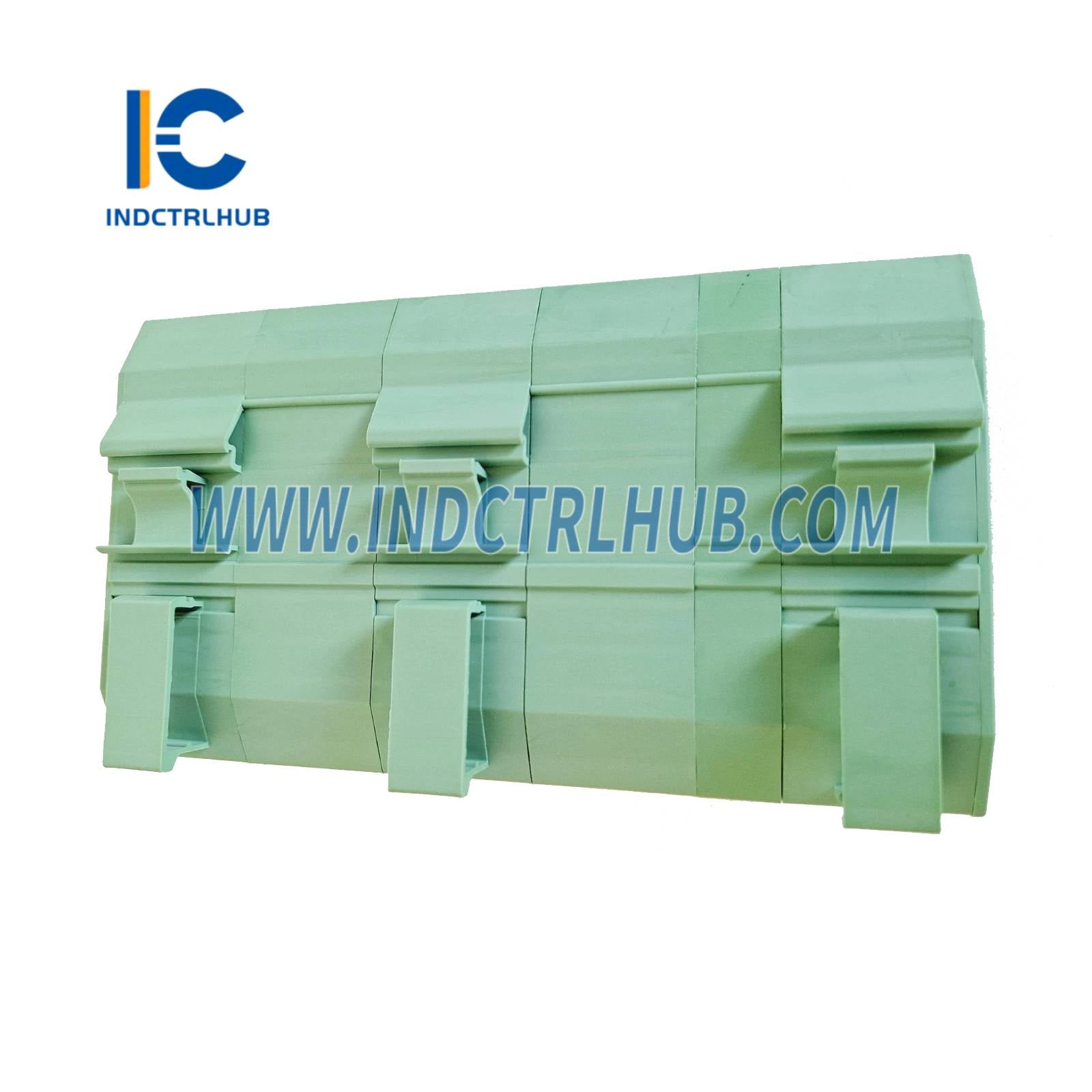

Triconex 9863-710 Analog Output Termination Panel
- Manufacturer: Triconex (Schneider Electric)
- Series: Tricon
- Model/Part Number: 9863-710
- Description: Analog Output Termination Panel for Tricon systems
Overview
The Triconex 9863-710 is an Analog Output Termination Panel designed for use in Triconex’s Tricon safety instrumented systems (SIS), part of Schneider Electric’s portfolio. It provides a secure interface for connecting analog output field devices, such as actuators or control valves
Technical Specifications
| Specification | Details |
|---|---|
| Model | 9863-710 |
| Series | Tricon |
| Type | Analog Output Termination Panel |
| Function | Interfaces analog output field devices to Triconex analog output modules |
| Output Signals | 4–20 mA, 20–320 mA (module-dependent) |
| Channels | Supports up to 8 analog output channels (compatible with 3806E module) |
| Isolation | Electrical isolation for noise immunity and safety |
| Connectors | Terminal blocks for field wiring, proprietary Triconex I/O interconnect cable |
| Compatible Modules | Triconex 3806E Analog Output Module |
| Compatibility | Tricon systems, integrates with Triconex Main Processors (e.g., 3008) and TriStation 1131 software |
| Mounting | Panel or DIN-rail mounting in Tricon marshalling cabinet |
| Power Supply | Powered via connected I/O module (typically 24 VDC from Tricon chassis backplane) |
| Power Consumption | Approx. 1–3 W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Torque for Terminal Screws | 12.0 lb-in (1.0 lb-ft, 1.36 Nm) |
| Environmental Protection | Designed for harsh industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 250 mm x 200 mm x 50 mm (9.8 x 7.9 x 2.0 in) |
| Weight | Approx. 1.0 kg (2.2 lbs) |
| Certifications | TÜV-certified for SIL 3 (IEC 61508), CE, UL, CSA, marine-certified, nuclear 1E-certified |
| Manual | Tricon v9–v10 Field Terminations Guide |
