Product Description

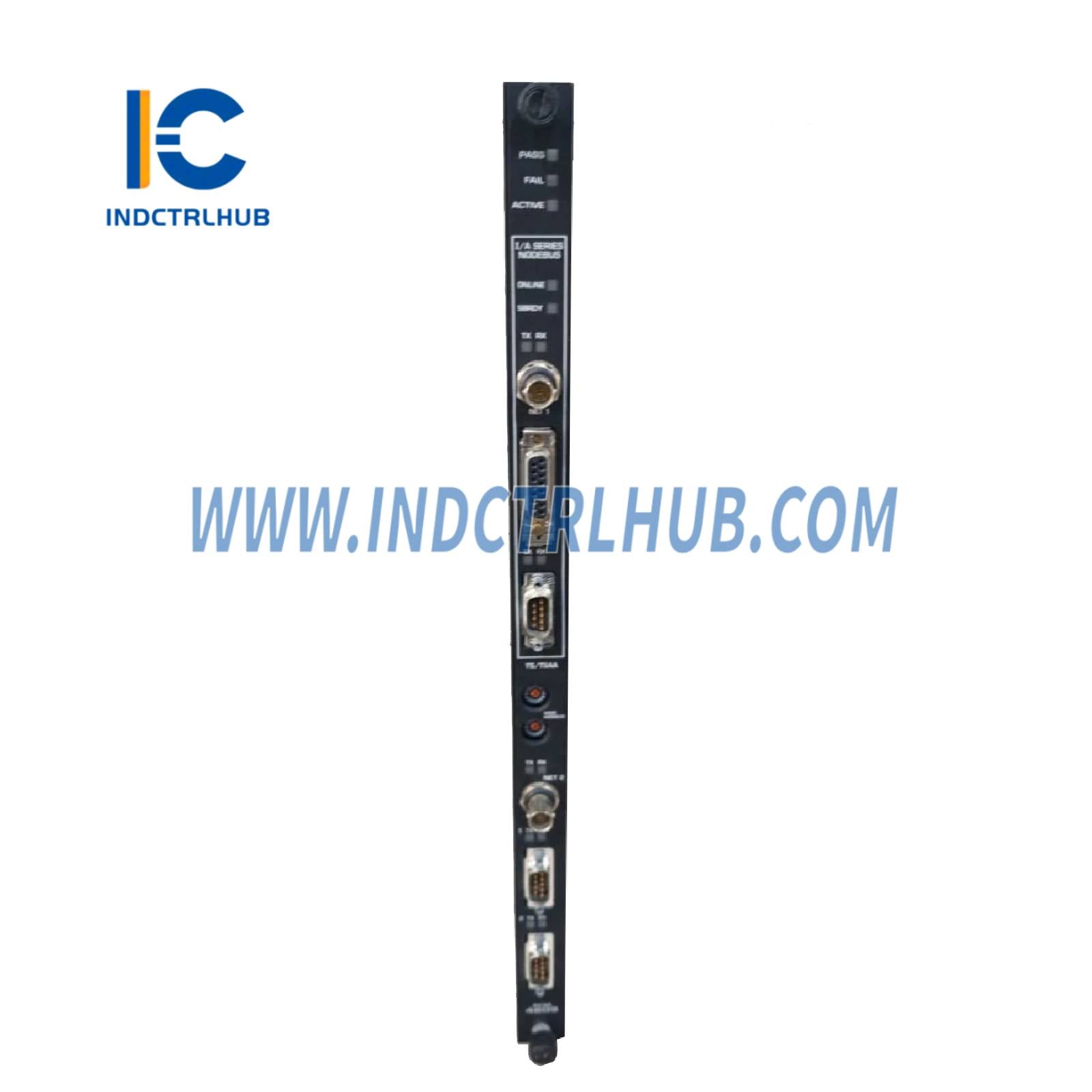

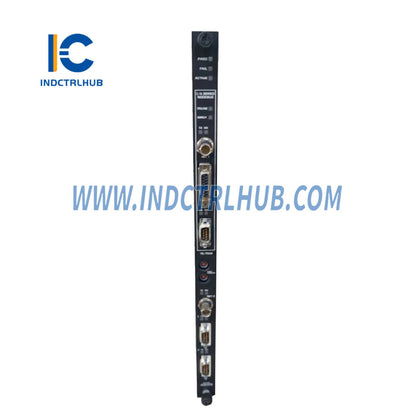

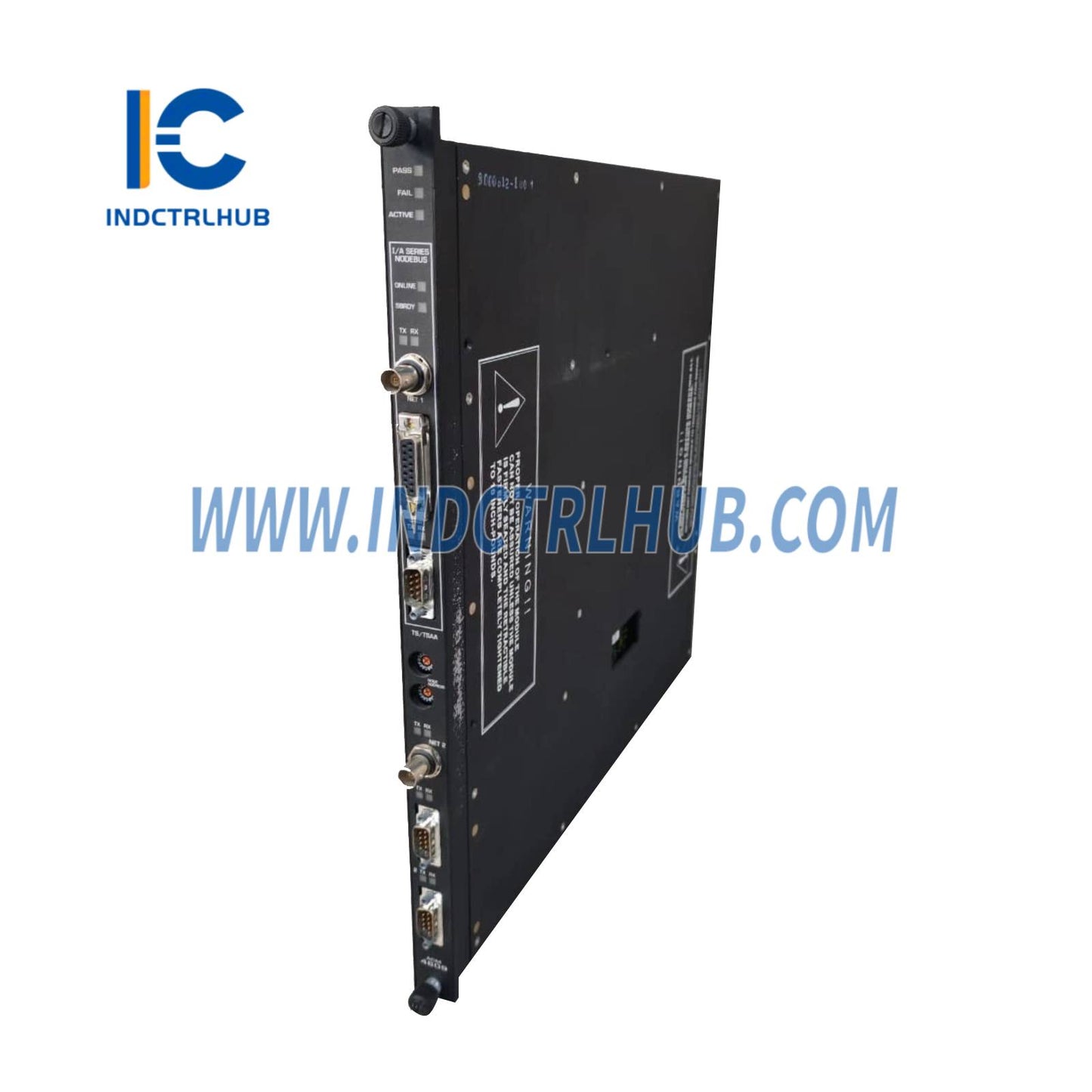

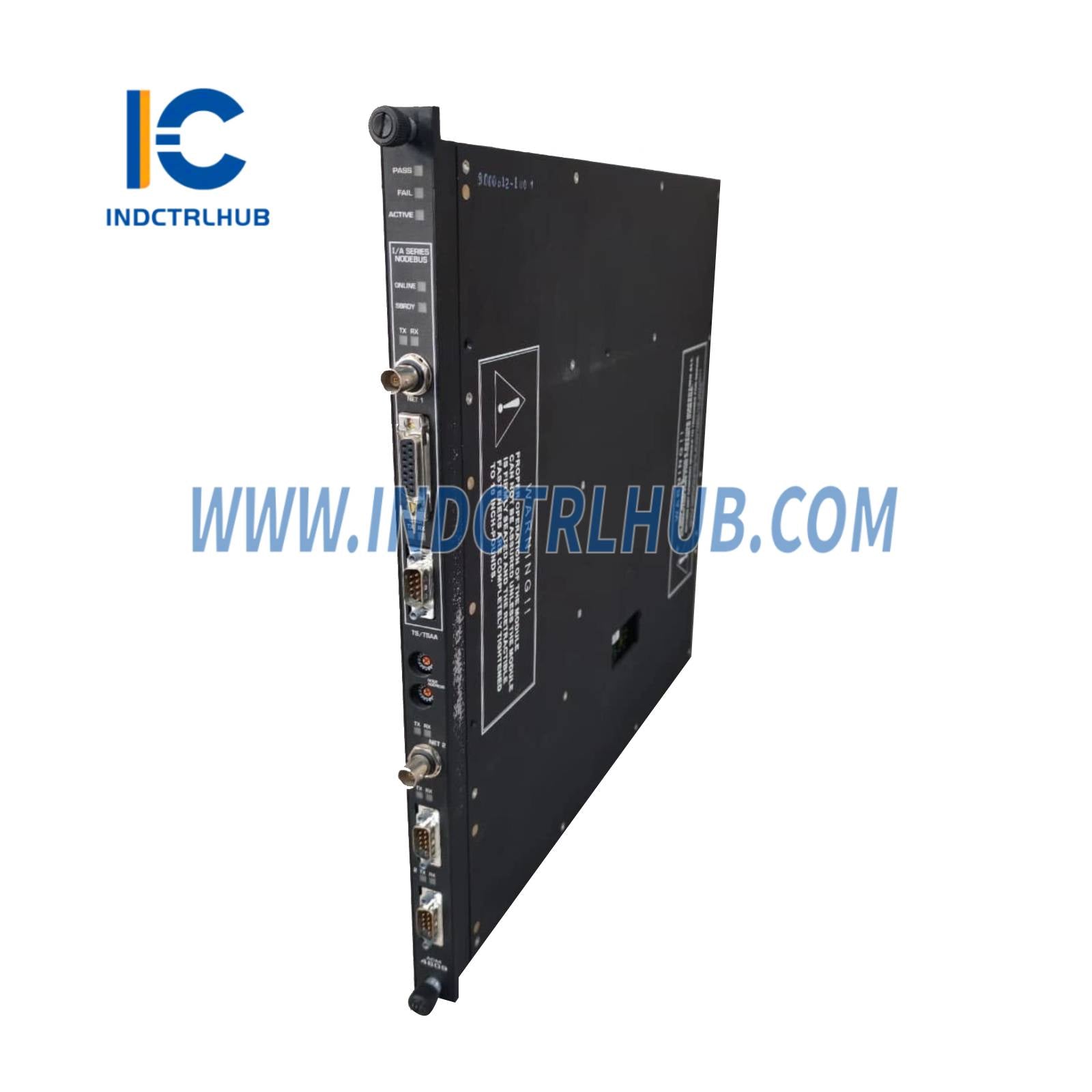

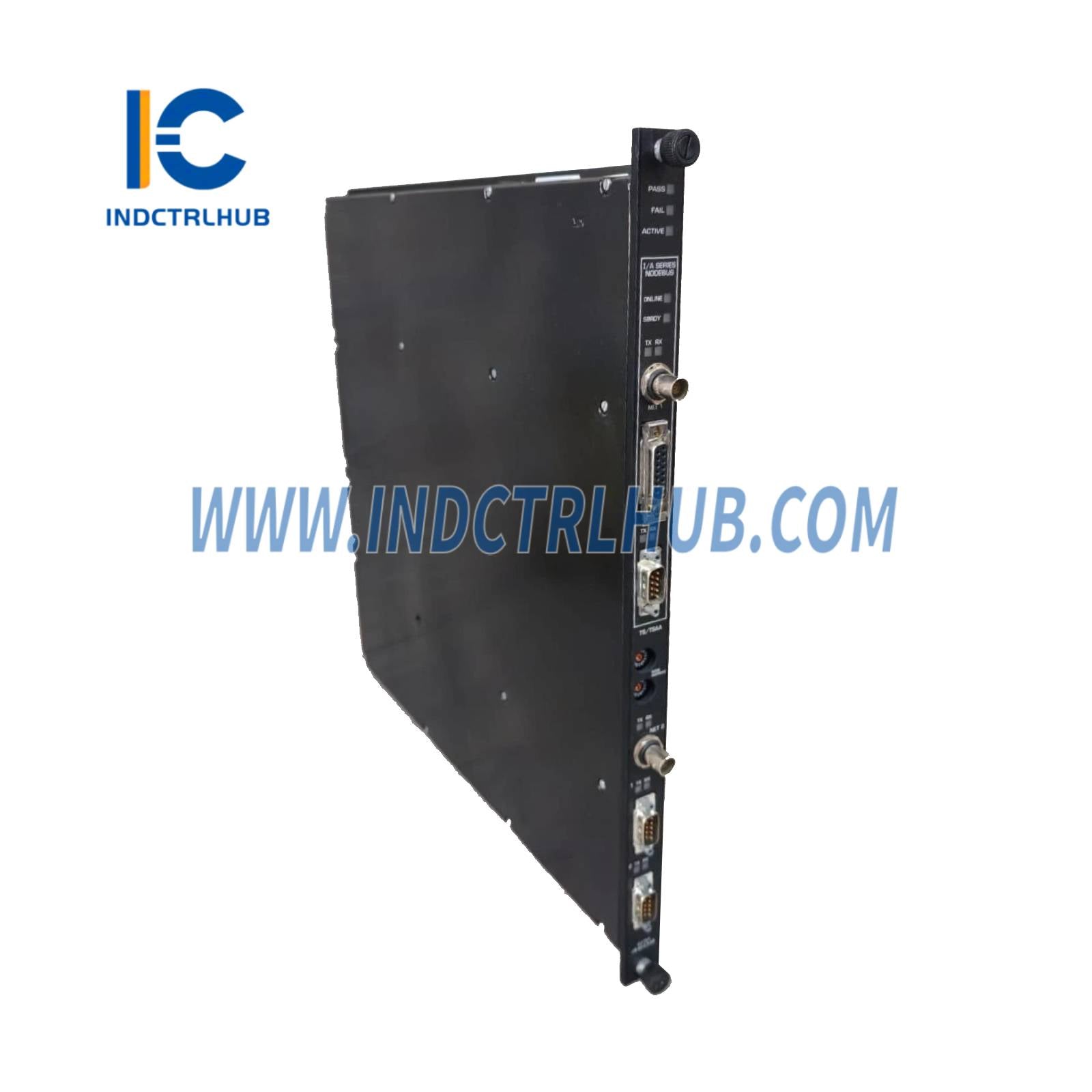

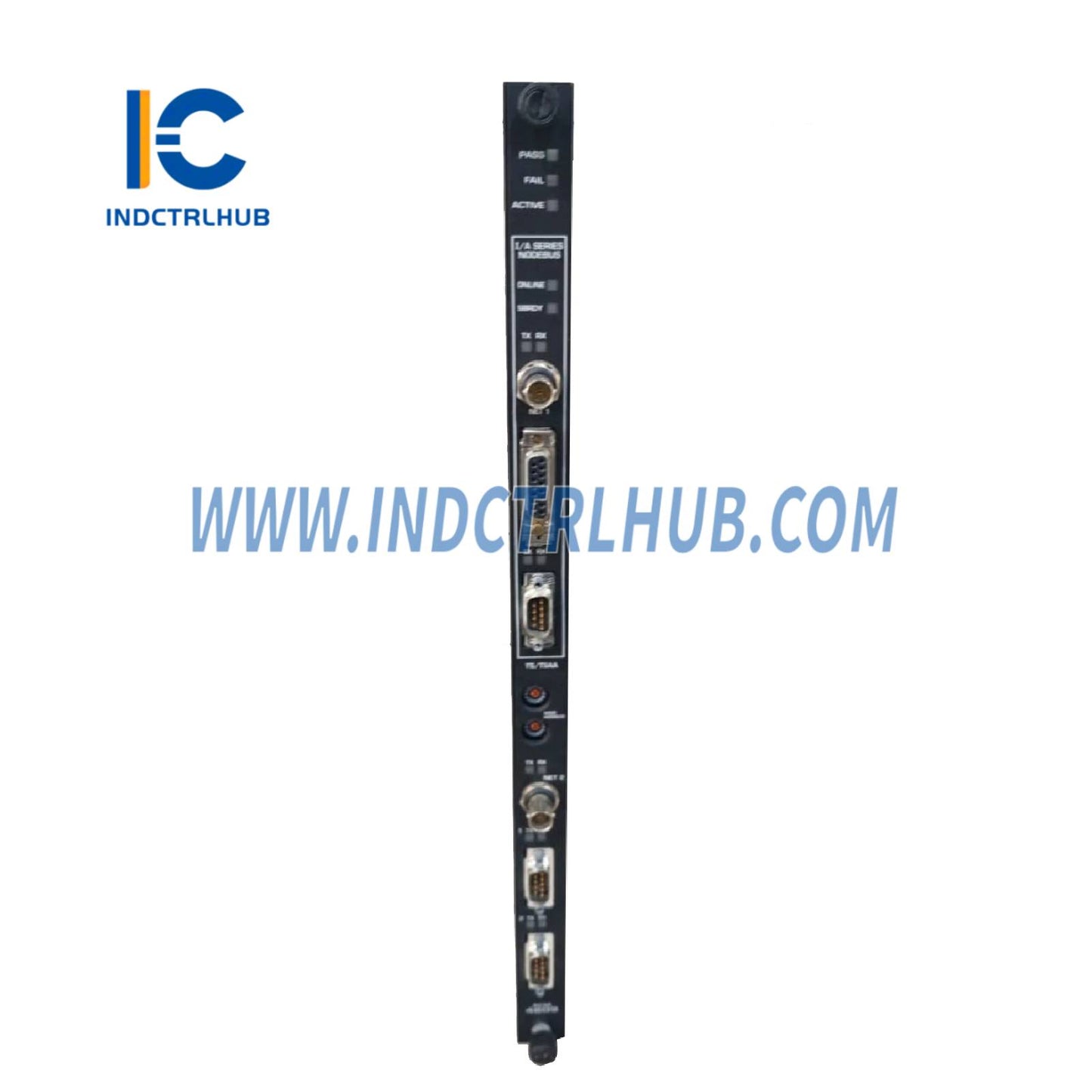

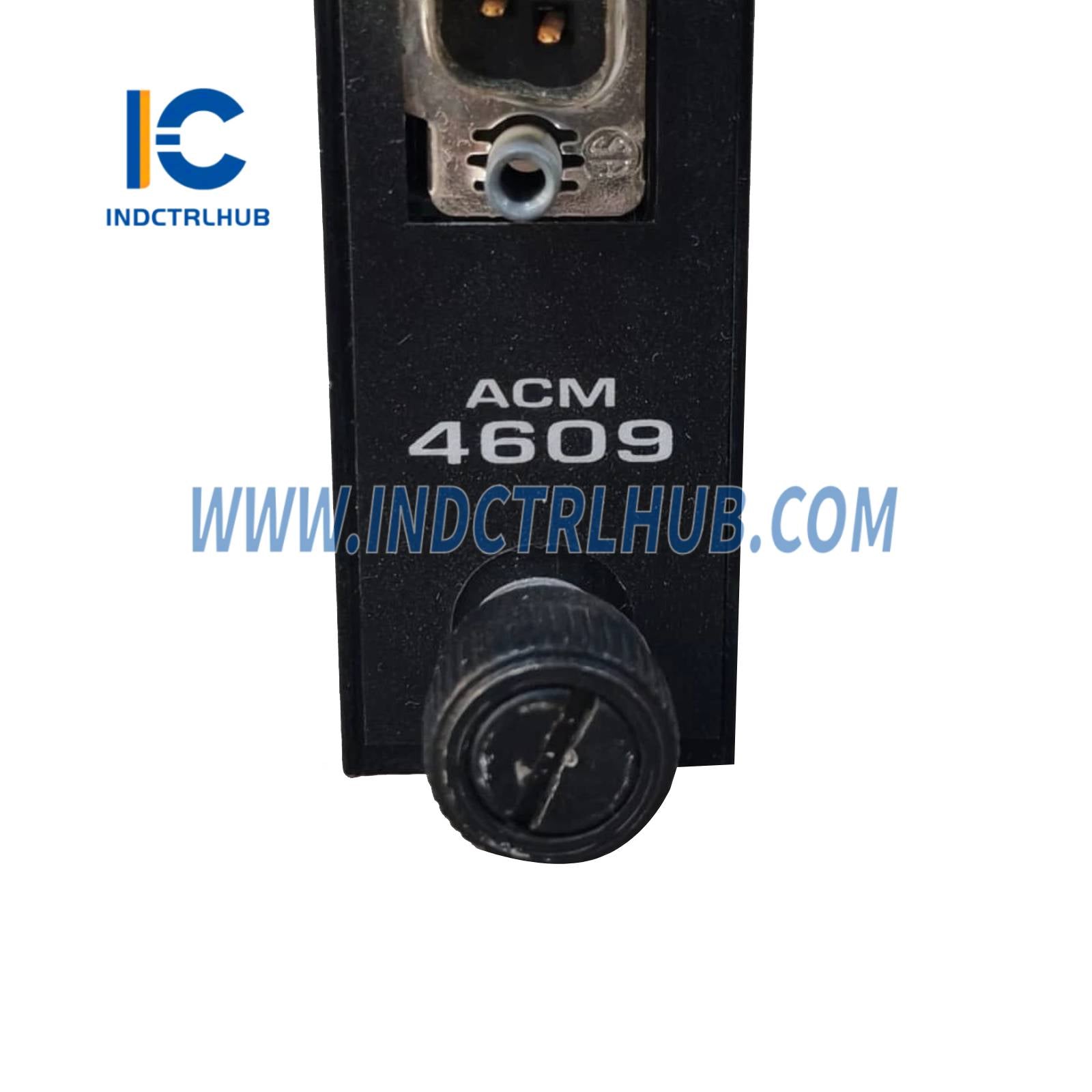

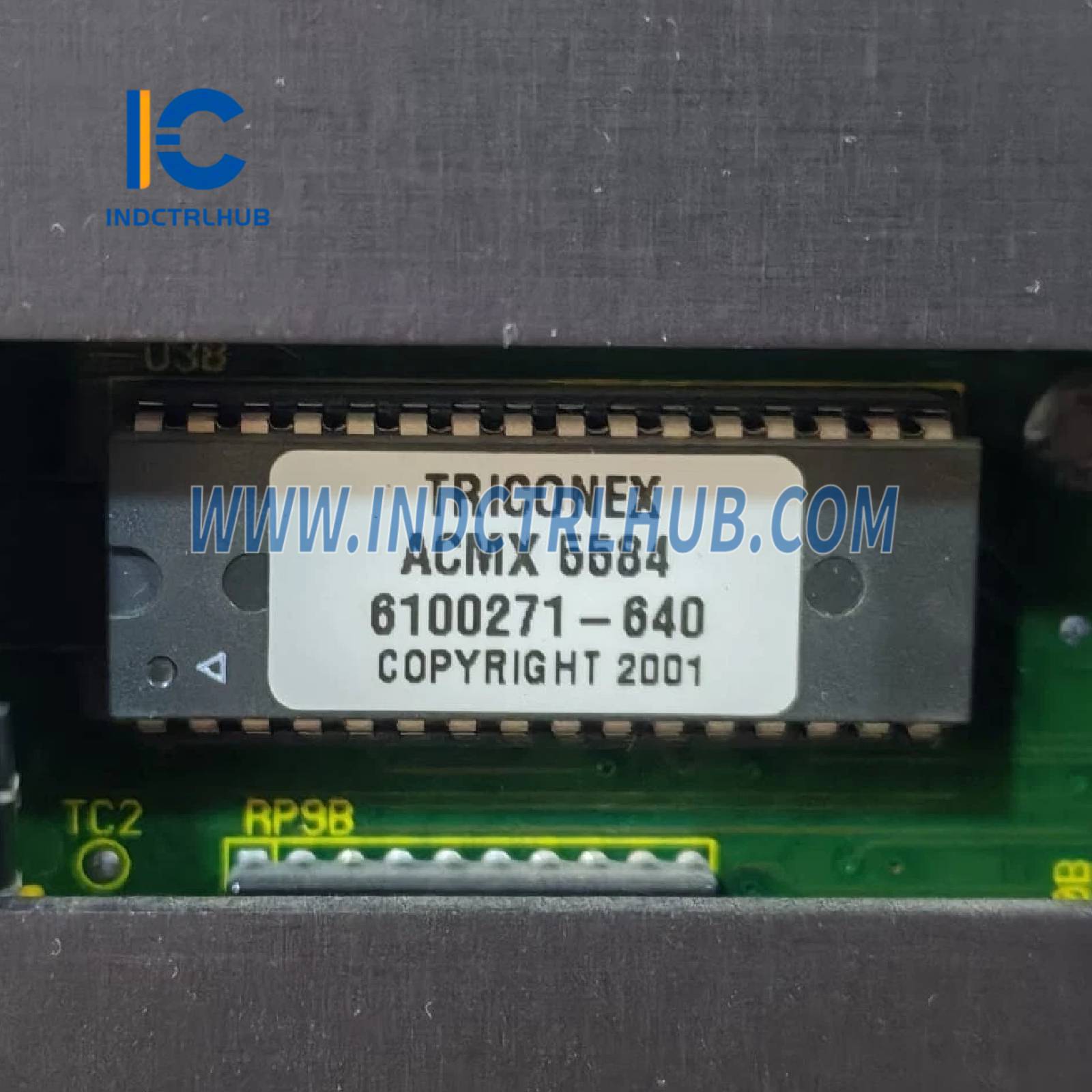

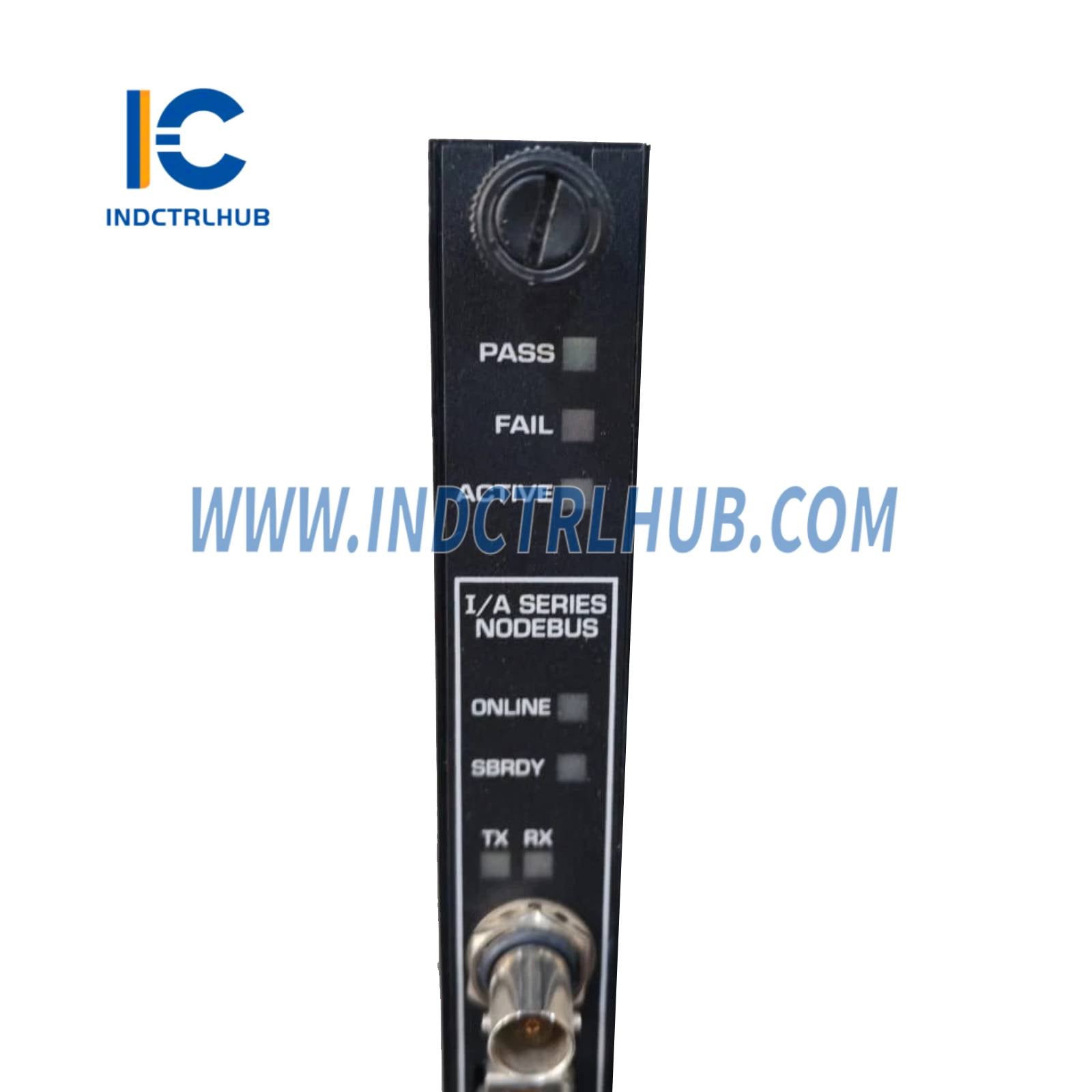

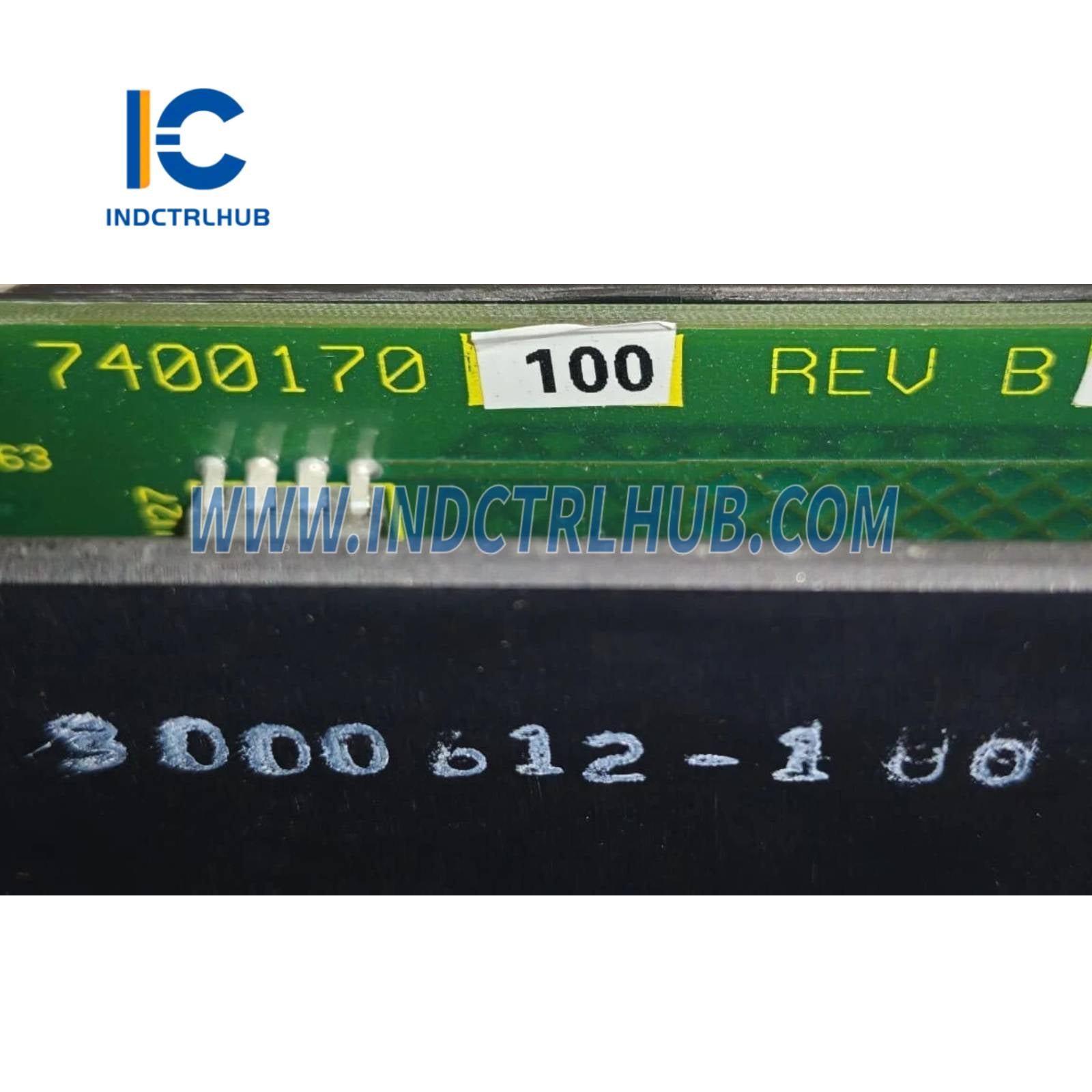

Triconex 4609 Advanced Communication Module
- Manufacturer: Triconex (Schneider Electric)
- Series: Tricon
- Model/Part Number: 4609
- Description: Advanced Communication Module (ACM) for Foxboro I/A Series Nodebus Interface
Overview
The Triconex 4609 is an Advanced Communication Module (ACM) designed for use in Triconex’s Tricon safety instrumented systems (SIS), part of Schneider Electric’s portfolio. It acts as an interface between a Tricon controller and a Foxboro Intelligent Automation (I/A) Series system, appearing as a safety node on the I/A Series Nodebus. This module facilitates high-speed data exchange and diagnostics
Technical Specifications
| Specification | Details |
|---|---|
| Model | 4609 |
| Series | Tricon |
| Type | Advanced Communication Module (ACM) |
| Function | Interfaces Tricon controller with Foxboro I/A Series Nodebus |
| Ports | Nodebus: BNC connector for 50-ohm RG58 thin cable (reserved) Nodebus: 15-pin D-connector for AUI to DNBI Control Bus: 9-pin RS-423 for DNBI NET 2: BNC connector for external host communication |
| Communication Protocols | Foxboro I/A Series Nodebus, TriStation protocol, TSAA, TSAA/TCP (UDP/IP) |
| Data Rate | Full network data rates for I/A Series; 2 Mbps for COMM bus |
| Isolation | Electrical isolation for noise immunity |
| Connectors | BNC, 15-pin D-sub, 9-pin D-sub for field wiring |
| Compatible Systems | Foxboro I/A Series, Tricon systems with Main Processors (e.g., 3008) |
| Compatibility | Tricon systems, TriStation 1131 software, external hosts via NET 2 |
| Mounting | Plugs into Tricon chassis |
| Power Supply | Supplied by Tricon chassis backplane (typically 24 VDC) |
| Power Consumption | Approx. 5–8 W |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Environmental Protection | Designed for harsh industrial environments; EMI/RFI shielding |
| Dimensions | Approx. 49 x 45.3 x 6.8 cm (19.3 x 17.8 x 2.7 in) |
| Weight | Approx. 1 kg (2.2 lbs) |
| Certifications | TÜV-certified for SIL 3 (IEC 61508), CE, UL, CSA, marine-certified |
| Manual | Tricon Communication Module Guide, Tricon Planning and Installation Guide |
