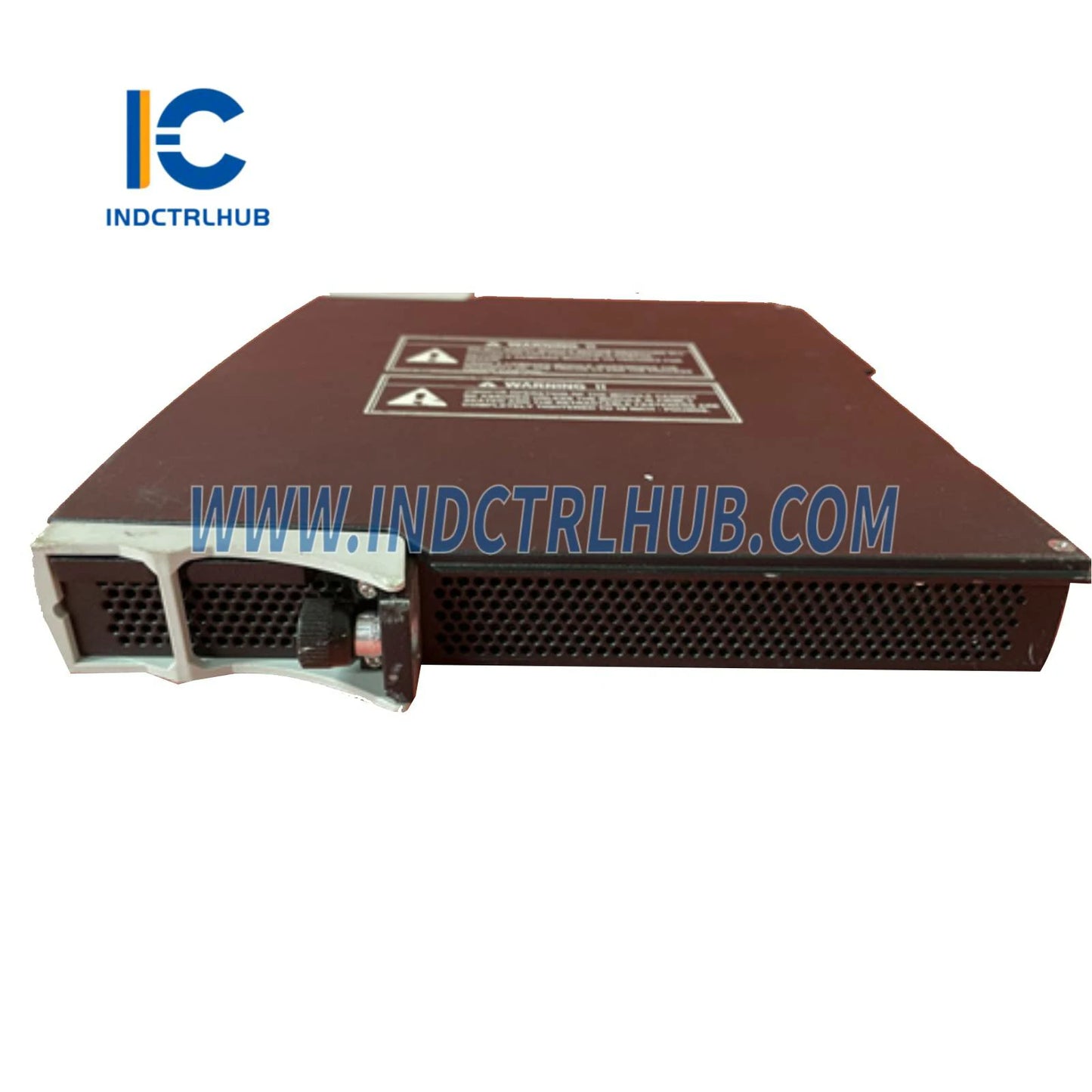

Triconex 3723X Analog Input Module | 32-Channel High-Density TMR

Triconex 3723X High-Density Analog Input Module - Triple Modular Redundant Safety I/O

The Triconex 3723X represents a breakthrough in safety-critical analog signal acquisition, delivering 32 channels of triple modular redundant (TMR) analog input processing within a single compact module. Engineered for Tricon and Trident safety instrumented systems, this high-density module provides unmatched reliability for process measurement in hazardous industrial environments.

Technical Specifications

• Input Channels: 32 differential analog inputs with TMR architecture
• Signal Range: 0-20 mA, 4-20 mA, 0-10V DC configurable per channel
• Resolution: 16-bit A/D conversion for precision measurement
• Accuracy: ±0.1% of full scale at 25°C
• Isolation: 1500V RMS channel-to-backplane isolation
• Update Rate: 100 ms per channel scan cycle
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Power Consumption: 8.5W typical from backplane
• Certifications: SIL 3 (IEC 61508), Class I Div 2, ATEX Zone 2

Industrial Applications

The 3723X module excels in demanding safety applications across multiple sectors. In oil and gas refineries, it monitors critical process variables including temperature, pressure, and flow transmitters for emergency shutdown systems. Chemical processing plants rely on its TMR architecture to ensure continuous monitoring of reactor conditions, preventing hazardous overpressure or temperature excursions. Power generation facilities deploy the 3723X for turbine protection systems, boiler control, and emissions monitoring where measurement integrity is non-negotiable.

System Integration & Configuration

Installation is streamlined through hot-swappable design—modules can be replaced without system shutdown, minimizing production interruptions. The 3723X integrates seamlessly with TriStation 1131 programming software, offering intuitive configuration of input ranges, filtering parameters, and alarm thresholds. Field wiring terminates at removable terminal blocks with clear channel labeling, accelerating commissioning and troubleshooting.

Reliability Through Redundancy

Triple modular redundancy ensures that each input signal is processed by three independent circuits. The Tricon controller employs 2-out-of-3 voting logic to detect and compensate for single-point failures automatically. This fault-tolerant design achieves mean time between failures (MTBF) exceeding 100 years, making the 3723X ideal for continuous process industries where unplanned downtime carries severe economic and safety consequences.

Frequently Asked Questions

Q: Can the 3723X handle both current and voltage inputs simultaneously?
A: Yes, each channel is individually configurable for 0-20mA, 4-20mA, or 0-10V DC signals through software settings without hardware modifications.

Q: What diagnostic capabilities does the module provide?
A: Comprehensive diagnostics include open-circuit detection, short-circuit identification, out-of-range alarms, and per-channel health status reporting to the controller.

Q: Is the module compatible with legacy Tricon systems?
A: The 3723X is backward compatible with Tricon systems running firmware version 10.0 and higher, though full feature utilization may require controller updates.

Q: How does the module handle sensor failures?
A: TMR voting detects discrepancies between redundant channels. The system continues operating on valid inputs while flagging the faulty channel for maintenance.

Warranty & Support

Every Triconex 3723X module includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Our technical support team provides configuration assistance, troubleshooting guidance, and rapid replacement services to minimize system downtime.
