Product Description

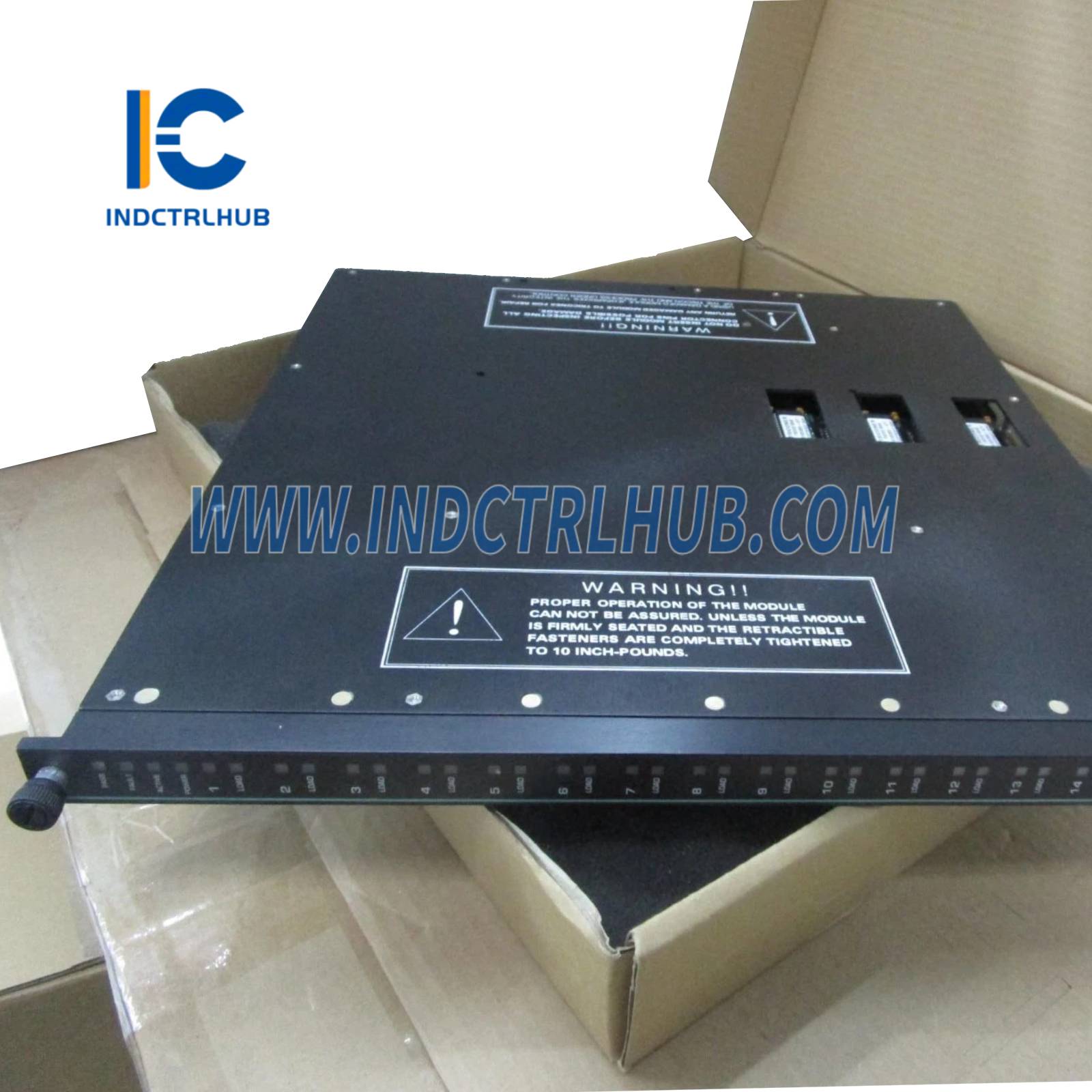

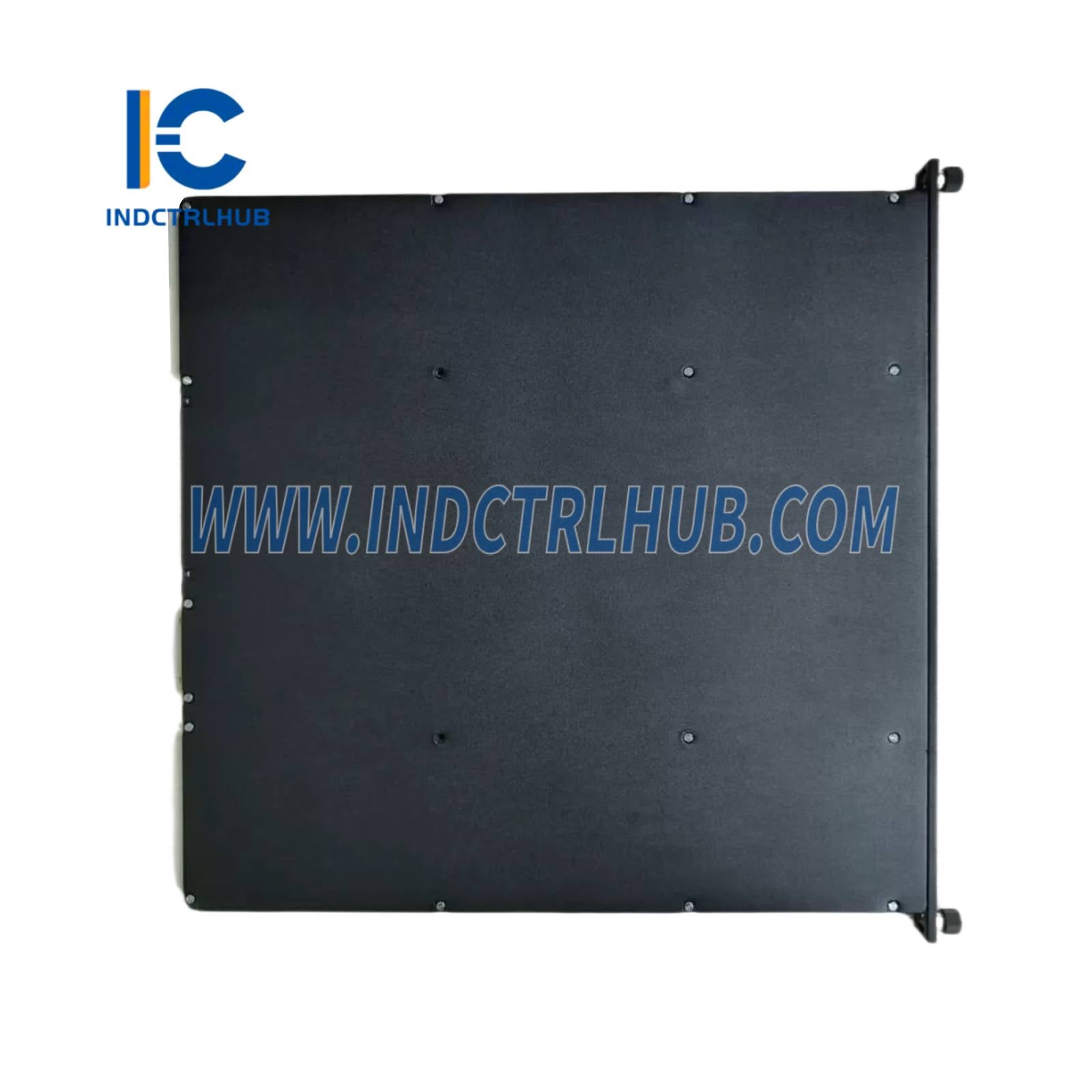

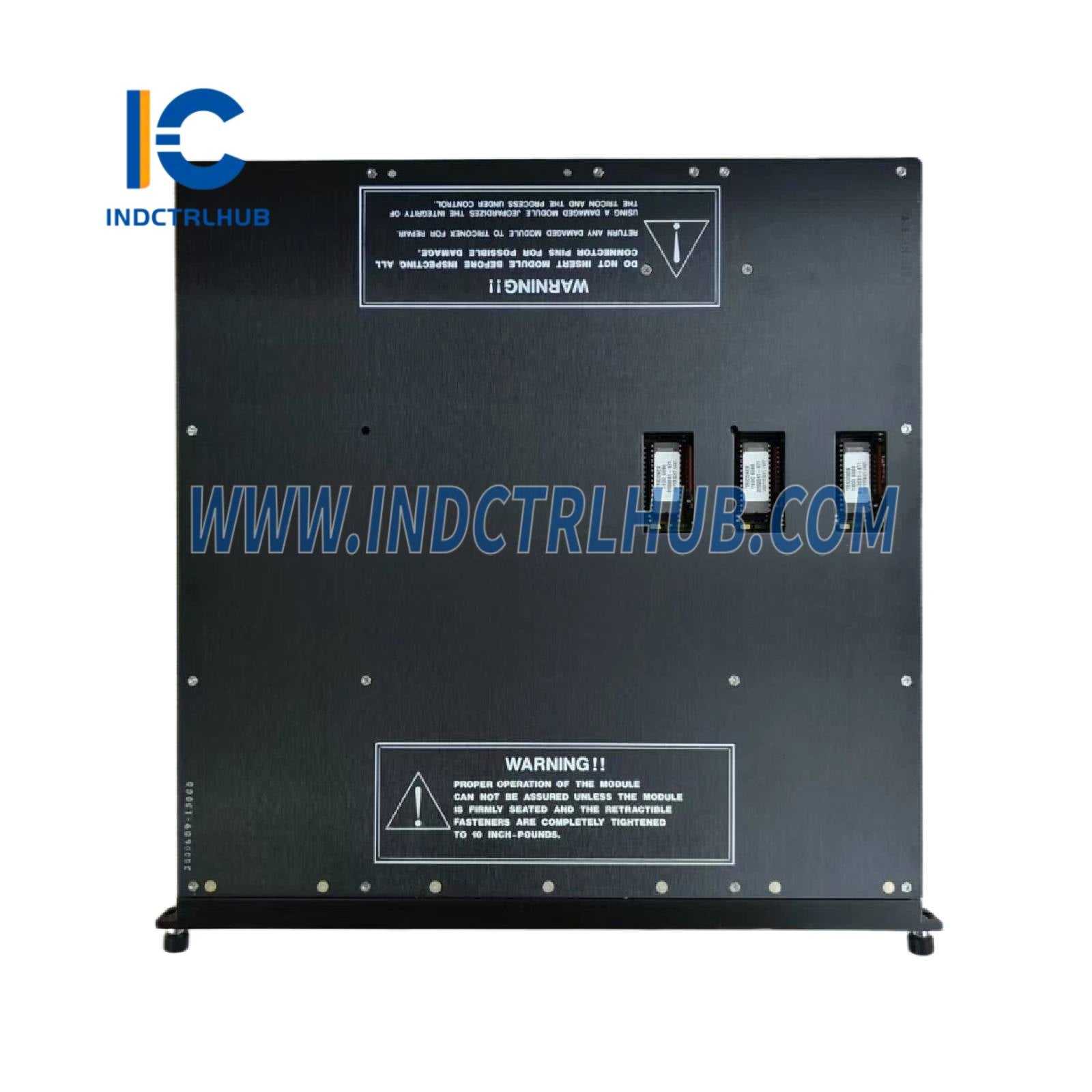

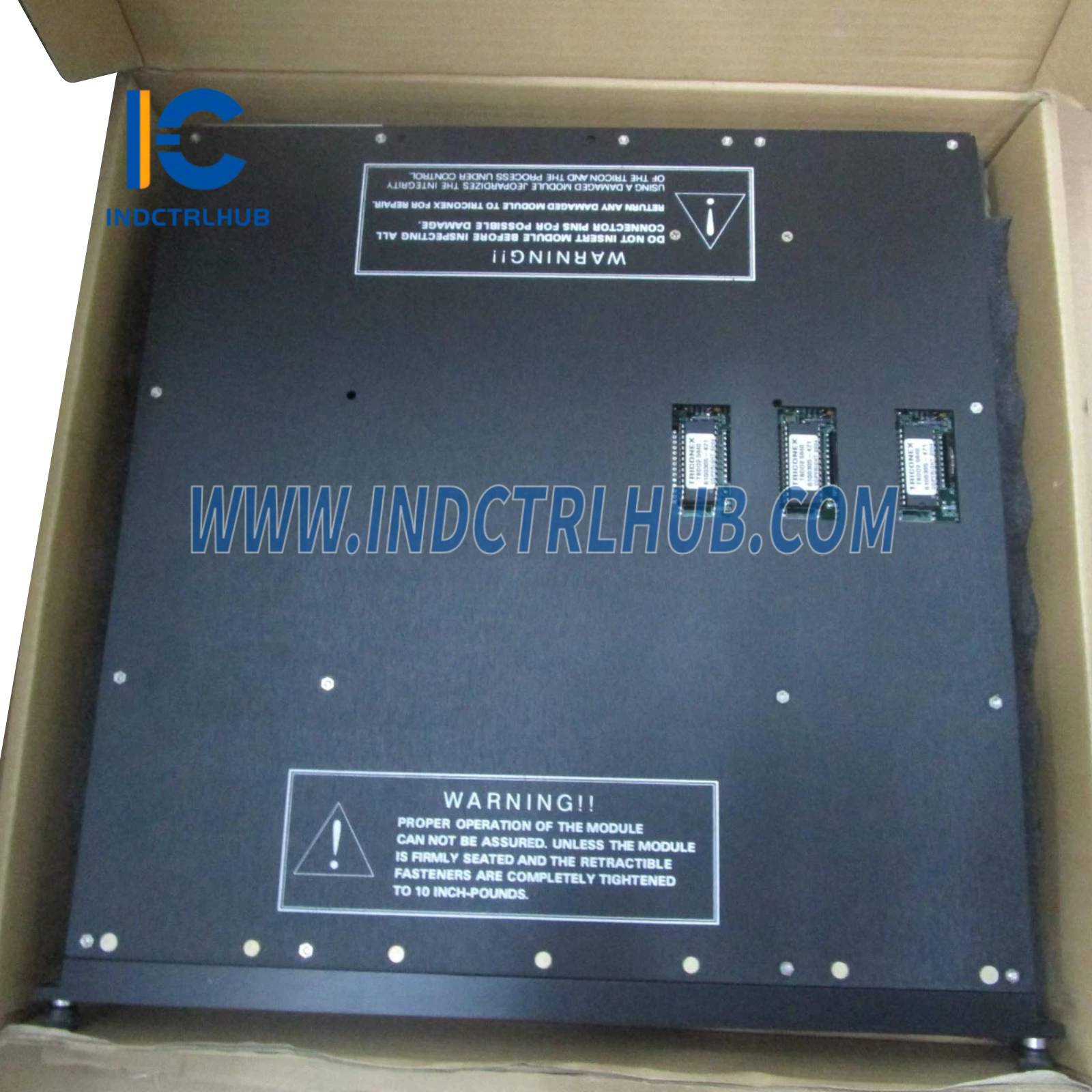

Triconex 3625N Digital Output Module
Product Overview
- Description: The Triconex 3625N is a Digital Output Module designed for use in Triconex safety instrumented systems (SIS), part of Schneider Electric’s Triconex product line. It provides 32 supervised or non-supervised digital output channels to control field devices such as relays
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Triconex Safety Instrumented Systems (SIS) |
| Model/Part Number | 3625N |
| Model Type | Digital Output Module (Supervised/Non-Supervised) |
| Function | Provides 32 supervised or non-supervised digital output signals for controlling field devices |
| Display | Not applicable (no integrated display) |
| Inputs | Digital control signals from Triconex controllers |
| Outputs | 32 digital outputs (24 VDC, up to 2 A per channel, resistive) |
| Communication Interfaces | TriBus for TMR communication, connects to Triconex controllers |
| Signal Conditioning | Output current limiting, signal isolation, field wiring supervision (in supervised mode) |
| Accuracy | Not applicable (digital signal processing) |
| Redundancy | Supports Triple Modular Redundant (TMR) architecture |
| Diagnostics | Built-in diagnostics, hot-swappable, field wiring fault detection, status monitoring via TriStation 1131 |
| Compatibility | Triconex safety systems (e.g., Tricon, Trident, Tri-GP); requires Tricon v10.2 or later for 3625N |
| Power Supply | 24 VDC (via Triconex backplane), common voltage range: 16–32 VDC, max 36 V |
| Power Consumption | Maximum 76.8 W (based on 32 channels at 2 A, 24 VDC) |
| Environmental Specifications | Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in Triconex chassis) |
| Dimensions | Approx. 240 mm (H) x 120 mm (W) x 40 mm (D) |
| Weight | Approx. 0.4 kg |
| Mounting | Plugs into Triconex chassis, compatible with 16-point commoned field termination panels |
| Certifications | CE, UL, CSA, SIL 3 (IEC 61508), TÜV Rheinland, ATEX Zone 2 |
