Product Description

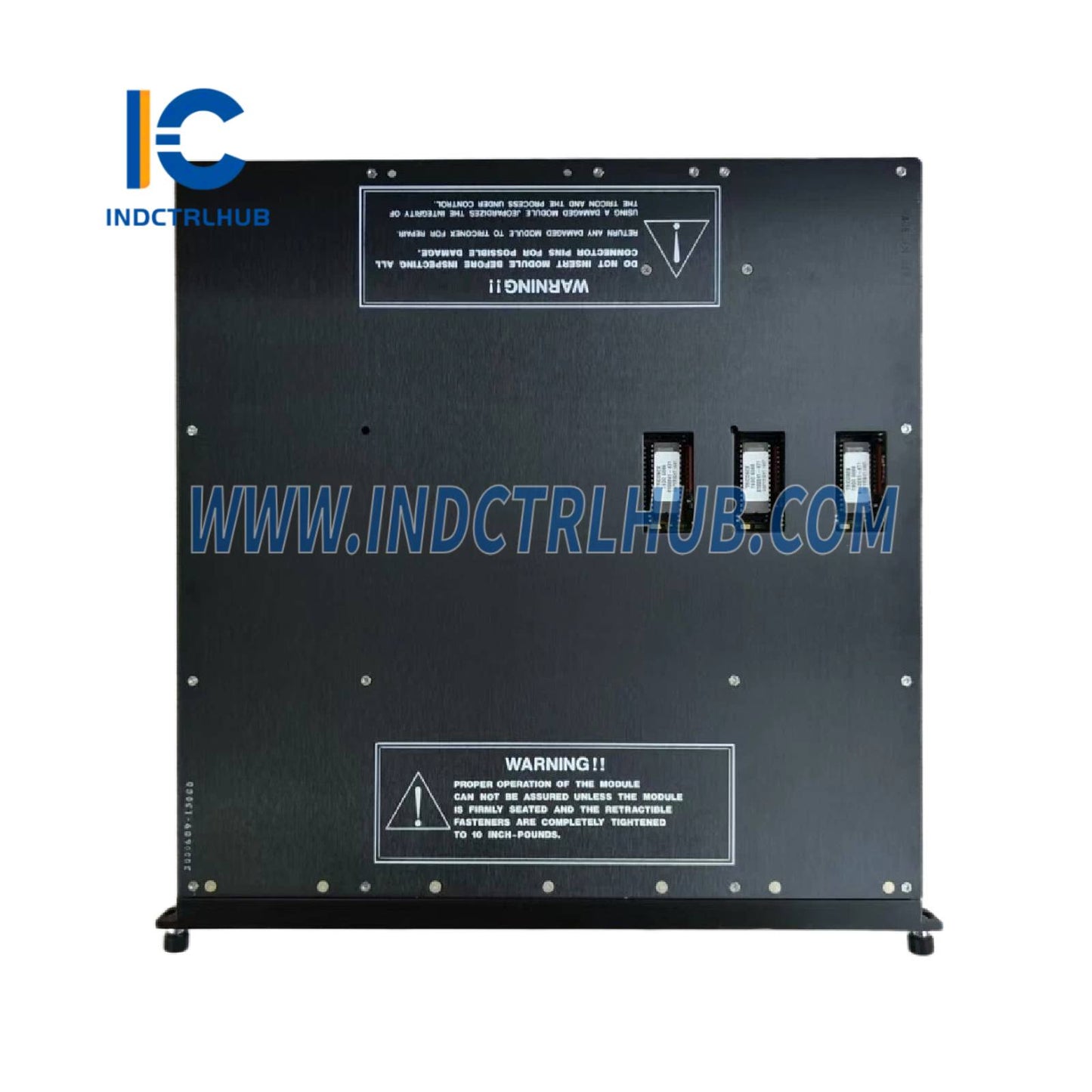

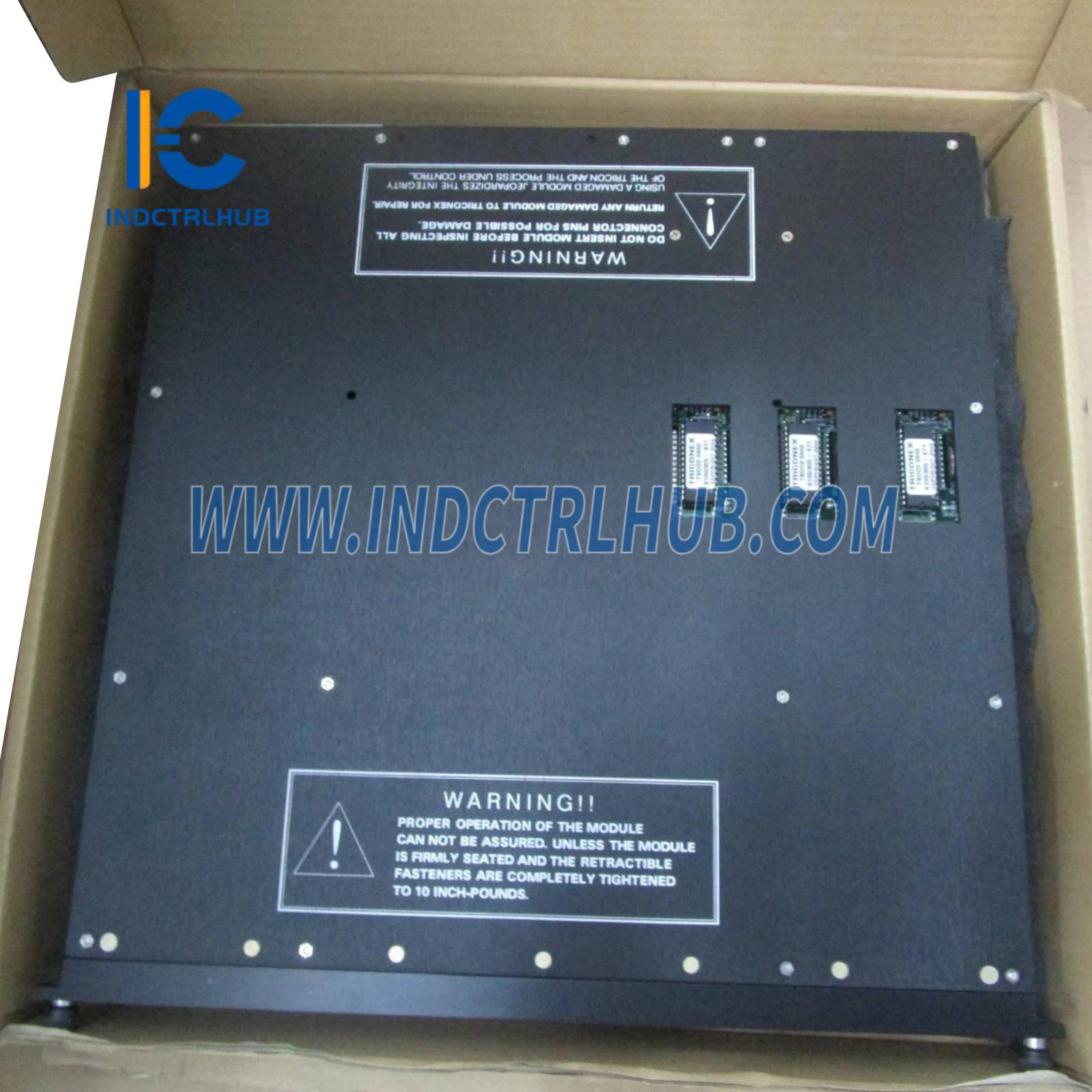

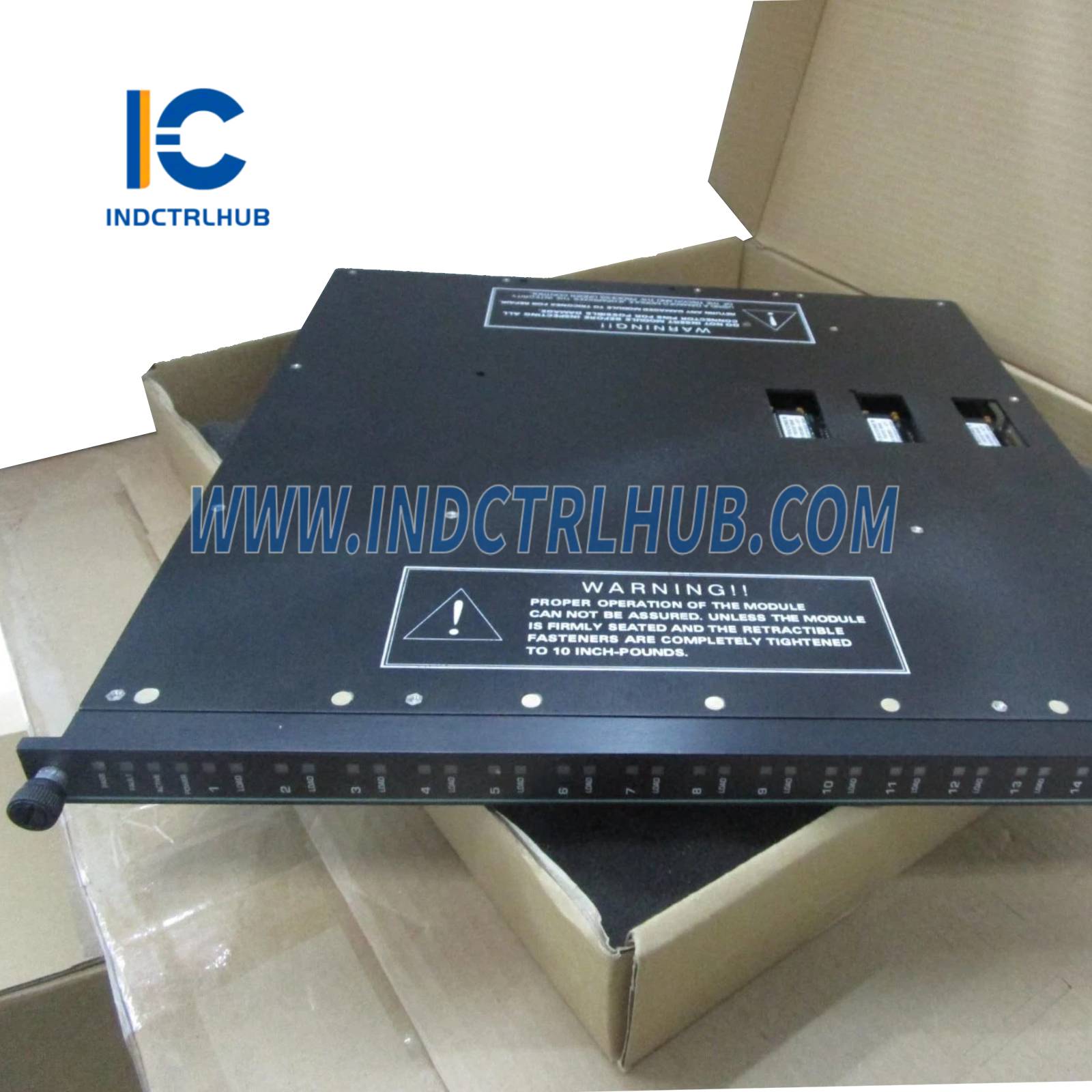

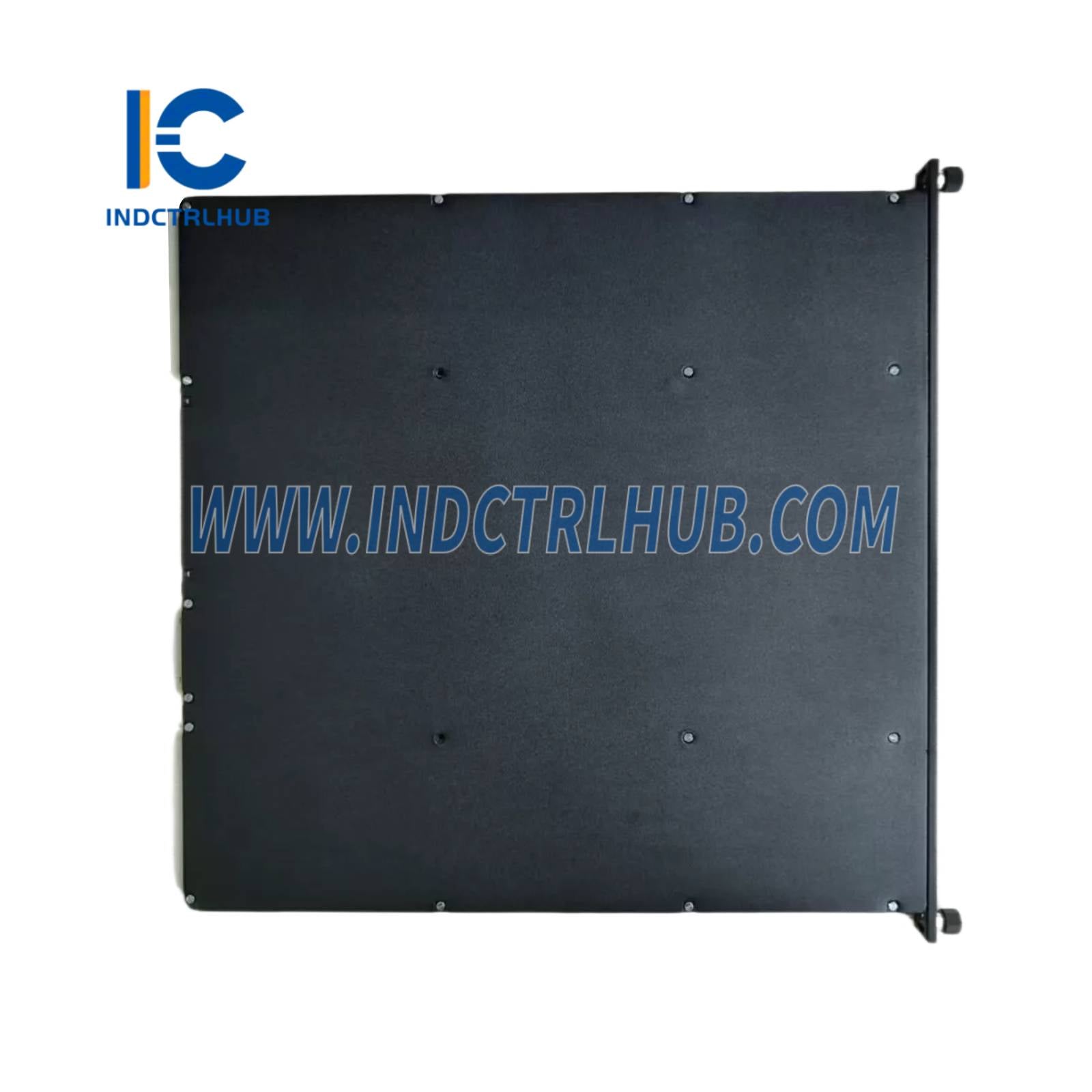

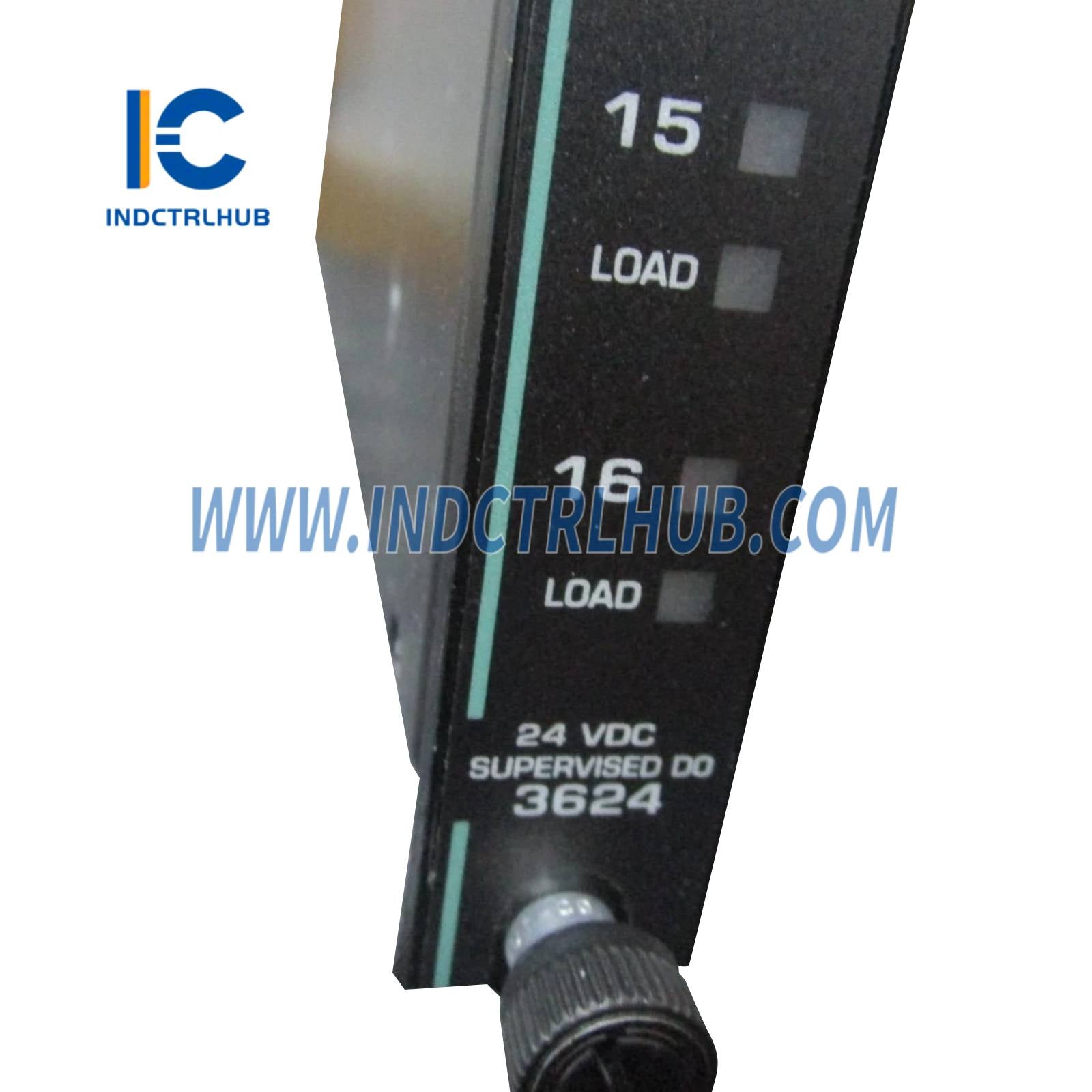

Triconex 3624E Digital Output Module
Product Overview
- Description: The Triconex 3624E is a Digital Output Module designed for use in Triconex safety instrumented systems (SIS), part of Schneider Electric’s Triconex product line. It provides 16 supervised digital output channels to control field devices such as relays, solenoid valves
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Triconex Safety Instrumented Systems (SIS) |
| Model/Part Number | 3624E |
| Model Type | Digital Output Module (Supervised) |
| Function | Provides 16 supervised digital output signals for controlling field devices |
| Display | Not applicable (no integrated display) |
| Inputs | Digital control signals from Triconex controllers |
| Outputs | 16 supervised digital outputs (24 VDC, typically 0.5 A per channel) |
| Communication Interfaces | TriBus for TMR communication, connects to Triconex controllers |
| Signal Conditioning | Output current limiting, signal isolation, field wiring supervision |
| Accuracy | Not applicable (digital signal processing) |
| Redundancy | Supports Triple Modular Redundant (TMR) architecture |
| Diagnostics | Built-in diagnostics, hot-swappable, field wiring fault detection, status monitoring via TriStation 1131 |
| Compatibility | Triconex safety systems (e.g., Tricon, Trident, Tri-GP) |
| Power Supply | 24 VDC (via Triconex backplane) |
| Power Consumption | 5–10 W (estimated, depending on load) |
| Environmental Specifications | Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in Triconex chassis) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 200 mm (D) (estimated) |
| Weight | Approx. 0.5–0.7 kg |
| Mounting | Plugs into Triconex chassis |
| Certifications | CE, UL, CSA, SIL 3 (IEC 61508), TÜV Rheinland |
