| Module Type |

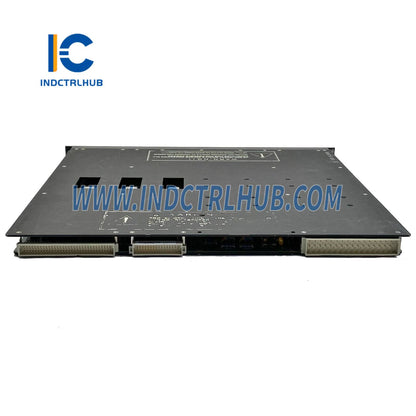

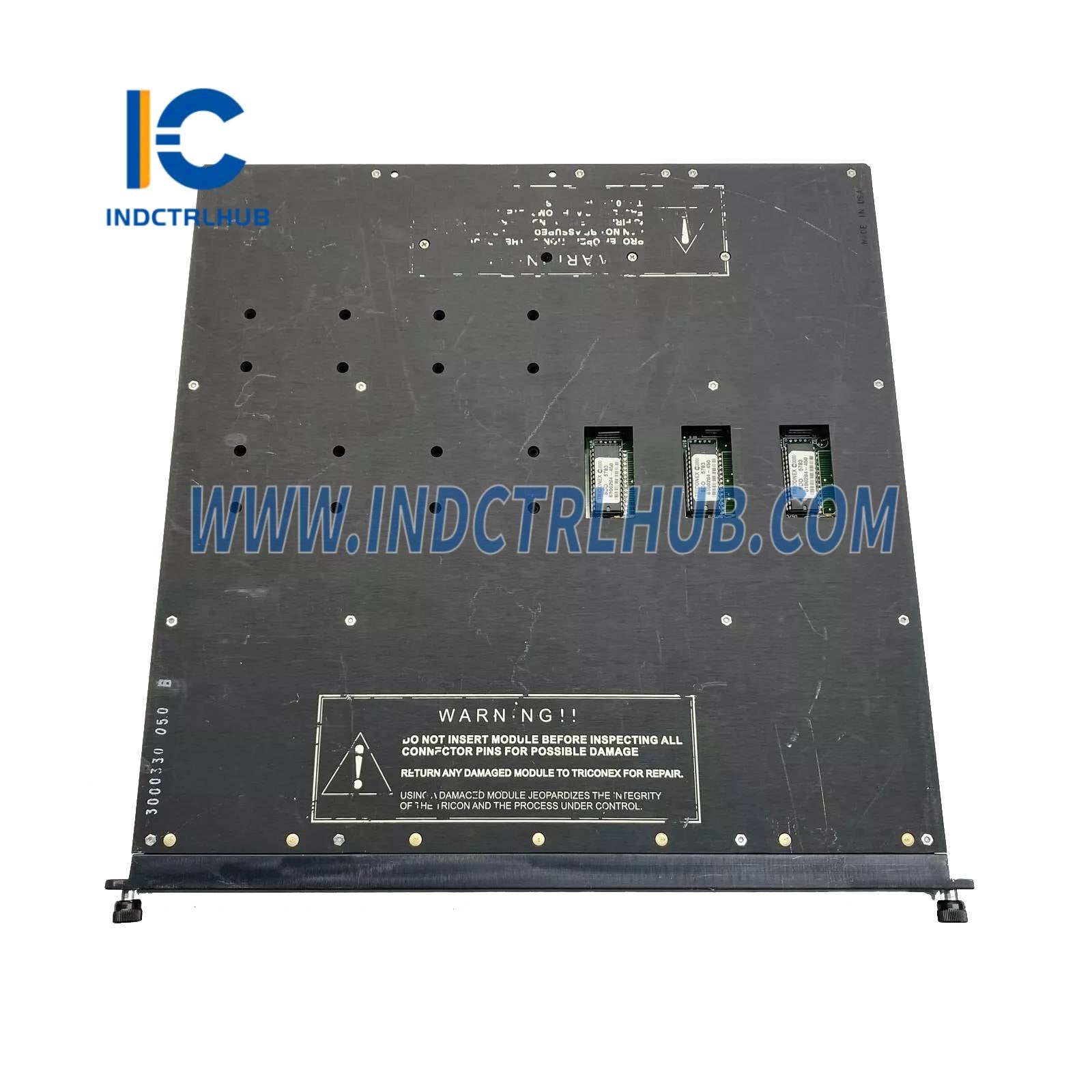

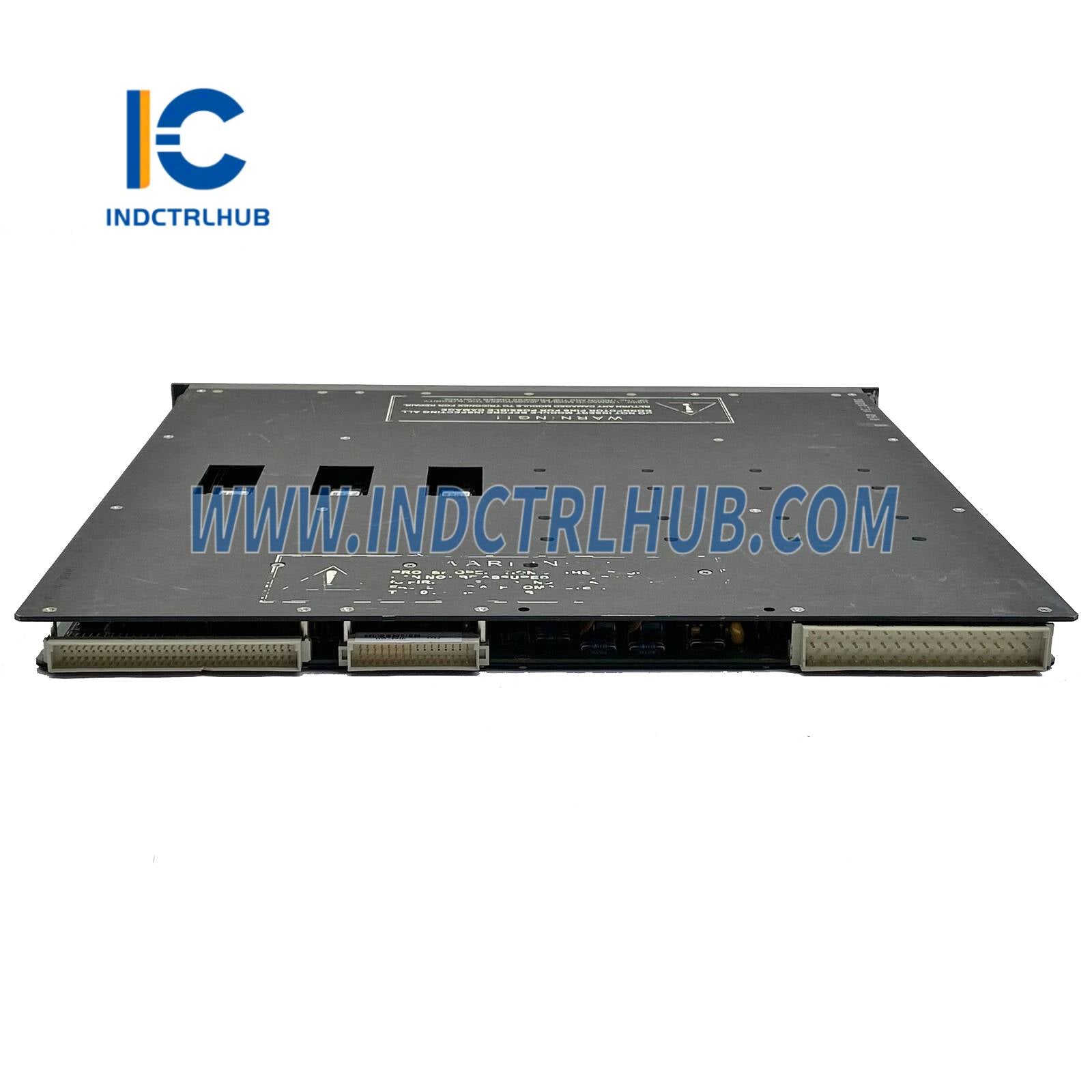

Triple Modular Redundant (TMR), Supervised Digital Output |
| Output Points |
16, commoned |
| Nominal Voltage |
24 V DC |
| Voltage Range |
18-32 V DC |
| Current Ratings |
1 A maximum per point, 10 A maximum per module |
| Minimum Required Load |
10 mA |
| On-State Voltage Drop |
< 1.5 V, typical |
| Point Isolation |
1500 V DC, minimum |
| Diagnostic Indicators |
Output Status (POINT, PWR, LOAD), Module Status (PASS, FAULT, ACTIVE) |
| Color Code |
Deep green |
| Power Consumption |
5 W typical |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% (non-condensing) |
| Mounting |
Plugs into Trident chassis |
| Standards Compliance |
SIL 3 (IEC 61508), CE, UL, CSA, ATEX (for hazardous locations) |
