Product Description

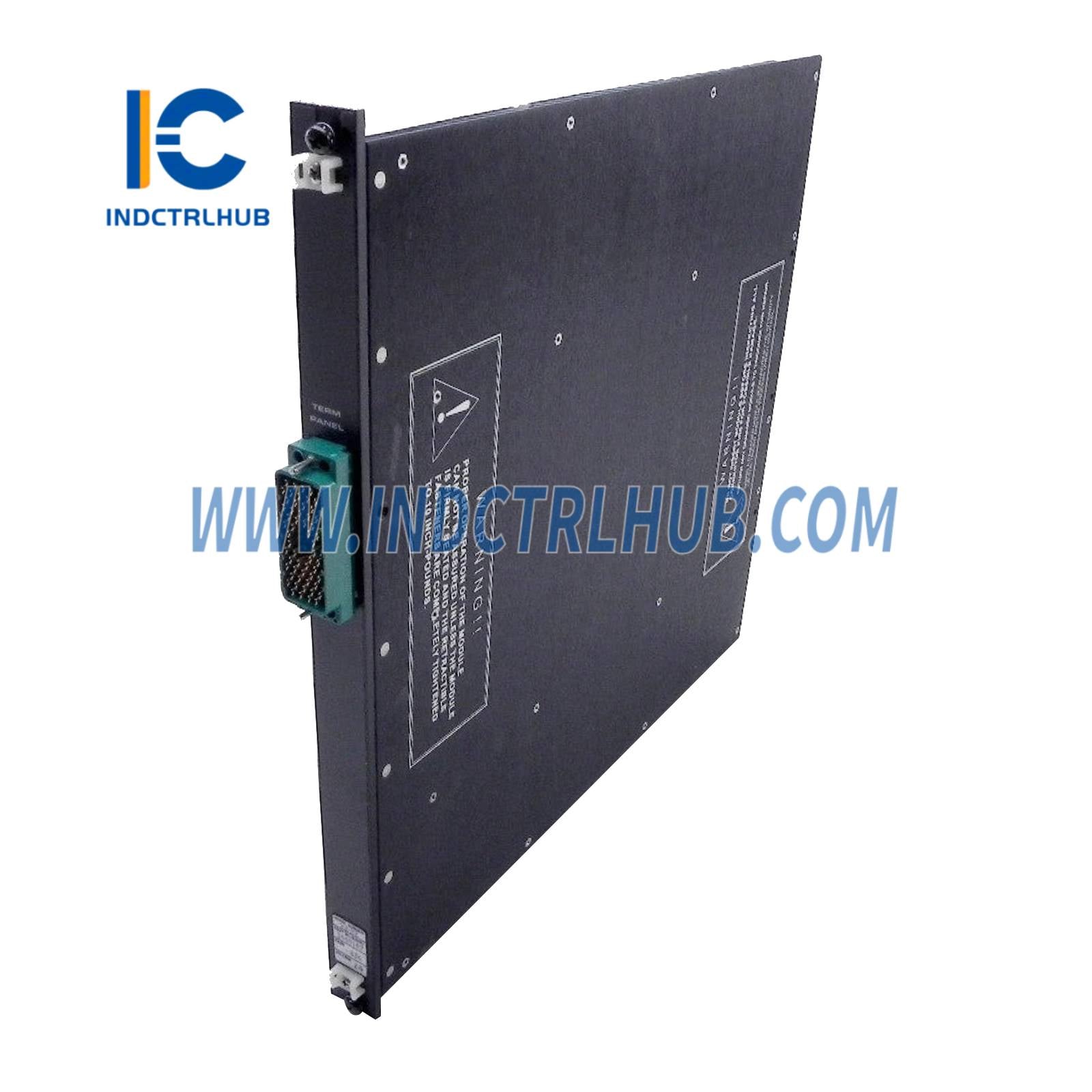

Triconex 2652-5 7400058-350 Digital Output Terminal Board
Product Overview
- Description: The Triconex 2652-5 (7400058-350) is a Digital Output Terminal Board designed for use in Triconex safety instrumented systems (SIS), part of Schneider Electric’s Triconex product line. It provides 32 isolated output channels to interface with field devices such as relays, solenoid valves
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Series | Triconex Safety Instrumented Systems (SIS) |
| Model/Part Number | 2652-5 (7400058-350) |
| Model Type | Digital Output Terminal Board |
| Function | Provides 32 isolated digital output channels for controlling field devices |
| Display | Not applicable (no integrated display) |
| Inputs | Digital control signals from Triconex controllers |
| Outputs | 32 isolated digital outputs (24 VDC, typically 0.5 A per channel) |
| Communication Interfaces | Connects to Triconex I/O modules via proprietary system cable |
| Signal Conditioning | Output current limiting, signal isolation |
| Accuracy | Not applicable (digital signal processing) |
| Redundancy | Supports Triple Modular Redundant (TMR) architecture |
| Diagnostics | Hot-swappable modules, high-integrity diagnostics via Triconex system |
| Compatibility | Triconex safety systems (e.g., Tricon, Trident, Tri-GP) |
| Power Supply | 24 VDC (via Triconex backplane, typical) |
| Power Consumption | 3–5 W (estimated, depending on load) |
| Environmental Specifications | Operating Temperature: -40°C to +70°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in Triconex chassis) |
| Dimensions | Approx. 200 mm (H) x 150 mm (W) x 50 mm (D) (estimated) |
| Weight | Approx. 0.5–0.7 kg |
| Mounting | Rack-mounted in Triconex chassis or marshalling cabinet |
| Certifications | CE, UL, CSA (system-dependent) |
