Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model/Part Number | SPASO11 |
| Description | Analog Output Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | SPASO11 |

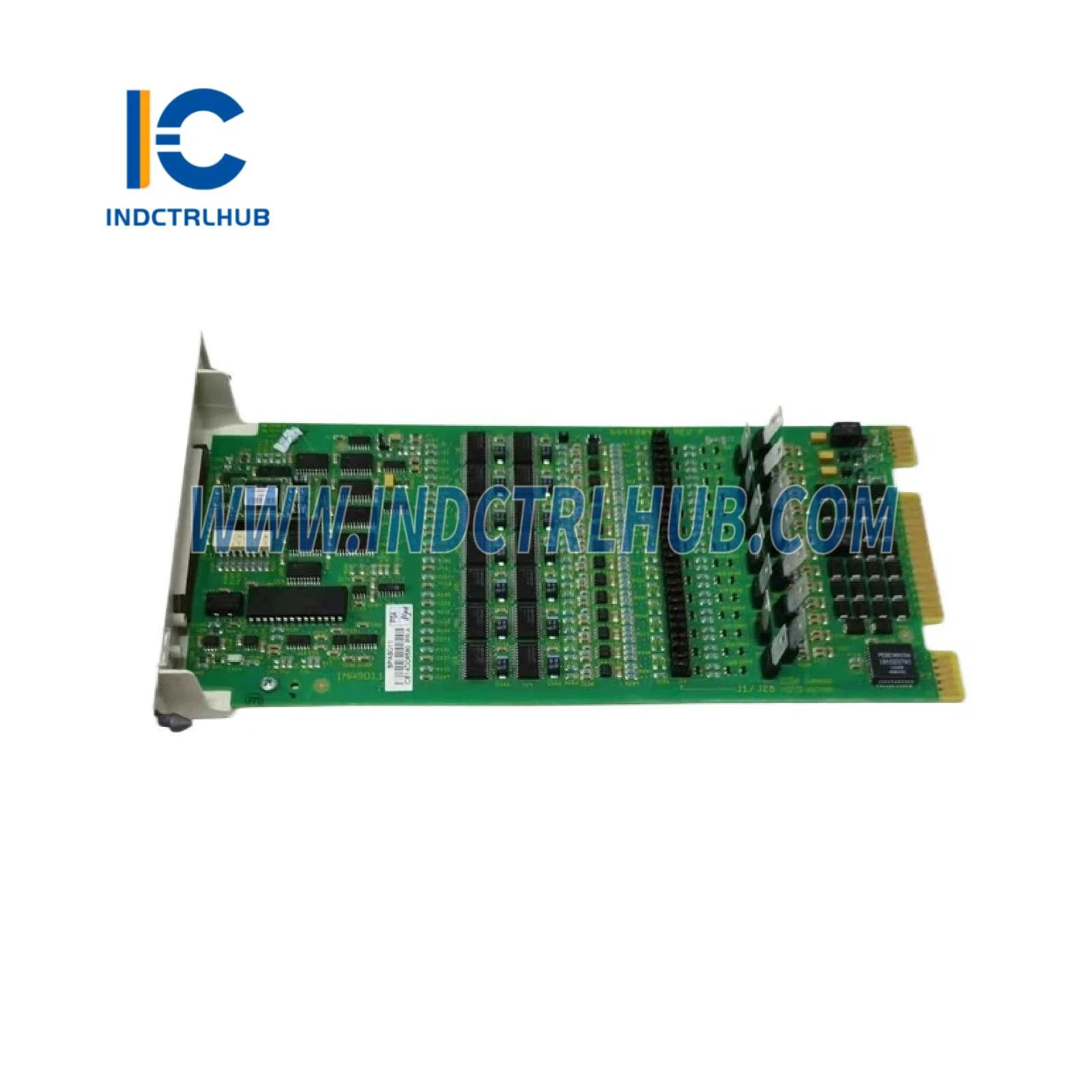

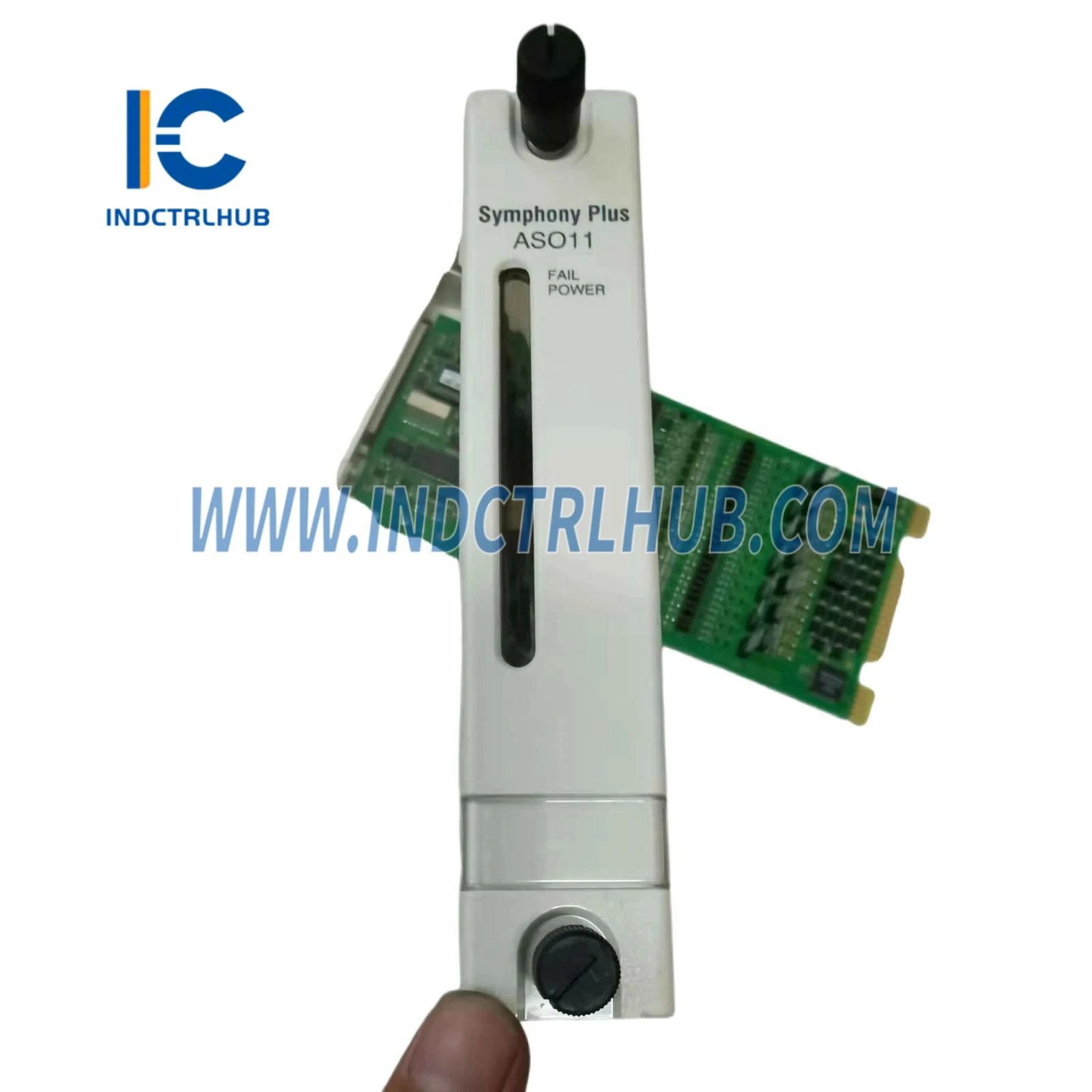

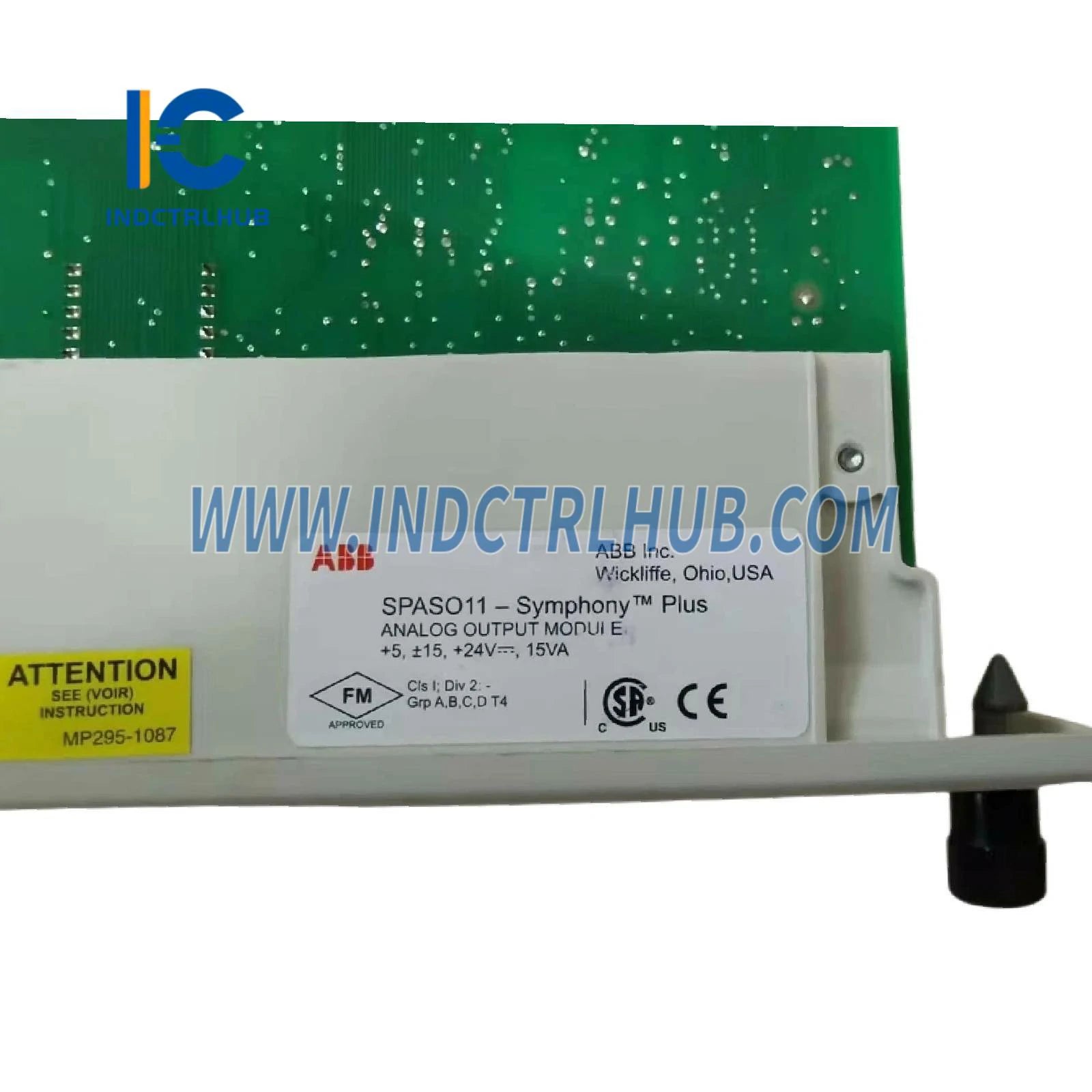

| Product Name | SPASO11 Analog Output Module |
| Application | Analog signal output in distributed control systems for industrial process control and automation |
| Compatibility | Integrates with ABB Symphony Plus and Bailey INFI 90 systems; supports actuator and valve control |
| Function | Provides 14-channel analog output processing for 4-20 mA signals with high accuracy and isolation |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 14 isolated channels |
| Output Type | 4-20 mA current loop |
| Resolution | 16-bit D/A conversion |
| Accuracy | ±0.1% of span typical |
| Isolation | Channel-to-channel and channel-to-bus isolation (500 V) |
| Load Resistance | Up to 750 Ω maximum |
| Power Supply | 24 V DC nominal (from system backplane) |
| Power Consumption | 12 W maximum |
| Operating Temperature Range | -30°C to +70°C |
| Dimensions | 16 cm x 16 cm x 12 cm |
| Weight | 0.8 kg |
| Mounting | DIN rail or rack mount in control cabinet |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
