Product Description

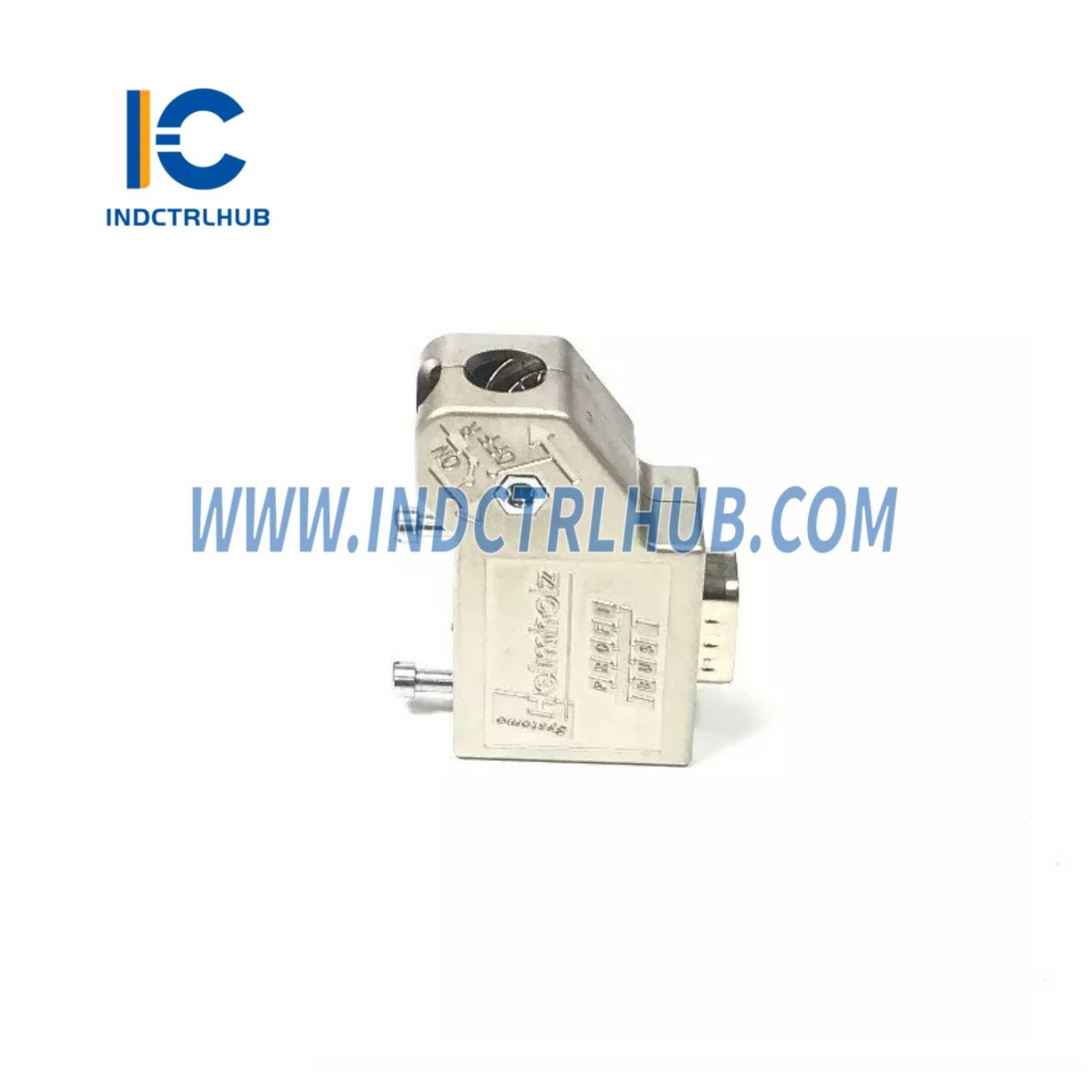

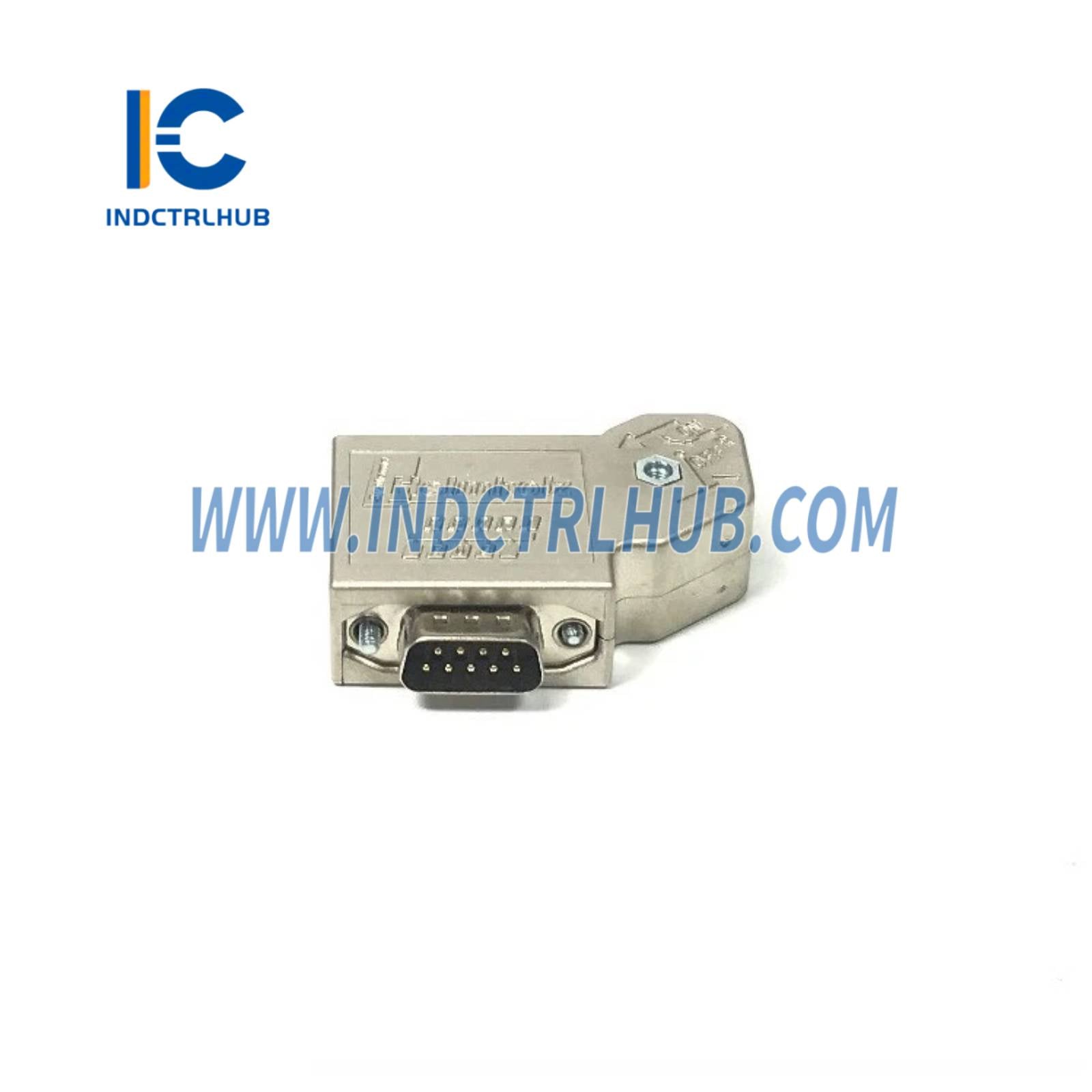

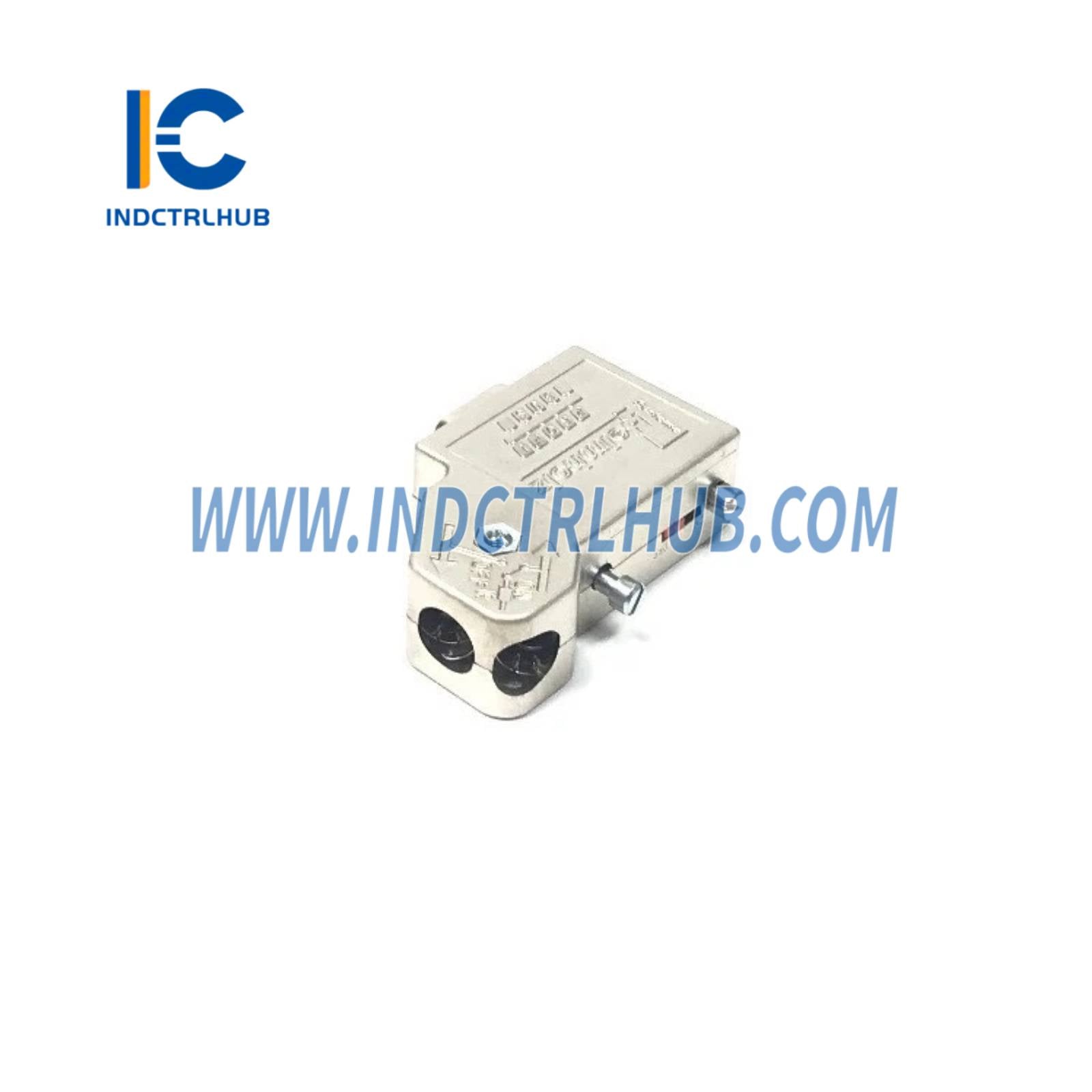

Siemens 700-972-0BA41 Bus Connector
Product Overview
- The Siemens 700-972-0BA41 is a Bus Connector designed for use with Siemens SIMATIC NET systems, specifically for connecting devices to PROFIBUS DP networks. This connector facilitates reliable communication in industrial automation applications by providing a secure and robust connection for PROFIBUS cables to PLCs, distributed I/O, or other network devices. It is widely used in industries such as manufacturing, chemical processing, oil and gas, and water treatment to ensure stable data transmission in harsh industrial environments. The 700-972-0BA41 is a 90-degree angled connector with integrated termination resistors, suitable for high-speed PROFIBUS networks.
Technical Specifications
- The 700-972-0BA41 has the following specifications
| Specification | Details |
|---|---|
| Model/Part Number | 700-972-0BA41 |
| Manufacturer | Siemens |
| Description | PROFIBUS Bus Connector with 90-Degree Cable Outlet |
| Series | SIMATIC NET |
| Function | Connects devices to PROFIBUS DP networks |
| Connector Type | 9-pin D-Sub (male), 90-degree angled cable outlet |
| Network Compatibility | PROFIBUS DP, PROFIBUS FMS |
| Data Rate | Up to 12 Mbps |
| Termination | Integrated switchable termination resistors |
| Cable Connection | Screw terminals for PROFIBUS cable (2-wire, shielded) |
| Wire Gauge | 0.5–1.5 mm² (AWG 20–16) |
| Voltage Rating | Up to 24 VDC (for bus signals) |
| Current Consumption | Negligible (passive component) |
| Compatibility | SIMATIC S7 PLCs, ET 200 distributed I/O, SIMATIC PCS 7, PROFIBUS devices |
| Enclosure | IP20 (plastic housing with metal shielding) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C (32°F to +140°F) Storage Temperature: -40°C to +70°C (-40°F to +158°F) Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 65 mm (H) x 15 mm (W) x 35 mm (D) |
| Weight | Approx. 40–50 g |
| Mounting | Plugs directly into PROFIBUS port on device |
| Certifications | CE, UL, CSA, complies with PROFIBUS standards |
