Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Siemens |
|
Model/Part Number |
6SL3325-1TG41-3AA3 |
|
Series |
SINAMICS S120 |
|
Product Description |

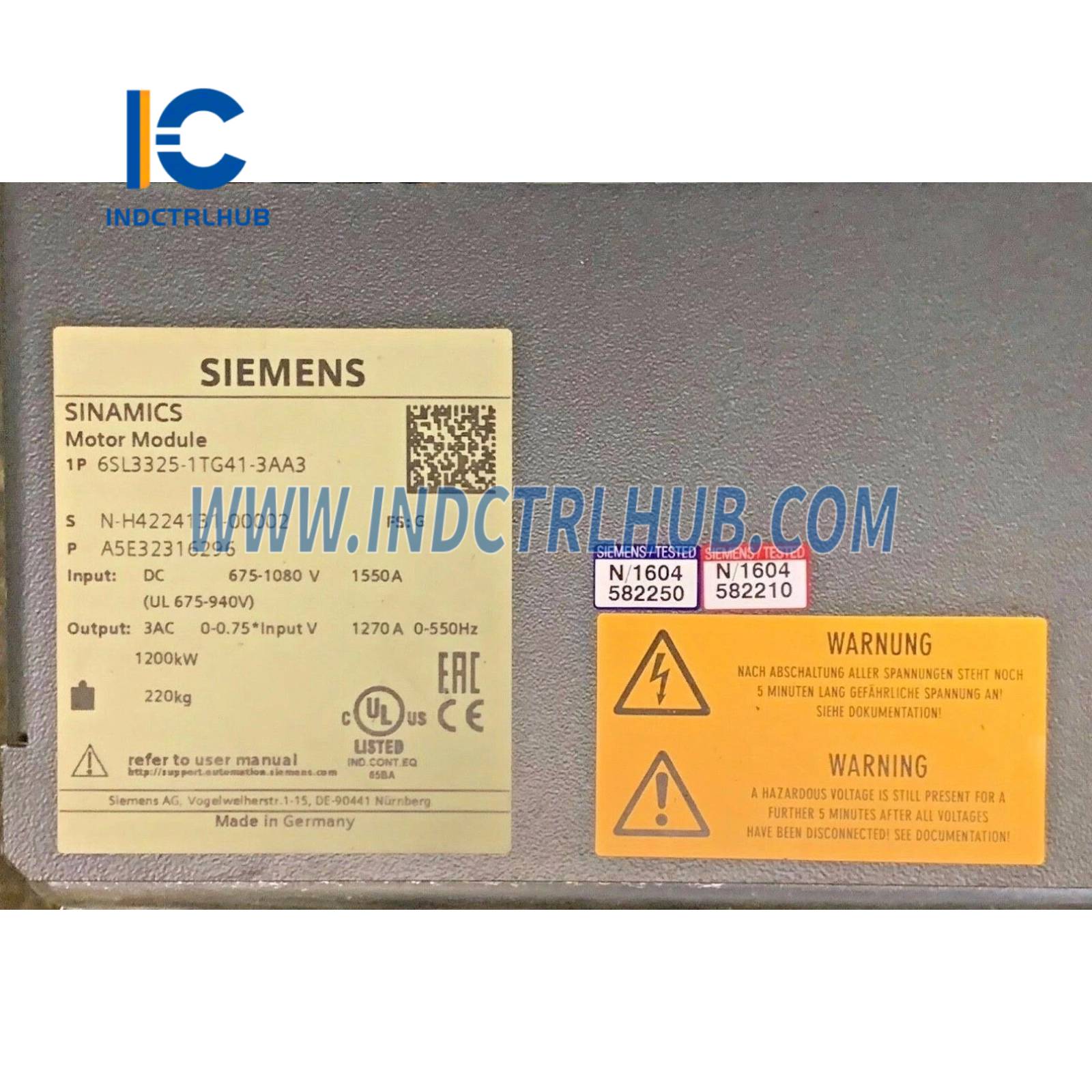

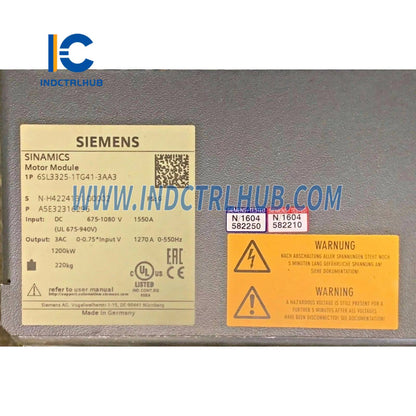

Motor Module; Input: 675–1035 V DC; Output: 500–690 V 3AC; 50/60 Hz; 1270 A; Rated Power: 1200 kW; Built-in Unit; IP00; Liquid Cooling |
|
Product Family |
Ordering Data Overview |
|
Product Group |
4131 |
|
Group Code |
R220 |
|
Country of Origin |
Germany |
Description

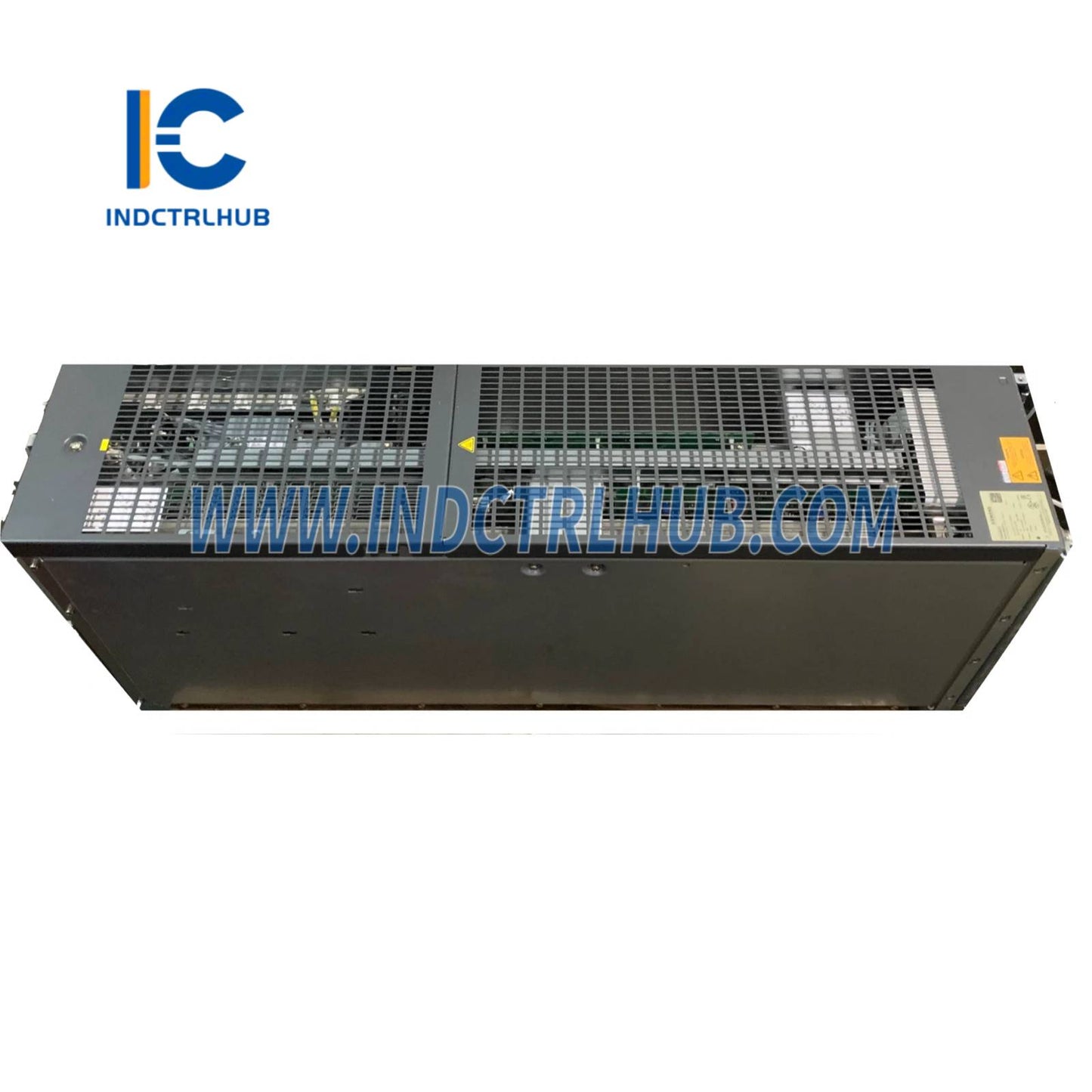

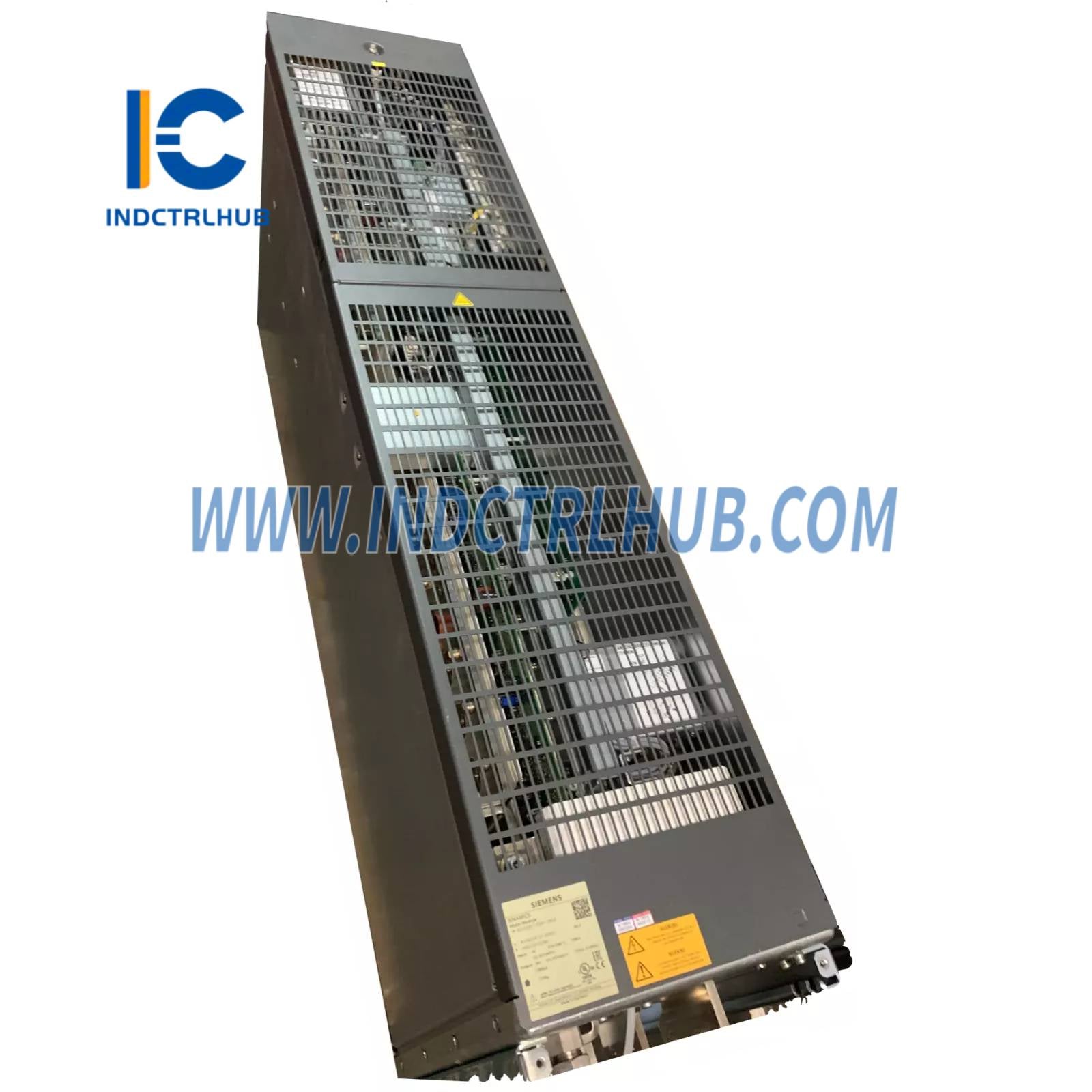

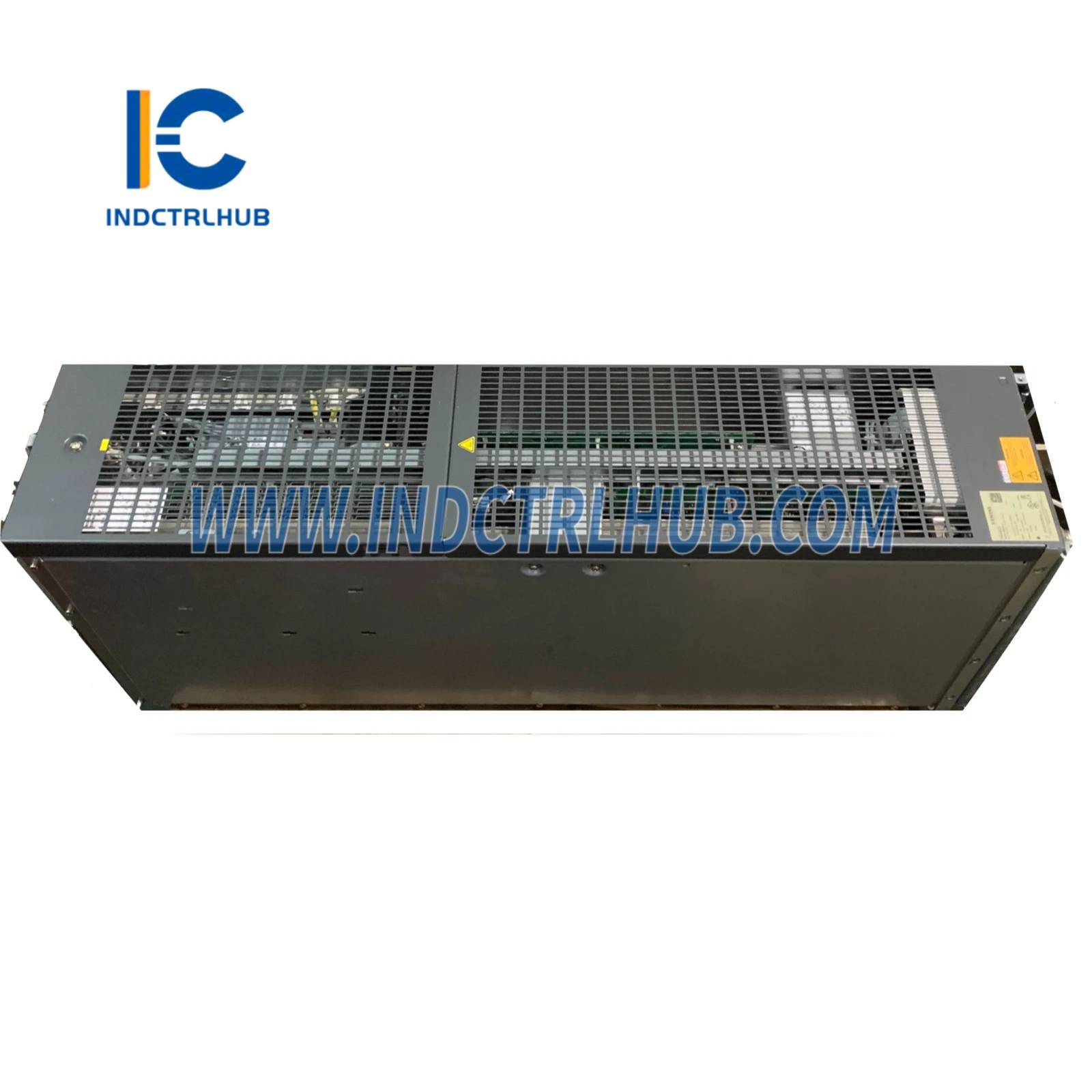

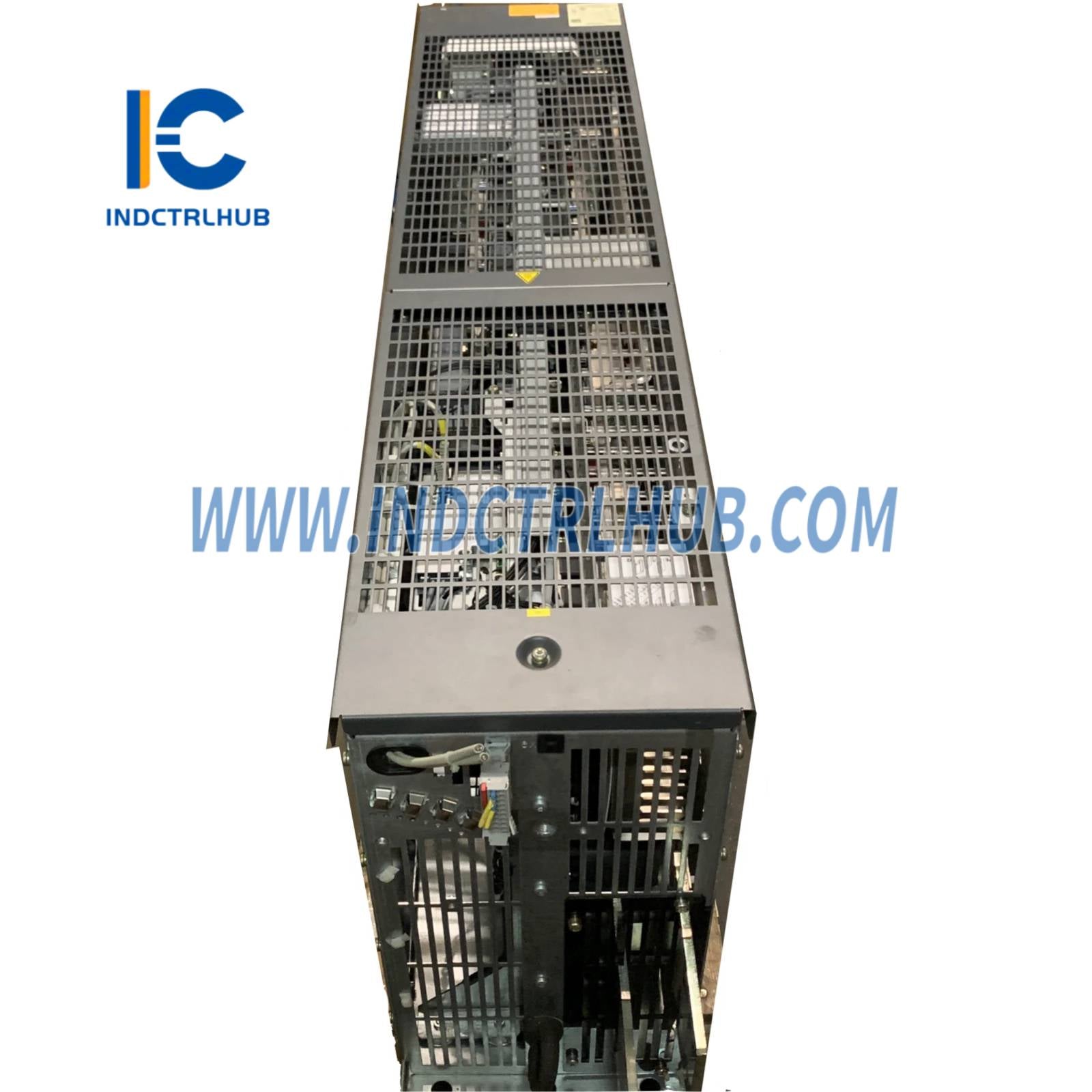

The 6SL3325-1TG41-3AA3 is a high-performance SINAMICS S120 Motor Module designed for demanding industrial applications.
-

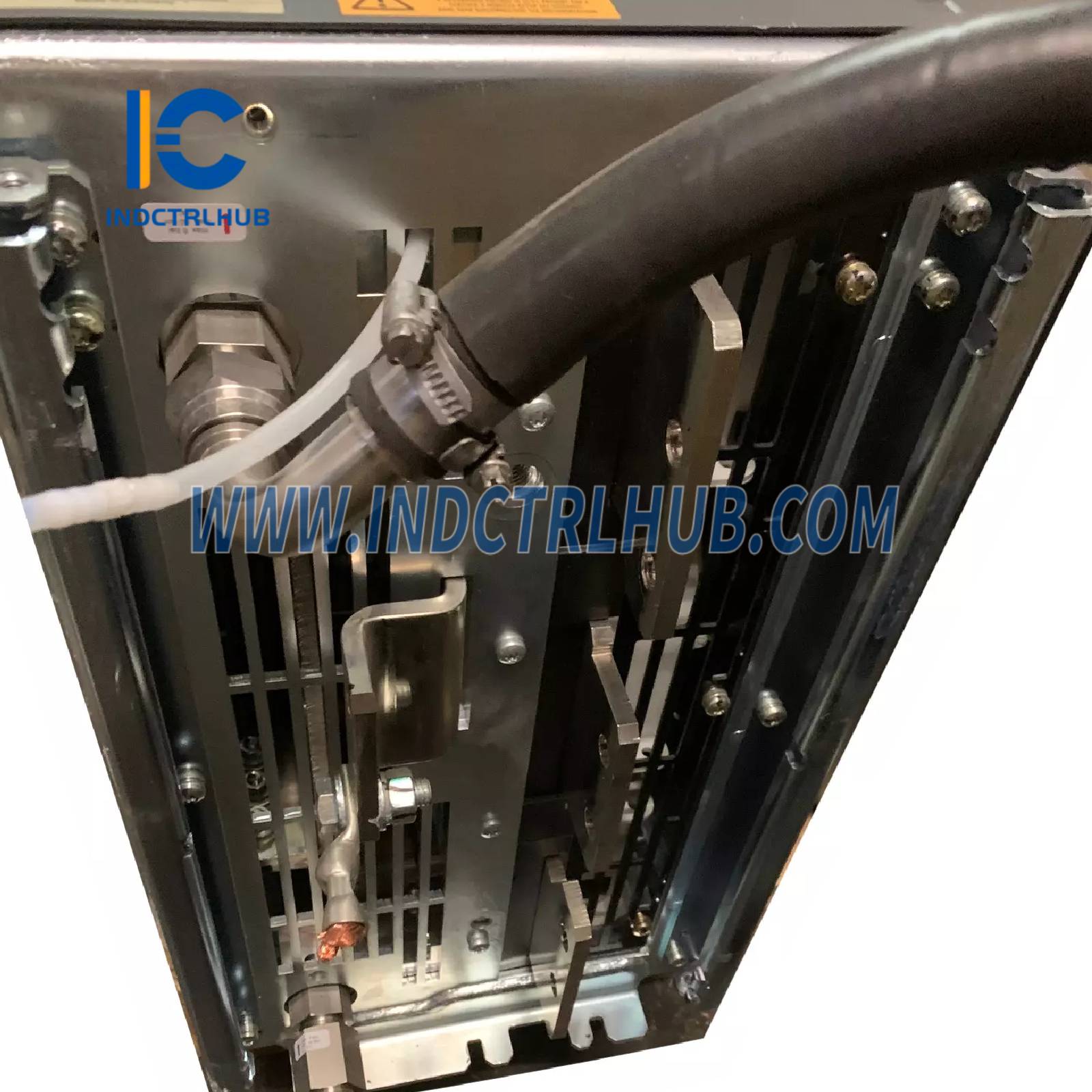

Power module with liquid cooling, intended for cabinet installation (IP00 protection).
-
Delivers high power output of 1200 kW, ideal for heavy-duty motor control in process and automation environments.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Input Voltage |
675 – 1035 V DC |
|
Output Voltage |
500 – 690 V AC (3-phase) |
|
Output Frequency |
50 / 60 Hz |
|
Output Current |
1270 A |
|
Rated Power |
1200 kW |
|
Cooling Type |
Liquid cooled |
|
Mounting Type |
Built-in (Chassis Unit) |
|
Protection Class |
IP00 |
|
Net Weight |
220 kg |
Compliance & Environmental
|
Category |
Details |
|---|---|
|
RoHS Compliance |
Compliant since 01.08.2018 |
|
REACH Article 33 |
Duty to inform applies |
|
SCIP Number |
Not provided |
|
WEEE Directive (2012/19/EU) |
Not specified |
|
Product Class |
D: Custom-engineered products not reusable or returnable |
Ordering & Logistics
|
Field |
Details |
|---|---|
|
Article Number |
6SL3325-1TG41-3AA3 |
|
EAN |
Not available |
|
UPC |
040892568639 |
|
Commodity Code |
85044086 |
|
Catalog ID (LKZ_FDB) |
D21LD |
