Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Siemens |
|
Series |
SCALANCE W786 |
|
Model/Part Number |
6GK5786-2HC00-0AA0 |
|
Product Family |
SCALANCE W786 RJ45 for outdoor use |
|
Product Lifecycle (PLM) |
PM400: Announcement of product phase-out |
|
Successor |
6GK5766-1GE00-7DA0 (SCALANCE WAM766-1, IEEE 802.11ax Wi-Fi 6) |
|
Country of Origin |
Germany |
Description

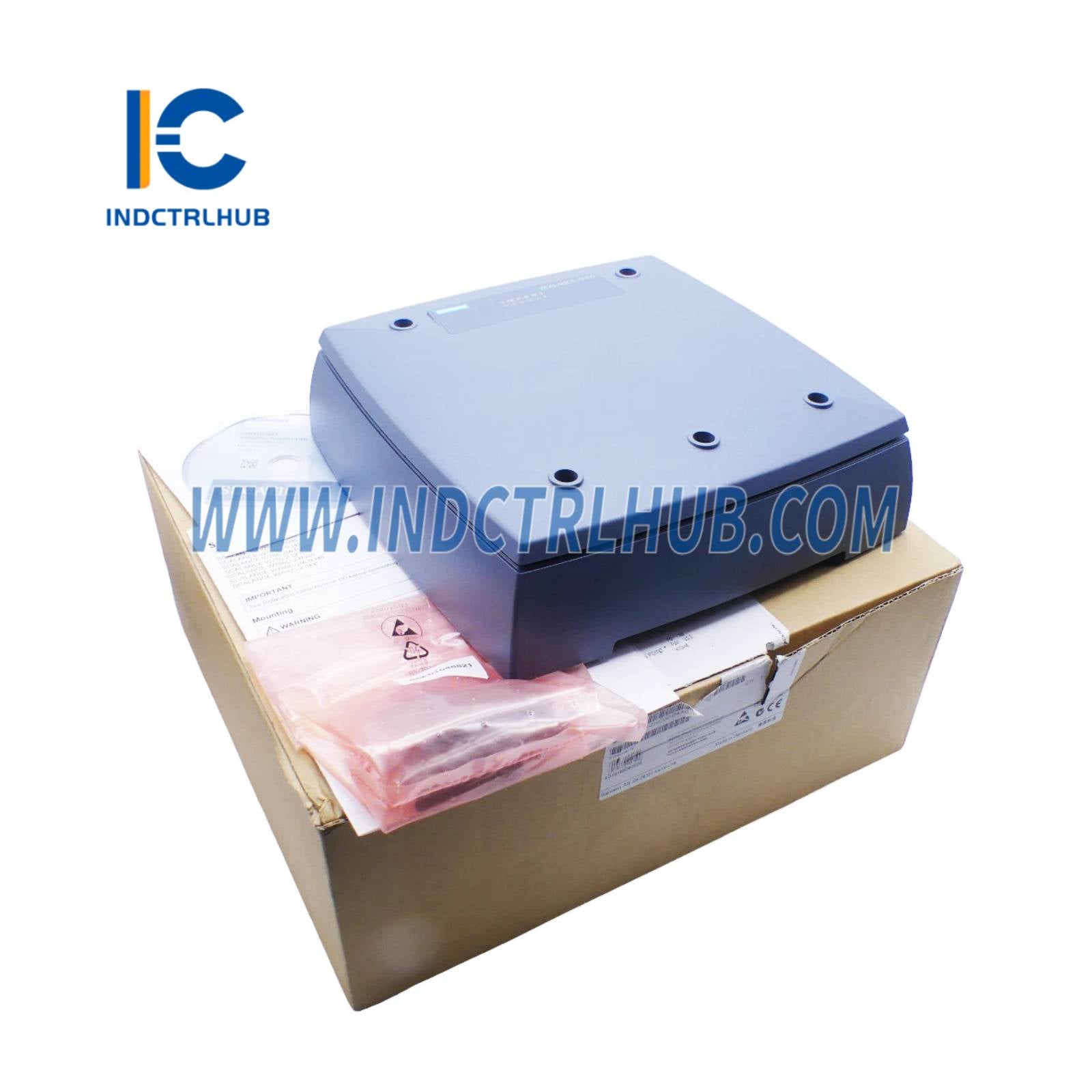

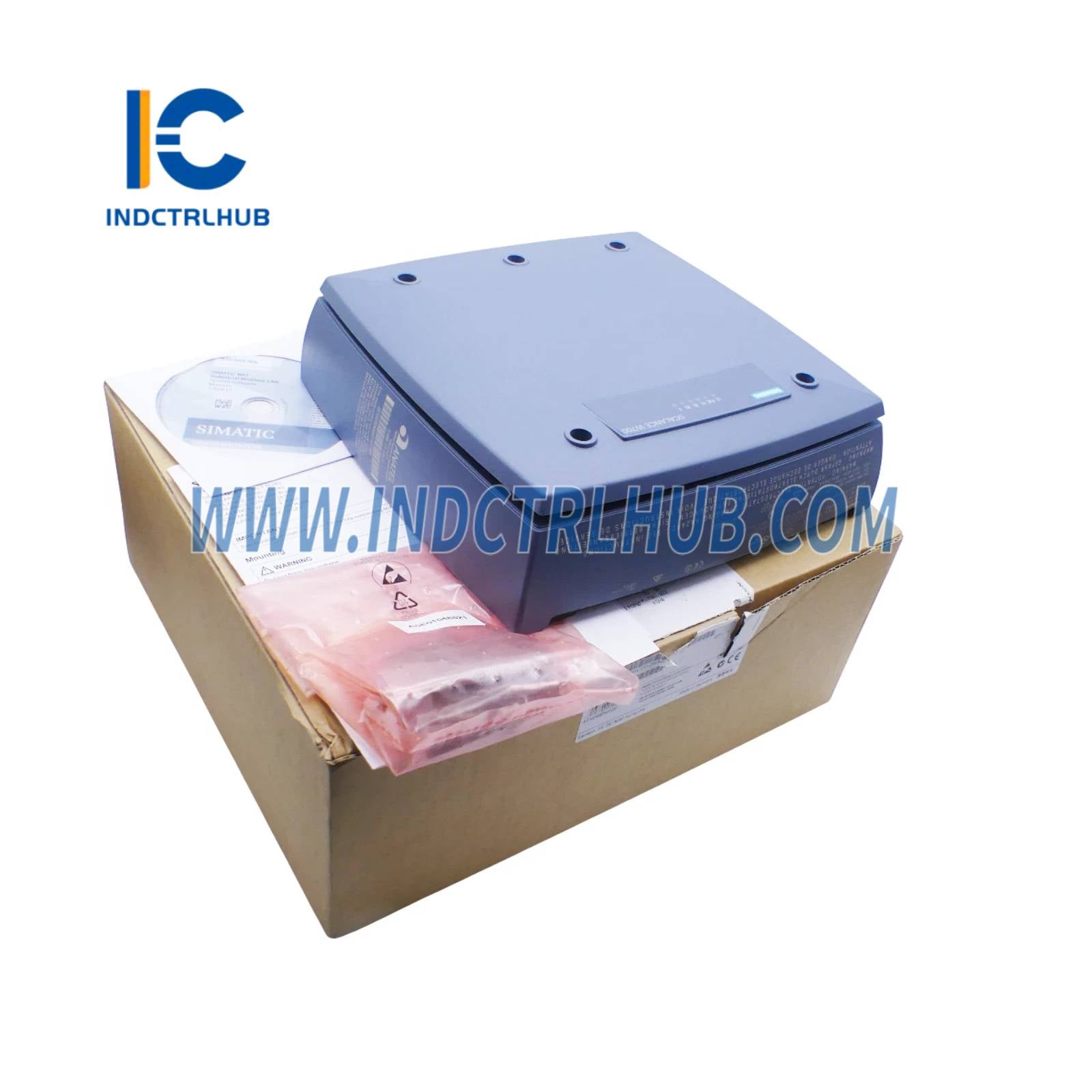

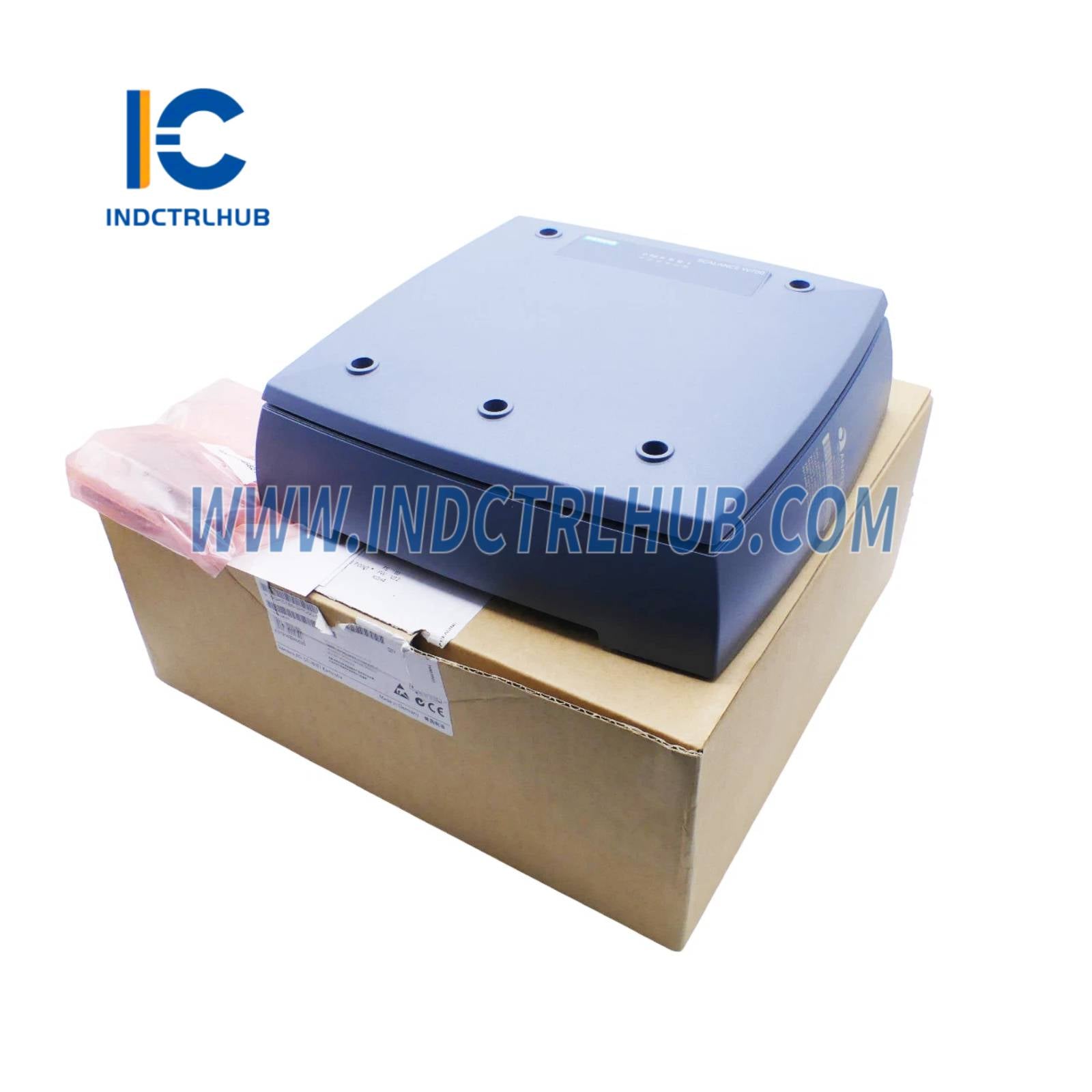

IWLAN Access Point SCALANCE W786-2IA RJ45
-
For operation outside of USA/Israel
-
IEEE 802.11a/b/g/h/n
-
Dual radio interface
-
6 internal antennas
-
Gross throughput: up to 450 Mbit/s per radio
-
iFeatures supported via key plug
-
Secure (WPA2 / 802.11i/e)
-
Scope includes:
-
1x terminal block
-
MPCIE-R1-ABGN-U3 module
-
Manuals (German/English) on CD-ROM
Technical Specifications
|
Specification |
Value |
|---|---|
|
Frequency Bands |
2.4 GHz and 5 GHz |
|
Radio Interfaces |
2 radios |
|
Max Data Rate |
450 Mbps per radio |
|
Antenna |
6 internal antennas |
|
Network Interface |
1x RJ45 (up to 1 Gbit/s) |
|
Power Supply Options |
PoE or redundant 24 V DC terminal block; 110–230 V AC via PS791-2AC |
|
Enclosure Rating |
IP65 |
|
Operating Temperature |
-40 to +60 °C |
|
Cert ID |
EAPN-W2-RJ-I3 |
Environmental & Compliance
|
Category |
Details |
|---|---|
|
RoHS Compliance |
Yes |
|
REACH Candidate Substances |
Lead, Lead monoxide, 4,4’-isopropylidenediphenol, Silicic acid (lead salt), 2,2’,6,6’-tetrabromobisphenol A |
|
SCIP Number |
354d0727-2210-4358-b5bc-80e99454c9a8 |
|
WEEE Take-Back Obligation |
Not specified |
Ordering Information
|
Field |
Value |
|---|---|
|
Article Number |
6GK5786-2HC00-0AA0 |
|
EAN |
4019169240529 |
|
UPC |
887621167806 |
|
Commodity Code |
85176200 |
|
Catalog ID (LKZ_FDB) |
IK-A |
|
Product Group |
2407 |
|
Group Code |
R323 |
Physical Characteristics
|
Field |
Value |
|---|---|
|
Net Weight |
2.645 kg |
|
Mounting |
Outdoor (IP65 enclosure) |
|
Connector Type |
RJ45 |
