Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Siemens |
|
Model/Part Number |
6GK5320-1BD00-2AA3 |
|
Product Description |

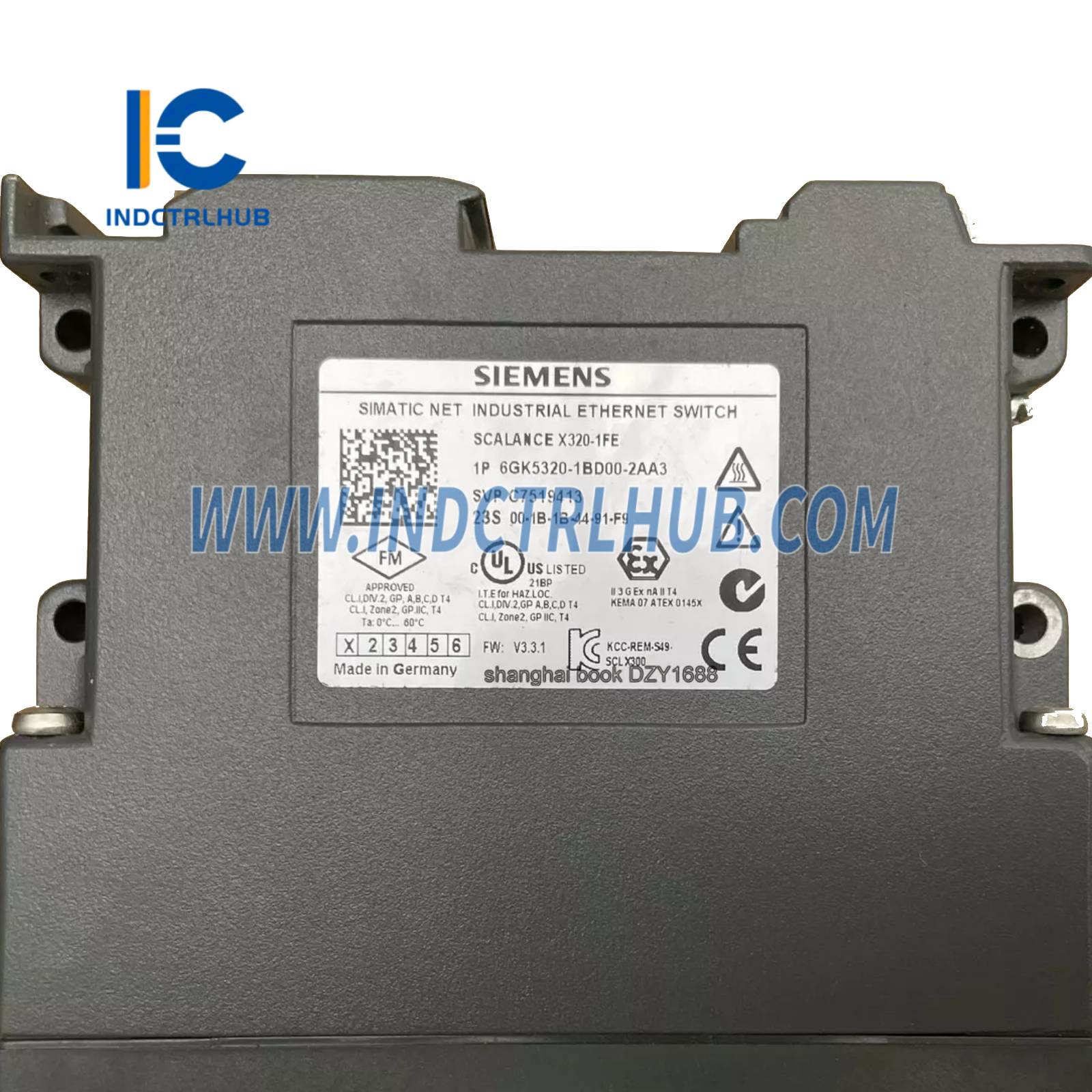

SCALANCE X320-1FE managed IE switch with 20x 10/100 Mbps RJ45 ports and 1x 100 Mbps SC port (multimode), diagnostics, PROFINET IO device, redundancy, network management, and office features. |
|
Product Lifecycle |
PM400: Announcement of Product Phase-Out |
|
Net Weight |
1.973 kg |
Functional Specifications
|
Specification |
Details |
|---|---|
|
Port Configuration |

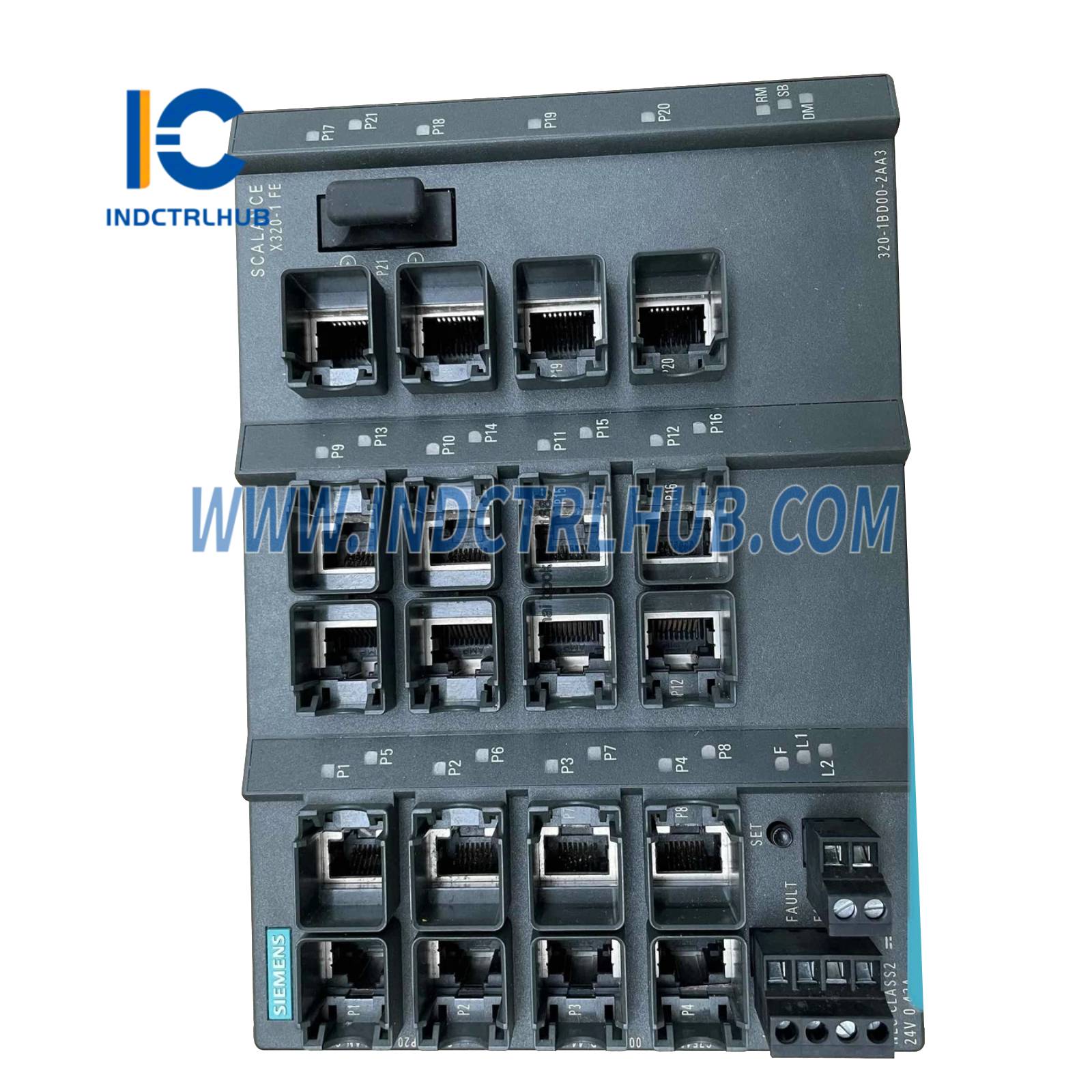

20x RJ45 (10/100 Mbps), 1x SC (100 Mbps, multimode fiber) |
|
Device Type |
Managed Industrial Ethernet Switch |
|
Diagnostics |
LED diagnostics |
|
Error Signaling Contact |
Yes, with Select/Set pushbutton |
|
PROFINET Support |
Yes, functions as a PROFINET IO device |
|
Redundancy |
Integrated redundancy manager |
|
Network Management Features |
Yes |
|
Office Features |
Includes RSTP, VLAN, IGMP, etc. |
|
C-PLUG |
Included in scope of delivery |
Identification & Classification
|
Field |
Value |
|---|---|
|
Article Number |
6GK5320-1BD00-2AA3 |
|
UPC |
040892551891 |
|
EAN |
4019169193900 |
|
Commodity Code |
85176200 |
|
Catalog ID |
IK |
|
Product Group |
2425 |
|
Group Code |
R320 |
|
Country of Origin |
Germany |
Environmental & Compliance Information
|
Regulation / Substance |
Details |
|---|---|
|
RoHS Compliance |
Since 03.08.2009 |
|
WEEE Directive (2012/19/EU) |
Not specified |
|
REACH Art. 33 Disclosure |
Yes |
|
Substances of Very High Concern (SVHC) |
- Lead (CAS No. 7439-92-1) - Lead monoxide (CAS No. 1317-36-8) - Bisphenol A (CAS No. 80-05-7) - 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one (CAS No. 71868-10-5) - 2-benzyl-2-dimethylamino-4’-morpholinobutyrophenone (CAS No. 119313-12-1) |
|
SCIP Number |
873843d3-a4bb-4a39-954b-33ae1a3b0ea3 |
|
Product Class |
A: Stock item, returnable within standard guidelines |
