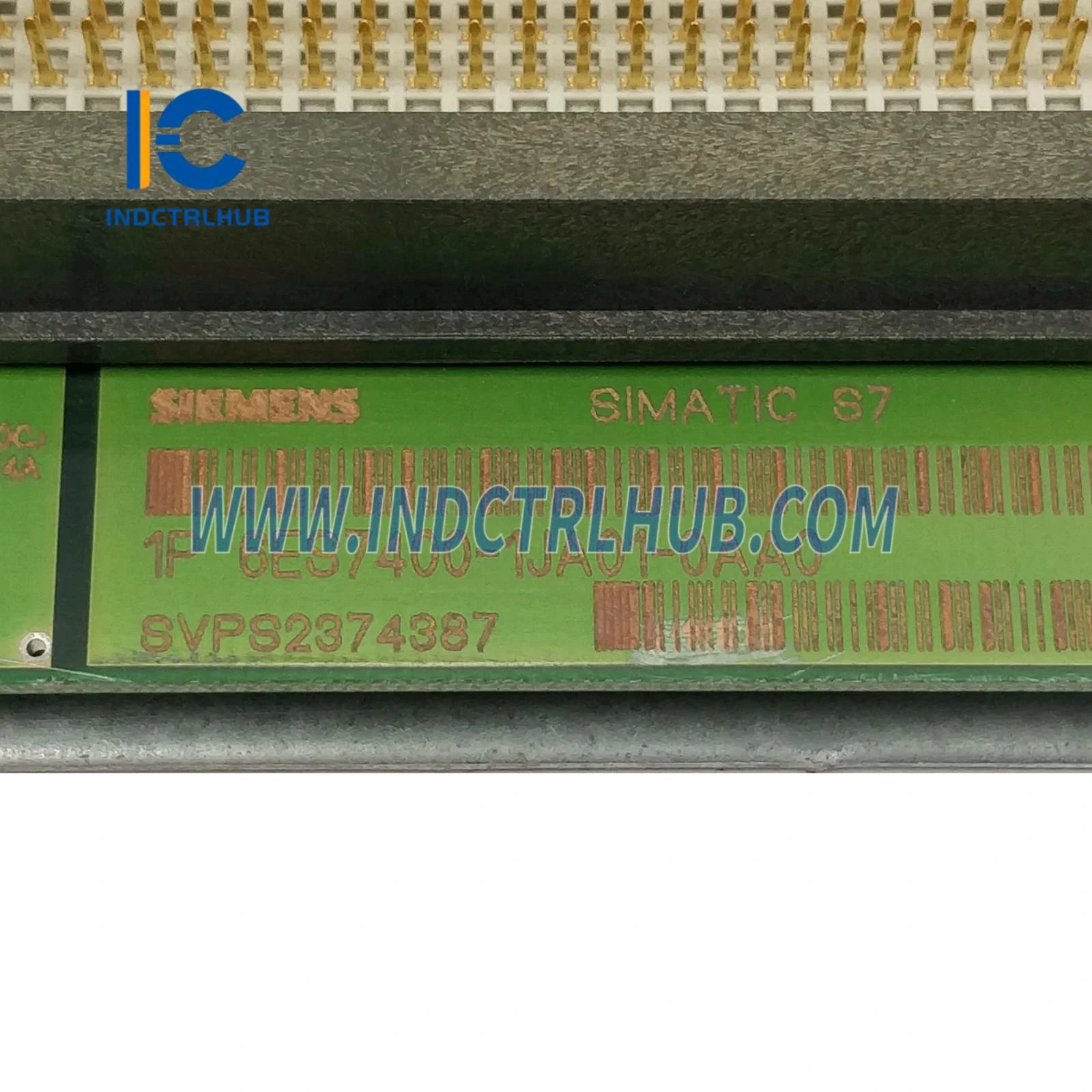

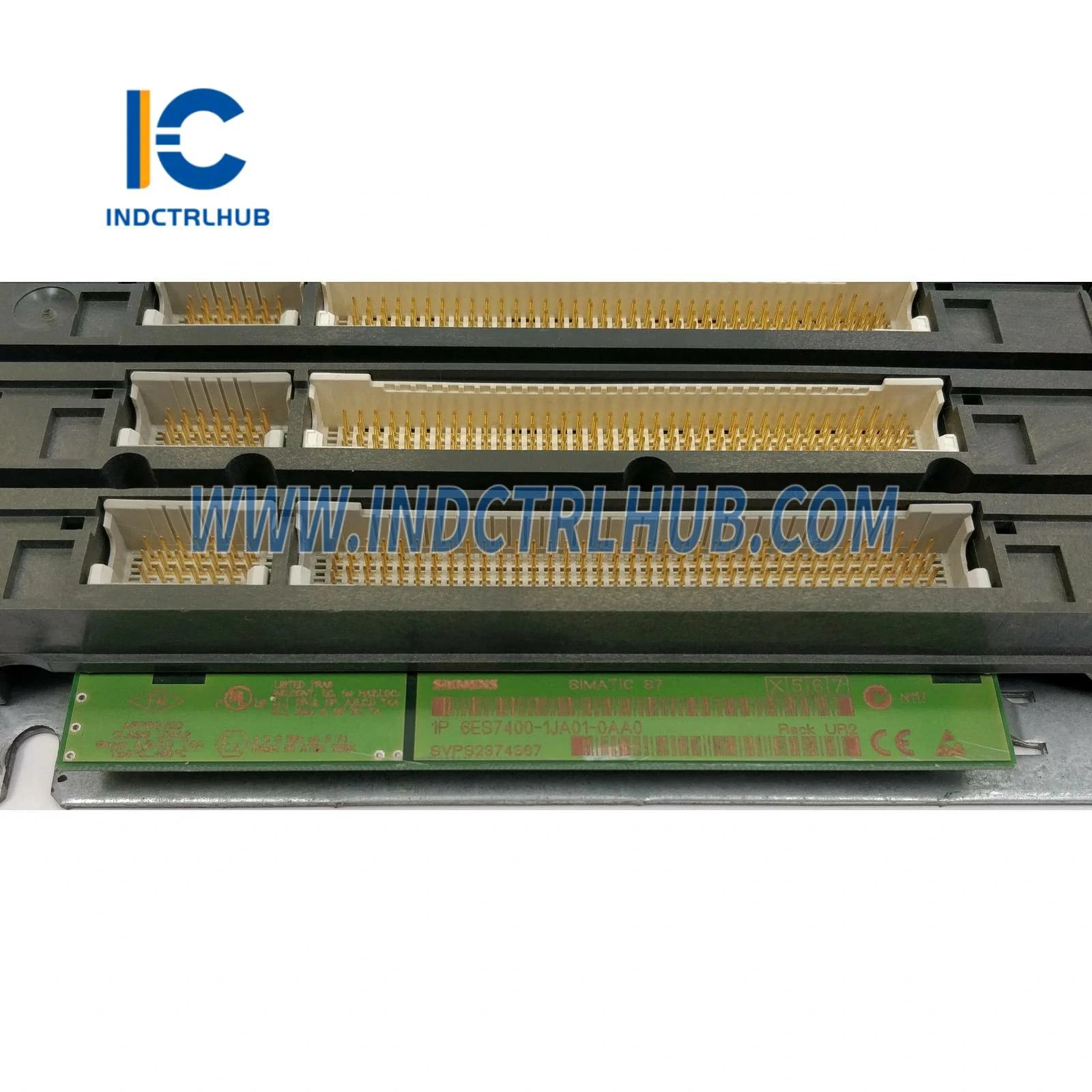

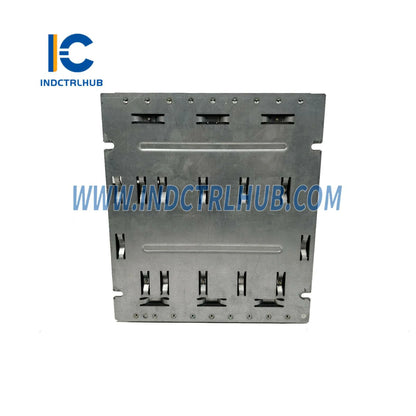

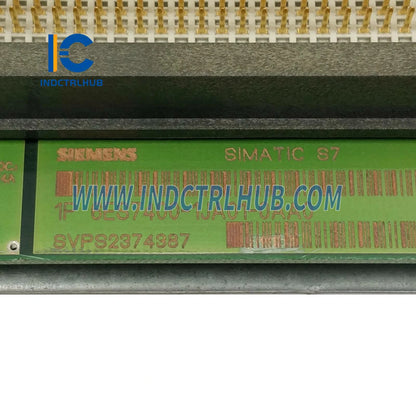

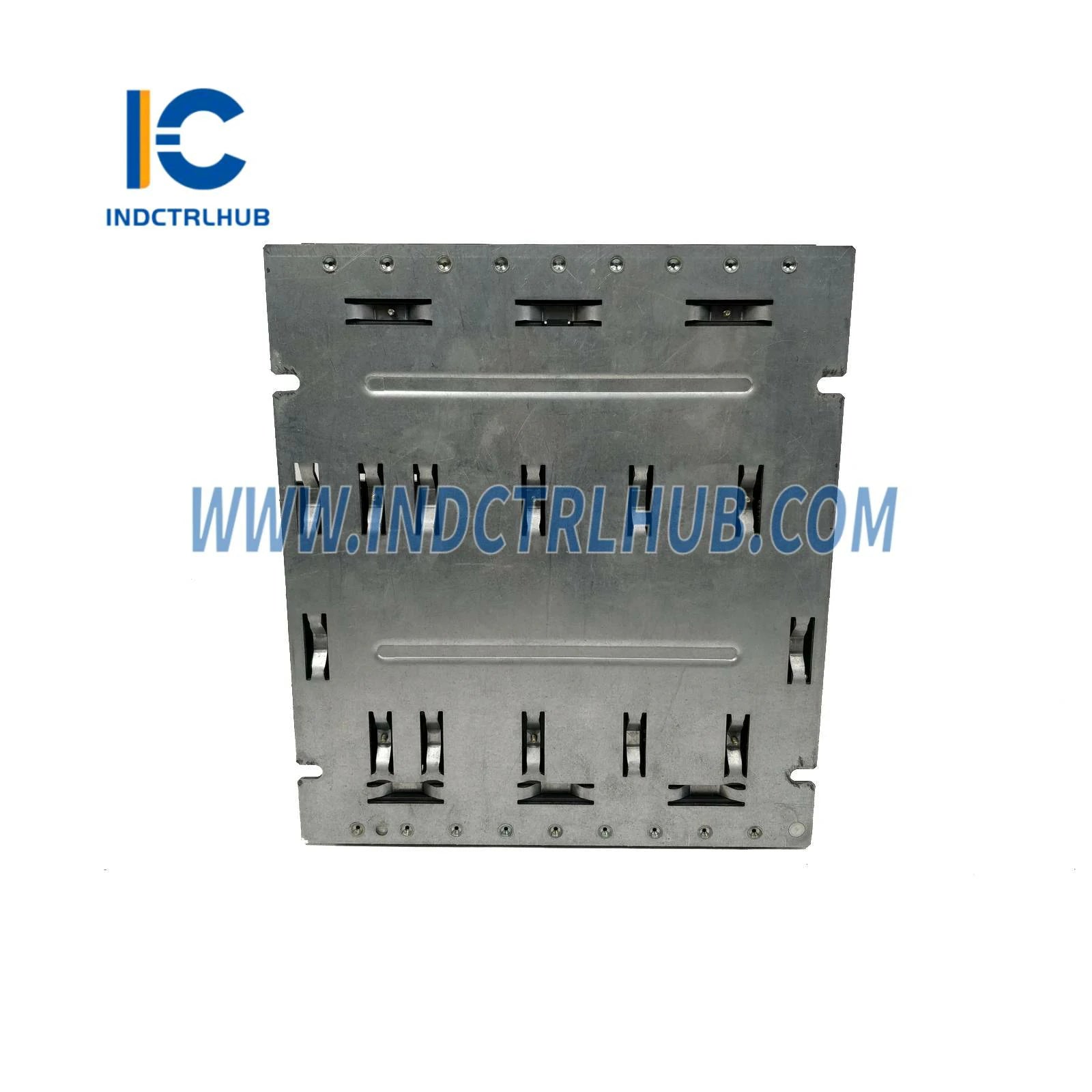

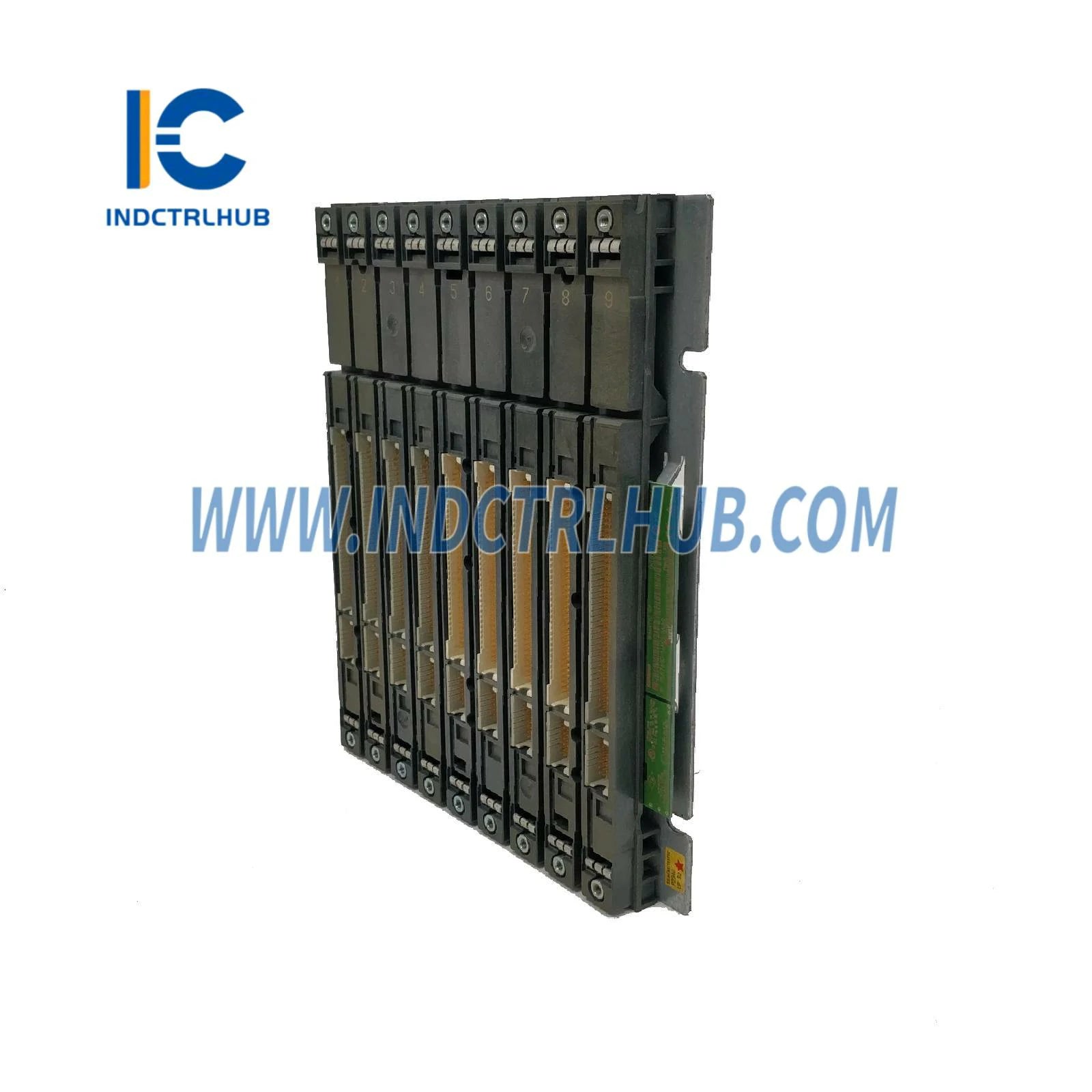

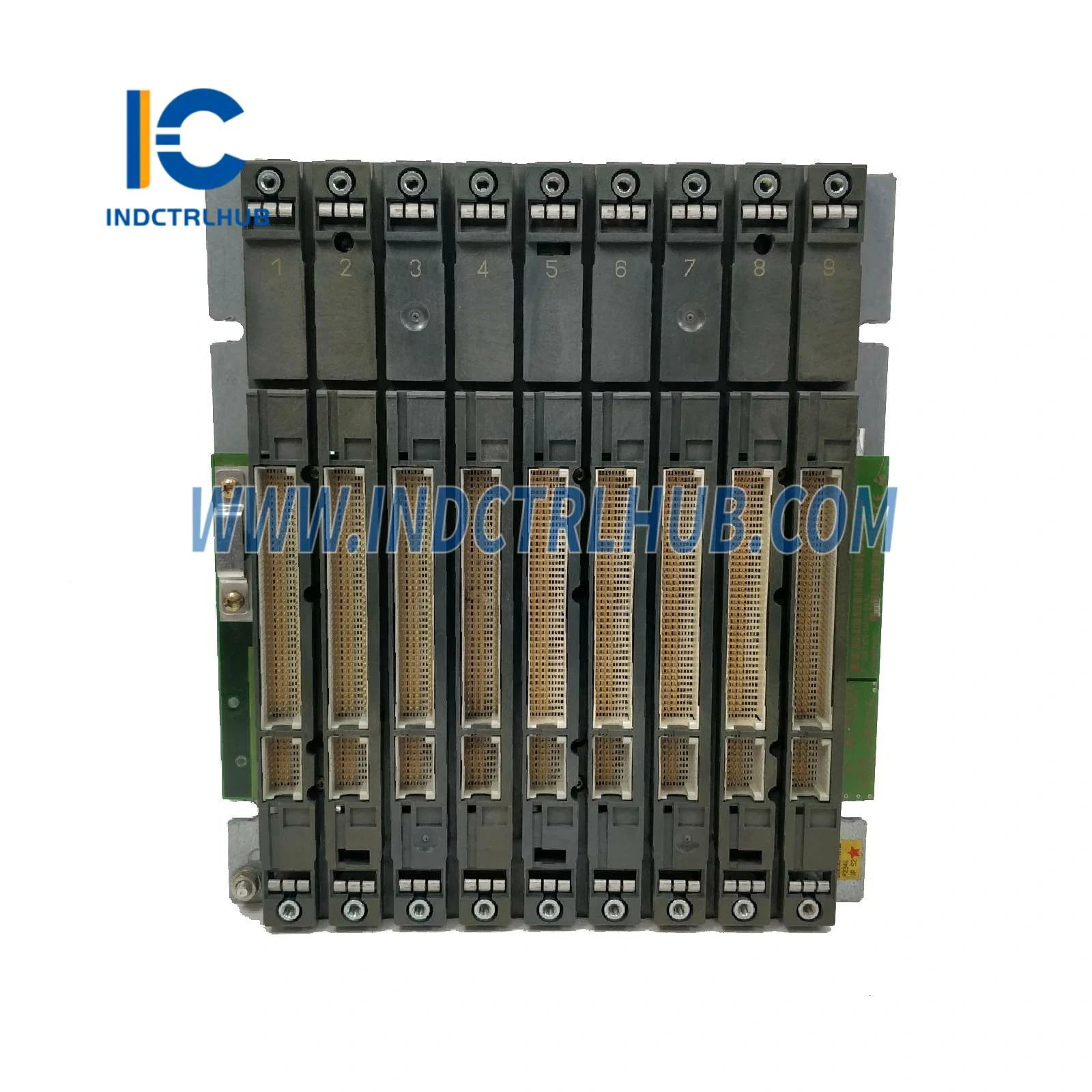

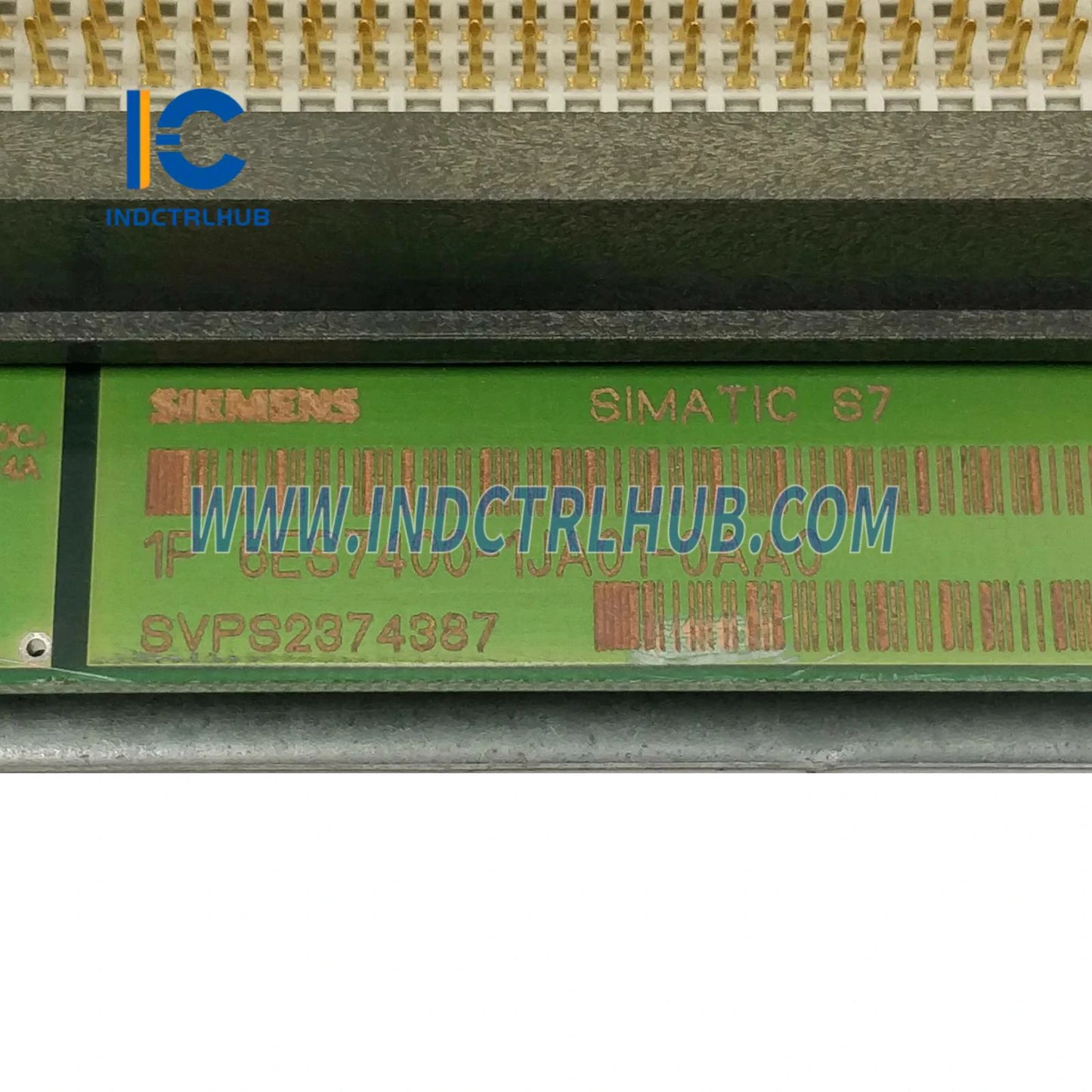

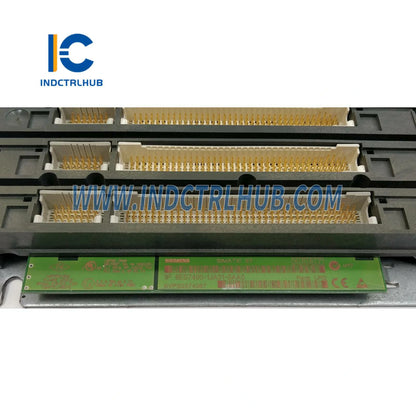

Siemens 6ES7400-1JA01-0AA0 S7-400 UR1 Universal Rack

Manufacturer: Siemens
Product No.: 6ES7400-1JA01-0AA0
Condition:1000 in stock
Product Type: PLC Racks & Enclosures
Product Origin: 4019169006026
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months

Quantity

24/7 Support
30-Day Returns
Fast Shipping

Siemens 6ES7400-1JA01-0AA0 UR1 Universal Rack

9-Slot Aluminum Mounting Rack for SIMATIC S7-400 Advanced Controllers

The Siemens 6ES7400-1JA01-0AA0 is a precision-engineered universal rack (UR1) designed for SIMATIC S7-400 high-performance PLC systems. This 9-slot aluminum rack provides the structural foundation for building scalable, redundant automation solutions in mission-critical industrial applications.

🏗️ Why S7-400 UR1 Rack?

The S7-400 platform represents Siemens' flagship automation technology for complex, high-availability systems. The UR1 rack is the foundation that enables:

✅ Modular Scalability – Start with 9 slots, expand to 18 slots with ER1/ER2 racks
✅ Redundancy Support – Hot-swap CPUs, power supplies, and I/O modules without downtime
✅ High-Speed Backplane – 12 Mbps communication for deterministic control
✅ Industrial Durability – Anodized aluminum construction for harsh environments
✅ Global Certifications – UL, CE, ATEX, IECEx approved for worldwide deployment

📐 Technical Specifications

Order Number	6ES7400-1JA01-0AA0
Product Designation	UR1 Universal Rack
System Compatibility	SIMATIC S7-400 (all CPU variants)
Slot Configuration	9 slots total (1 PS + 1 CPU + 7 I/O/CP)
Slot Numbering	Slots 1-9 (left to right)
Backplane Bus	P-bus (12 Mbps) + K-bus (communication)
Material	Anodized aluminum profile
Mounting Type	Wall/cabinet mounting (horizontal installation)
Dimensions (W×H×D)	530mm × 290mm × 219mm
Weight	Approx. 3.5 kg (without modules)
Operating Temp	0°C to +60°C (horizontal mounting) 0°C to +40°C (vertical mounting)
Storage Temp	-40°C to +70°C
Humidity	5% to 95% RH (non-condensing)
Vibration Resistance	IEC 60068-2-6 (10-58 Hz, 0.15mm amplitude)
Shock Resistance	IEC 60068-2-27 (15g, 11ms half-sine)
EMC Compliance	EN 61000-6-2 (immunity), EN 61000-6-4 (emission)
Safety Certifications	CE, UL 508, cULus, FM, ATEX Zone 2, IECEx
Protection Rating	IP20 (front panel)
MTBF	>200,000 hours (proven reliability)
Warranty	24 months (manufacturer warranty)

🔧 Rack Architecture & Slot Assignment

Standard Slot Configuration

Slot	Module Type	Typical Components
Slot 1	Power Supply (mandatory)	PS 405, PS 407 (5A, 10A, 20A variants)
Slot 2	CPU (mandatory)	CPU 412, 414, 416, 417 (standard or redundant)
Slots 3-9	I/O, CP, FM modules	Digital/analog I/O, communication processors, function modules

Backplane Bus Architecture

P-Bus (Peripheral Bus): 12 Mbps data transfer for I/O modules, deterministic cycle times
K-Bus (Communication Bus): Inter-CPU communication for redundant configurations
Power Distribution: 5V DC and 24V DC distributed via backplane to all modules

🔌 Compatible Components

Power Supplies (Slot 1)

6ES7405-0KA02-0AA0 (PS 405, 5A)
6ES7405-0KR02-0AA0 (PS 405, 10A)
6ES7407-0KA02-0AA0 (PS 407, 10A)
6ES7407-0KR02-0AA0 (PS 407, 20A)

CPUs (Slot 2)

CPU 412 Series (6ES7412-xxxx-xxxx)
CPU 414 Series (6ES7414-xxxx-xxxx)
CPU 416 Series (6ES7416-xxxx-xxxx)
CPU 417 Series (6ES7417-xxxx-xxxx)

I/O Modules (Slots 3-9)

Digital Input: SM 421 (6ES7421-xxxx-xxxx)
Digital Output: SM 422 (6ES7422-xxxx-xxxx)
Analog Input: SM 431 (6ES7431-xxxx-xxxx)
Analog Output: SM 432 (6ES7432-xxxx-xxxx)
Communication: CP 443 (Profibus, Profinet, Ethernet)
Function Modules: FM 450, FM 451, FM 452, FM 458

🛠️ Installation & Commissioning

Pre-Installation Checklist

✓ Verify cabinet dimensions (minimum 600mm width recommended)
✓ Ensure adequate ventilation (50mm clearance above/below rack)
✓ Confirm power supply capacity (calculate total module consumption)
✓ Prepare grounding infrastructure (PE connection required)

Step-by-Step Installation

Mounting the Rack
- Position rack horizontally in cabinet at desired height
- Use pre-drilled mounting holes (M6 screws recommended)
- Verify rack is level using spirit level (critical for module seating)
- Secure rack firmly to prevent vibration-induced loosening
Grounding Connection
- Connect rack grounding terminal to cabinet PE rail
- Use minimum 6mm² copper wire for grounding
- Ensure low-impedance ground path (<0.1Ω resistance)
Module Installation Sequence
- Install power supply in Slot 1 (do not power on yet)
- Install CPU in Slot 2
- Install I/O and communication modules in Slots 3-9 (left to right)
- Verify all modules are fully seated (locking mechanisms engaged)
Power-Up Procedure
- Connect 24V DC to power supply input terminals
- Verify power supply LED indicators (green = OK)
- Check CPU status LEDs (SF, BF, RUN/STOP)
- Use STEP 7 to download configuration and verify rack topology

💡 Installation Best Practices

Leave 100mm clearance on left/right sides for cable routing
Use cable ducts to organize field wiring and prevent clutter
Label all modules with slot numbers and functional descriptions
Document rack configuration in STEP 7 project for future reference

🏭 Industry Applications

Oil & Gas Processing
Deploy S7-400 UR1 racks in redundant configurations for critical pipeline control, compressor stations, and offshore platforms. Hot-swappable modules ensure zero downtime during maintenance.

Power Generation
Control turbine governors, boiler management systems, and grid synchronization in coal, gas, and nuclear power plants. High-speed backplane supports sub-millisecond control loops.

Automotive Manufacturing
Orchestrate body-in-white welding lines, paint shops, and final assembly with deterministic I/O scanning. Scalable architecture accommodates 500+ I/O points per rack system.

Chemical & Pharmaceutical
Implement batch control, recipe management, and regulatory compliance (FDA 21 CFR Part 11) in GMP-certified production facilities. ATEX/IECEx certification for hazardous areas.

Water & Wastewater
Manage SCADA systems for municipal treatment plants with distributed I/O across multiple UR1/ER1 racks. Profibus DP integration for remote pump stations.

📊 Rack Expansion Options

Rack Type	Order Number	Slots	Use Case
UR1 (This Product)	6ES7400-1JA01-0AA0	9 slots	Central rack for compact systems
UR2	6ES7400-1JA11-0AA0	18 slots	Central rack for large systems
ER1	6ES7400-1TA01-0AA0	9 slots	Expansion rack (requires IM 460)
ER2	6ES7400-1TA11-0AA0	18 slots	Large expansion rack (requires IM 460)
CR2	6ES7400-2JA00-0AA0	18 slots	Segmented rack for redundant CPUs

Expansion Strategy: Start with UR1 (9 slots) for initial deployment. Add ER1/ER2 expansion racks using IM 460 interface modules when I/O requirements exceed 7 modules. Maximum configuration: 1 central rack + 21 expansion racks = 198 total slots.

⚖️ S7-400 vs. S7-300 vs. S7-1500

Feature	S7-400 (This Rack)	S7-300	S7-1500
Performance	⭐⭐⭐⭐⭐ High-end	⭐⭐⭐ Mid-range	⭐⭐⭐⭐⭐ High-end
Redundancy	✅ Full H-system support	❌ Not supported	✅ R-system support
Max I/O Points	65,536 (with expansion)	2,048	32,768
Backplane Speed	12 Mbps	1.5 Mbps	Up to 2 Gbps (backplane bus)
Hot-Swap	✅ CPU, PS, I/O modules	❌ Not supported	✅ I/O modules only
Best For	Legacy systems, proven reliability	Small to medium machines	New projects, IT integration

💡 When to Choose S7-400: Select S7-400 UR1 for mission-critical applications requiring proven reliability, hot-swap redundancy, and compatibility with existing S7-400 infrastructure. For new greenfield projects, consider S7-1500 for modern features and higher performance.

🛡️ Authenticity & Quality Assurance

⚠️ Counterfeit Rack Risks

Non-genuine S7-400 racks can cause catastrophic failures:

🔥 Backplane shorts leading to module damage
⚡ Poor grounding causing EMI-induced faults
💥 Structural failure under module weight
🚫 Voided Siemens warranty on entire system
⚖️ Regulatory non-compliance (UL, CE, ATEX)

✅ Industrial Control Hub Guarantee

🔒 100% Genuine Siemens – Factory-sealed packaging with holographic labels
📜 Full Traceability – Serial numbers and manufacturing dates on every rack
🌍 Authorized Distributor – Verify our credentials at Siemens Industry Mall
🛡️ 24-Month Warranty – Manufacturer warranty honored globally
📦 Secure Shipping – Custom crating to prevent damage during transit
📞 Technical Support – Pre-sales consultation and post-purchase assistance

📦 Package Contents

1× Siemens 6ES7400-1JA01-0AA0 UR1 universal rack (9-slot)
Mounting hardware kit (screws and brackets)
Grounding terminal and connection hardware
Product documentation and certificate of conformity

Note: Power supply, CPU, and I/O modules are NOT included. Order separately based on your system requirements.

🤝 Technical Support & Services

Industrial Control Hub provides comprehensive support:

📧 System Design Consultation – Email us your I/O list for rack sizing recommendations
📚 Documentation Library – Access Siemens manuals, CAD drawings, and configuration guides
🎓 Training Resources – STEP 7 configuration tutorials and best practices
🔧 Installation Assistance – Remote support for commissioning and troubleshooting
🔄 30-Day Returns – Hassle-free returns if unused and in original packaging

❓ Frequently Asked Questions

Q: What's the difference between UR1 and UR2 racks?
A: UR1 has 9 slots (compact systems), UR2 has 18 slots (large systems). Both are central racks.

Q: Can I use S7-300 modules in an S7-400 rack?
A: No, S7-300 and S7-400 modules are not interchangeable due to different backplane architectures.

Q: How many expansion racks can I connect?
A: Up to 21 expansion racks (ER1/ER2) using IM 460 interface modules, for a maximum of 198 slots.

Q: Does this rack support redundant CPUs?
A: Yes, UR1 supports H-system redundancy with two CPUs in Slots 2 and 3 (requires redundant power supplies).

Q: Can I mount the rack vertically?
A: Yes, but operating temperature is derated to 0-40°C (vs. 0-60°C horizontal). Ensure adequate ventilation.

Q: Is this rack compatible with S7-1500 modules?
A: No, S7-1500 uses a completely different rack system (rail-mounted). Not compatible with S7-400 racks.
