Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7313-6CF03-0AB0 |

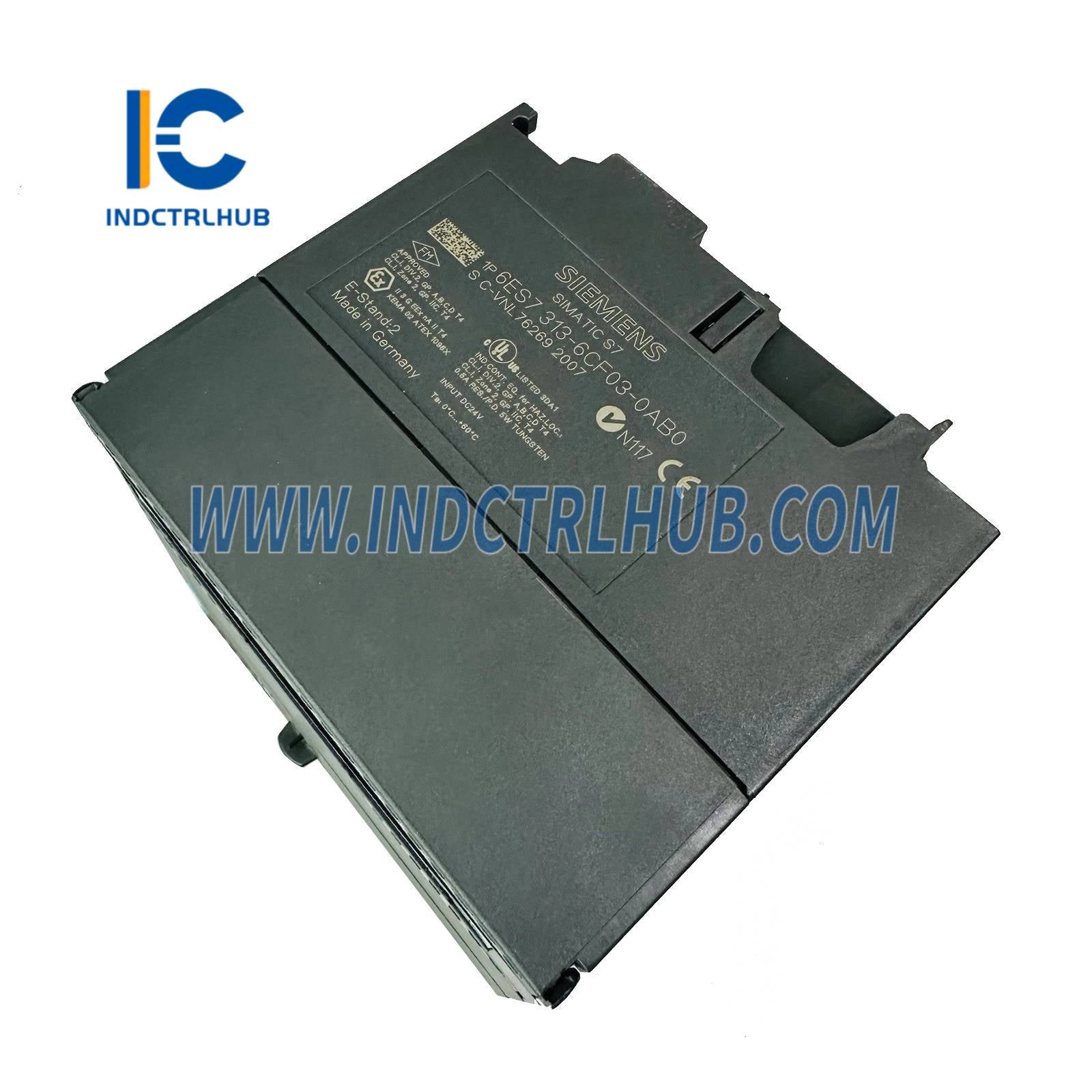

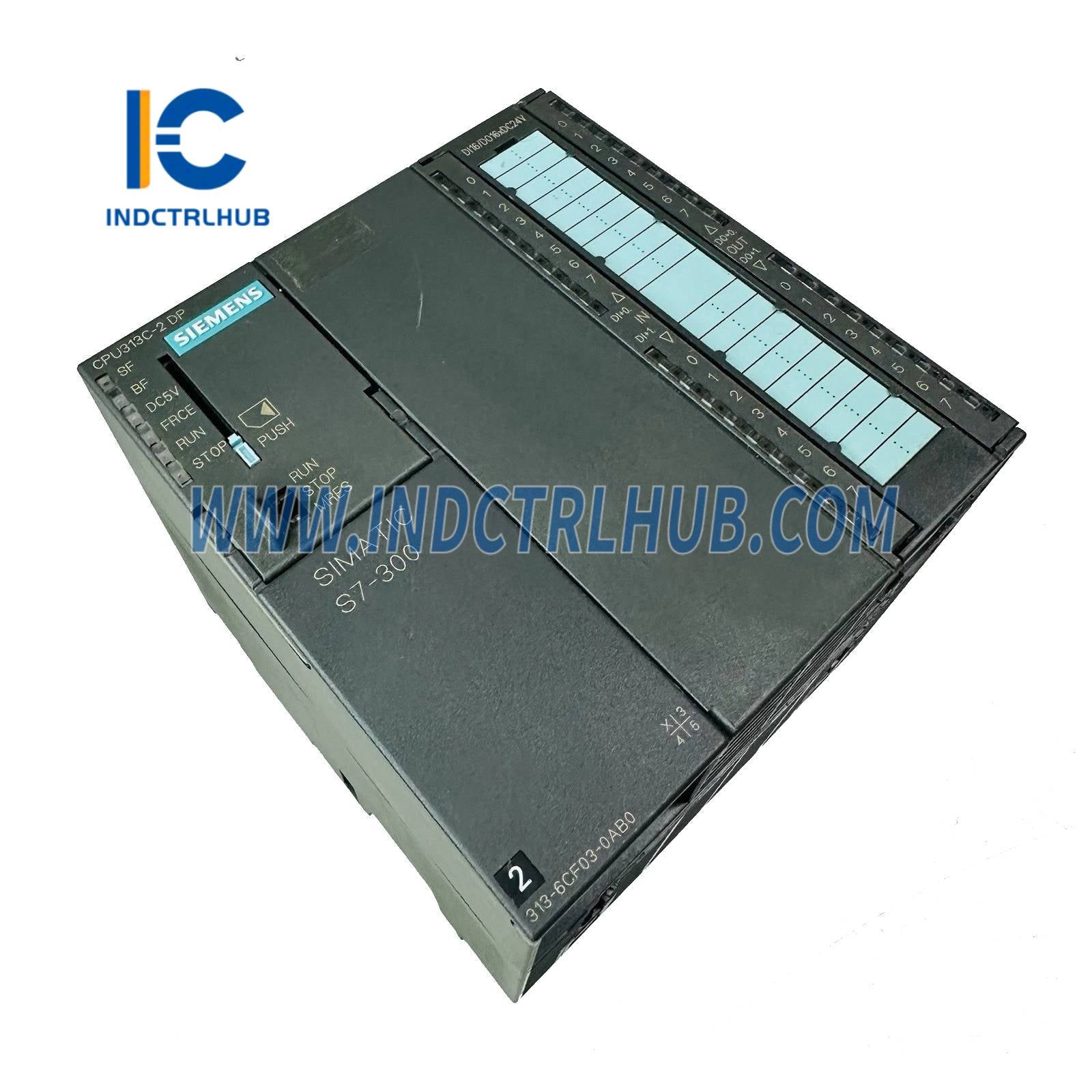

| Product Name | SIMATIC S7-300 CPU 313C-2 DP |
| Application | Compact CPU for medium-complexity industrial automation and process control tasks, such as machine control, data acquisition, and distributed I/O management |
| Compatibility | SIMATIC S7-300 series PLC; integrates with S7-300 I/O modules, ET 200M distributed I/O, and PROFIBUS DP networks |
| Function | Executes user programs, manages I/O processing, supports MPI/PROFIBUS DP communication, and includes onboard I/O for efficient system operation |
Functional Specifications
| Parameter | Details |
|---|---|
| Processor Type | 32-bit RISC CPU |
| Work Memory | 64 KB (integrated) |
| Load Memory | Micro Memory Card (MMC) required (up to 64 MB) |

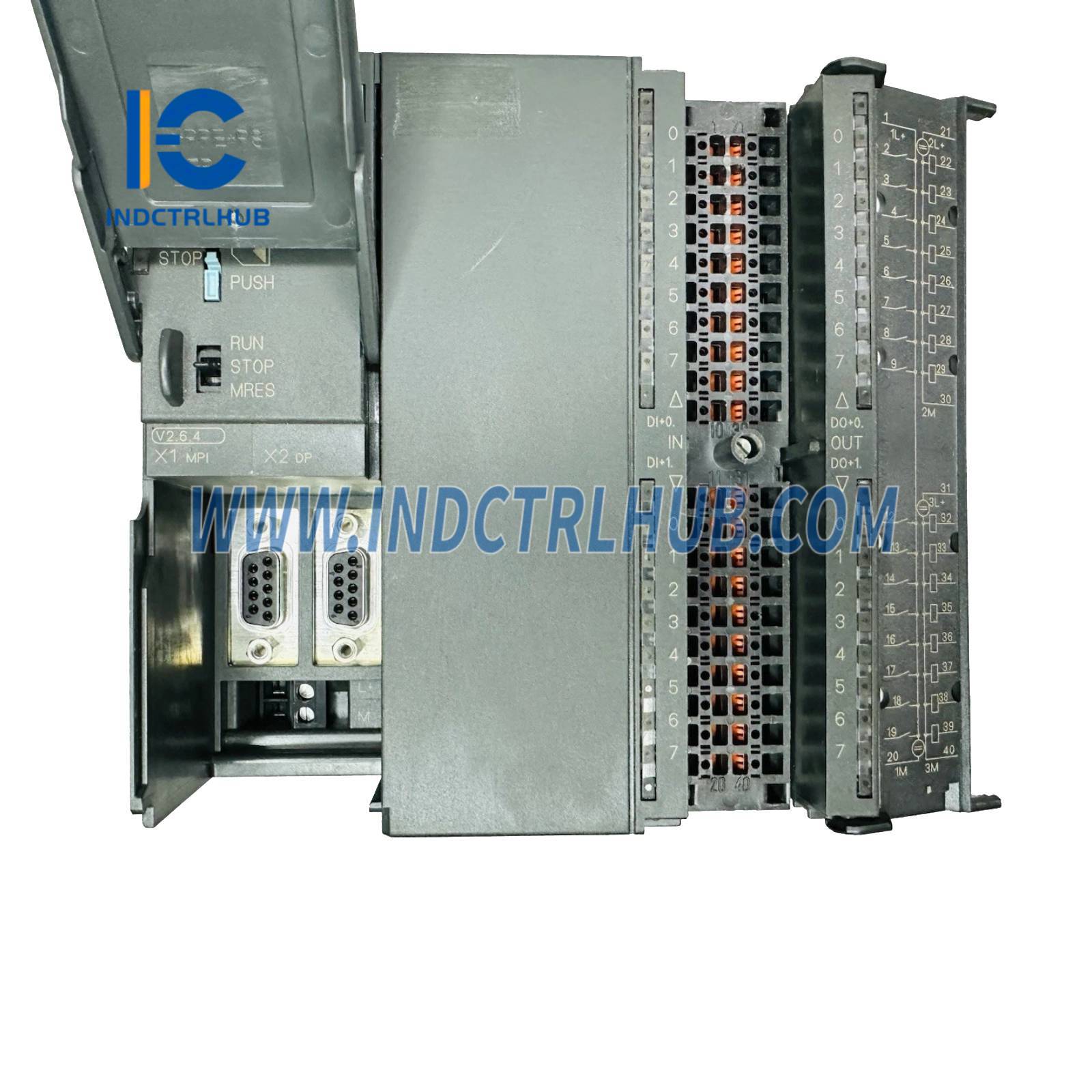

| Onboard Digital I/O | 16 digital inputs (24 V DC, sink/source); 16 digital outputs (24 V DC, transistor, 0.5 A max) |
| Onboard Analog I/O | None |
| High-Speed Counters | 3 (30 kHz) |
| Communication Interfaces | MPI/PROFIBUS DP master (187.5 kbps); supports up to 32 DP slaves |
| Supply Voltage | 24 V DC (integrated power supply) |
| Current Consumption | 0.9 A at 24 V DC (typical) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | Width: 120 mm; Height: 125 mm; Depth: 130 mm |
| Weight | Approximately 0.65 kg |
| Protection Rating | IP20 |
| Certifications | CE marked; UL, cULus, CSA |
| Standards Compliance | IEC 61131-2; EN 61000-6-2 (EMC immunity); EN 61000-6-4 (EMC emissions) |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6ES7313-6CF03-0AB0 (CPU 313C-2 DP, 64 KB work memory, 16 DI/16 DO, MPI/DP interface) |
| Available Options | Successor: 6ES7313-6CG04-0AB0; variants for higher memory (e.g., CPU 315-2 DP) or PtP communication |
| Customization | Extended temperature range or specific certifications available upon request |
