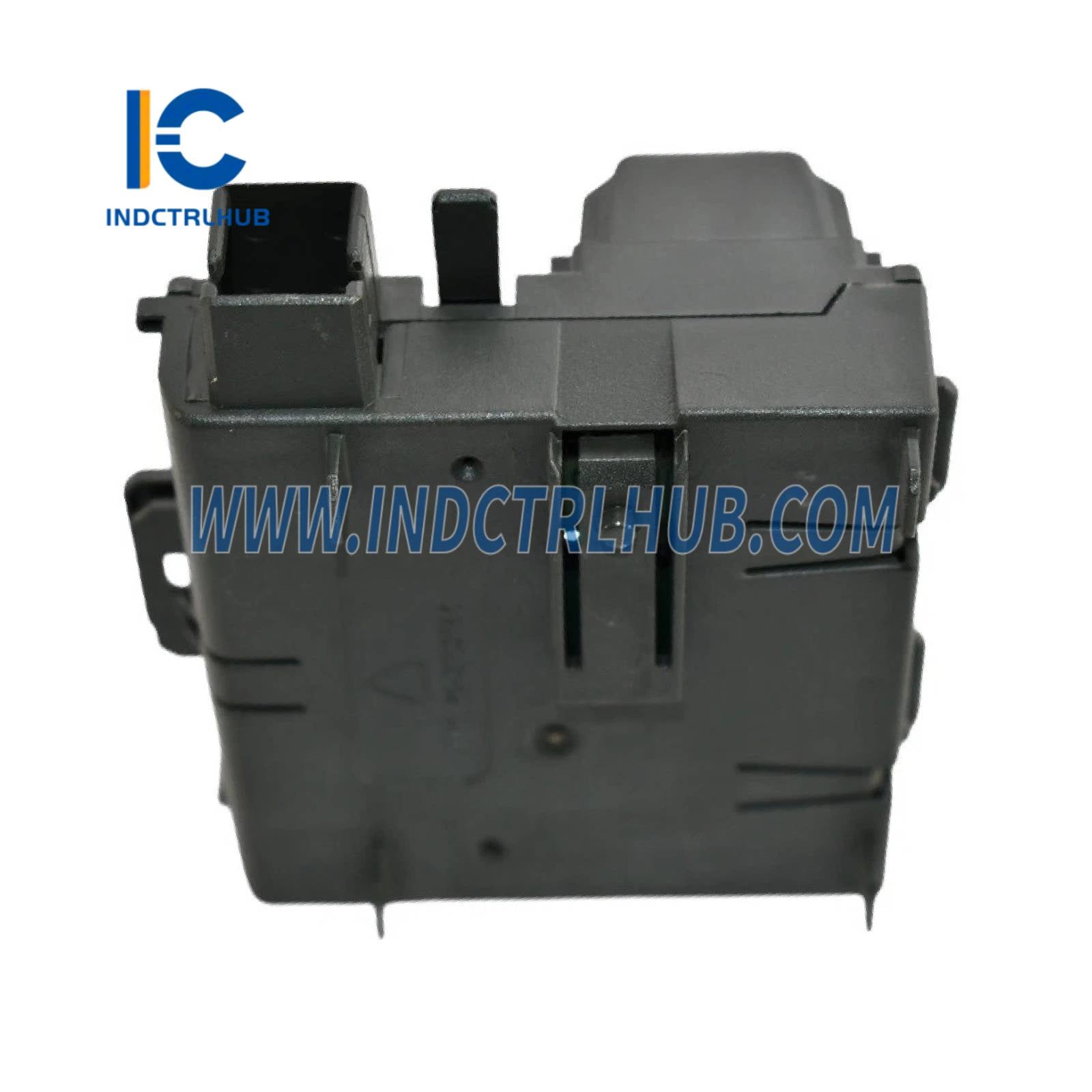

Siemens 6ES7195-7HD80-0XA0 SIMATIC DP Bus Module for ET 200M
Siemens 6ES7195-7HD80-0XA0 SIMATIC DP Bus Module for ET 200M
Manufacturer: Siemens
Product No.: 6ES7195-7HD80-0XA0
Condition:1000 in stock
Product Type: SIMATIC DP Bus Module for ET 200M
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model/Part Number | 6ES7195-7HD80-0XA0 |
| Description | SIMATIC DP Bus Module for ET 200M (Hot-Swap, 80 mm) |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 6ES7195-7HD80-0XA0 |
| Product Name | Bus Module BM 80/80 for ET 200M |
| Application | Hot-swap backplane connector for 80 mm wide I/O modules in SIMATIC ET 200M distributed I/O stations |
| Compatibility | - ET 200M IM 153-2/4 (6ES7153-2BAxx-0XB0) - S7-300/400, PCS 7, WinCC - PROFIBUS DP-V1, redundant systems - TIA Portal V18+, STEP 7 Classic |
| Function | Enables live module replacement under power with automatic address retention, mechanical coding, diagnostics, and PROFIBUS continuity during hot swap |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Hot-Swap Bus Module (HD80) |
| Module Width | 80 mm (supports one 80 mm I/O module) |
| Hot Swap | Full live replacement (no system interruption) |
| Backplane Connection | Self-assembling 64-pin connector (gold-plated) |
| Module Coding | Mechanical keying (prevents incorrect module insertion) |
| Address Retention | Automatic I/O address preservation during swap |
| PROFIBUS Continuity | Bypass circuit maintains DP bus during module removal |
| Diagnostics | - LED: OK (green), ERROR (red) - PROFIBUS diagnostics (via IM 153) - Channel-level fault reporting |
| Power Distribution | 24 V DC via P-Bus (max 10 A) |
| Configuration | TIA Portal V18+, STEP 7, GSD file |
| Firmware | Updated via IM 153 (no separate firmware) |
Electrical Specifications
| Parameter | Details |
|---|---|
| Supply Voltage | 24 V DC (20.4_28.8 V) via ET 200M backplane |
| Power Consumption | < 0.5 W |
| Isolation | 500 V AC (backplane to electronics) |
| Current Carrying Capacity | 10 A (P-Bus) |
Mechanical Specifications
| Parameter | Details |
|---|---|
| Dimensions (W x H x D) | 80 mm _ 125 mm _ 30 mm |
| Weight | 120 g |
| Housing Material | Polyamide (PA 6.6), halogen-free |
| Color | Titanium gray (RAL 9023) |
| Mounting | Snaps into ET 200M mounting rail (left of I/O module) |
| Locking | Dual mechanical latches with release levers |
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature | 0°C to +60°C (horizontal), 0°C to +50°C (vertical) |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5_95% non-condensing |
| Vibration | 1g (IEC 60068-2-6) |
| Shock | 15g (IEC 60068-2-27) |
| Enclosure Rating | IP20 |
