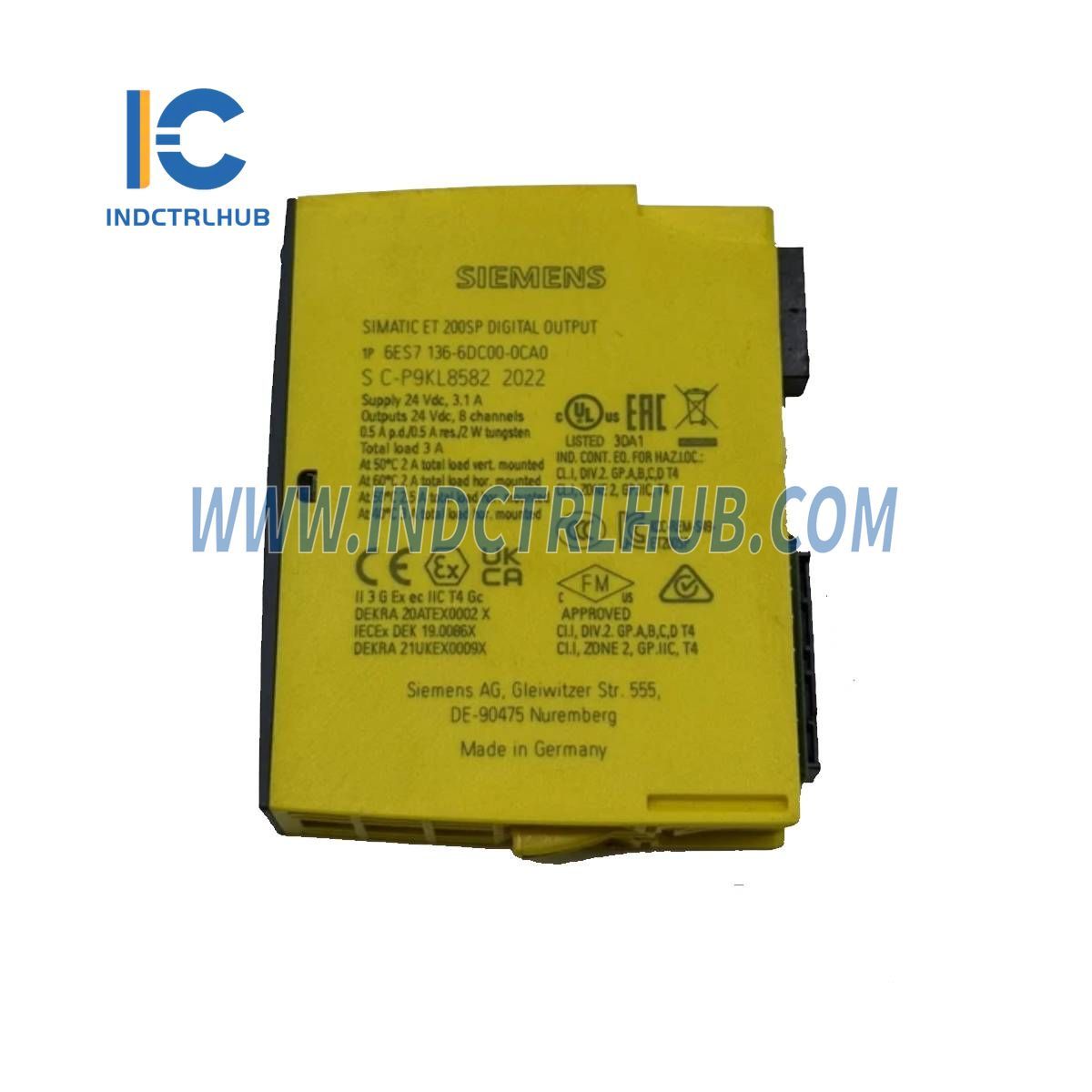

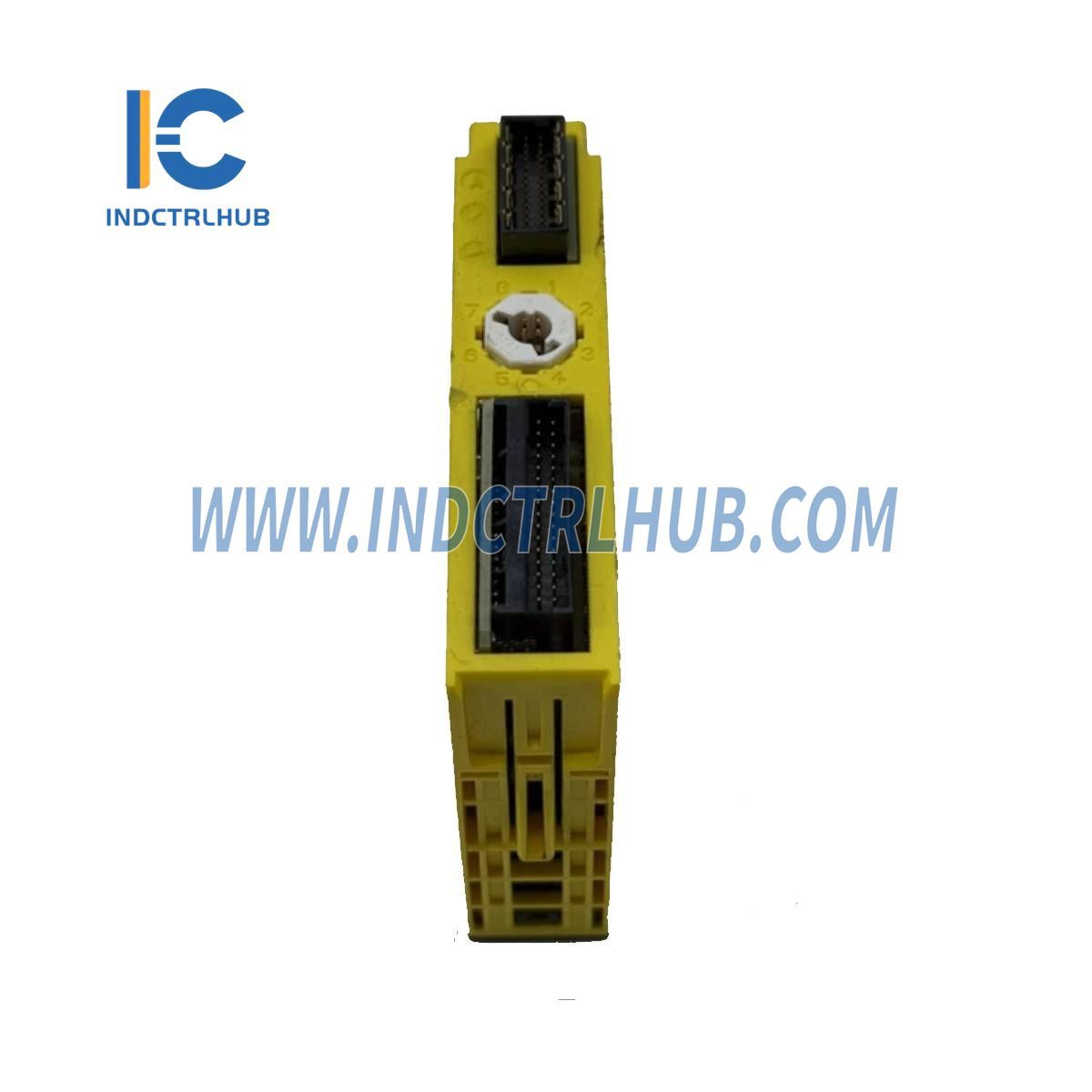

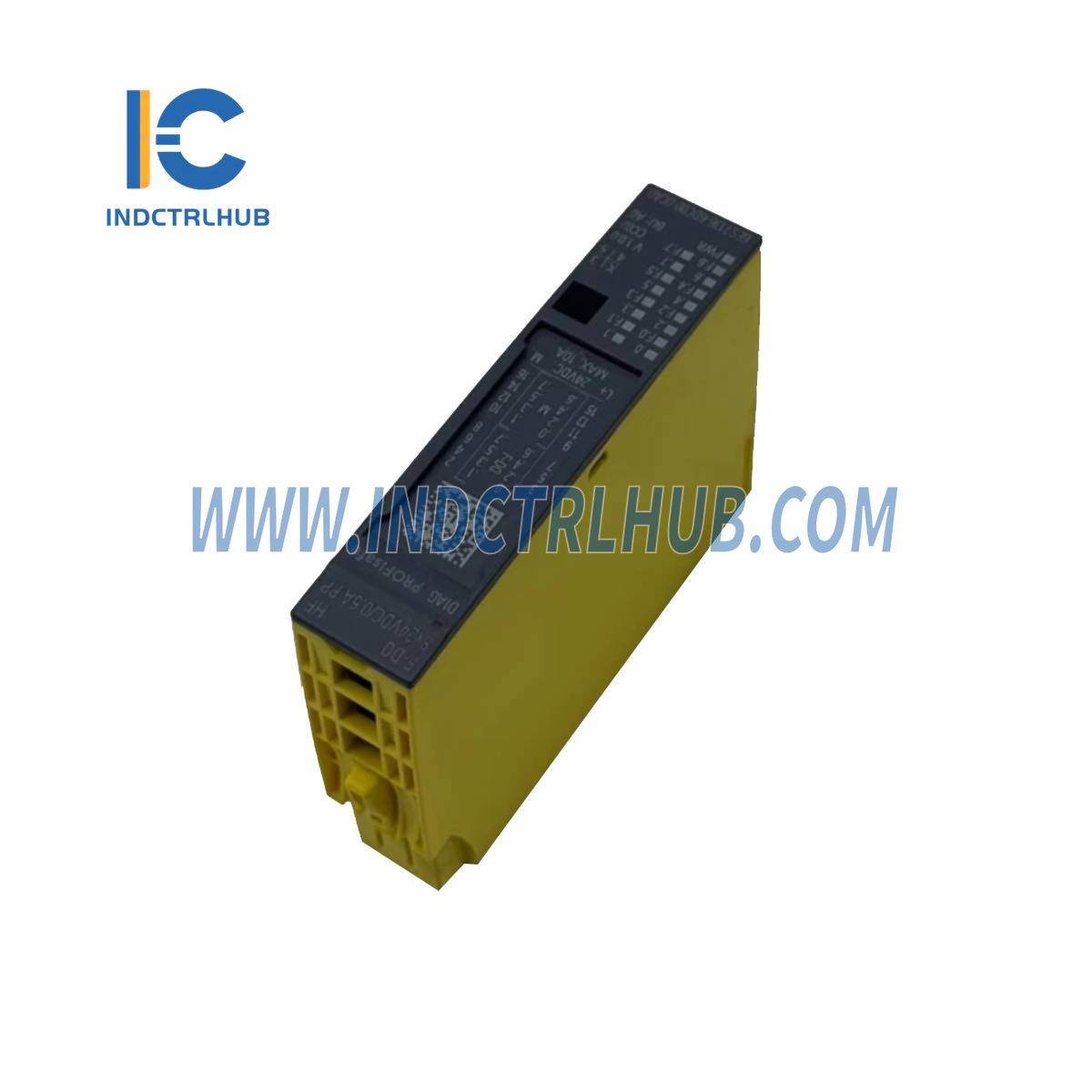

Product Description
General Information
|
Manufacturer |
Siemens |
|---|---|
|
Model/Part Number |
6ES7136-6DC00-0CA0 |
|
Product Type Designation |
F-DQ 8x24 V DC/0.5 A PP HF |
|
Firmware Update Possible |
Yes |
|
Usable Base Units |
BU Type A0 |
|
Color Code for Module Identification Plate |
CC02 |
Product Functions
|
Parameter |
Value |
|---|---|
|
I&M Data |
Yes (I&M0 to I&M3) |
Engineering Compatibility
|
Parameter |
Value |
|---|---|
|
STEP 7 TIA Portal Configurable/Integrated |
From Version V14 SP1 with HSP 202 |
|
STEP 7 Configurable/Integrated |
From Version V5.5 SP4 HF5 |
|
PROFINET (GSD Version/Revision) |
V2.31 |
Power Supply
|
Parameter |
Value |
|---|---|
|
Rated Value (DC) |
24 V |
|
Permissible Range (Lower Limit) |
19.2 V DC |
|
Permissible Range (Upper Limit) |
28.8 V DC |
|
Reverse Polarity Protection |
Yes |
|
NEC Class 2 Power Supply Required |
No |
Input Current & Power
|
Parameter |
Value |
|---|---|
|
Rated Current Consumption |
75 mA (without load) |
|
Maximum Current Consumption (from Backplane Bus) |
21 mA |
|
Power Consumption from Backplane Bus |
70 mW |
|
Typical Power Loss |
3 W |
Output Voltage
|
Parameter |
Value |
|---|---|
|
Rated Value (DC) |
24 V |
Physical Dimensions
|
Parameter |
Value |
|---|---|
|
Width |
15 mm |
|
Height |
73 mm |
|
Depth |
58 mm |
Weight
|
Parameter |
Value |
|---|---|
|
Approximate Weight |
48 g |
