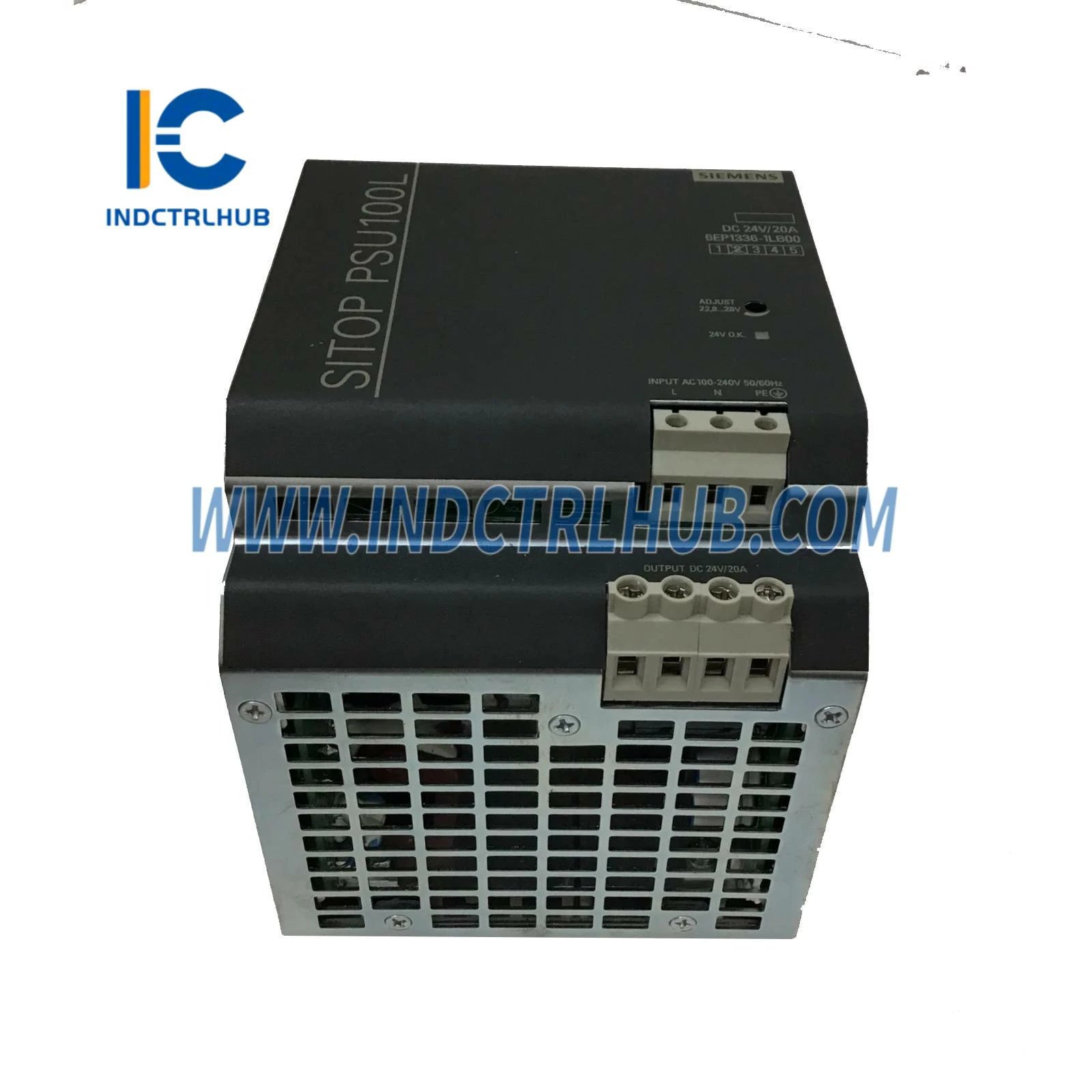

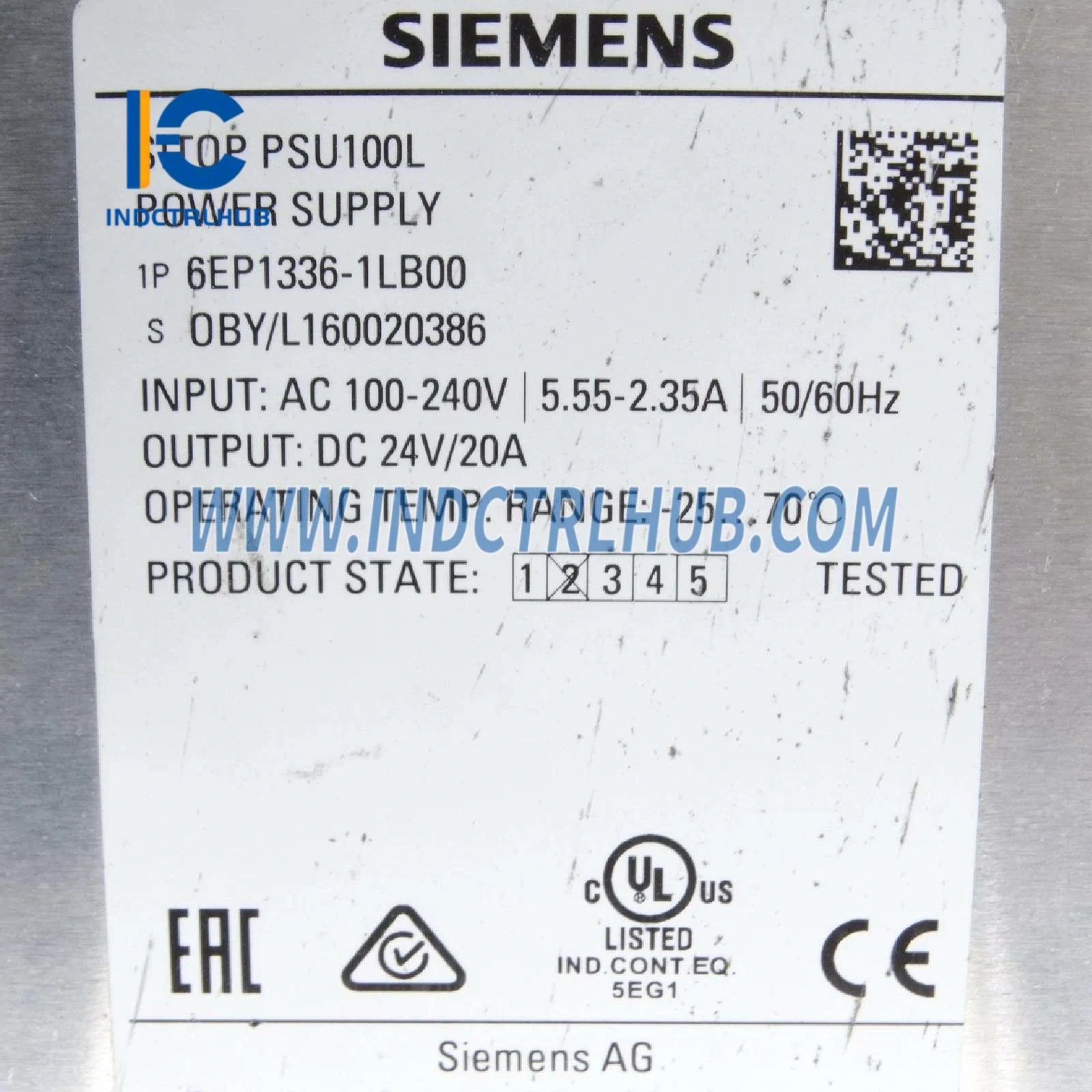

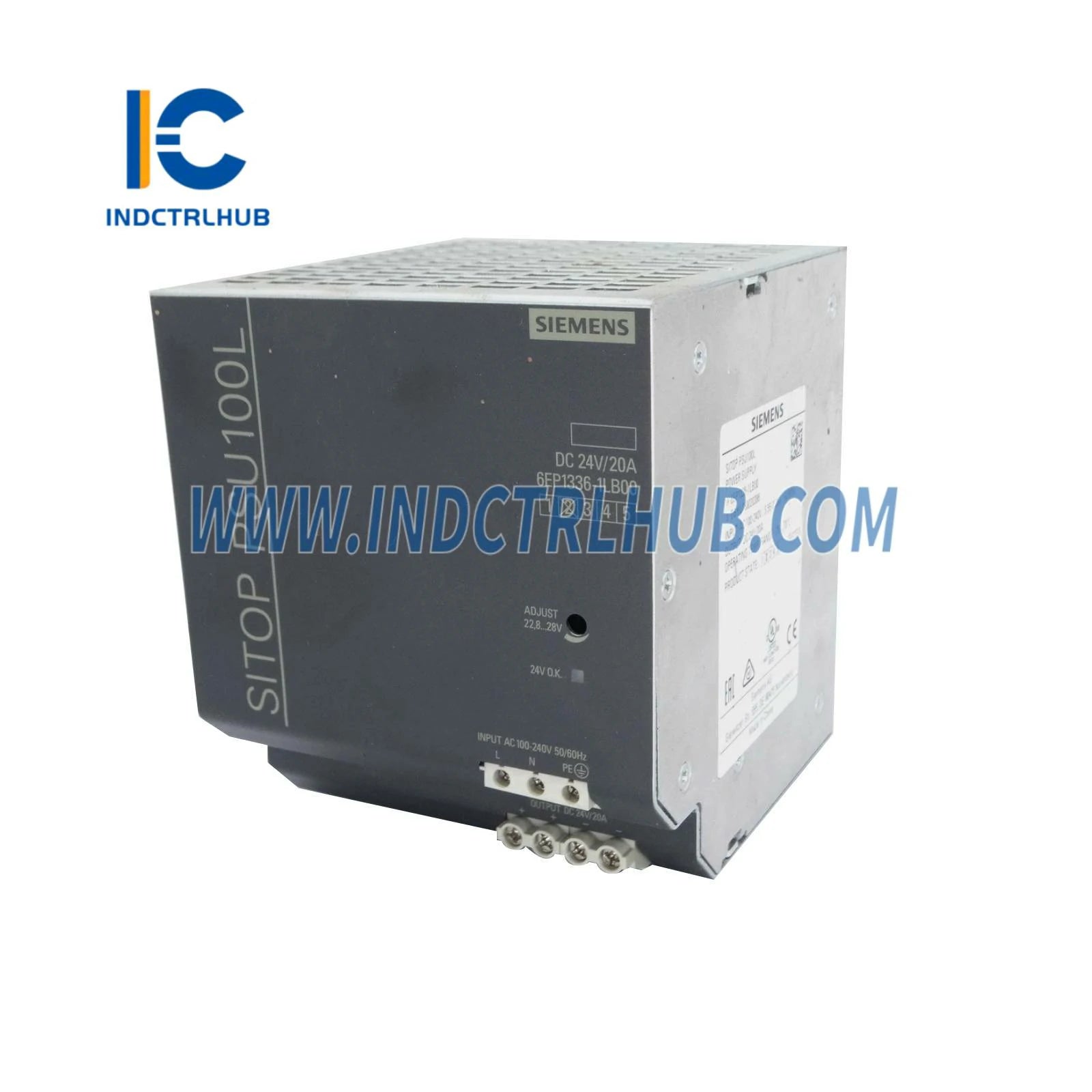

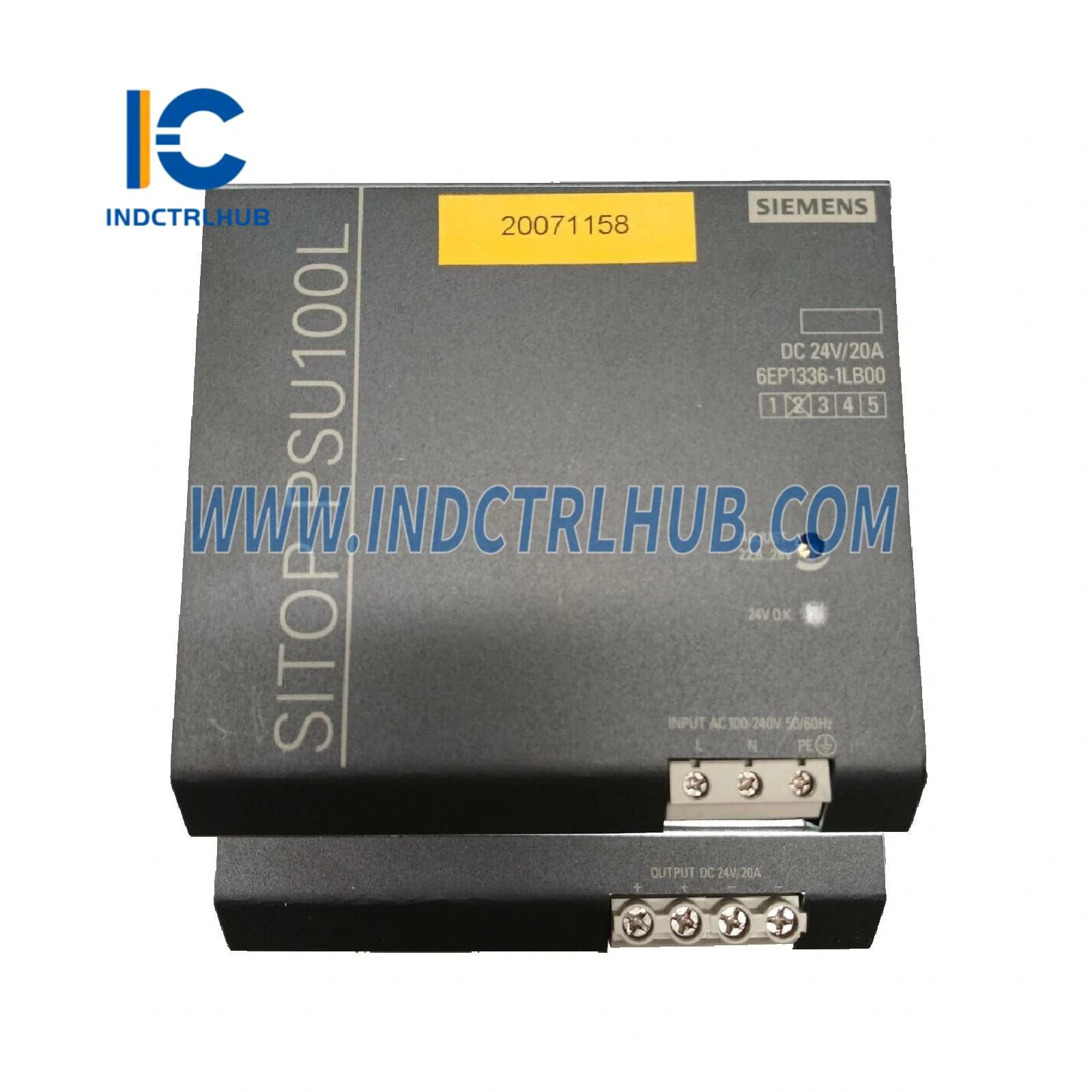

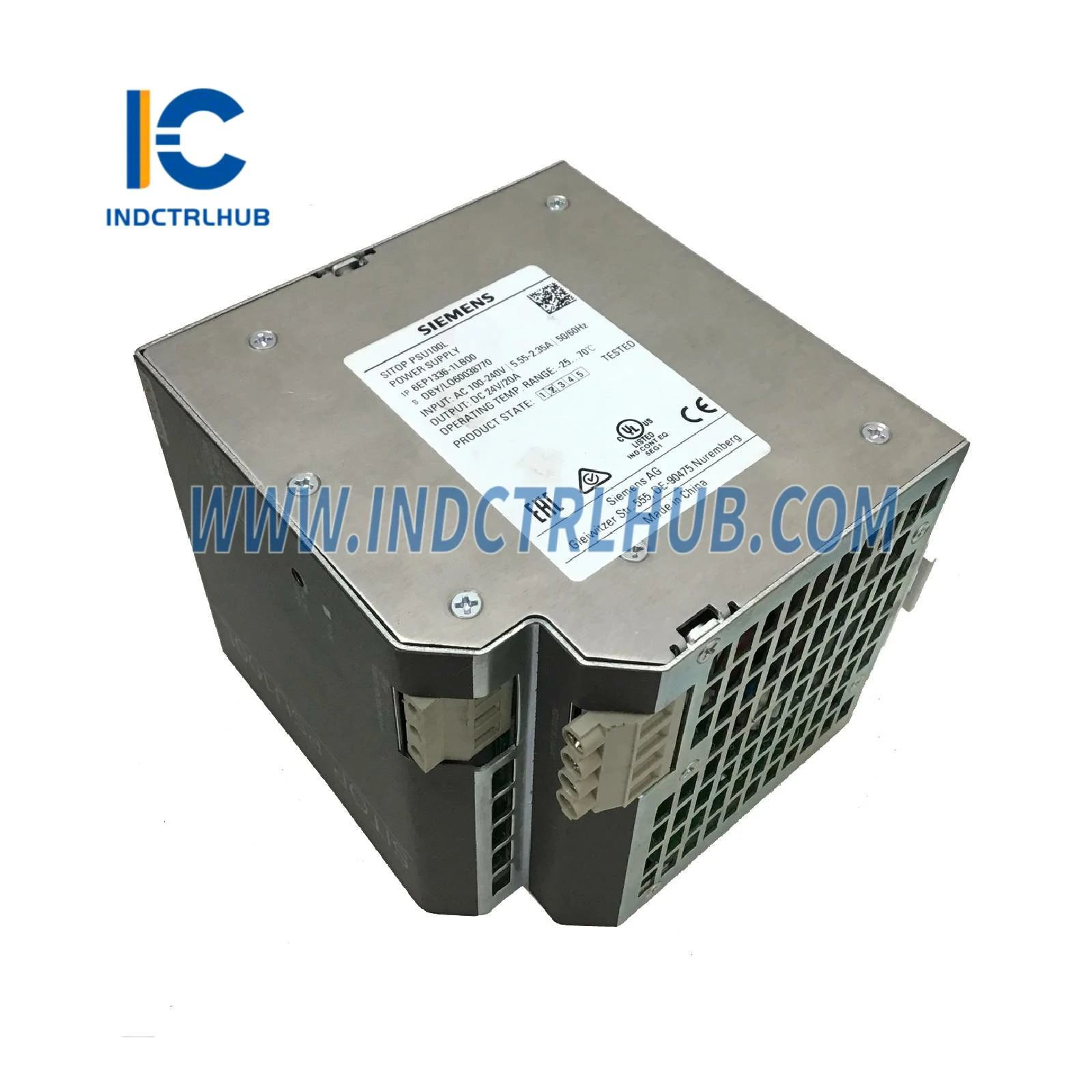

Siemens 6EP1336-1LB00 SITOP PSU100L 24V 20A Stabilized Power Supply

Siemens 6EP1336-1LB00 SITOP PSU100L 24V/20A Industrial Power Supply

The Siemens 6EP1336-1LB00 delivers reliable 24V DC power for demanding industrial automation environments. Engineered with SITOP PSU100L technology, this 20-ampere stabilized power supply ensures consistent voltage regulation across manufacturing lines, process control systems, and critical infrastructure applications.

Technical Specifications

• Input Voltage: 100-240V AC (±10%), 50/60 Hz
• Output Voltage: 24V DC ±3%
• Output Current: 20A continuous (480W total power)
• Efficiency: >91% at nominal load
• Mounting: DIN rail (35mm) with snap-on mechanism
• Operating Temperature: -25°C to +70°C (extended range)
• Protection Class: IP20 housing with overload, short-circuit, and overvoltage protection
• Dimensions: 125 x 125 x 120 mm (W x H x D)
• Certifications: UL, cUL, CE, GL, DNV certified for marine and industrial use

Application Solutions

Manufacturing Automation: Powers PLC systems, HMI panels, and distributed I/O networks in automotive assembly, packaging machinery, and material handling systems where voltage stability prevents production downtime.

Process Industries: Supports SCADA infrastructure, field instrumentation, and safety systems in chemical plants, water treatment facilities, and oil & gas operations requiring 24/7 uptime.

Building Management: Energizes access control systems, HVAC controllers, and lighting automation in commercial facilities demanding reliable low-voltage DC distribution.

Why Choose SITOP PSU100L Technology?

Advanced switch-mode design maintains ±3% voltage tolerance under fluctuating loads and input variations. Active current sharing enables parallel operation for redundant configurations. Built-in diagnostics with LED status indicators simplify troubleshooting during commissioning and maintenance cycles.

Common Questions Answered

Q: Can this power supply operate in extreme temperatures?
A: Yes, the 6EP1336-1LB00 functions reliably from -25°C to +70°C, making it suitable for outdoor enclosures and harsh industrial environments with proper ventilation.

Q: Does it support redundant configurations?
A: Absolutely. The unit features MOSFET-based ORing for parallel connection with other SITOP modules, enabling N+1 redundancy without additional diode modules.

Q: What protection mechanisms are included?
A: Comprehensive safeguards include electronic overload shutdown, short-circuit current limiting, overvoltage protection up to 150% rated voltage, and thermal monitoring with automatic recovery.

Q: Is it compatible with S7-1200/1500 PLC systems?
A: Yes, this power supply is specifically designed to work seamlessly with Siemens SIMATIC controllers and distributed I/O systems, providing clean 24V DC for logic and sensor circuits.

Installation & Integration

Tool-free DIN rail mounting accelerates panel assembly. Push-in spring terminals accept 0.5-4mm² wire gauges without ferrules. Compact 125mm width conserves cabinet space in dense control panel layouts. Front-accessible connection points simplify wiring in tight enclosures.

Warranty & Support

Backed by a 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes application engineering assistance, replacement part availability, and firmware updates for enhanced functionality.
