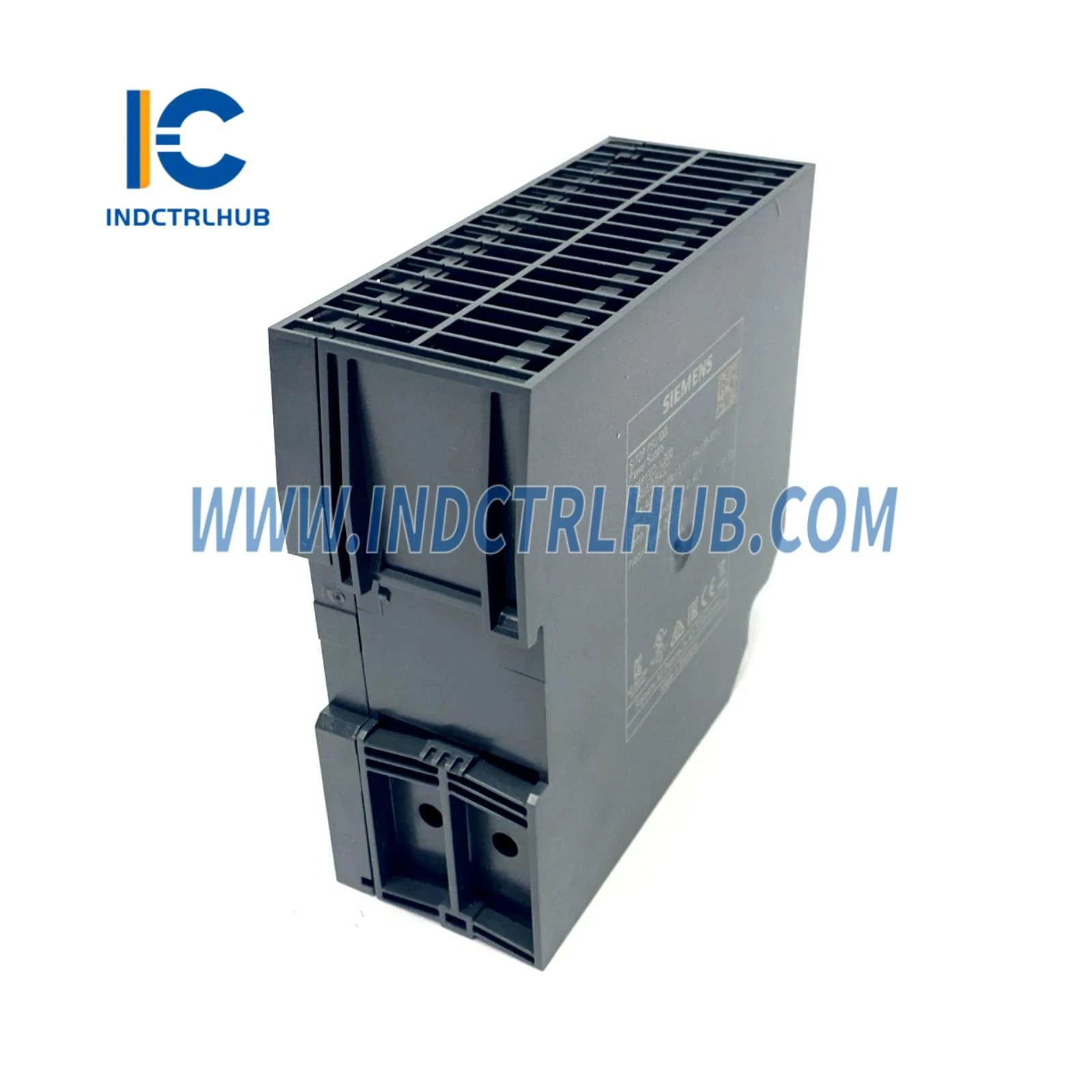

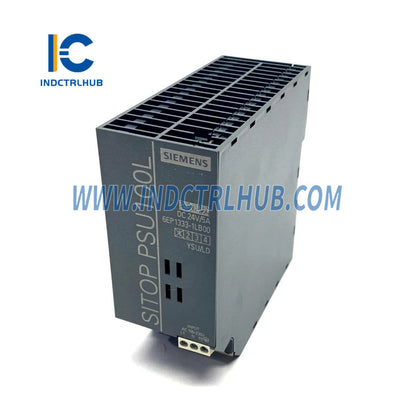

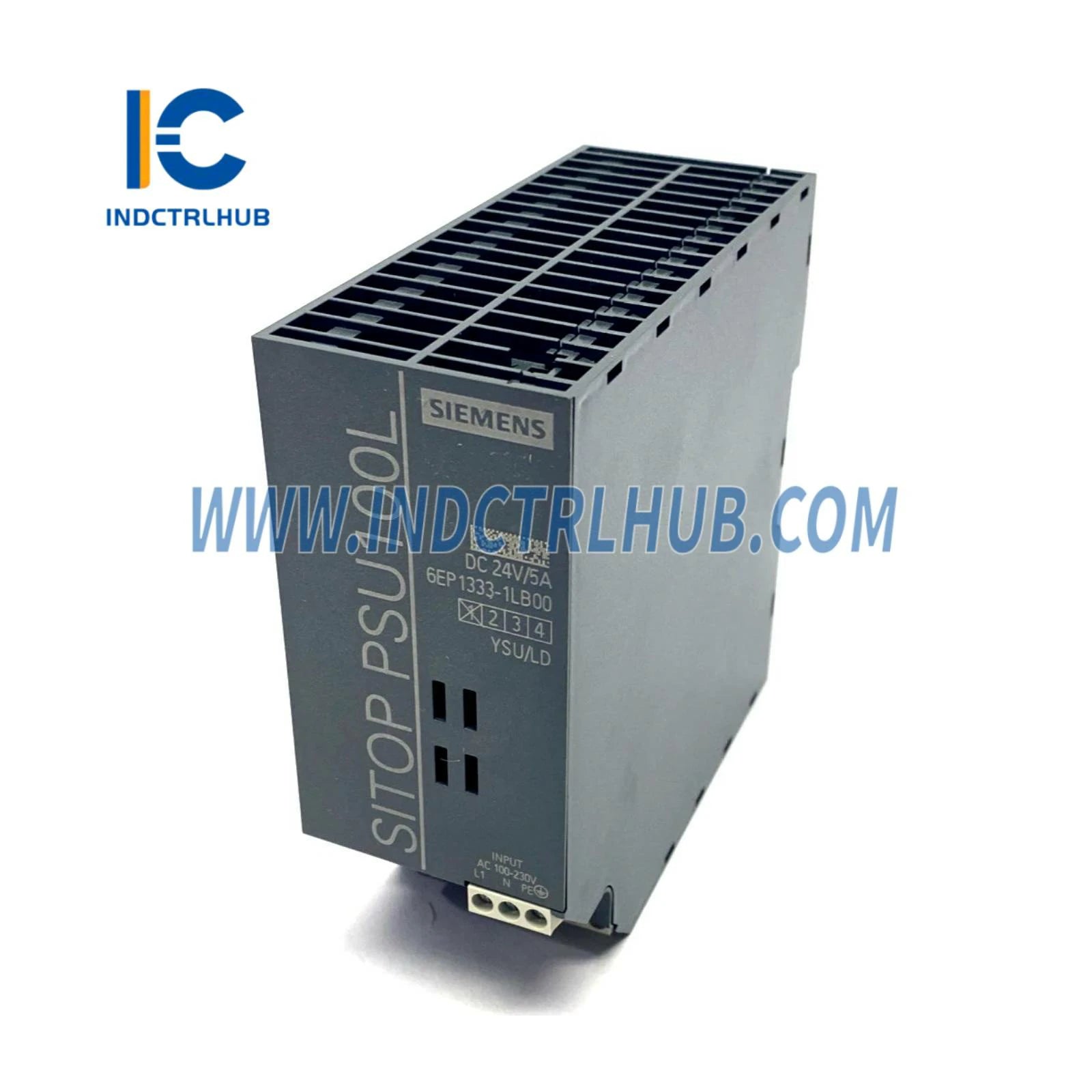

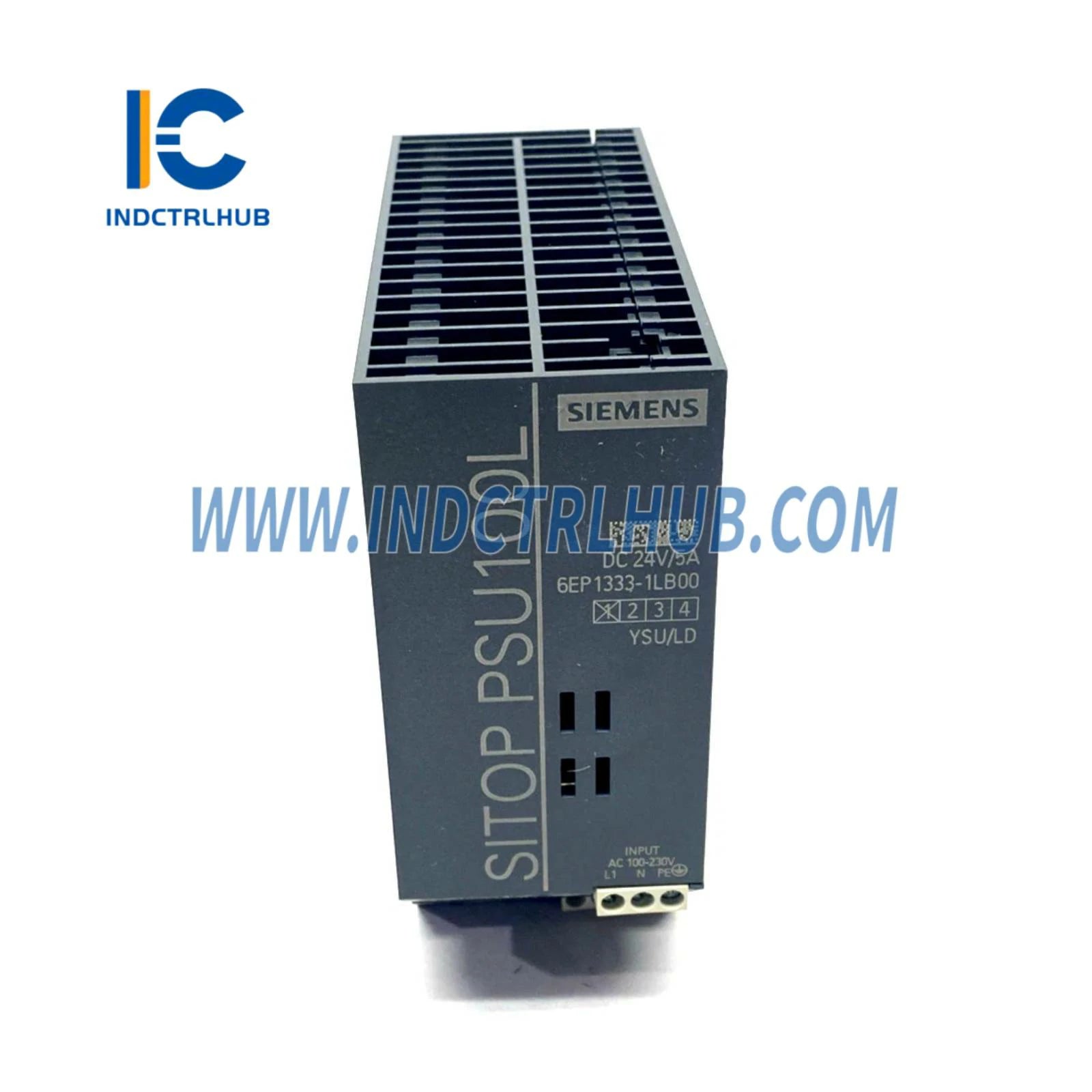

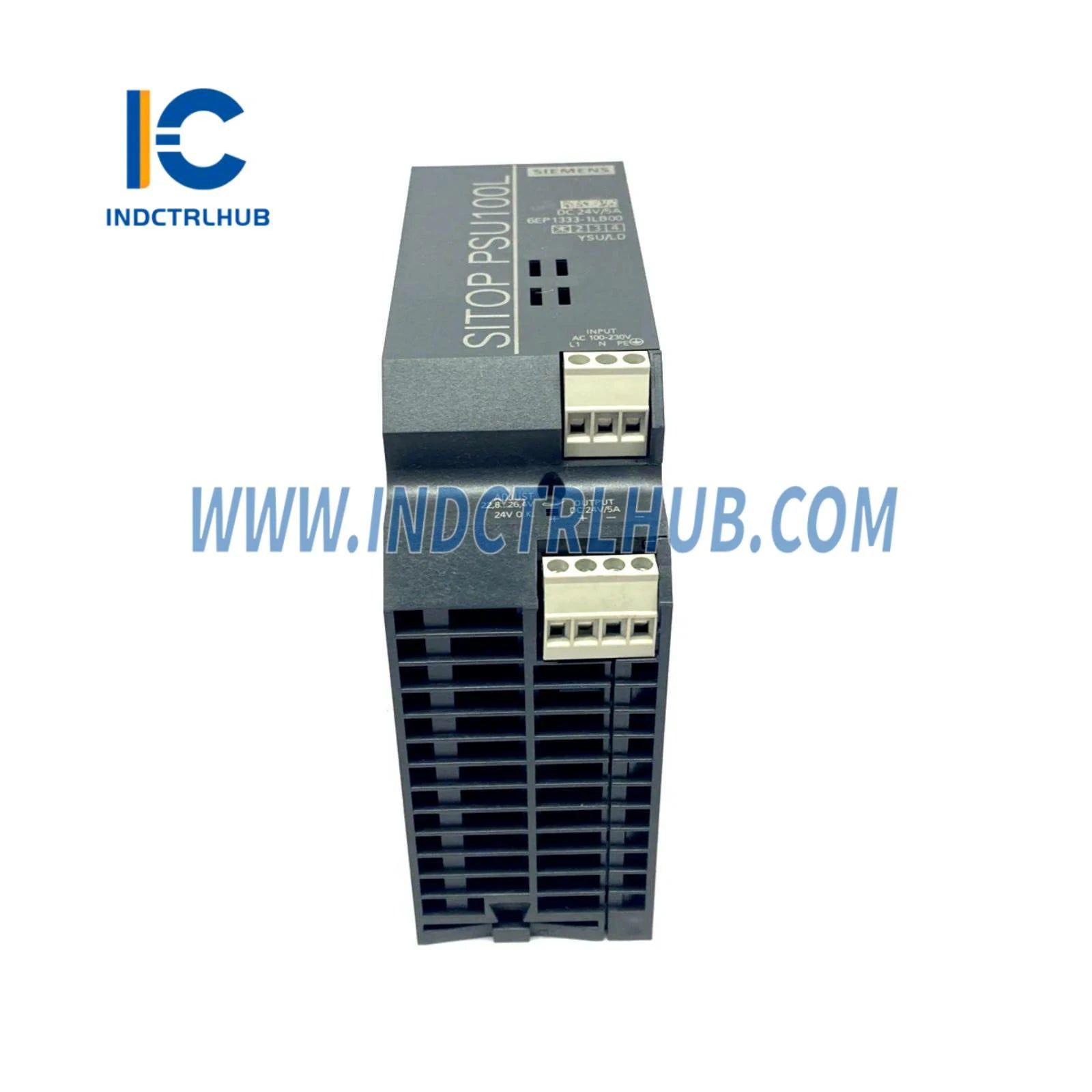

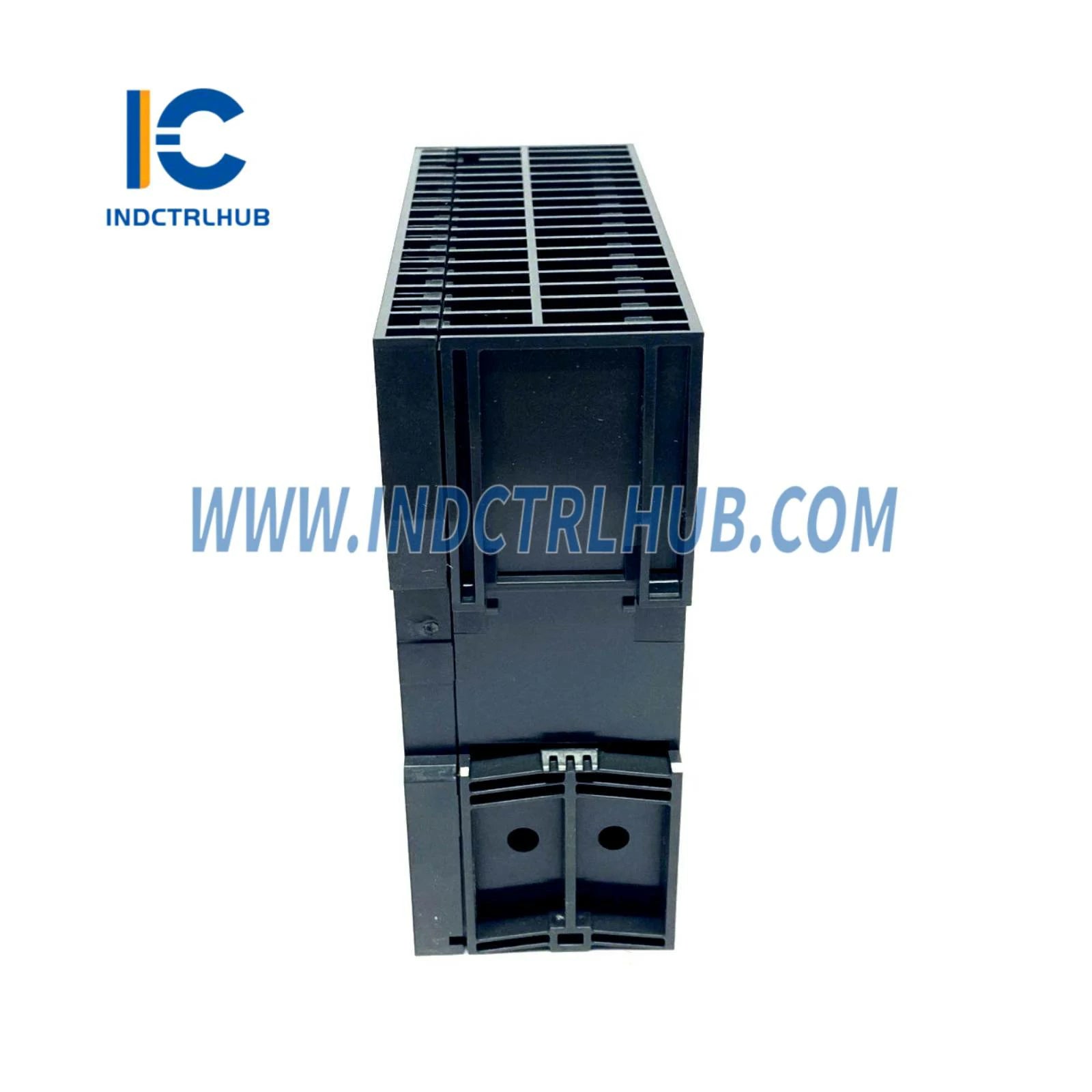

Siemens 6EP1333-1LB00 SITOP PSU100L 24V/5A Stabilized Power Supply

Siemens 6EP1333-1LB00 SITOP PSU100L 24V/5A Stabilized Power Supply

The Siemens 6EP1333-1LB00 SITOP PSU100L represents a breakthrough in industrial power supply engineering, delivering unwavering 24V DC output at 5A capacity for mission-critical automation systems. Engineered with Siemens' renowned precision, this compact powerhouse transforms unstable AC input into rock-solid DC power, ensuring your control systems operate flawlessly even in challenging industrial environments.

Technical Specifications

• Model Number: 6EP1333-1LB00
• Output Voltage: 24V DC (adjustable 24-28V)
• Output Current: 5A rated, 6A peak
• Output Power: 120W
• Input Voltage Range: 120-230V AC (85-264V AC wide range)
• Input Frequency: 50/60 Hz (47-63 Hz)
• Efficiency: >90% at nominal load
• Mounting: DIN rail (35mm standard)
• Dimensions: 70 x 125 x 120 mm (W x H x D)
• Operating Temperature: -25°C to +70°C
• Protection Class: IP20
• Certifications: CE, UL, cULus, GL, DNV

Key Features & Benefits

Universal Input Flexibility: Accept both 120V and 230V AC inputs without manual switching, making installation seamless across global facilities. The wide input tolerance (85-264V AC) protects against voltage fluctuations common in industrial settings.

Precision Voltage Regulation: Advanced feedback circuitry maintains output voltage within ±1% tolerance, even during load variations or input disturbances. Your PLCs, sensors, and actuators receive the clean, stable power they demand.

Compact Space-Saving Design: At just 70mm width, this unit maximizes control cabinet real estate. The slim profile allows dense mounting configurations, reducing panel footprint and installation costs.

Comprehensive Protection Suite: Built-in safeguards include overload protection (automatic restart), short-circuit protection, overvoltage protection, and thermal shutdown. Green LED status indicator provides instant operational feedback.

Application Scenarios

PLC & Control Systems: Power Siemens S7-1200/1500 PLCs, distributed I/O modules, and HMI panels with confidence. The PSU100L's low ripple output ensures error-free communication and precise control logic execution.

Process Automation: Drive 24V DC sensors, transmitters, and valve actuators in chemical processing, water treatment, and pharmaceutical manufacturing. The wide temperature range supports installation in harsh process environments.

Machine Building: Integrate into packaging machinery, conveyor systems, and assembly lines. The compact footprint and DIN rail mounting simplify OEM panel designs and reduce wiring complexity.

Building Automation: Supply reliable power to HVAC controllers, access control systems, and lighting management networks. The high efficiency reduces heat generation and energy costs.

Solutions & Integration

The SITOP PSU100L seamlessly integrates with Siemens TIA Portal for centralized power monitoring when paired with SITOP Manager software. Parallel operation capability allows redundant configurations for critical applications—simply connect multiple units with diode modules for N+1 redundancy.

For applications requiring battery backup, combine with SITOP DC UPS modules to create uninterruptible 24V DC systems. The standardized SITOP platform ensures mechanical and electrical compatibility across the entire product family.

Frequently Asked Questions

Q: Can this power supply operate at 110V AC input?
A: Yes, the wide input range (85-264V AC) fully supports 110V AC operation without derating. Full 120W output is available across the entire input voltage range.

Q: What is the maximum capacitive load this unit can drive?
A: The PSU100L can charge up to 2200μF capacitive loads at startup. For larger capacitances, use inrush current limiting or staged power-up sequences.

Q: Is this suitable for outdoor installations?
A: The IP20 rating requires installation in protected enclosures. For outdoor applications, mount inside NEMA 4X or IP65-rated cabinets with adequate ventilation.

Q: How do I adjust the output voltage?
A: Use the front-accessible potentiometer to adjust output from 24V to 28V DC. This allows compensation for voltage drops in long cable runs or fine-tuning for specific equipment requirements.

Warranty & Support

Every Siemens 6EP1333-1LB00 includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Our technical support team provides application assistance, troubleshooting guidance, and replacement coordination to minimize downtime.
