Product Description

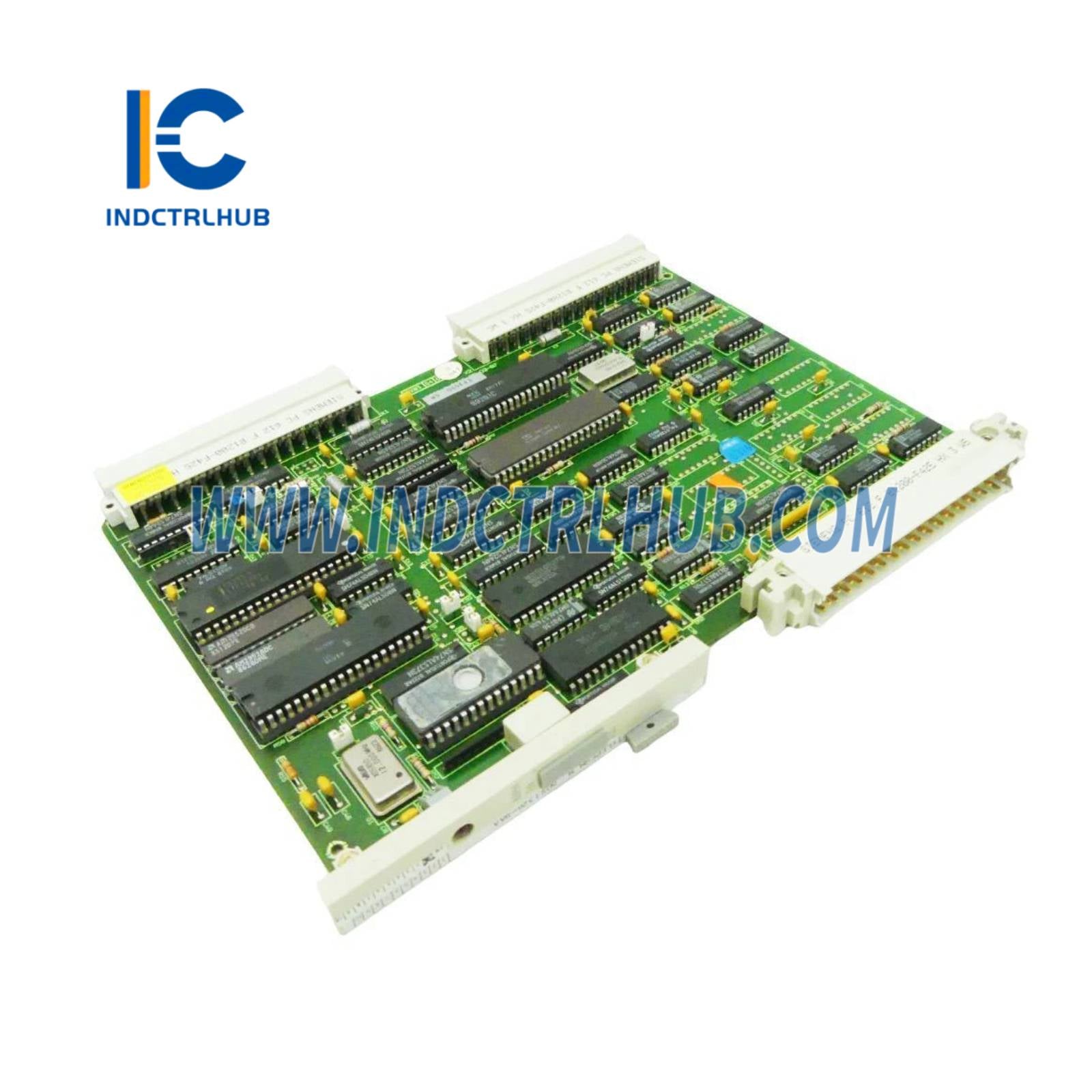

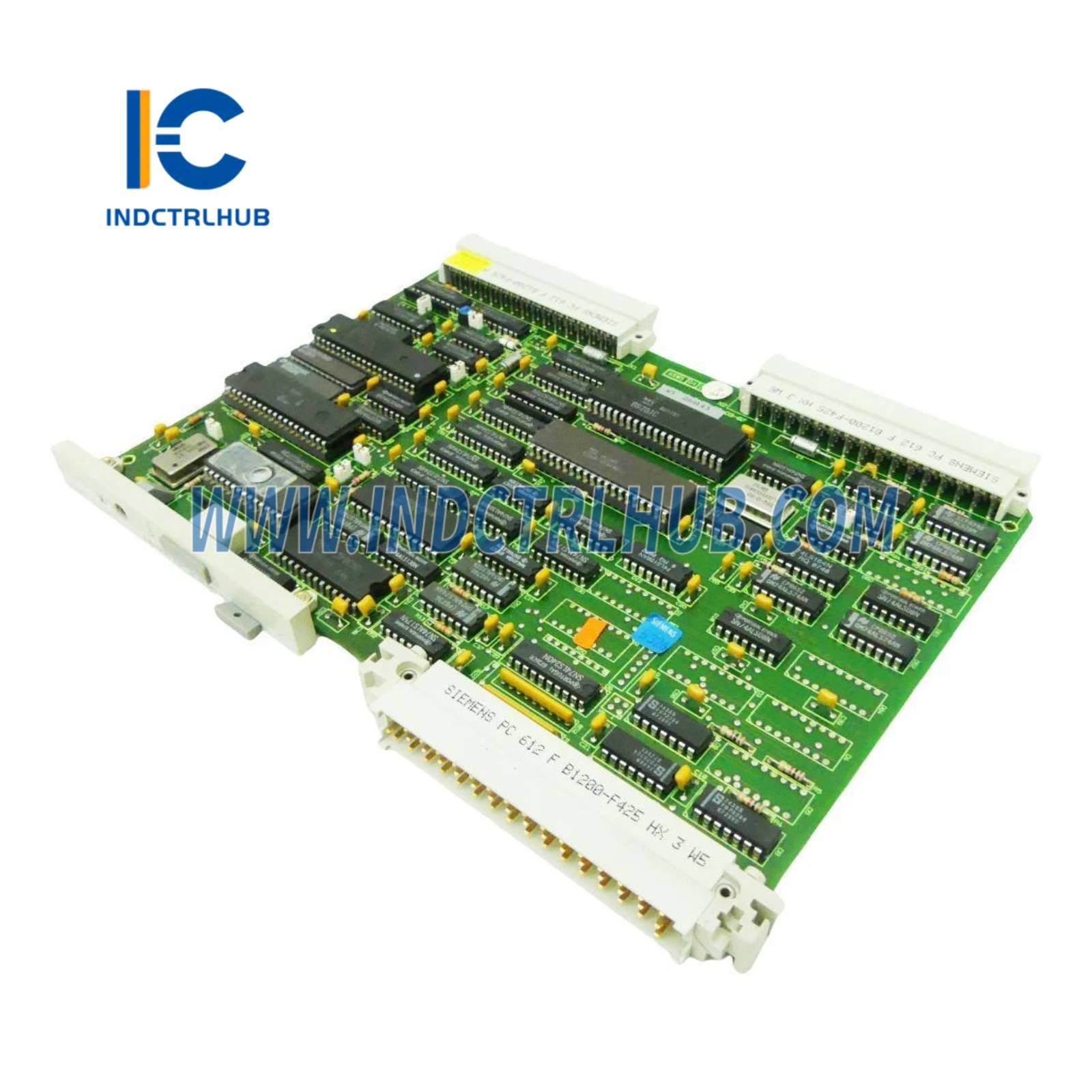

Siemens 6DS1326-8AB Teleperm M Module
Product Overview
- Description: The Siemens 6DS1326-8AB is likely a module for the Siemens Teleperm M process control system, used in industrial automation applications such as power plants, chemical processing, and oil and gas facilities. It is possibly a binary input/output module, similar to the related 6DS1326-8BB
Technical Specifications (Inferred)
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Series | Teleperm M Process Control System (inferred) |
| Model/Part Number | 6DS1326-8AB |
| Model Type | Binary Input/Output Module (inferred, based on 6DS1326-8BB) |
| Function | Processes digital input/output signals for field devices (e.g., switches, relays) |
| Display | Not applicable (may include LED indicators for status) |
| Inputs | Digital inputs (e.g., 16–32 channels, 24 VDC, inferred) |
| Outputs | Digital outputs (e.g., 16–32 channels, 24 VDC, inferred) |
| Communication Interfaces | Teleperm M bus system (e.g., CS275 bus, inferred) |
| Signal Conditioning | Signal isolation, noise suppression (inferred) |
| Accuracy | Not applicable (digital signal processing) |
| Redundancy | Optional redundancy (system-dependent, typical for Teleperm M) |
| Diagnostics | Built-in diagnostics, status monitoring via Teleperm M system |
| Compatibility | Teleperm M systems (e.g., AS 220, AS 235); not compatible with SIMATIC S7-1500 |
| Power Supply | 24 VDC (typical for Teleperm M modules) |
| Power Consumption | 5–10 W (estimated, depending on load) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C (typical) Storage Temperature: -25°C to +70°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (when installed in Teleperm M rack) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 200 mm (D) (estimated) |
| Weight | Approx. 0.5–1 kg |
| Mounting | Plugs into Teleperm M rack or subrack |
| Certifications | CE, UL, CSA (system-dependent, inferred) |
