Product Description
Product Information
-
Article Number (Market Facing Number): 6DR5210-0EM00-0AA0
-
Product Family: SIPART PS2 – Smart Electropneumatic Positioner
-
Product Description:

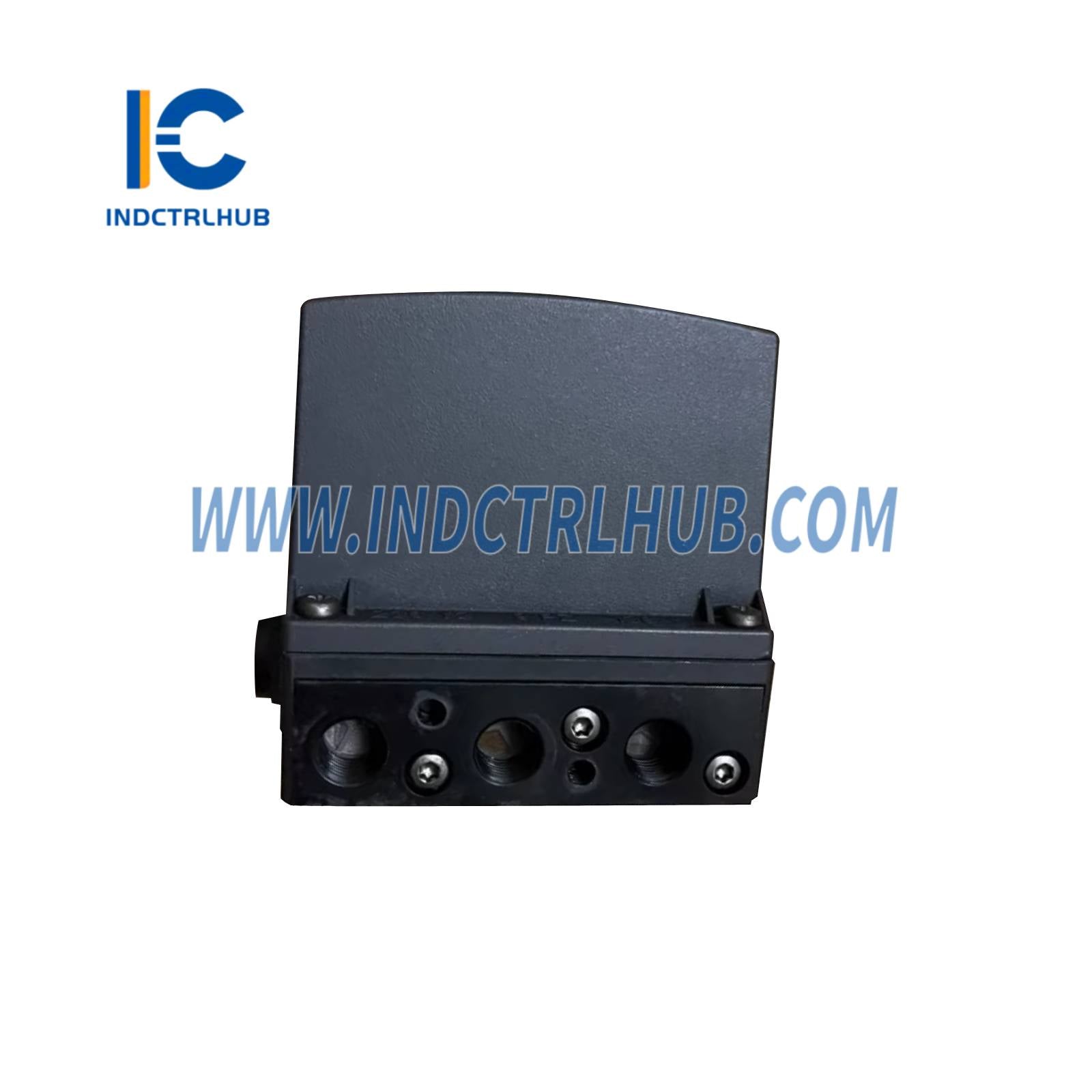

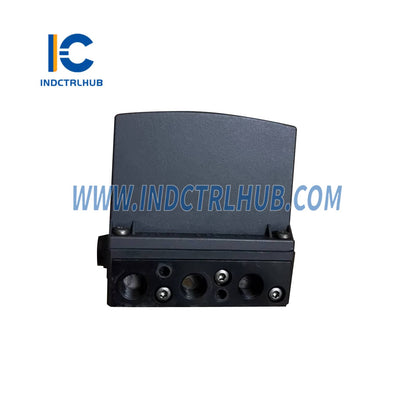

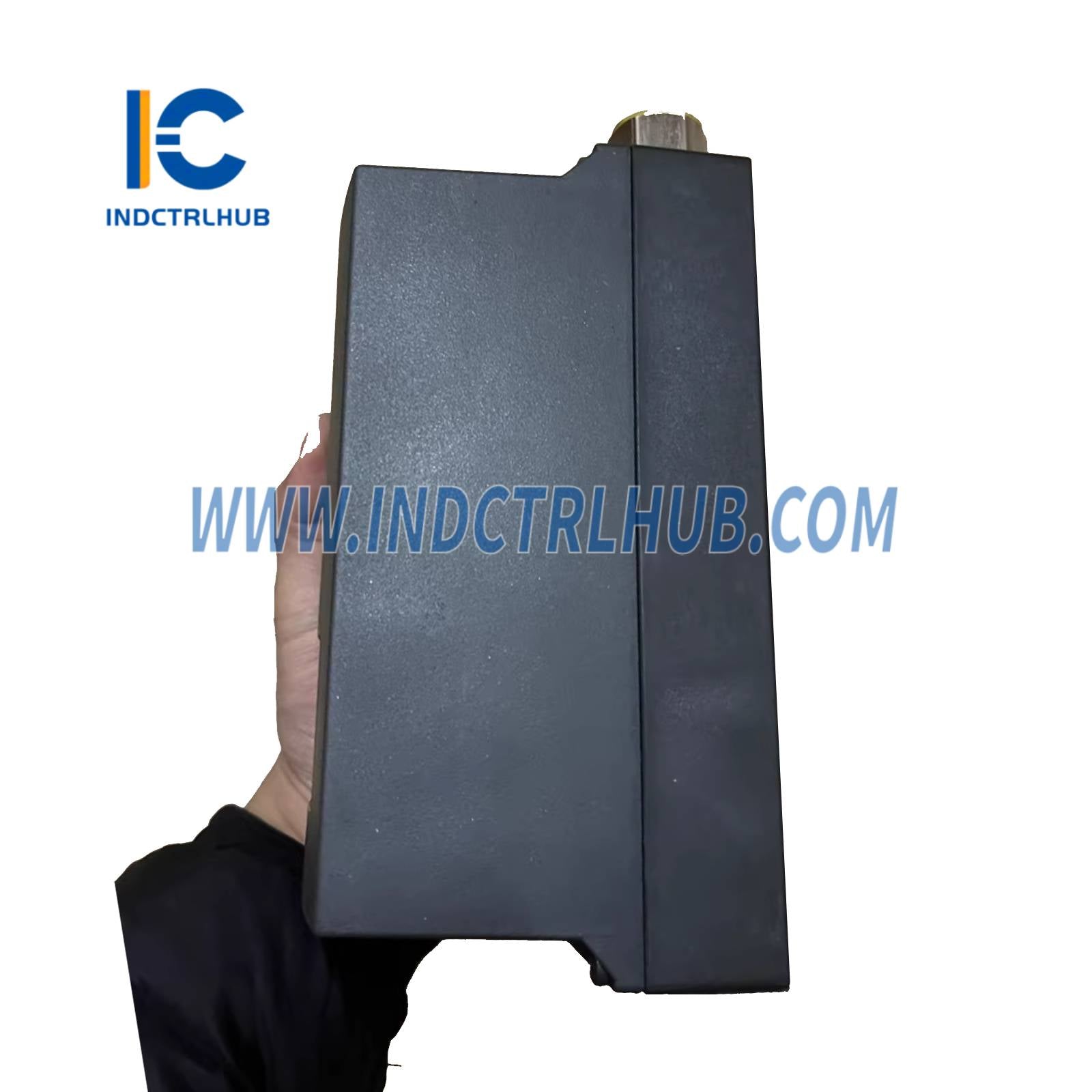

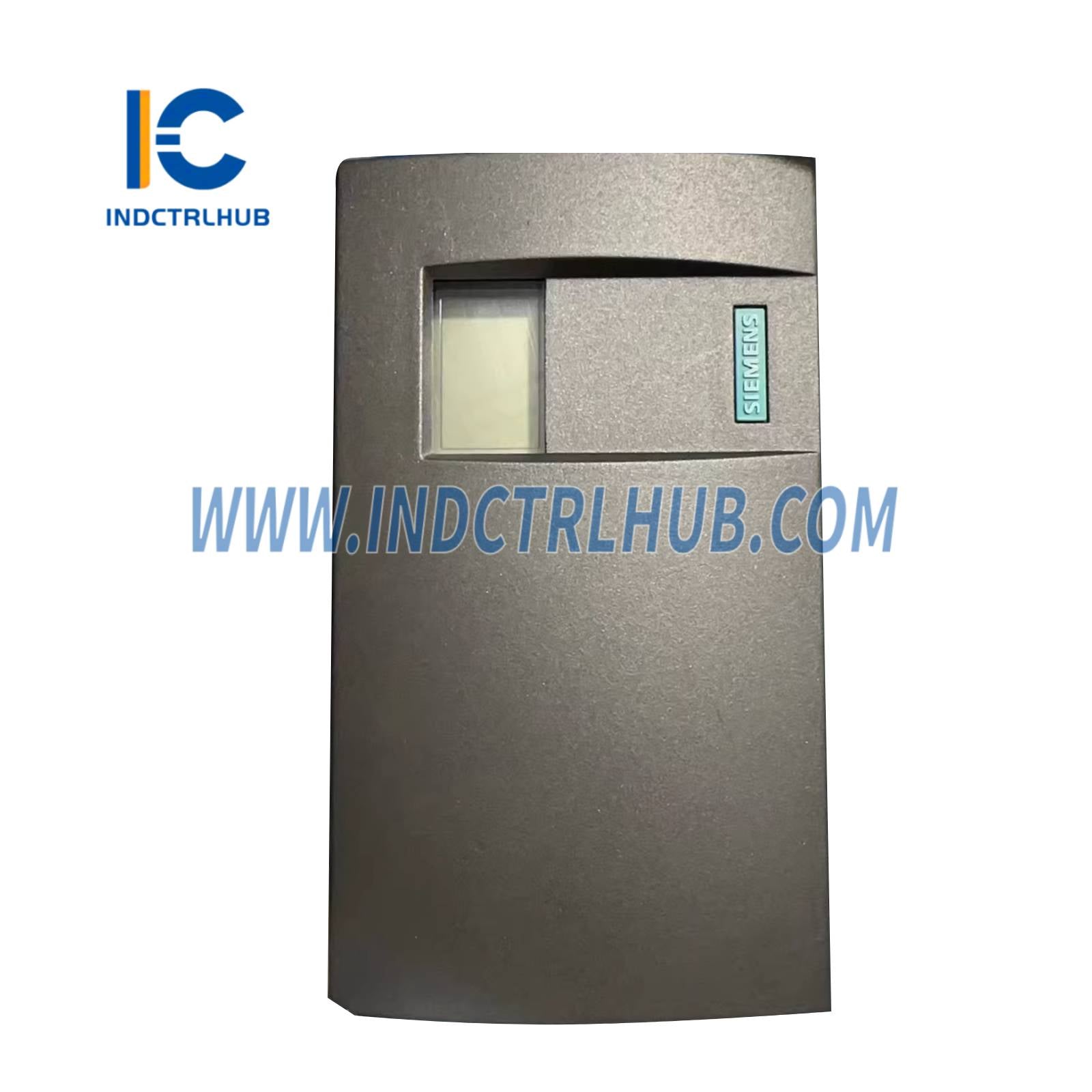

SIPART PS2 smart, electropneumatic positioner with 4…20 mA (3/4-wire) and HART communication, designed for pneumatic linear and part-turn actuators.
-
Single-acting design with polycarbonate enclosure.
-
Explosion protection: Intrinsic safety (Ex i).
-
Output isolator SITRANS I200 can be ordered separately (7NG4131-1AA00).
-
Electrical connection thread: M20x1.5.
-
Pneumatic connection thread: 1/4” NPT.
-
Without limit monitor or option module.
-
Supplied with brief instructions (English / German / Chinese).
-
Standard Fail-Safe function: Depressurizes the actuator in the event of auxiliary power failure (single-acting only).
-
Without manometer block or booster.
Technical Data
|
Attribute |
Value |
|---|---|
|
Type of Protection (Ex) |
Intrinsic Safety (Ex i) |
|
Operating Signal |
4…20 mA (3/4-wire) |
|
Communication Protocol |
HART |
|
Actuator Type |
Pneumatic linear and part-turn |
|
Design |
Single-acting |
|
Enclosure Material |
Polycarbonate |
|
Electrical Connection |
M20x1.5 |
|
Pneumatic Connection |
1/4” NPT |
|
Net Weight |
0.900 kg |
Product Lifecycle
-
PLM Status: PM400 – Product Phase-out
-
Effective Date: Phase-out since 10.07.2024
Compliance & Standards
|
Attribute |
Value |
|---|---|
|
Country of Origin |
France |
|
Commodity Code |
90328100 |
|
RoHS Compliance |
Yes (since 31.12.2016) |
|
WEEE Directive (2012/19/EU) |
Take-back obligation applies |
|
Product Class |
C: Made-to-order products, not reusable/returnable |
|
Catalog ID |
FI01-5 |
|
Product Group |
4759 |
|
Group Code |
R3P2 |
|
REACH Regulation (Art. 33) |
Duty to inform applies |
|
SCIP Number |
Not available |
