Product Description
Product Details
Manufacturer: Siemens
Article Number (Market Facing Number): 6DR5120-0NN01-0AA0
Product Family: SIPART PS2
Product Description:

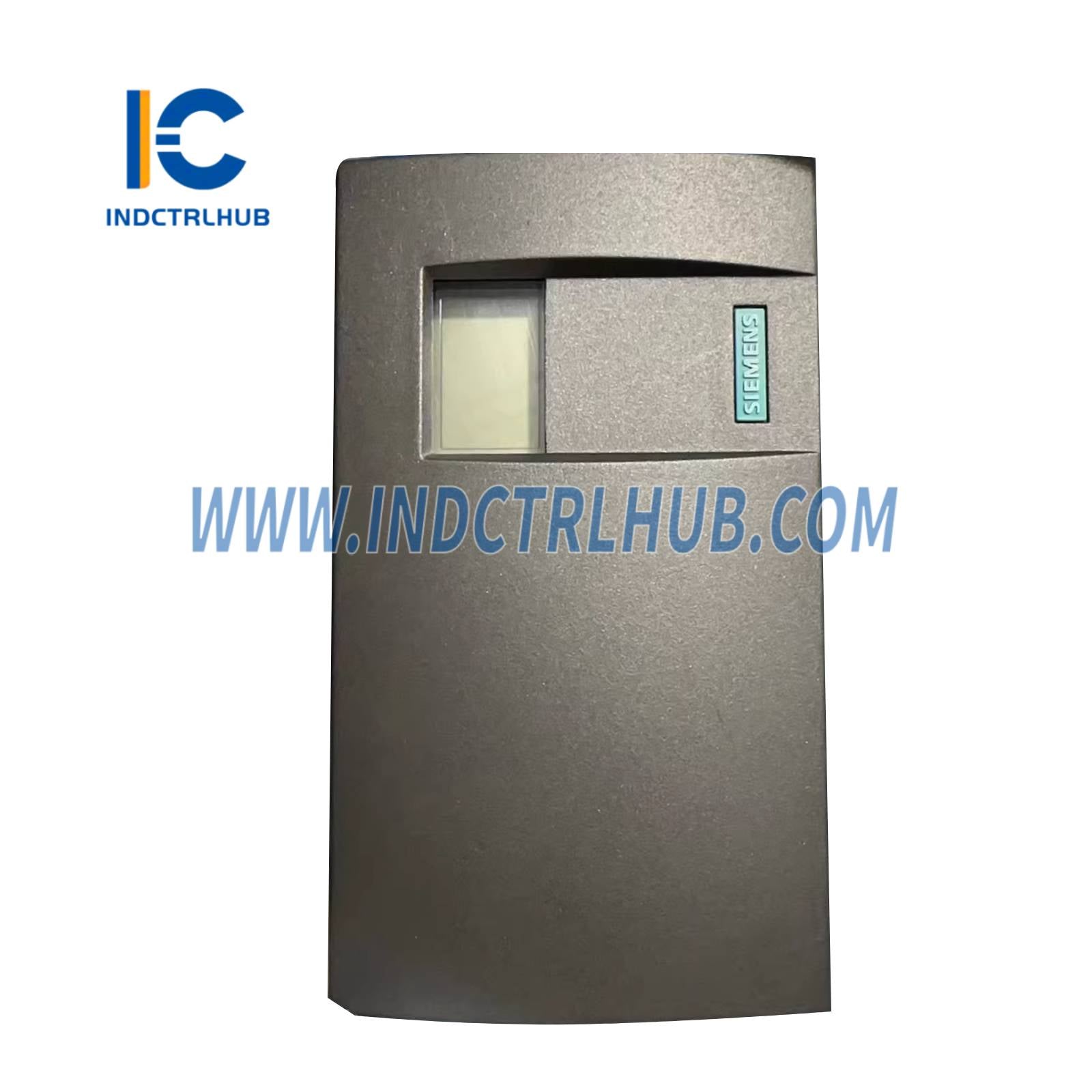

Smart, electropneumatic positioner with 4…20 mA input and HART communication.
-
Ex/nEx certified, double-acting
-
Polycarbonate enclosure
-
Suitable for pneumatic linear and part-turn actuators
-
Non-contacting, wear-free position detection (NCS)
-
Standard version, without explosion protection
-
Electrical connection thread: 1/2” NPT
-
Pneumatic connection thread: 1/4” NPT
-
Without limit monitor
-
With Analog Output Module (AOM) for analog position feedback 4…20 mA
-
Device plug M12 optionally orderable (-Z D53)
-
Isolating power supply SITRANS I100 (7NG4124-1AA00) available separately
-
Brief instructions in English / German / Chinese
-
Fail-Safe function: depressurizes the actuator if electrical auxiliary power fails (for single-acting actuators only)
-
Without manometer block, venting gauge block, or booster
Technical Specifications
|
Category |
Details |
|---|---|
|
Net Weight |
0.900 kg |
|
Country of Origin |
France |
|
Packaging Dimension |
Not specified (approx. same as other PS2 models: ~154 × 262 × 124 mm) |
|
Commodity Code |
90328100 |
|
Catalog ID (LKZ_FDB) |
FI01-5 |
|
Product Group |
4759 |
|
Group Code |
R3P2 |
|
RoHS Compliance |
Since 31.12.2016 |
|
WEEE (2012/19/EU) |
Take-Back Obligation: Yes |
|
REACH Compliance |
Duty to inform according to current candidate list |
|
SCIP Number |
Not available |
Classifications
|
Version |
Classification Code |
|---|---|
|
eClass 12 |
27-22-04-01 |
|
eClass 14 |
27-22-04-01 |
|
eClass 7.1 |
27-22-04-01 |
|
eClass 8 |
27-22-04-01 |
|
eClass 9 |
27-22-04-01 |
|
eClass 9.1 |
27-22-04-01 |
|
UNSPSC 15 |
32-15-17-03 |
