Product Description

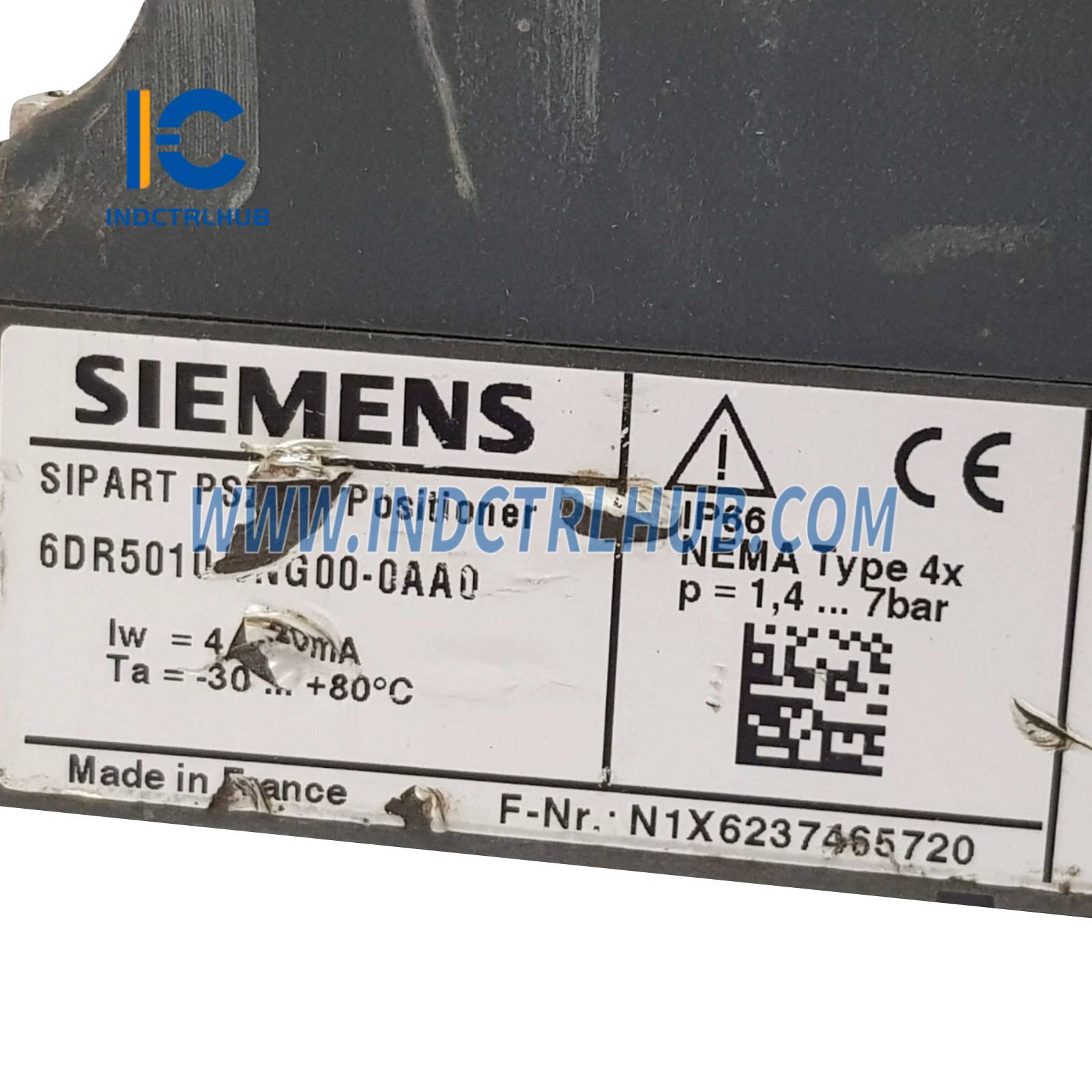

Siemens 6DR5010-0NG00-0AA0 SIPART PS2 Smart Electropneumatic Positioner

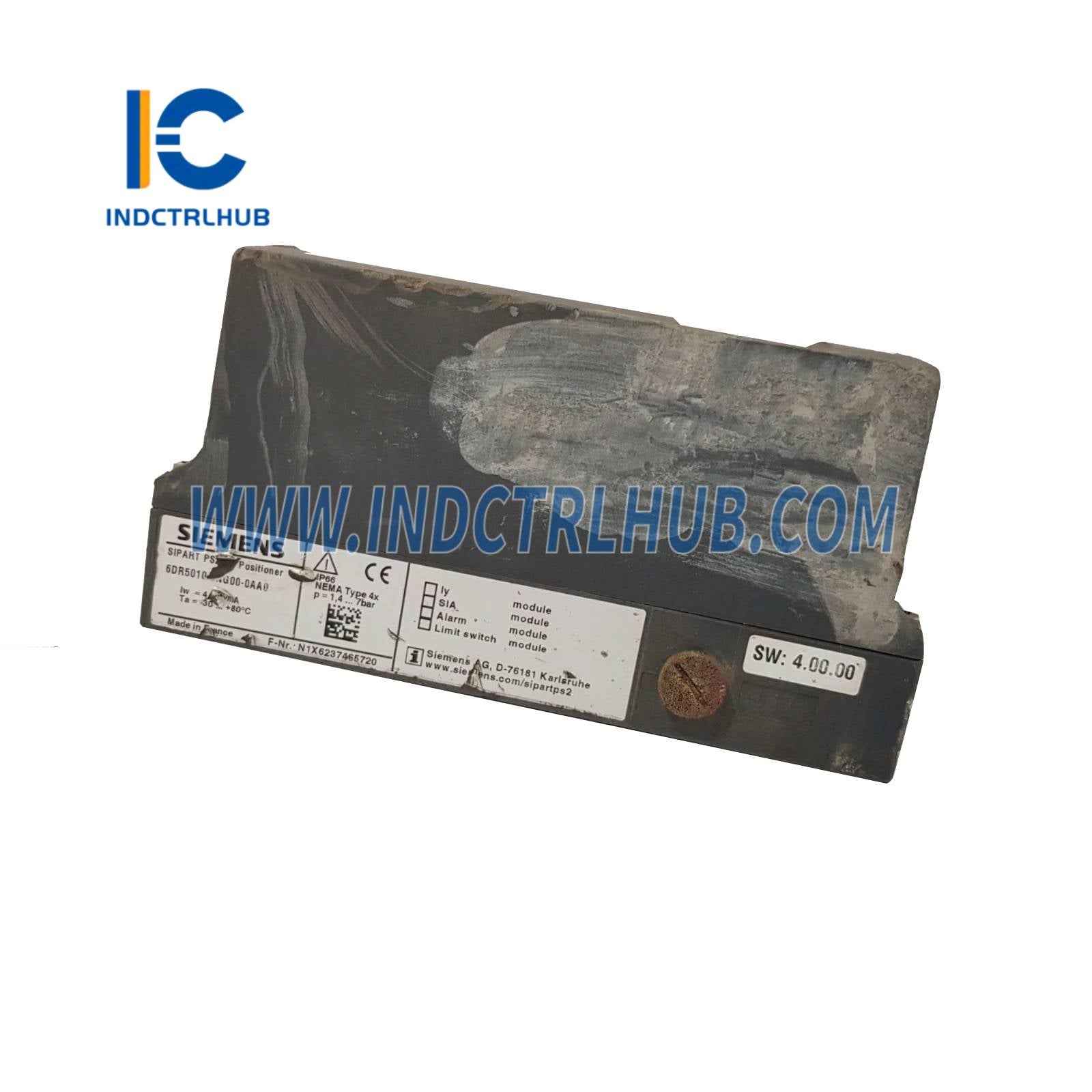

Product Overview
- The Siemens 6DR5010-0NG00-0AA0 is a SIPART PS2 Smart Electropneumatic Positioner designed for precise control of pneumatic linear and part-turn actuators in industrial automation systems. Operating on a 2-wire, 4 to 20 mA signal, it is used in industries such as chemical processing, oil and gas, power generation, and water treatment for accurate valve positioning and process control. This model features a polycarbonate enclosure and a fail-safe depressurization function for single-acting actuators.
Technical Specifications
- The 6DR5010-0NG00-0AA0 has the following specifications based on industry sources:

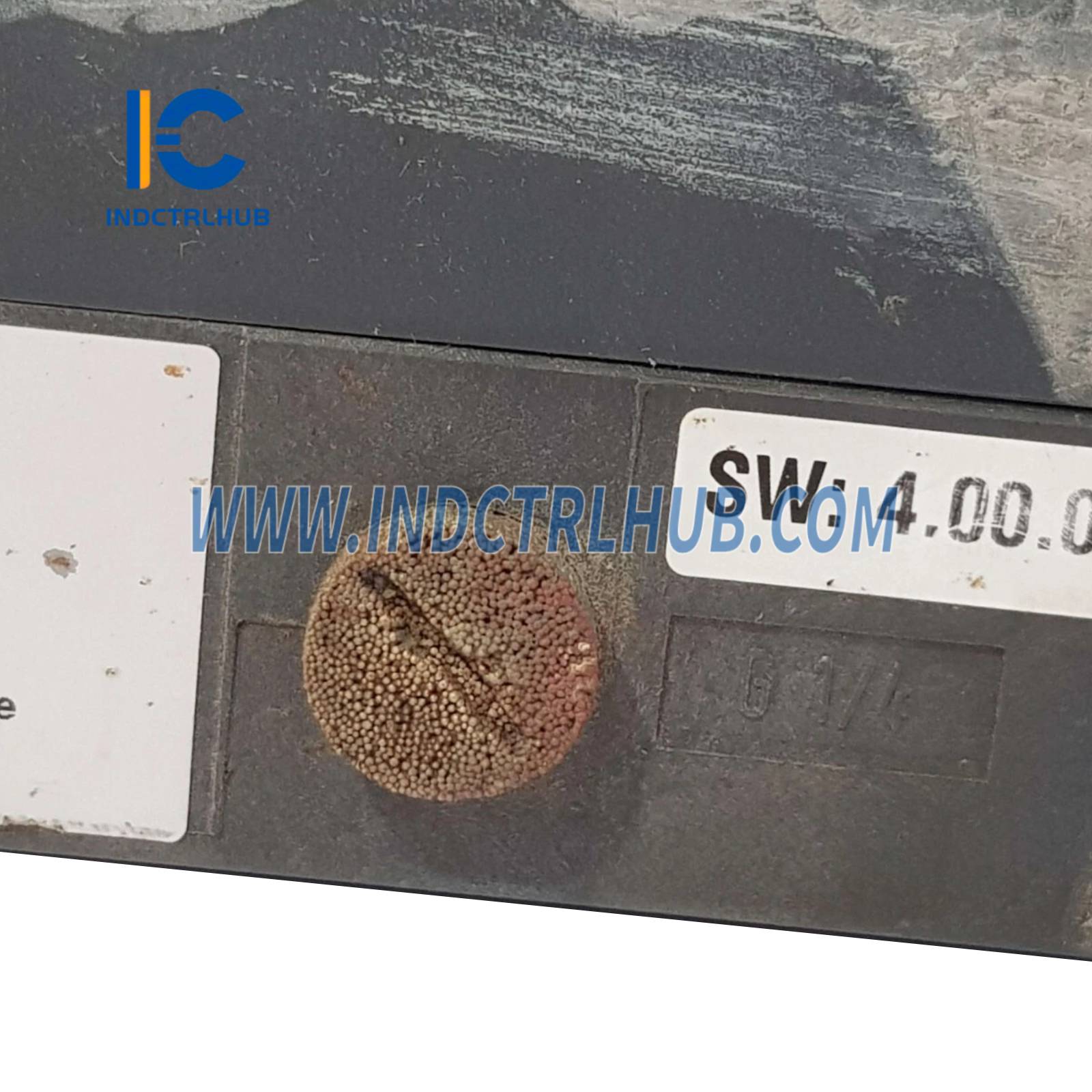

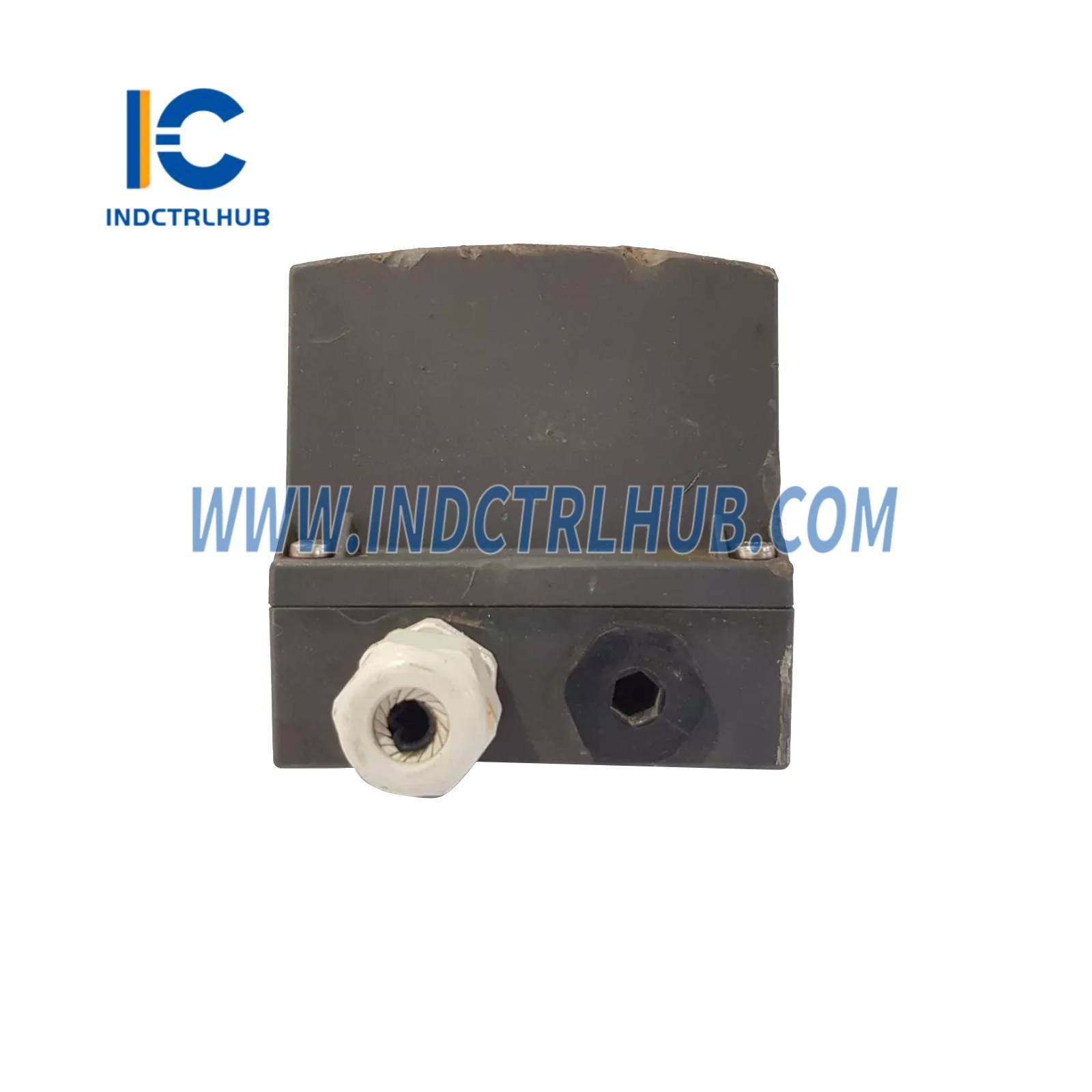

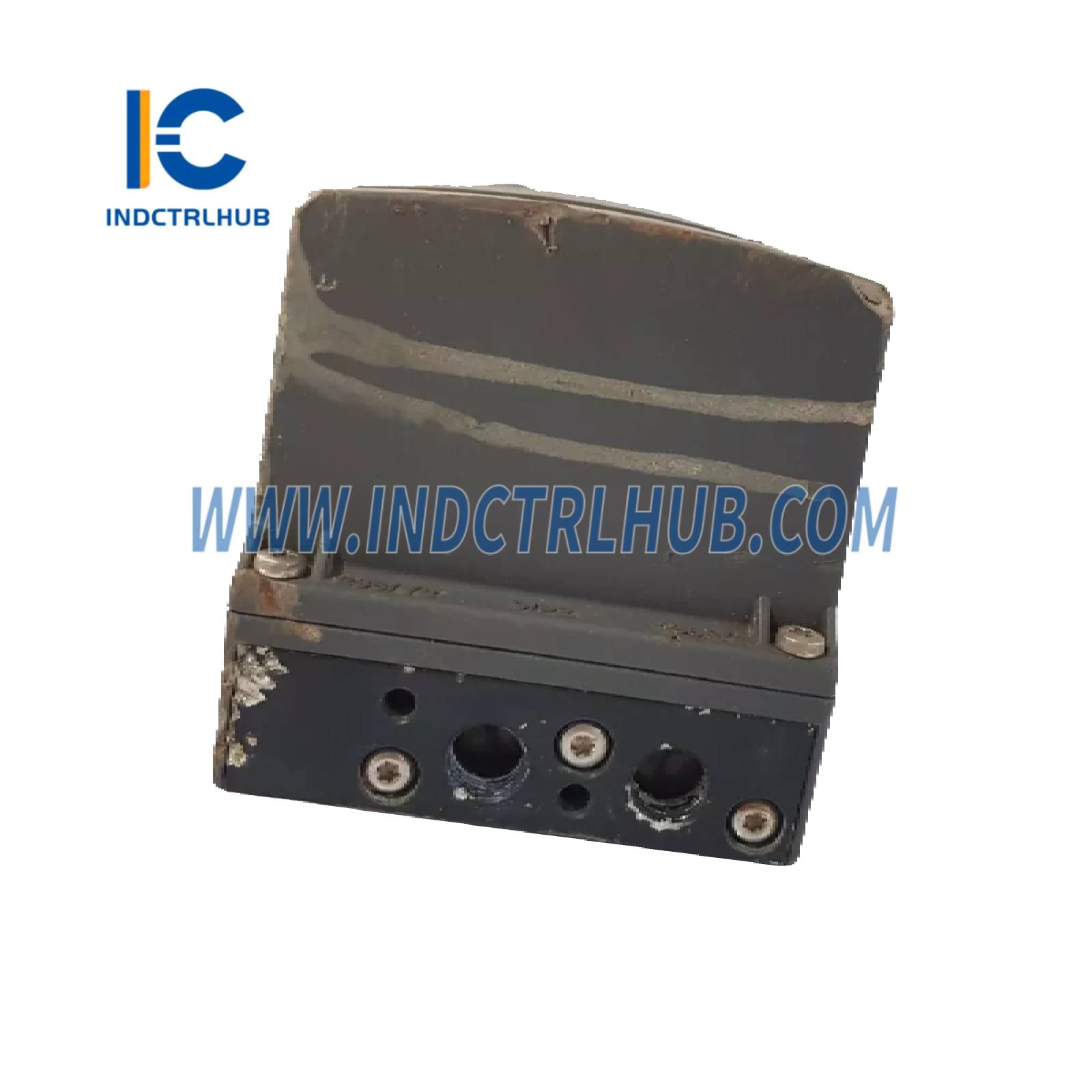

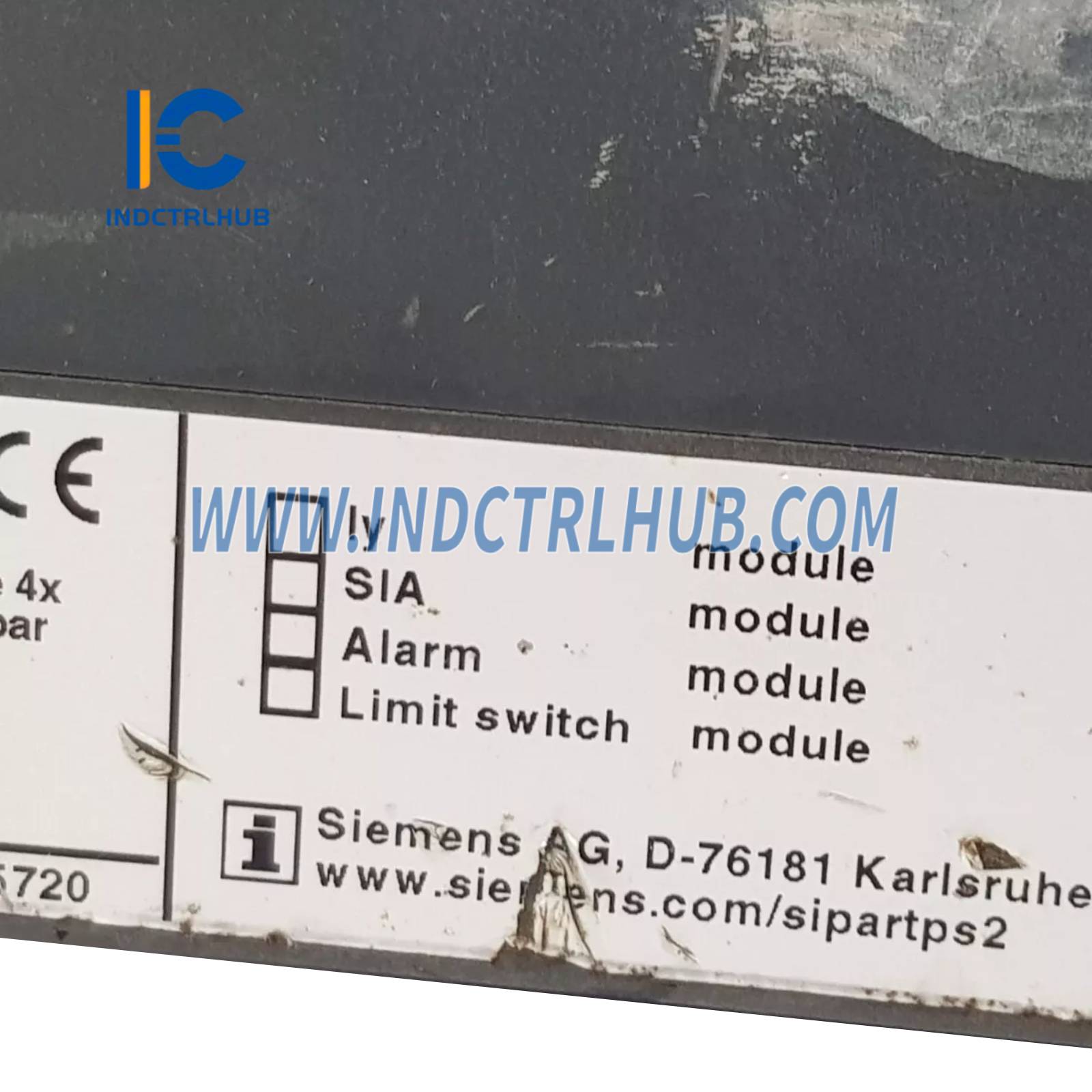

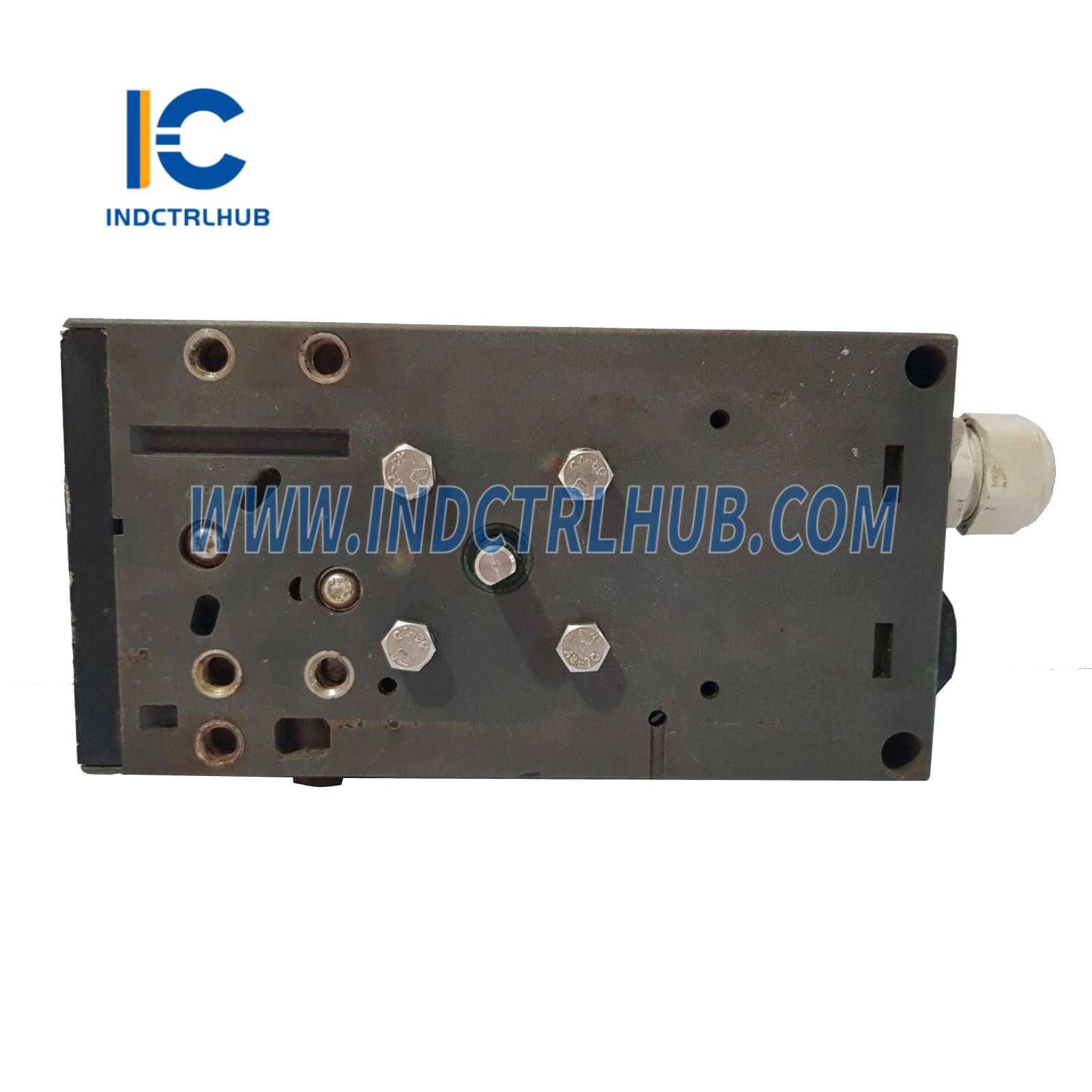

| Specification | Details |
|---|---|
| Model/Part Number | 6DR5010-0NG00-0AA0 |
| Manufacturer | Siemens |
| Description | SIPART PS2 Smart Electropneumatic Positioner for Pneumatic Linear and Part-Turn Actuators |
| Series | SIPART PS2 |
| Function | Controls pneumatic linear and part-turn actuators; 2-wire; 4 to 20 mA; single action; fail-safe depressurization (single-acting only) |
| Control Signal | 4 to 20 mA (2-wire) |
| Enclosure | Polycarbonate, standard |
| Explosion Protection | Without explosion protection |
| Connection Threads | Electrical: M20x1.5 Pneumatic: G 1/4 |
| Limit Monitor | Without limit monitor |
| Option Module | Without option module |
| Manometer Block/Booster | Without manometer block or booster |
| Instructions | Brief instructions in English, German, Chinese |
| Power Supply | Compressed air (1.4 to 7 bar, per auxiliary power requirements) |
| Environmental Specifications | Ambient Temperature: -30°C to +80°C Relative Humidity: 5% to 95% non-condensing Vibration Resistance: Per IEC 60068-2-6 Shock Resistance: Per IEC 60068-2-27 |
| Dimensions | Approx. 180 mm (H) x 110 mm (W) x 90 mm (D) |
| Weight | Approx. 0.9 kg |
| Mounting | NAMUR-compliant for linear/part-turn actuators (mounting kit required, e.g., 6DR4004-8V) |
| Certifications | CE, complies with EMC Directive 2014/30/EU and Machinery Directive 2006/42/EC |
Additional Details
- The 6DR5010-0NG00-0AA0 includes the following additional information based on industry sources:
- Function: Utilizes compressed air (1.4 to 7 bar) as auxiliary power for precise valve positioning; features a friction clutch with switchable gear for compatibility with various actuators; fail-safe function depressurizes the actuator in case of electrical power failure (single-acting only); supports predictive five-point positioning with pulse length modulation for valve control; includes a small display for operation and error codes.
