Product Description
Product Overview

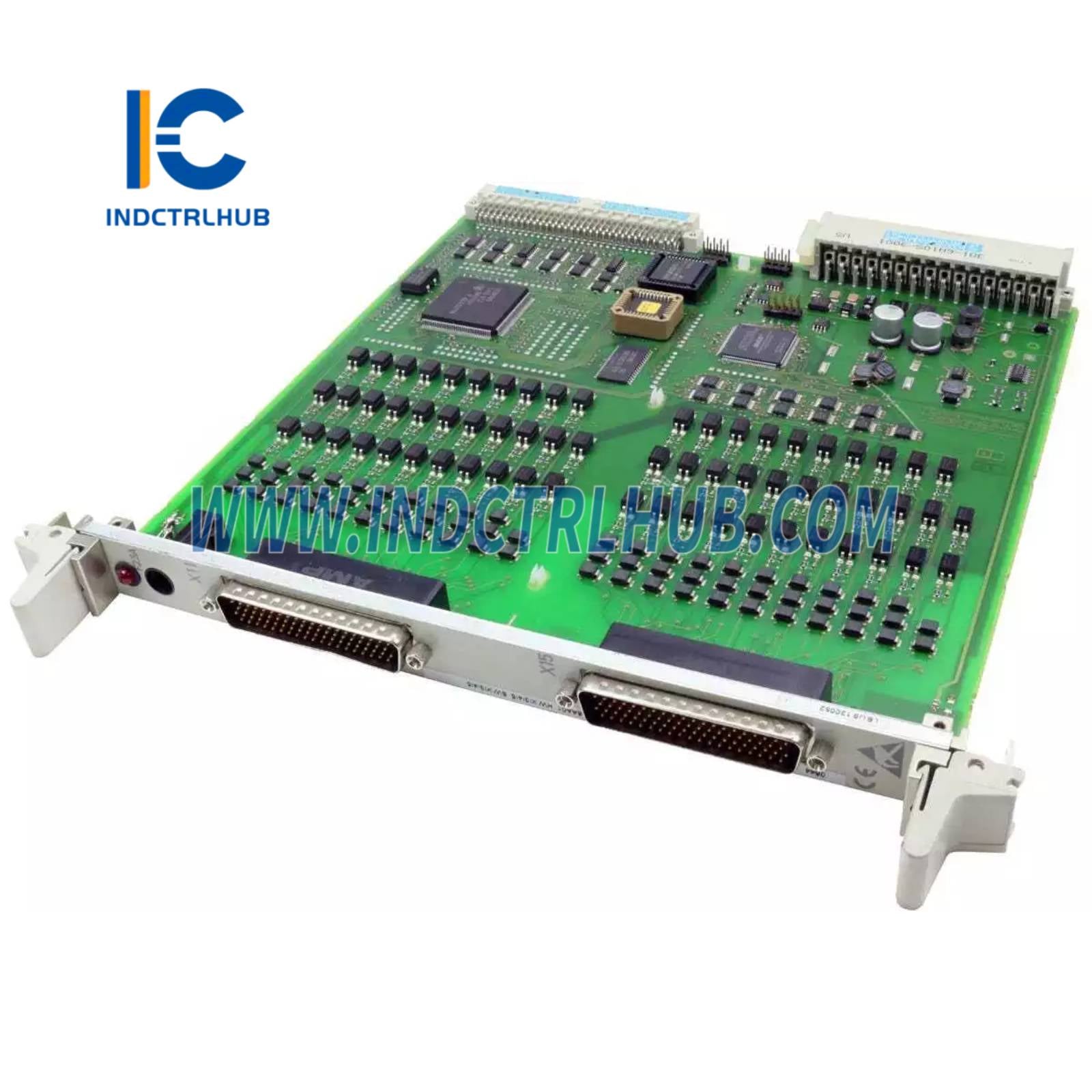

- The Siemens 6DP1640-8AA01 is a TELEPERM XP FUM 640 High-Speed Binary Input Module designed for the TELEPERM XP automation system. This module is engineered for rapid acquisition of binary signals, supporting 64 optically isolated channels for high-density input processing. It is used in industrial automation applications, such as chemical processing, power generation, and manufacturing, to monitor fast-changing binary signals from sensors, switches, or other field devices with high reliability.
Technical Specifications
- The 6DP1640-8AA01 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1640-8AA01 |
| Manufacturer | Siemens |
| Description | TELEPERM XP FUM 640 High-Speed Binary Input Module with 64 Channels |
| Series | TELEPERM XP |
| Function | High-speed acquisition of 64 binary inputs, optically isolated, 24 VDC |
| Input/Output | 64 binary inputs (24 VDC, optically isolated) |
| Input Voltage | 24 VDC nominal (11–30 VDC range) |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1640-8AA01 includes the following additional information based on industry sources:
- Function: Rapidly acquires 64 binary input signals at 24 VDC with optical isolation for noise immunity and signal integrity; ideal for high-speed monitoring of field devices like limit switches, proximity sensors, or relays; supports non-safety-related functions in the TELEPERM XP system.
