Product Description
Product Overview

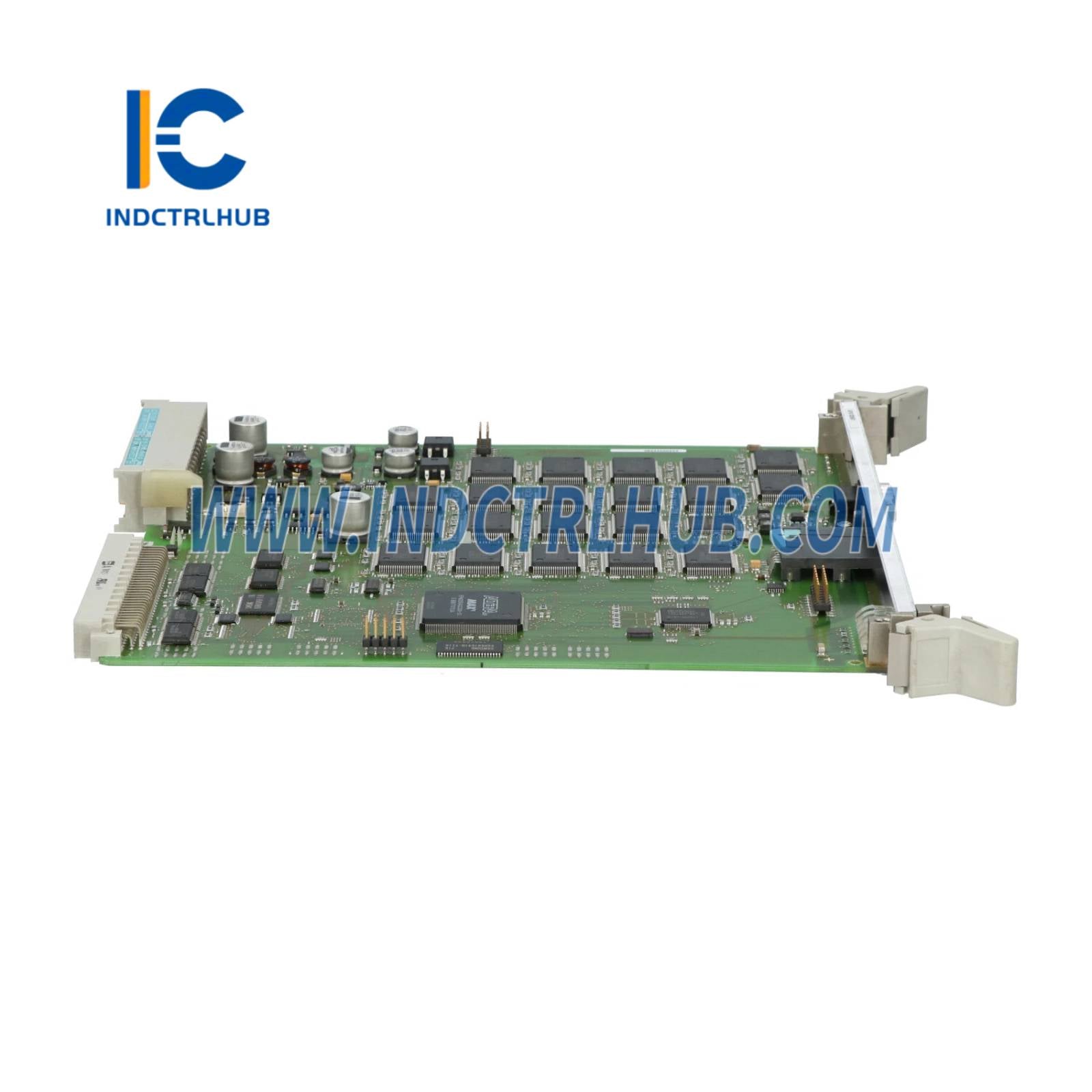

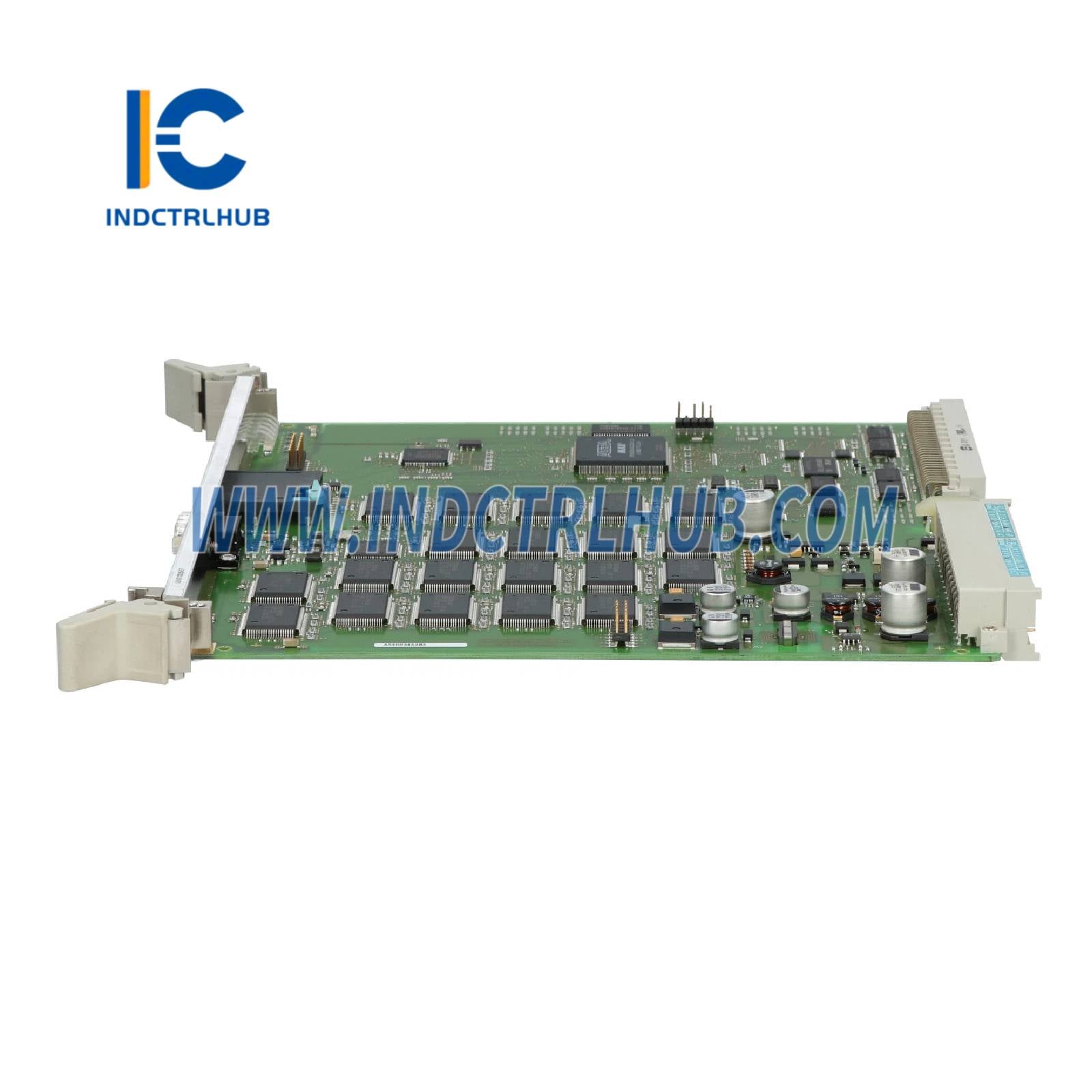

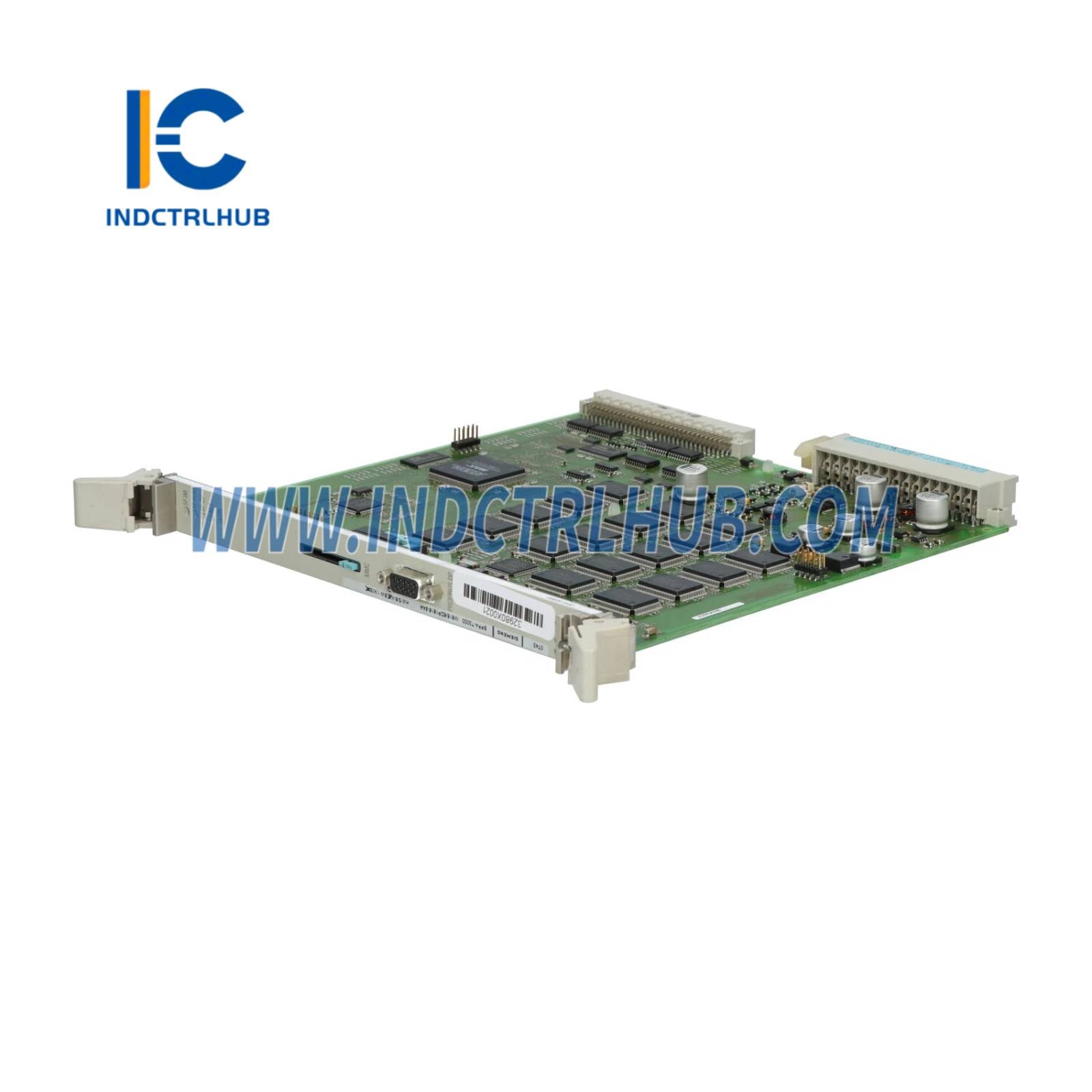

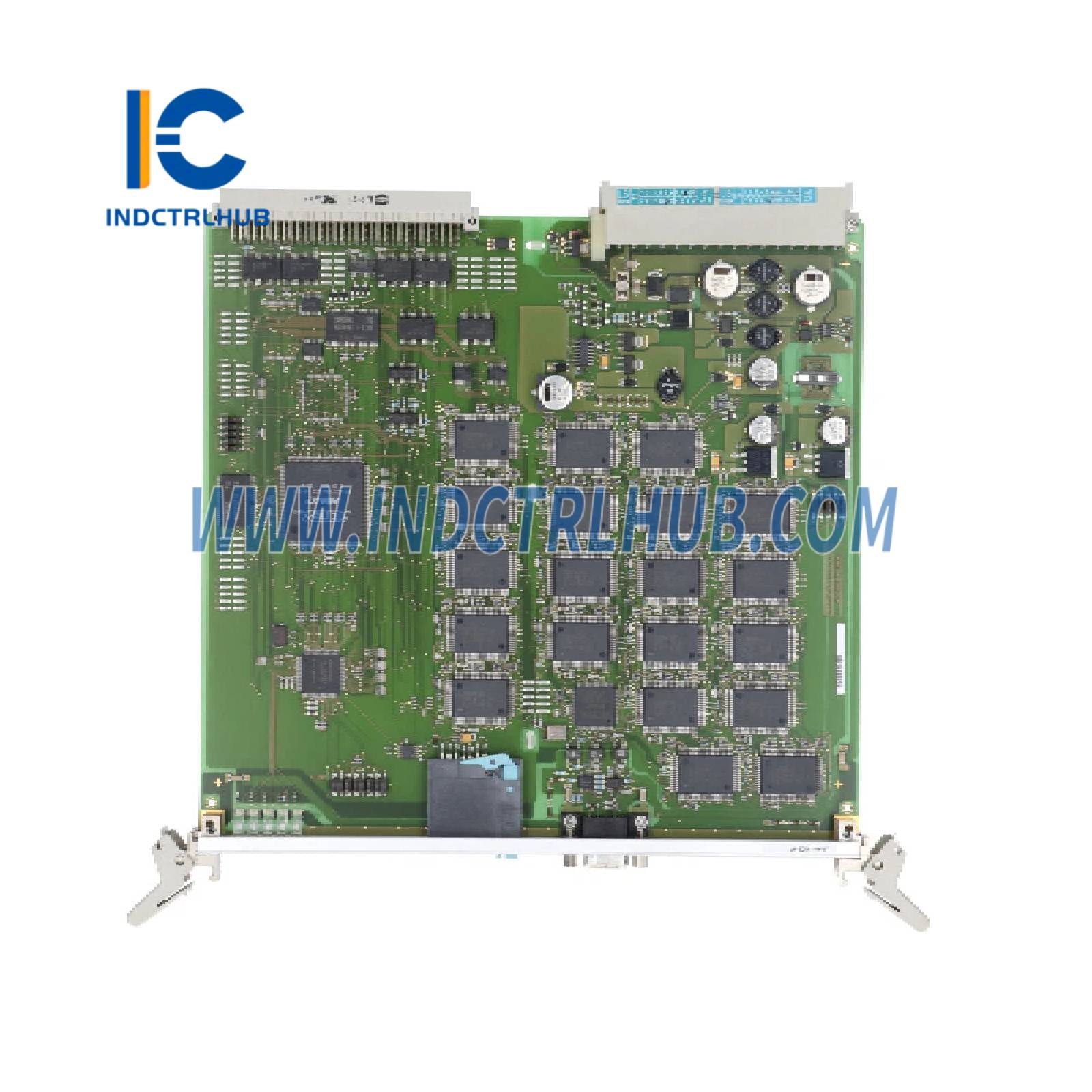

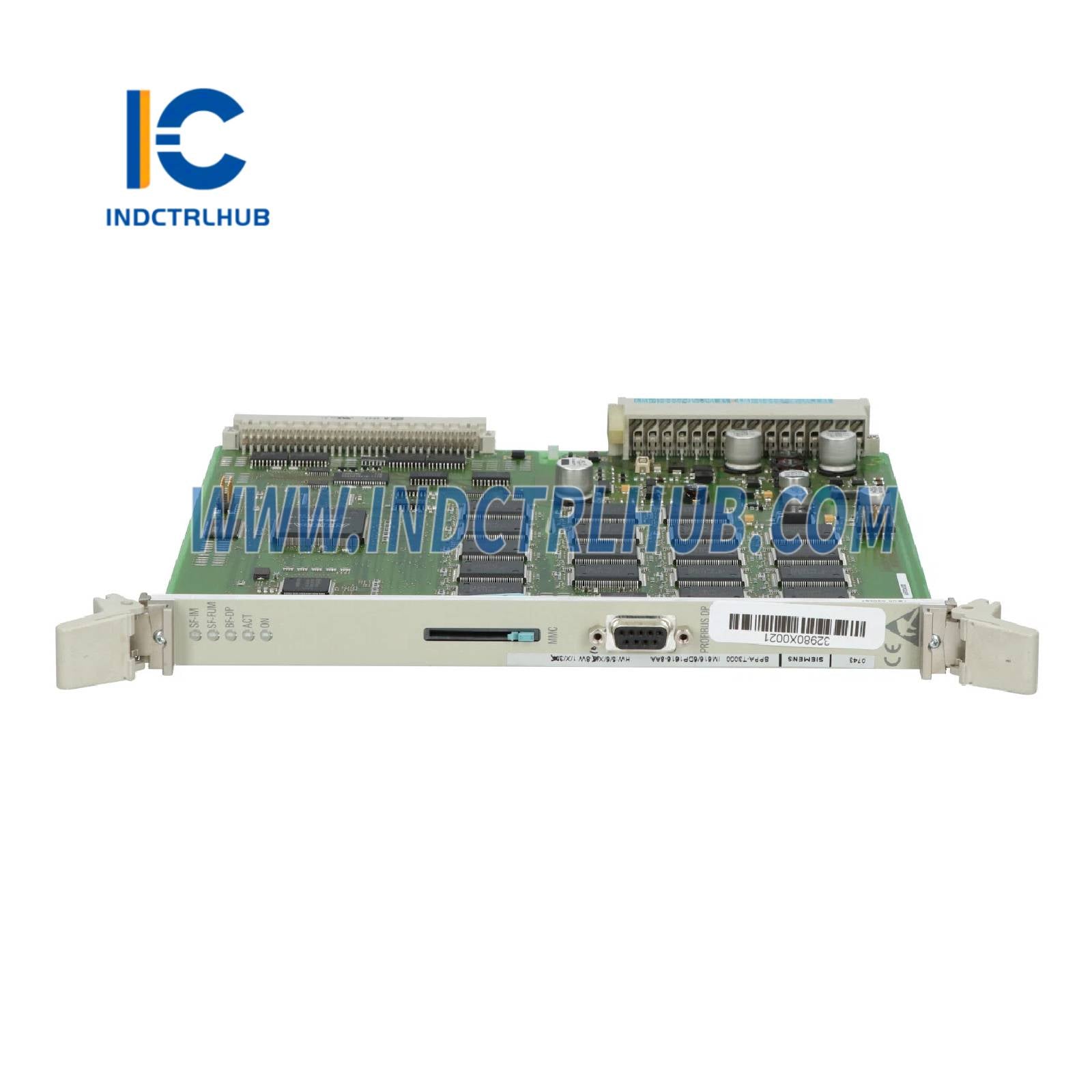

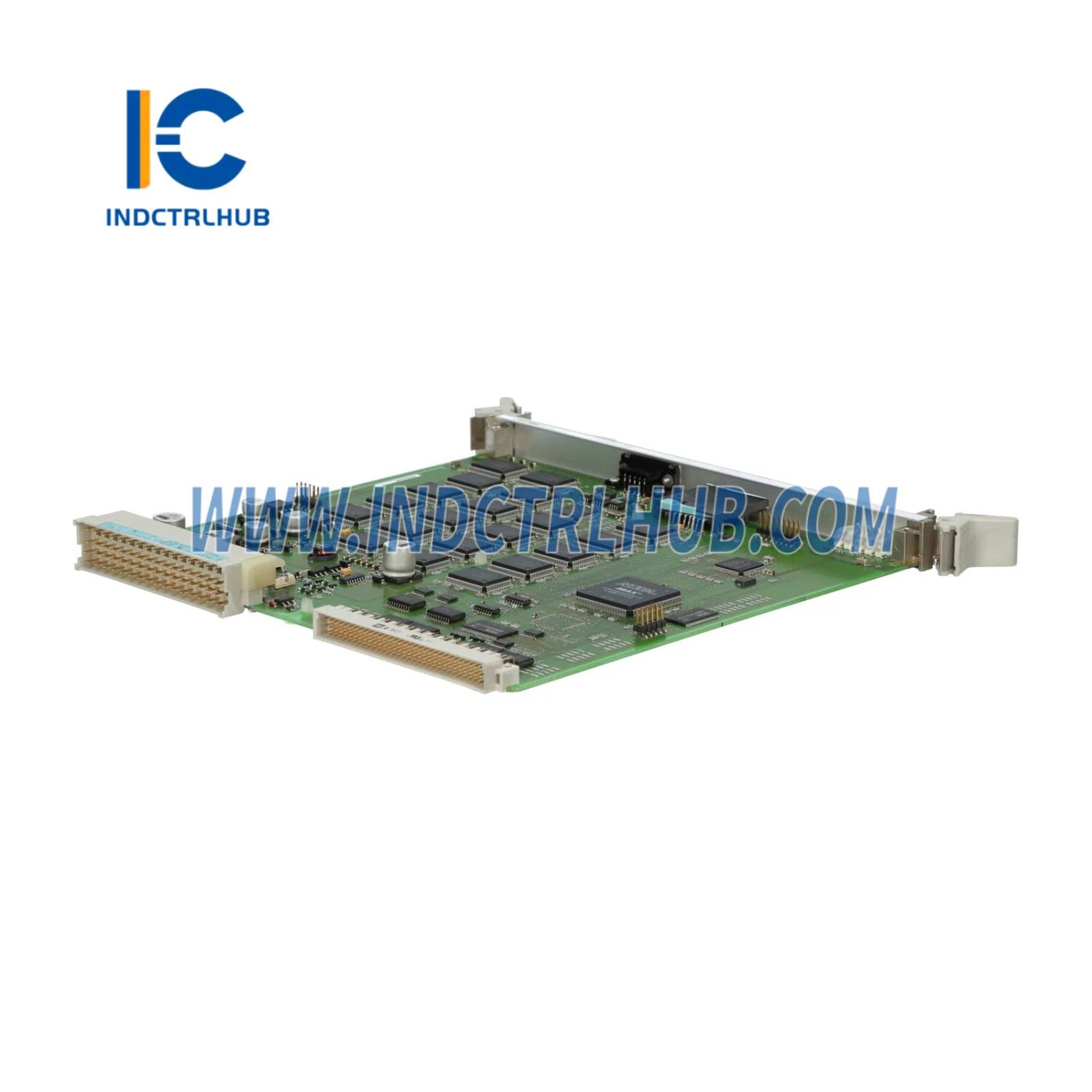

- The Siemens 6DP1616-8AA is a TELEPERM XP IM 616 Interface Module designed for the TELEPERM XP automation system. This module facilitates communication between FUM B subracks and a PROFIBUS DP master (e.g., AS-S7), enabling robust data exchange in distributed control systems. It is used in industrial automation applications, such as chemical processing, power generation, and manufacturing, for reliable integration of I/O modules and precise control.
Technical Specifications
- The 6DP1616-8AA has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1616-8AA |
| Manufacturer | Siemens |
| Description | TELEPERM XP IM 616 Interface Module for FUM B Subrack to PROFIBUS DP Master |
| Series | TELEPERM XP |
| Function | Connects FUM B subrack with PROFIBUS DP master (e.g., AS-S7) for I/O module communication |
| Communication | PROFIBUS DP protocol |
| Max. I/O Modules | Up to 63 modules per 2 m width |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1616-8AA includes the following additional information based on industry sources:
- Function: Enables communication between FUM B subracks and a PROFIBUS DP master (e.g., AS-S7), facilitating data exchange with I/O modules like FUM and SIM types; supports high-speed, reliable data transfer for distributed control systems; ensures precise synchronization and efficient operation in complex automation setups.
