Product Description
Product Overview

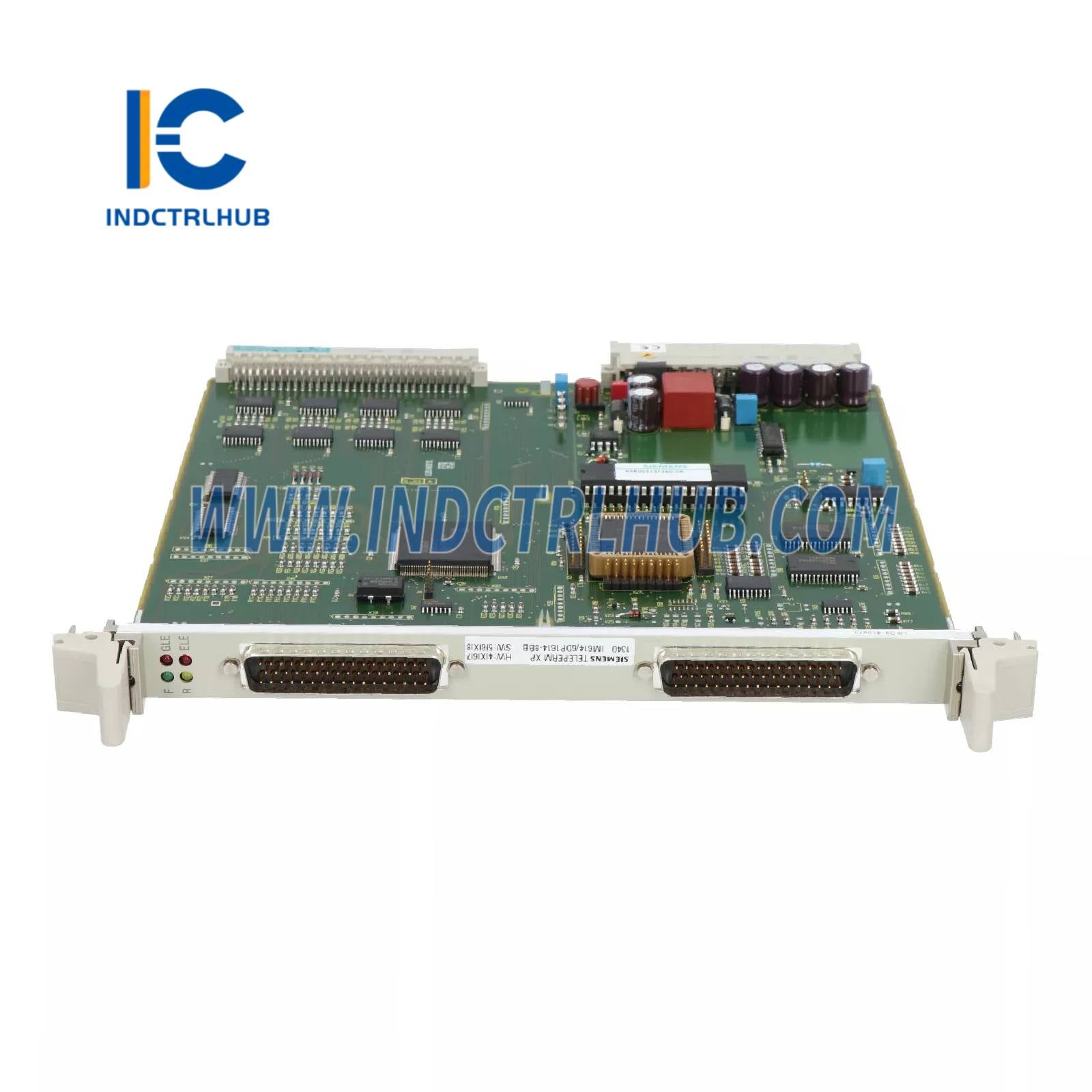

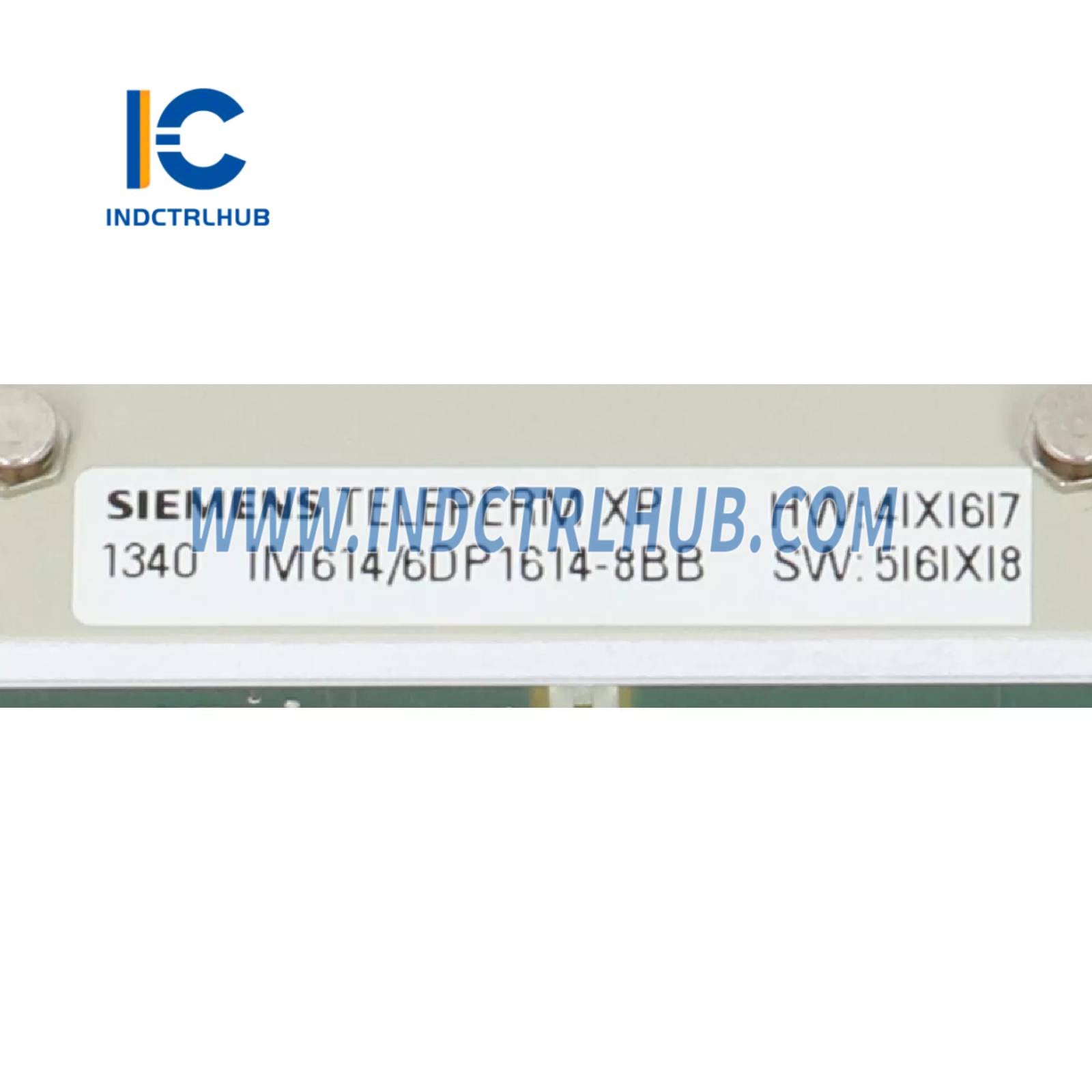

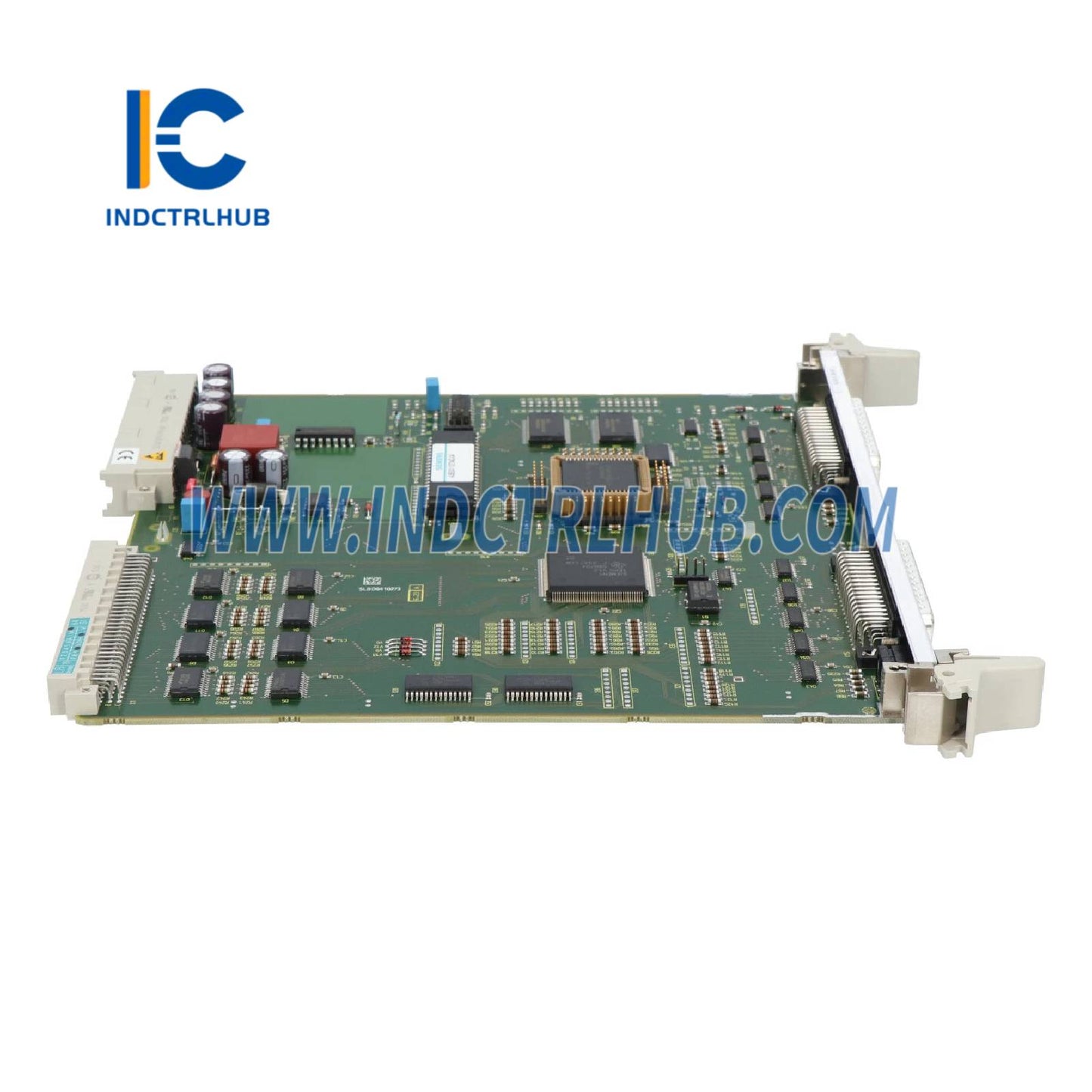

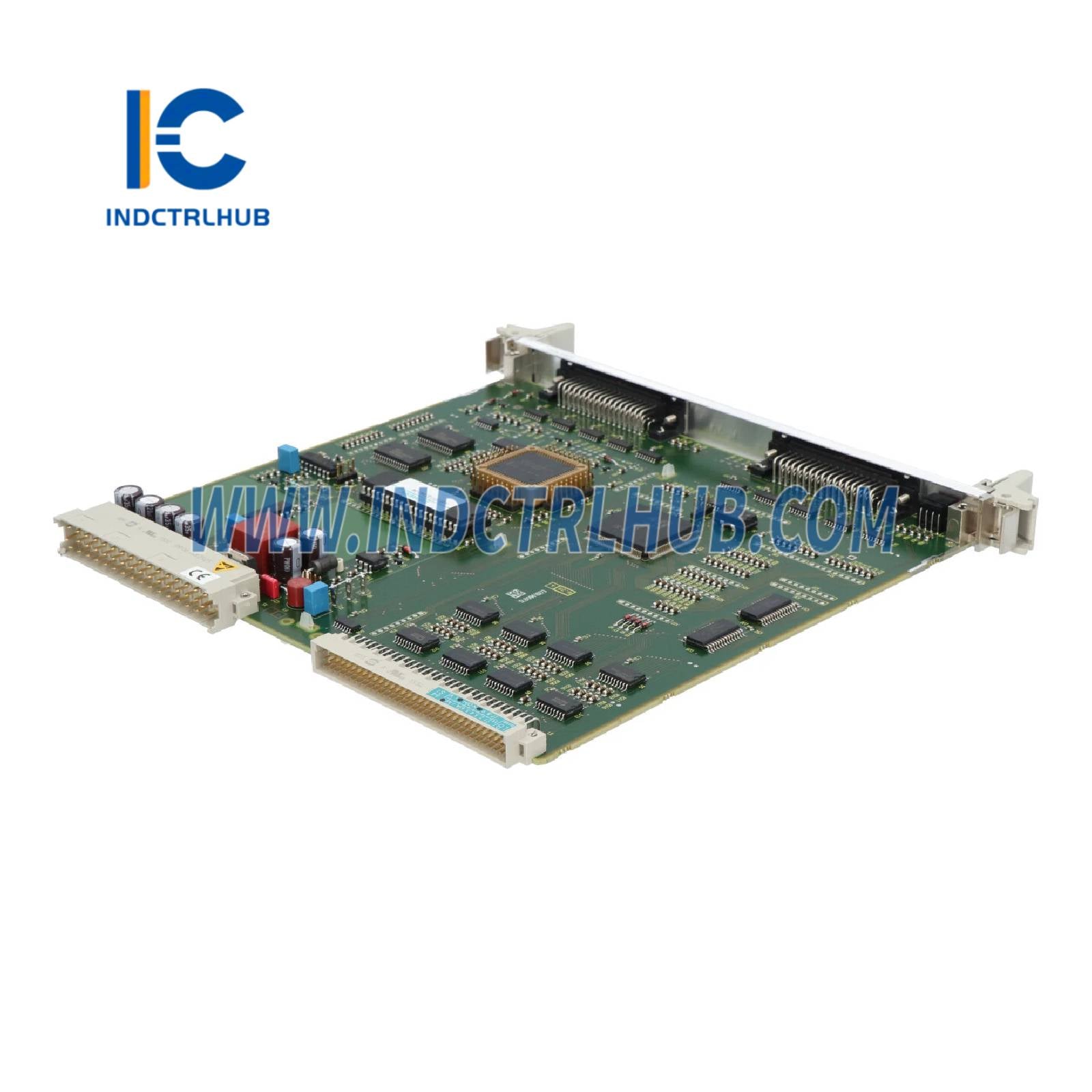

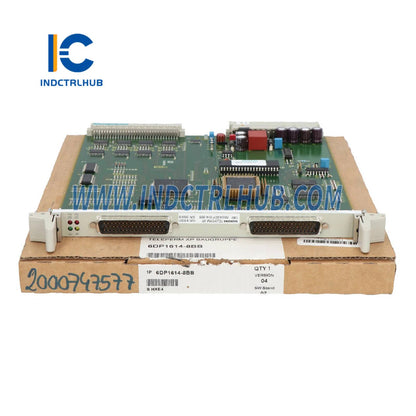

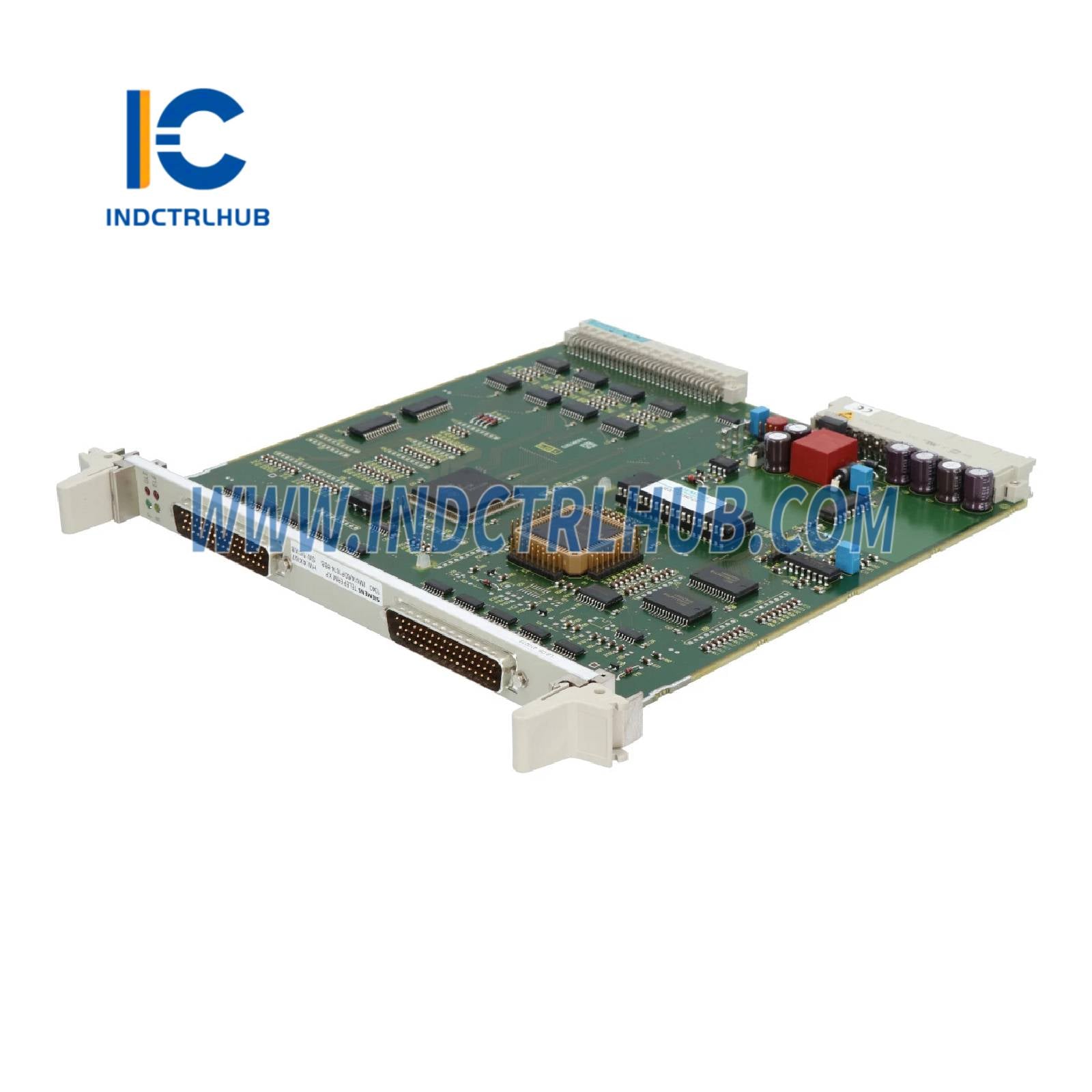

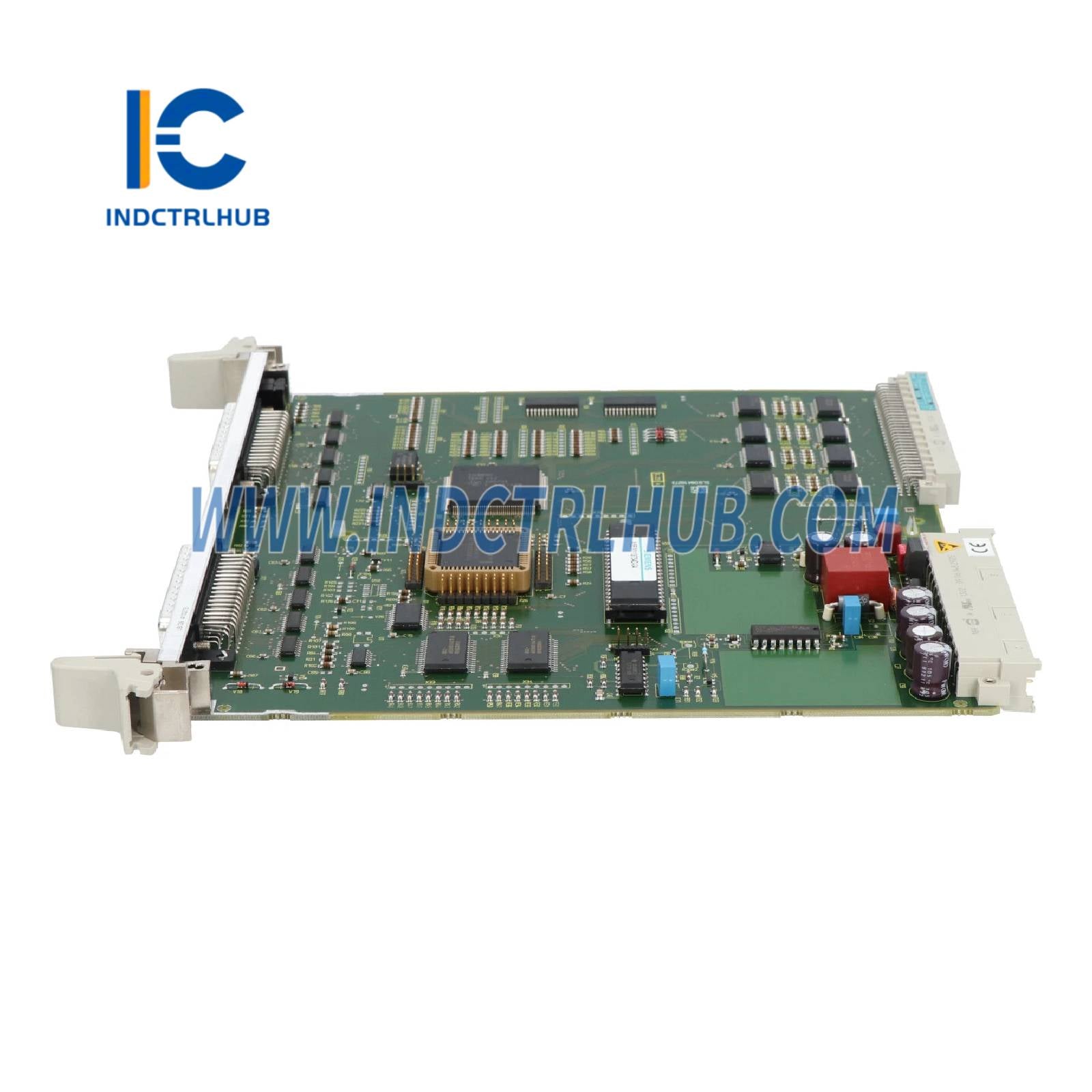

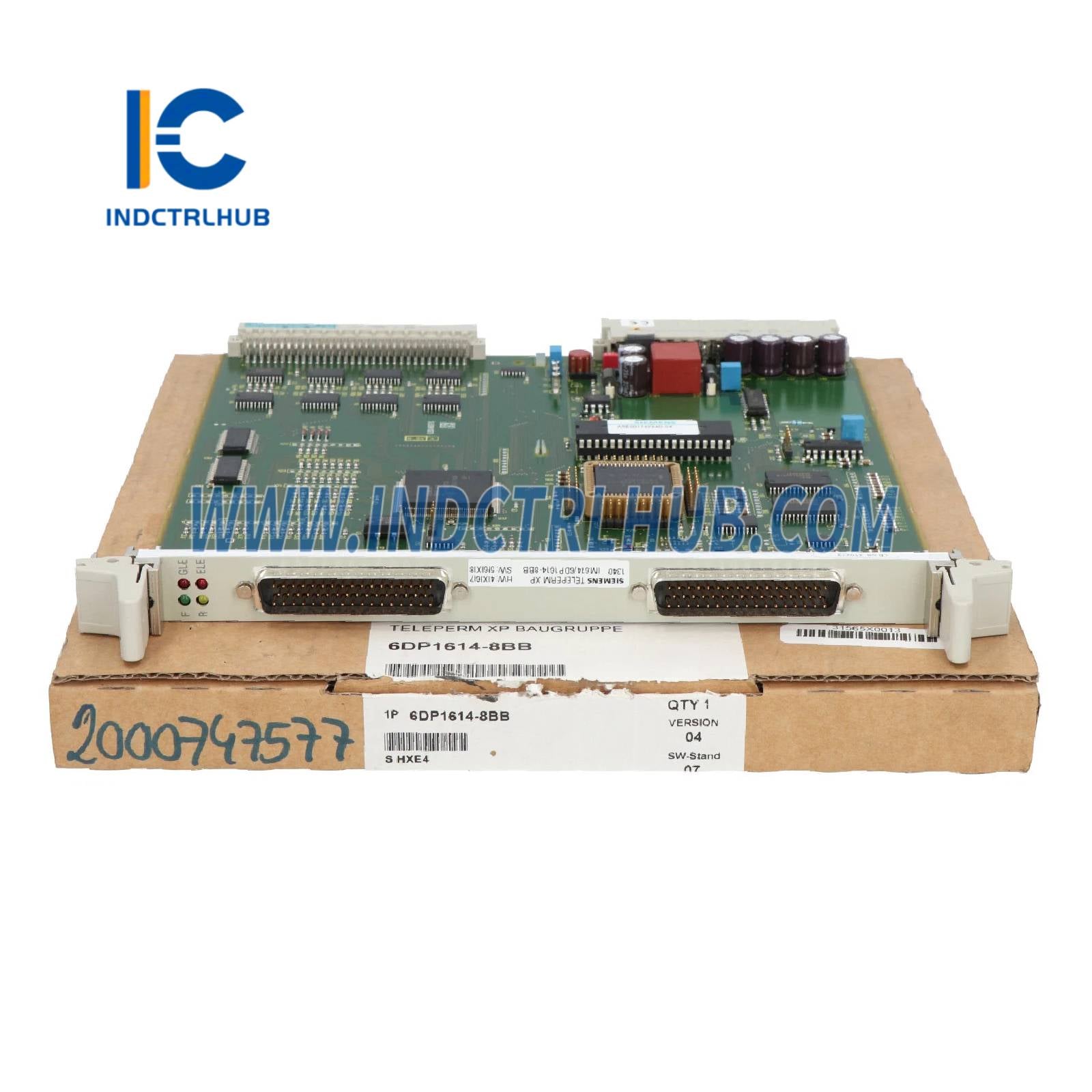

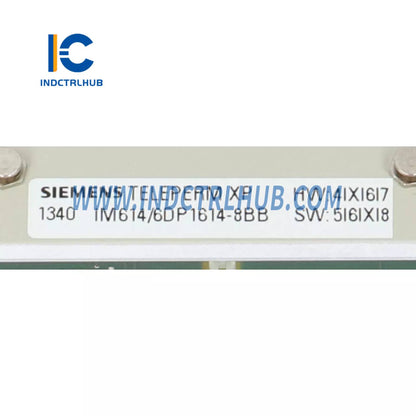

- The Siemens 6DP1614-8BB is a TELEPERM XP Interface Module IM 614 designed for the TELEPERM XP automation system. This module serves as a communication interface between the automation system and input/output modules, facilitating data exchange via the CS 275 bus system. It is used in industrial automation applications, such as chemical processing, power generation, and manufacturing, to ensure reliable integration and control of distributed I/O components.
Technical Specifications
- The 6DP1614-8BB has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1614-8BB |
| Manufacturer | Siemens |
| Description | TELEPERM XP Interface Module IM 614 for I/O Module Communication |
| Series | TELEPERM XP |
| Function | Interfaces automation system with I/O modules via CS 275 bus Supports connection of FUM and SIM modules |
| Communication | CS 275 bus system (local or remote, up to 4 km with redundant options) |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1614-8BB includes the following additional information based on industry sources:
- Function: Acts as a communication bridge between the TELEPERM XP automation system and I/O modules (FUM and SIM types), enabling data exchange over the CS 275 bus; supports distributed I/O configurations for flexible system design; ensures reliable data transfer for process control and monitoring.
