Product Description
Product Overview

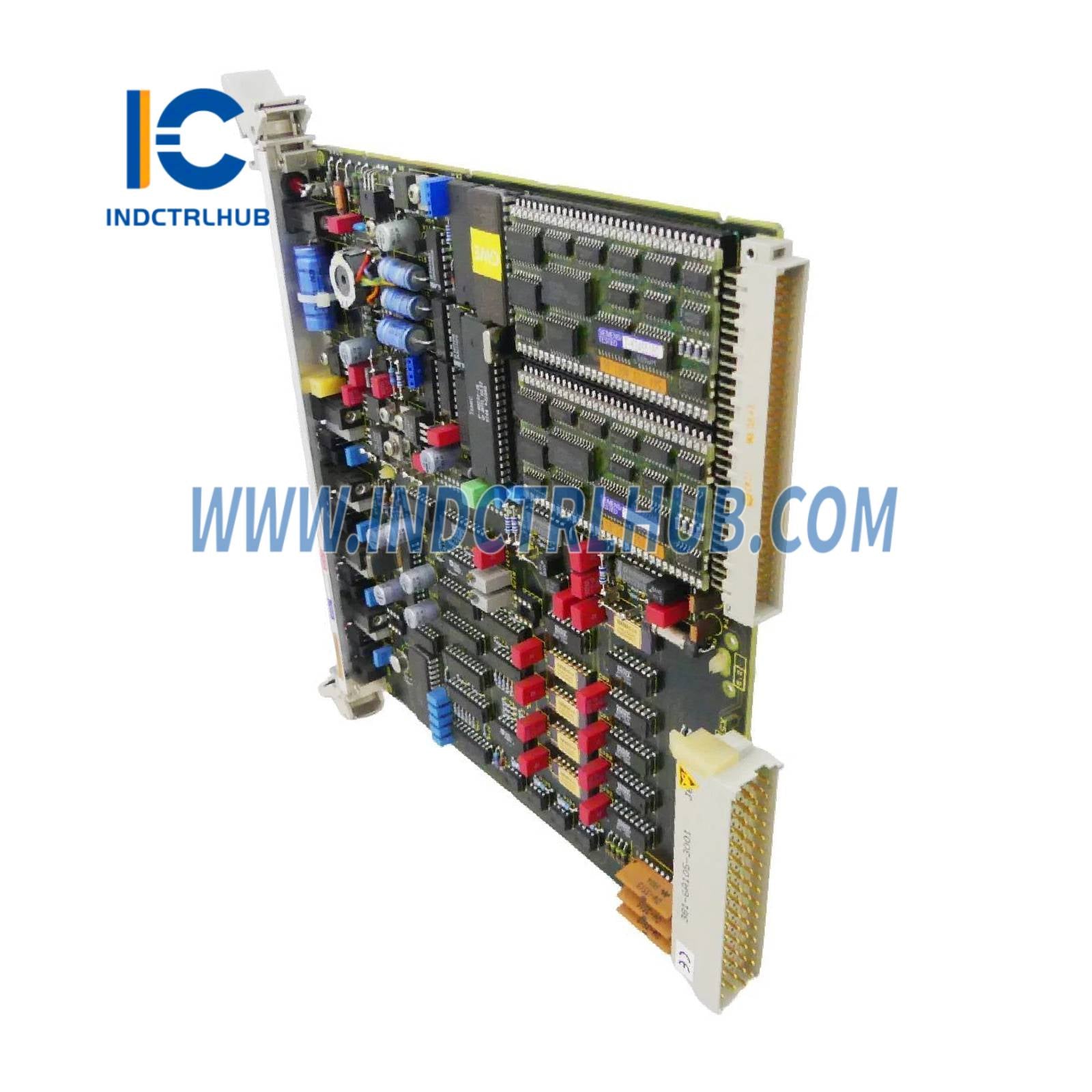

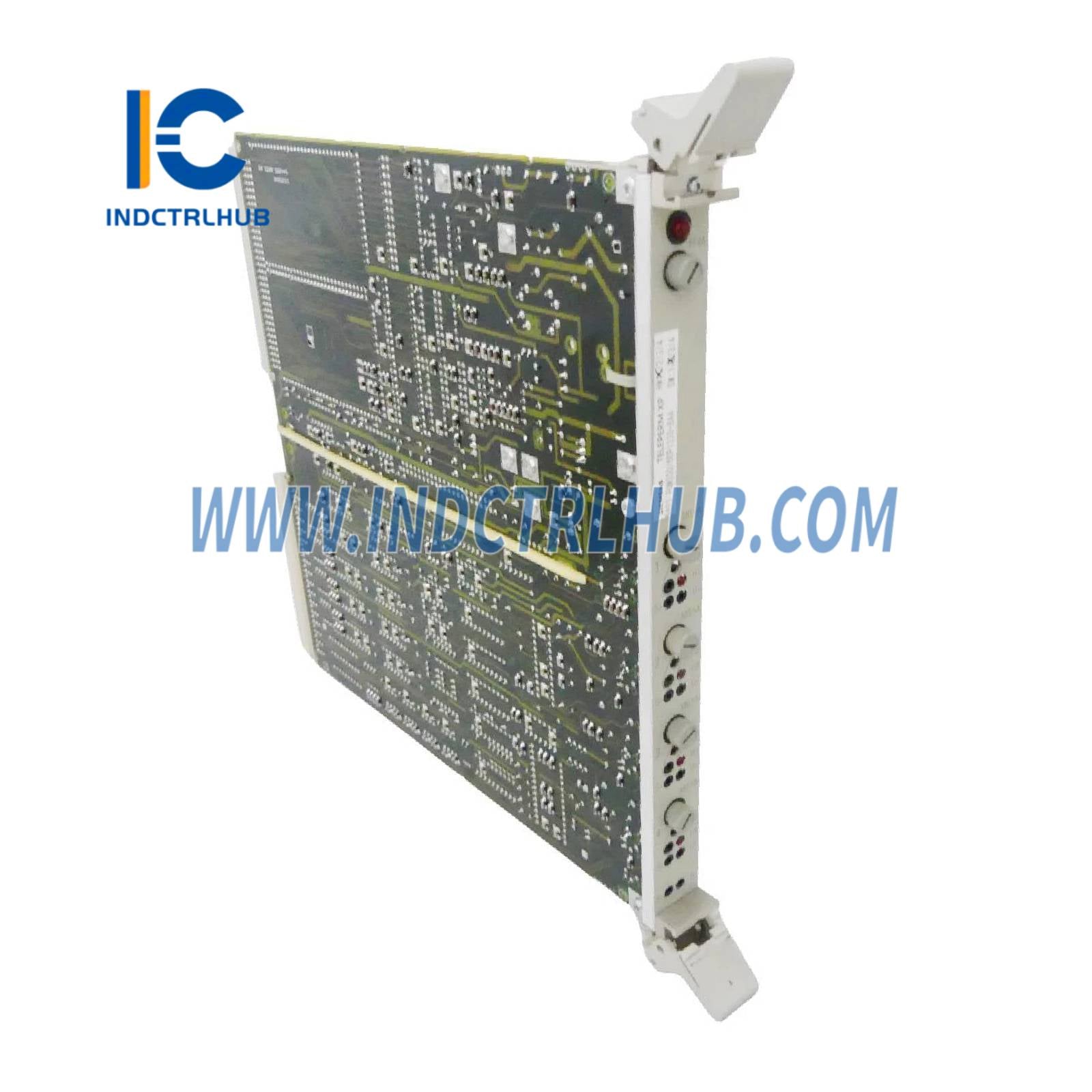

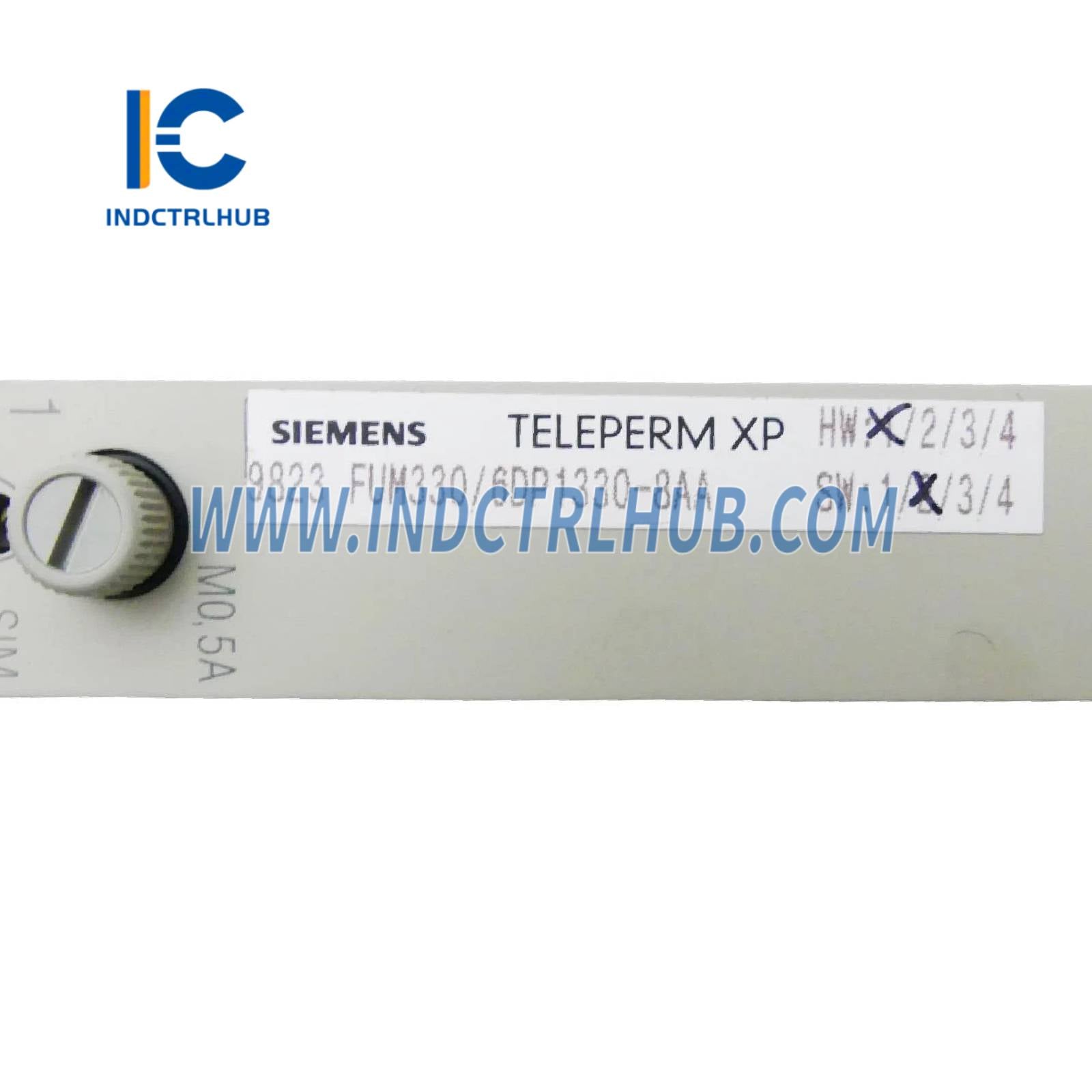

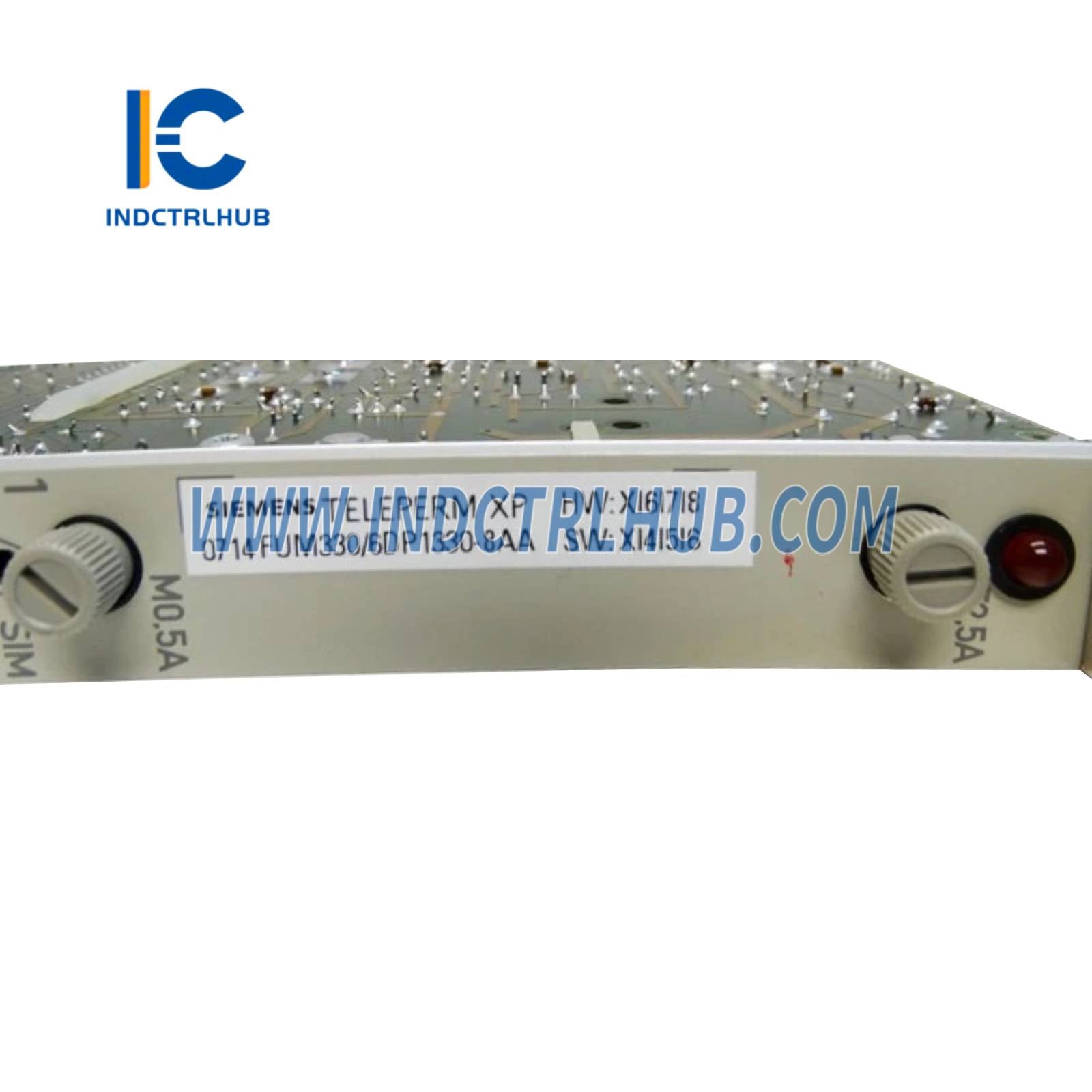

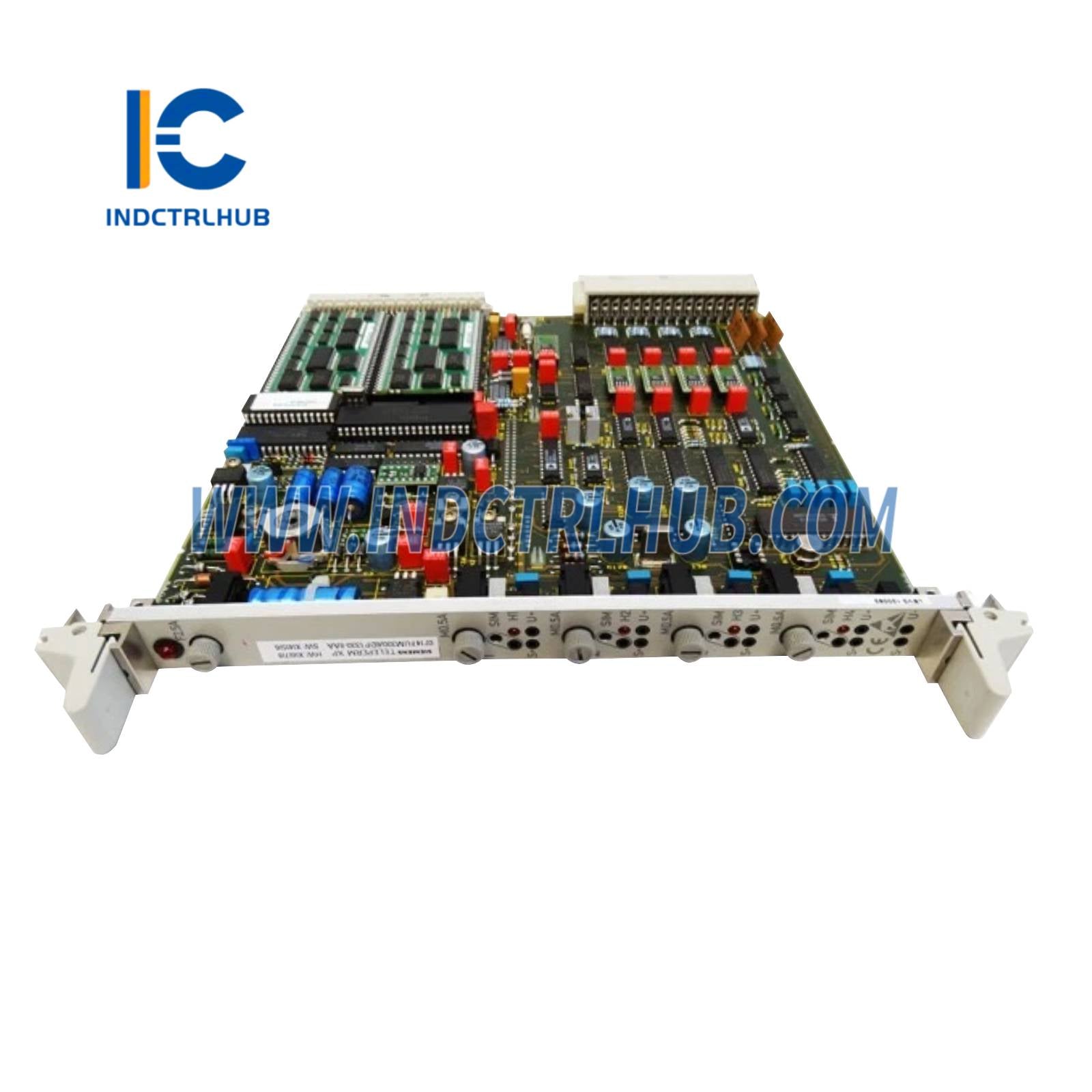

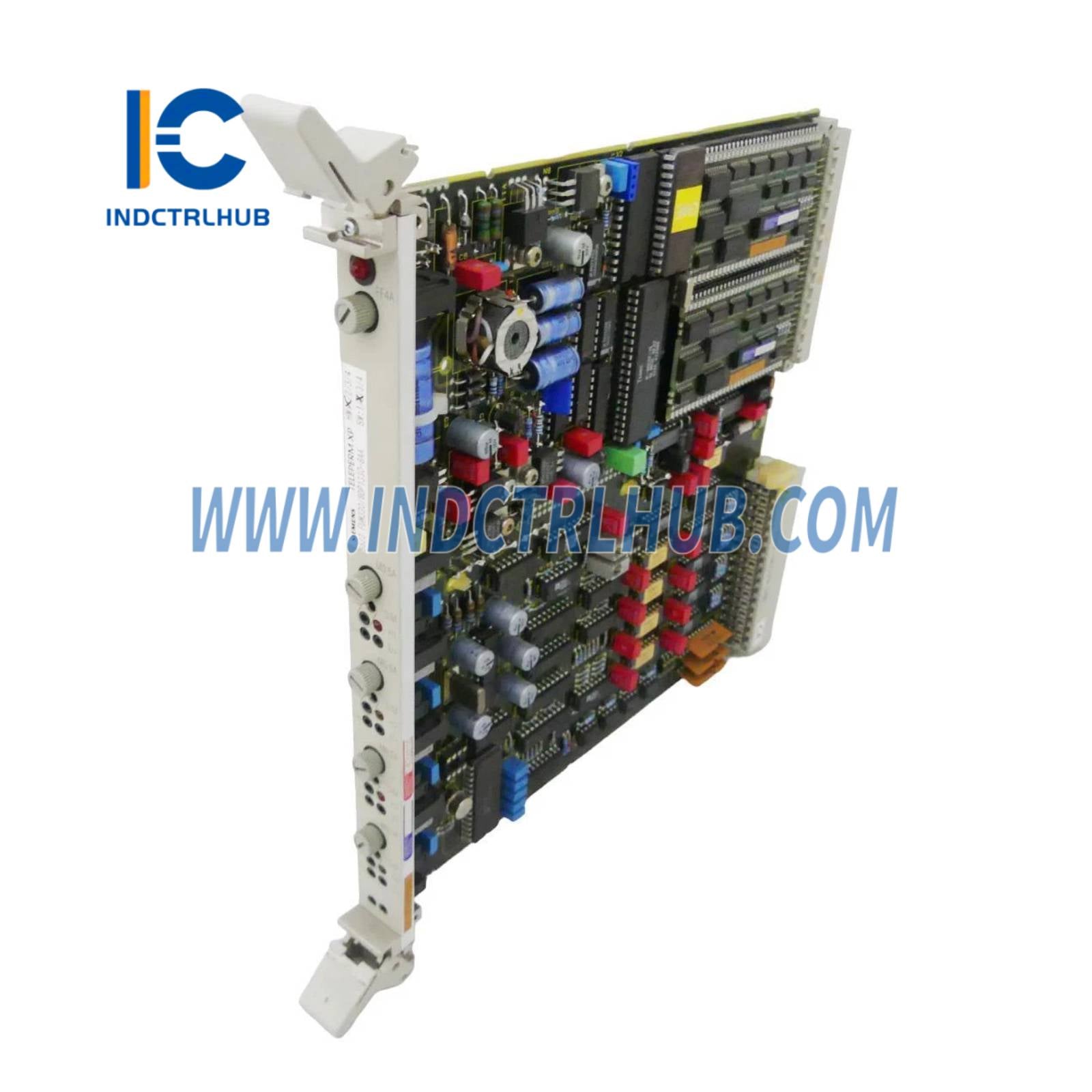

- The Siemens 6DP1330-8AA is a TELEPERM XP FUM 330 Fail-Safe Analog Transmitter Signal Conditioning Module designed for the TELEPERM XP automation system. This module processes analog signals (0/4 to 20 mA) from transmitters in fail-safe applications, ensuring reliable operation in critical industrial processes. It is used in industries such as chemical processing, power generation, and oil and gas for precise monitoring of process variables like pressure, flow, and level. The module supports redundant configurations for enhanced system reliability.
Technical Specifications
- The 6DP1330-8AA has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1330-8AA |
| Manufacturer | Siemens |
| Description | TELEPERM XP FUM 330 Fail-Safe Analog Transmitter Signal Conditioning Module |
| Series | TELEPERM XP |
| Function | Signal Conditioning: 4 inputs, 0/4 to 20 mA, 2- or 4-wire circuits Transducer Supply: 24 VDC Features: 4 limit values per channel, signal correction, monitoring of transmitter supply, measurement range overshoot/undershoot, wire break, signal simulation via front panel sockets, fail-safe operation |
| Input/Output | 4 analog inputs (0/4 to 20 mA, 2- or 4-wire) Transducer supply with 24 VDC |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1330-8AA includes the following additional information based on industry sources:
- Function: Conditions 4 analog transmitter signals (0/4 to 20 mA) in 2- or 4-wire circuits for fail-safe applications; provides 24 VDC transducer supply; supports 4 limit values per channel for threshold monitoring; enables signal correction and monitors for transmitter supply issues, measurement range overshoot/undershoot, and wire breaks; offers signal simulation via front panel sockets; designed for redundant use to ensure high availability in critical processes.
