Product Description
Product Overview

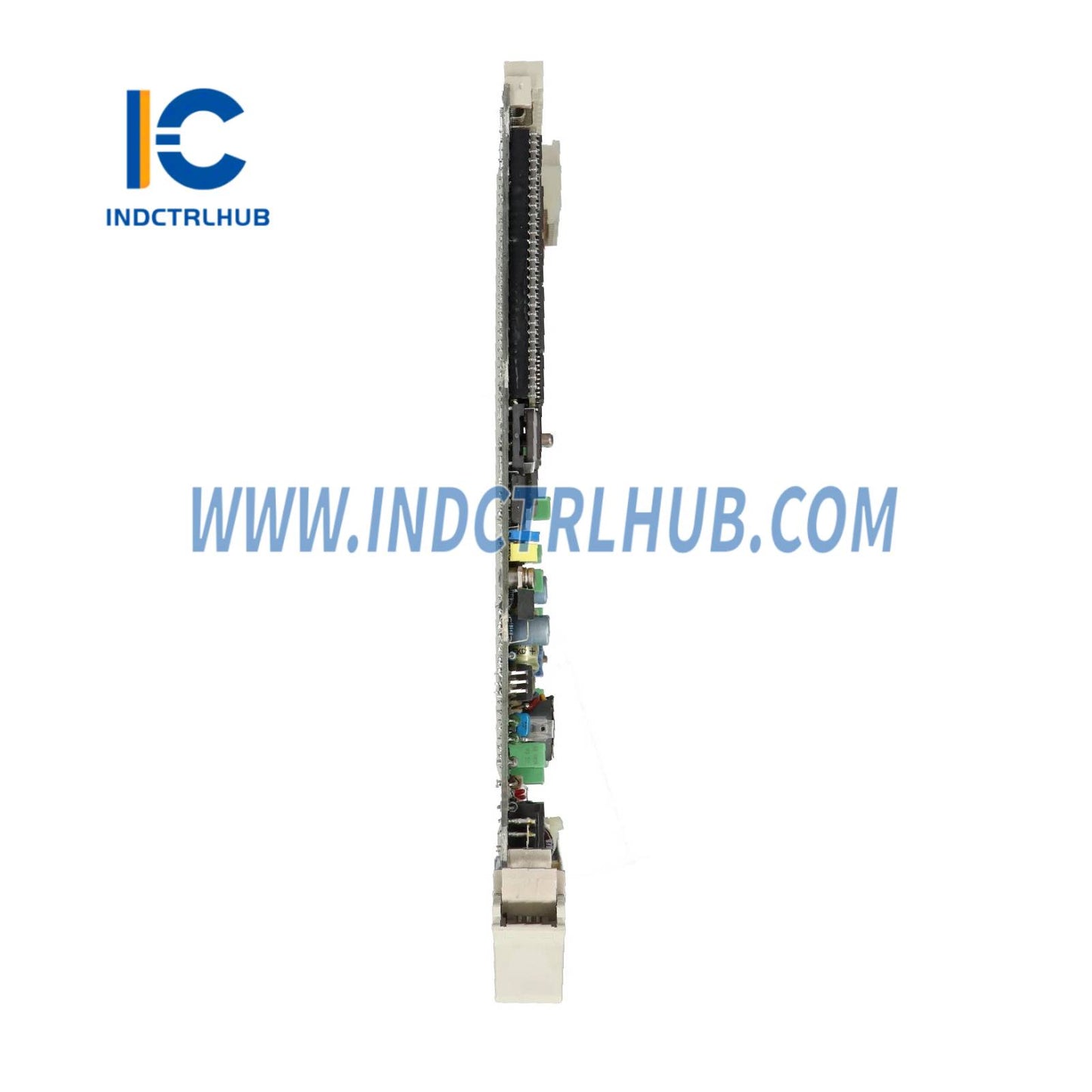

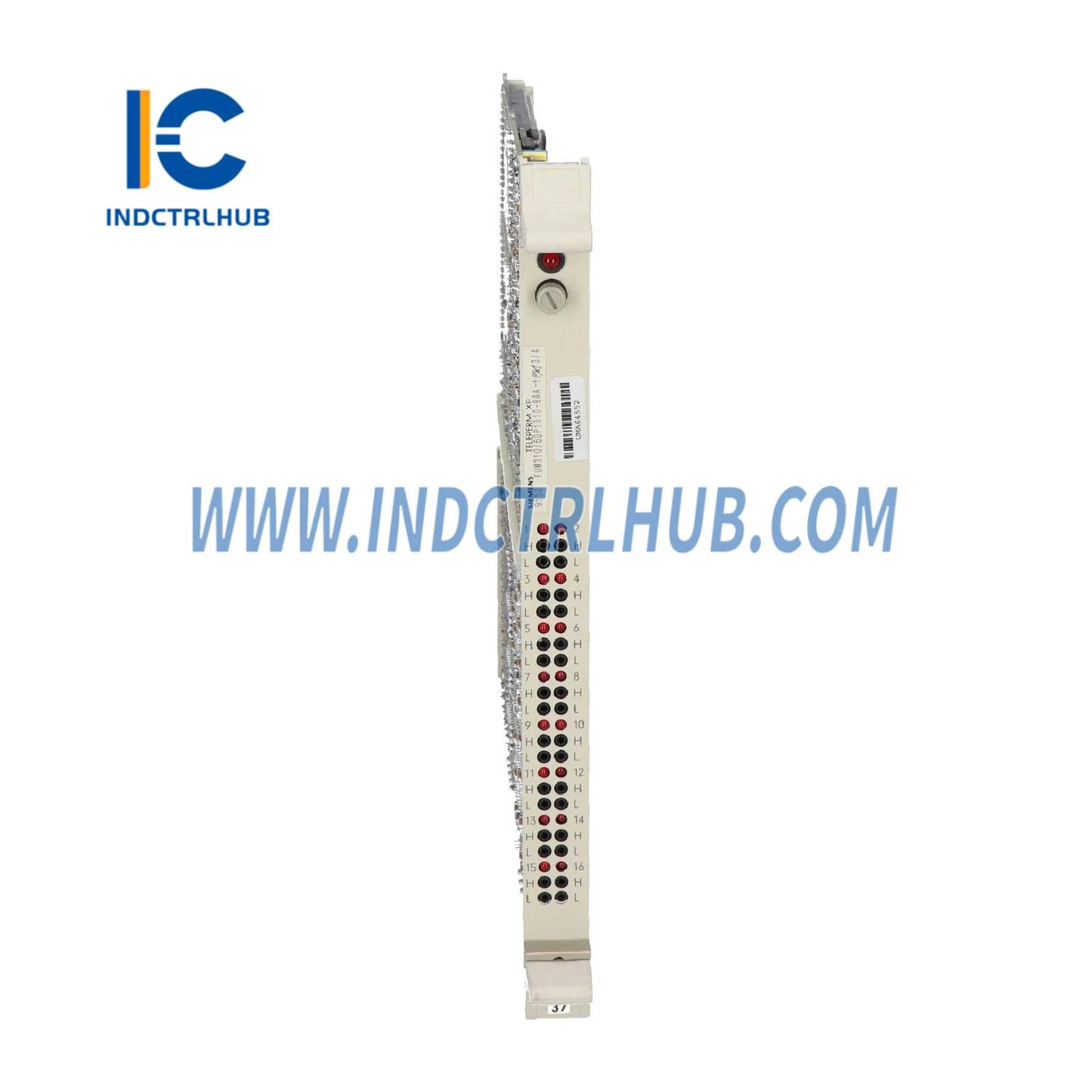

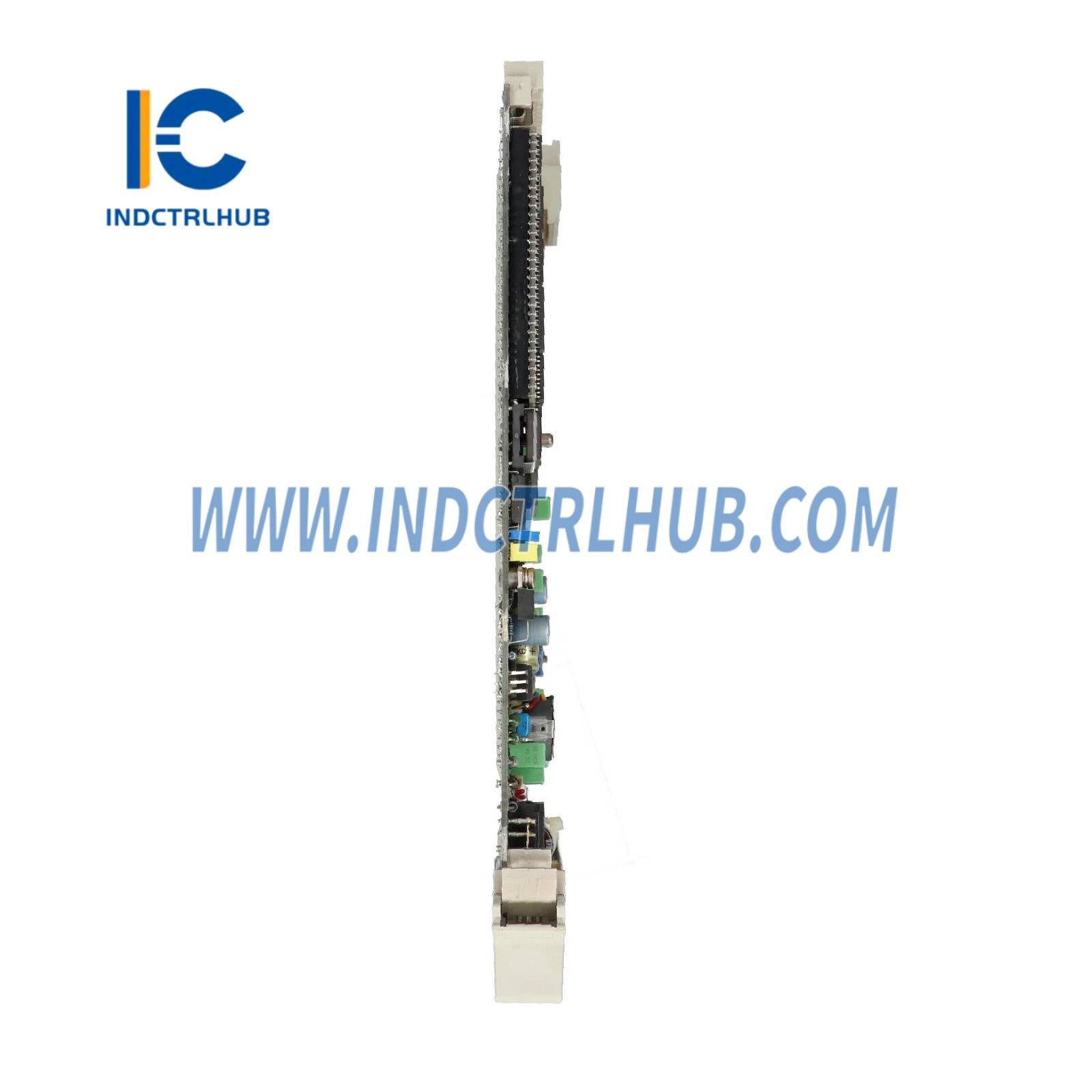

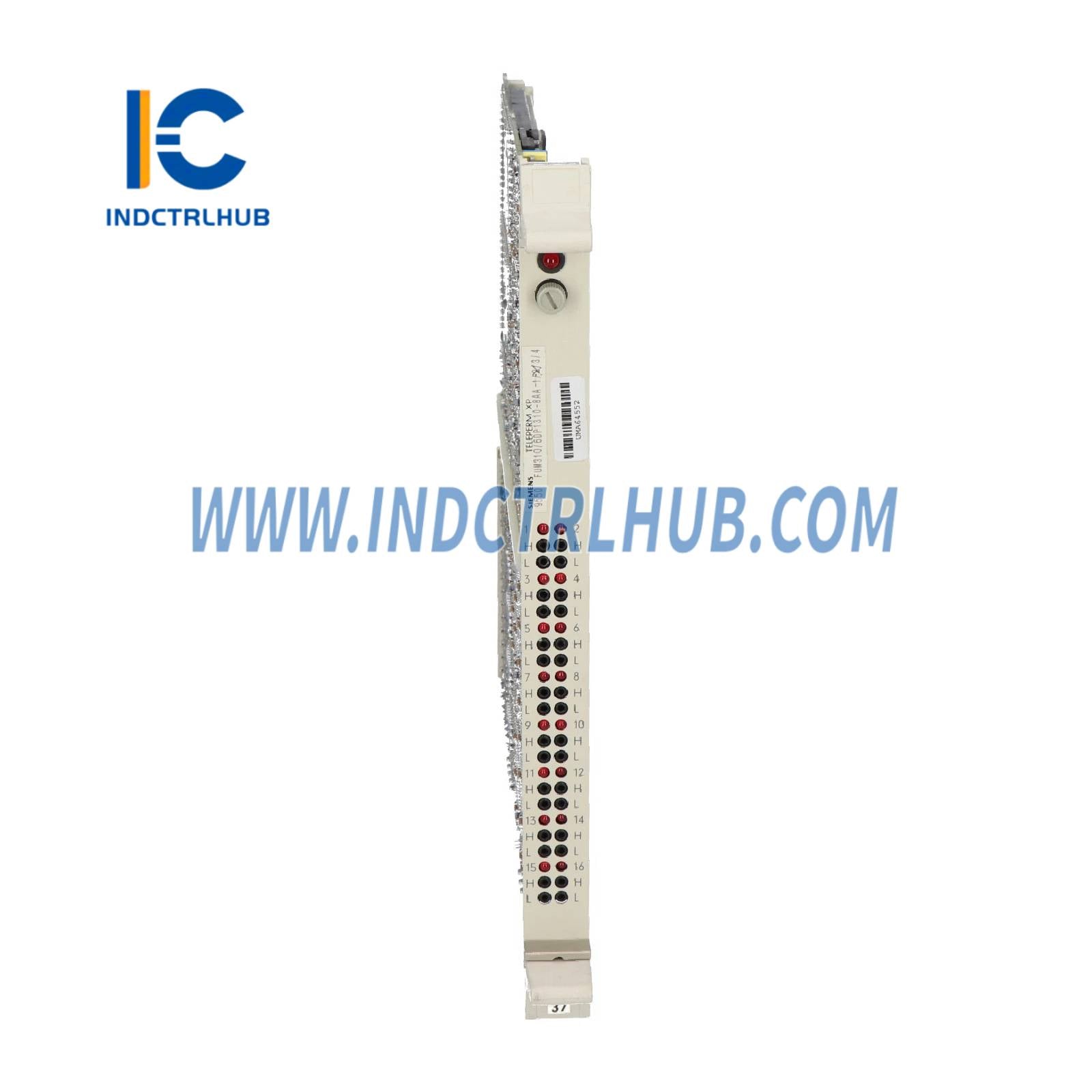

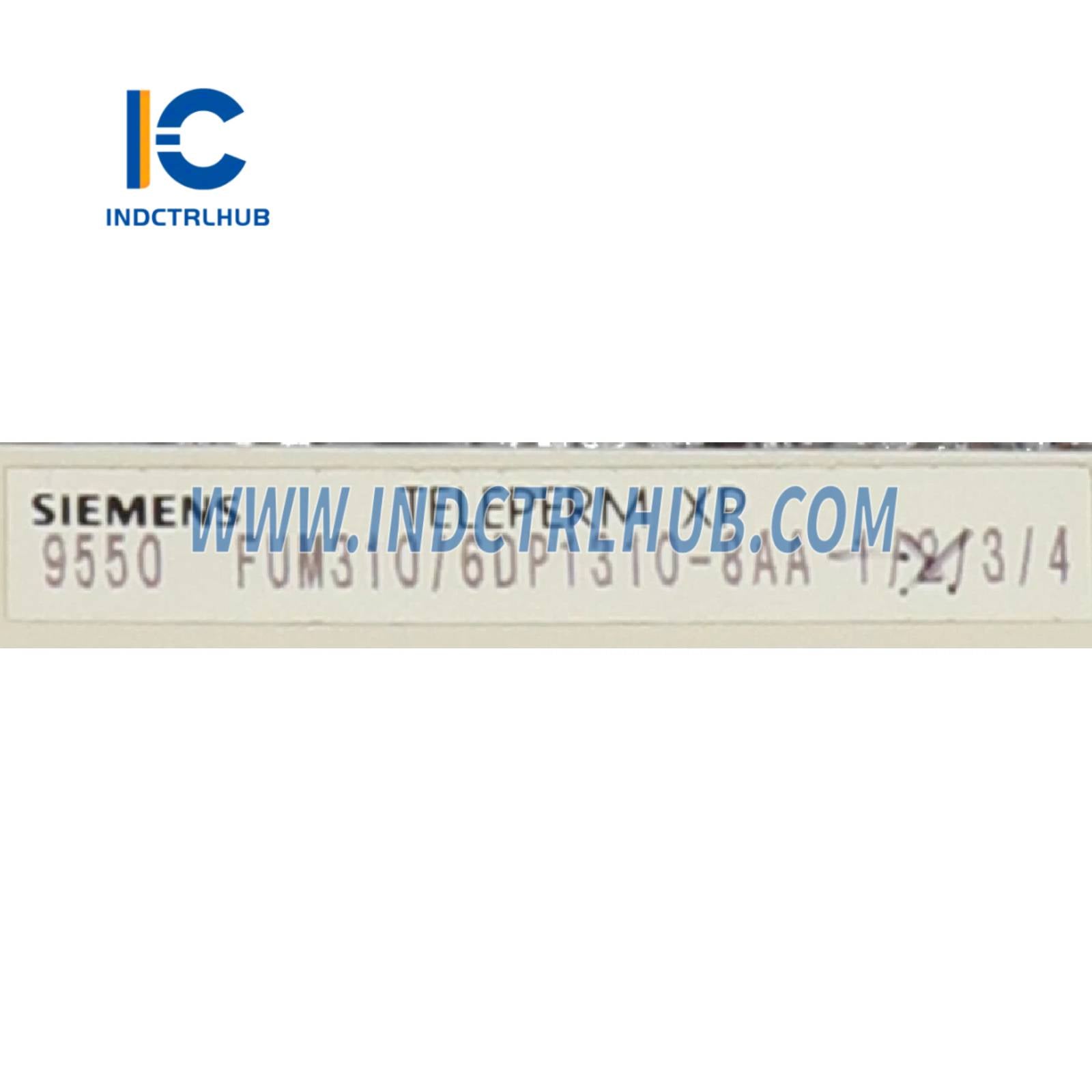

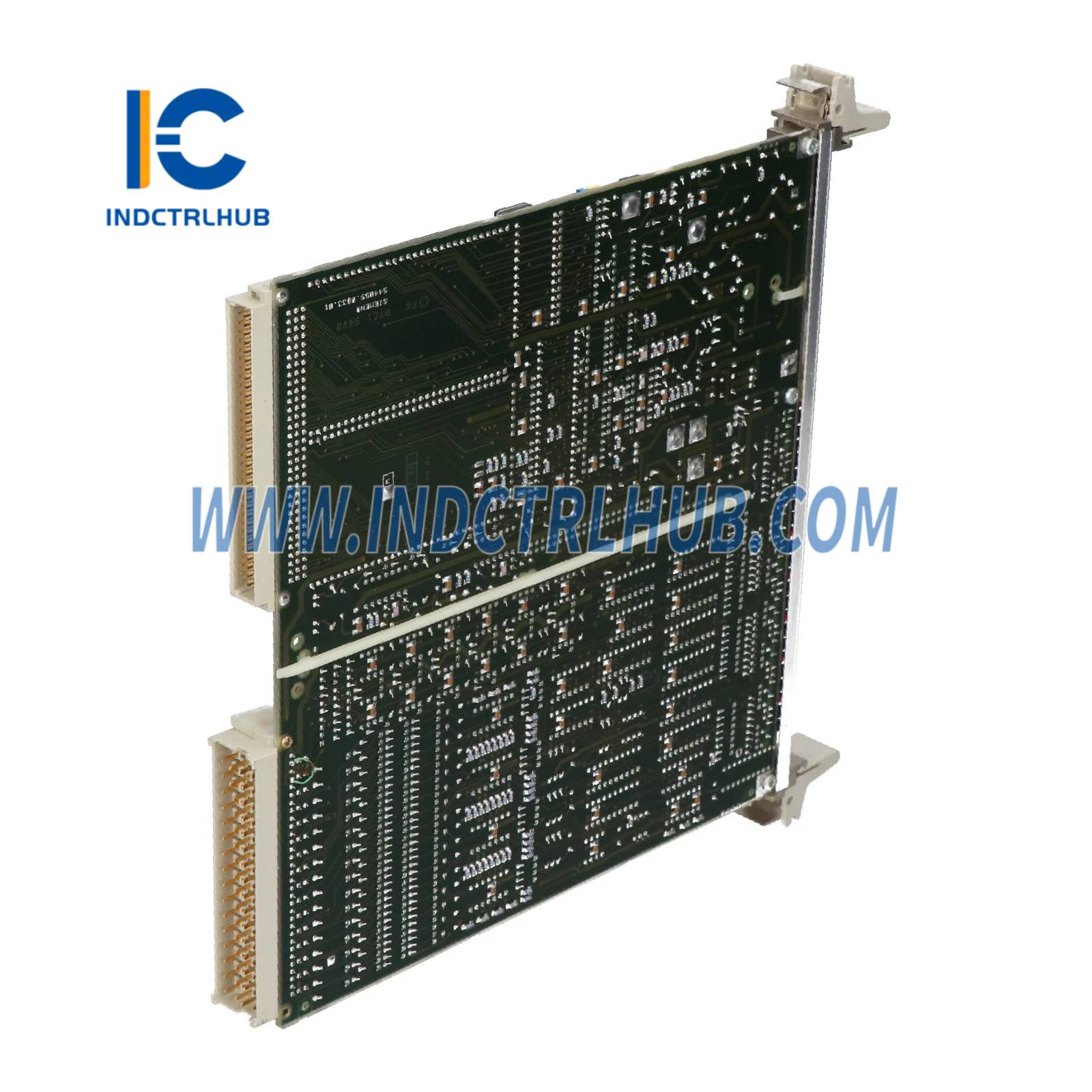

- The Siemens 6DP1310-8AA is a TELEPERM XP FUM 310 Counting Module designed for the TELEPERM XP automation system. This module is used for pulse counting, frequency measurement, and position detection in industrial automation applications. It supports up to 16 pulse inputs and is suitable for tasks such as monitoring motor speeds, conveyor belt movements, and other counting-related processes in industries like manufacturing, chemical processing, and power generation.
Technical Specifications
- The 6DP1310-8AA has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1310-8AA |
| Manufacturer | Siemens |
| Description | TELEPERM XP FUM 310 Counting Module for Pulse Counting and Frequency Measurement |
| Series | TELEPERM XP |
| Function | Pulse counting, frequency measurement, and position detection 16 pulse inputs, 24 VDC Monitoring for wire break and short circuit |
| Input/Output | 16 pulse inputs (24 VDC, suitable for incremental encoders or proximity switches) |
| Input Voltage | 24 VDC nominal (11–30 VDC range) |
| Input Frequency | Up to 100 kHz (typical for pulse counting) |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1310-8AA includes the following additional information based on industry sources:
- Function: Processes up to 16 pulse inputs for counting, frequency measurement, and position detection; supports applications like speed monitoring, flow measurement, and incremental encoder interfacing; monitors for wire breaks and short circuits to ensure reliable operation; designed for non-redundant configurations.
