Product Description

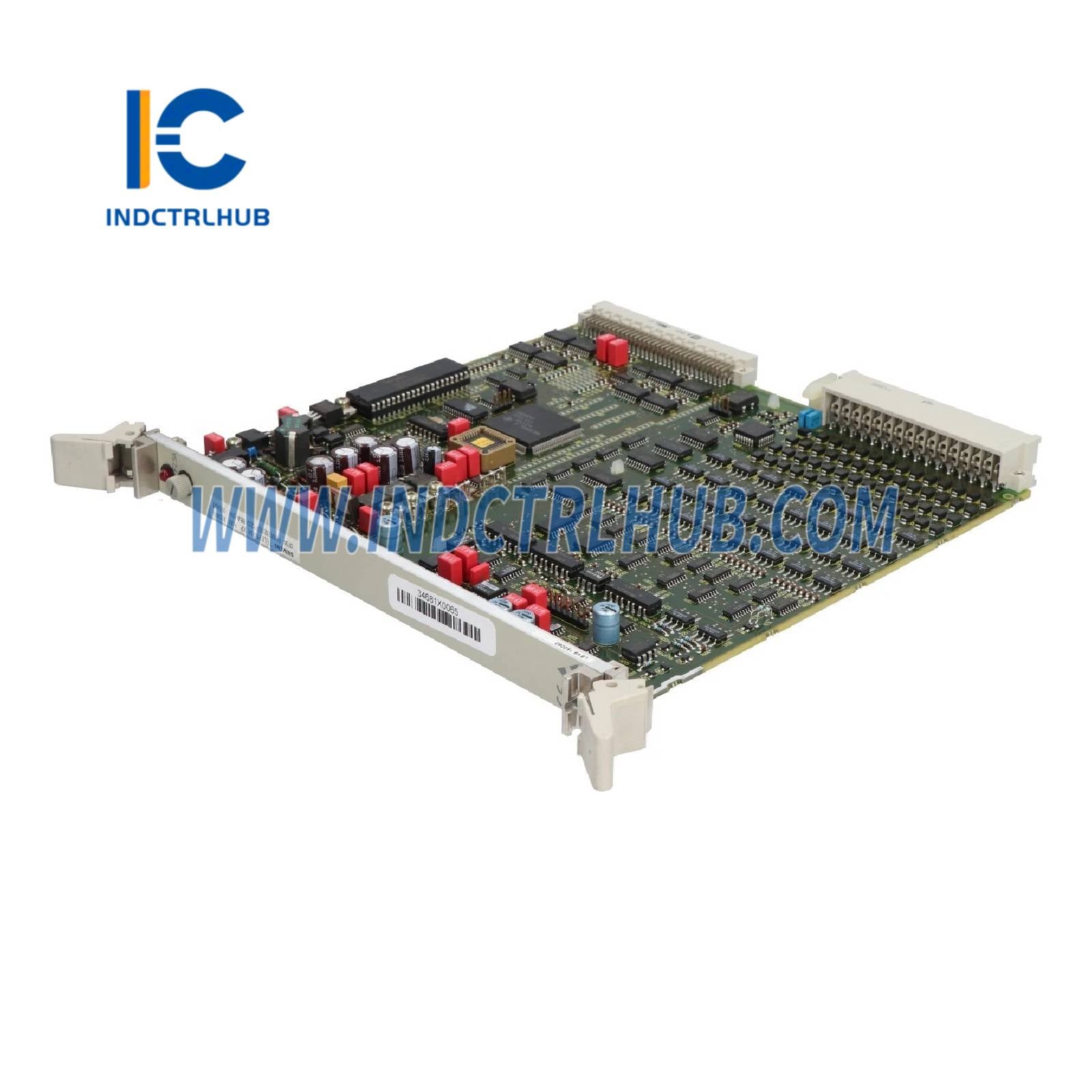

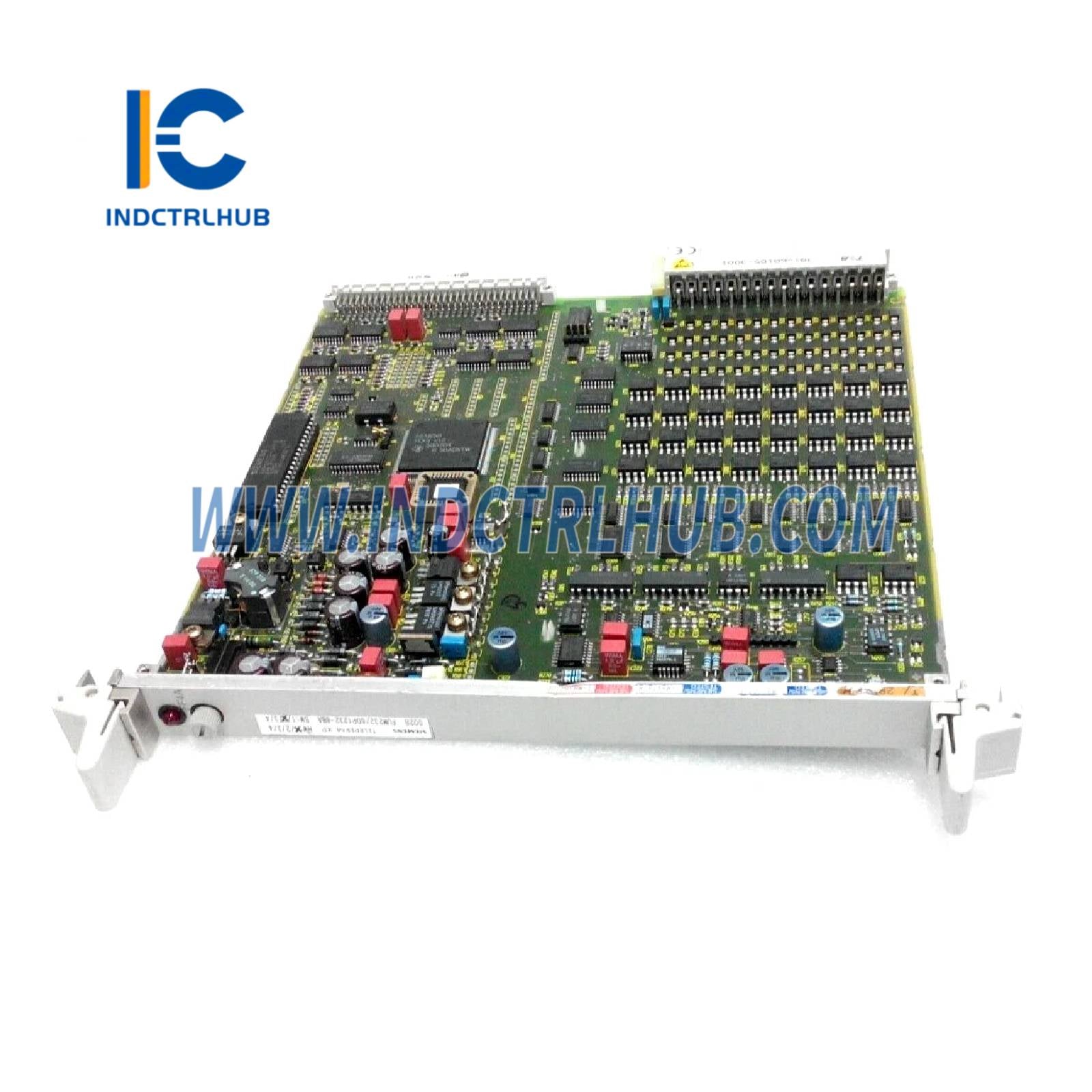

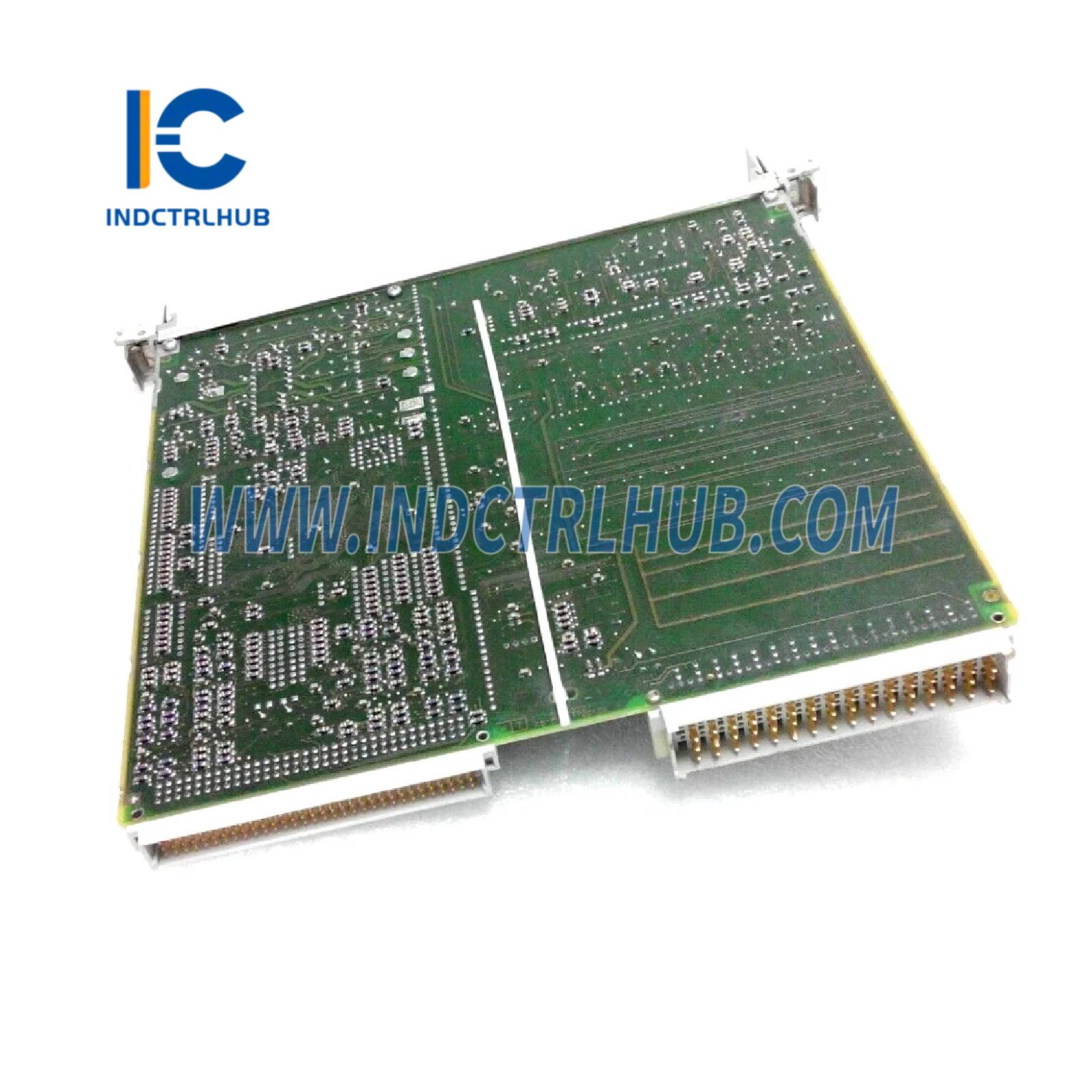

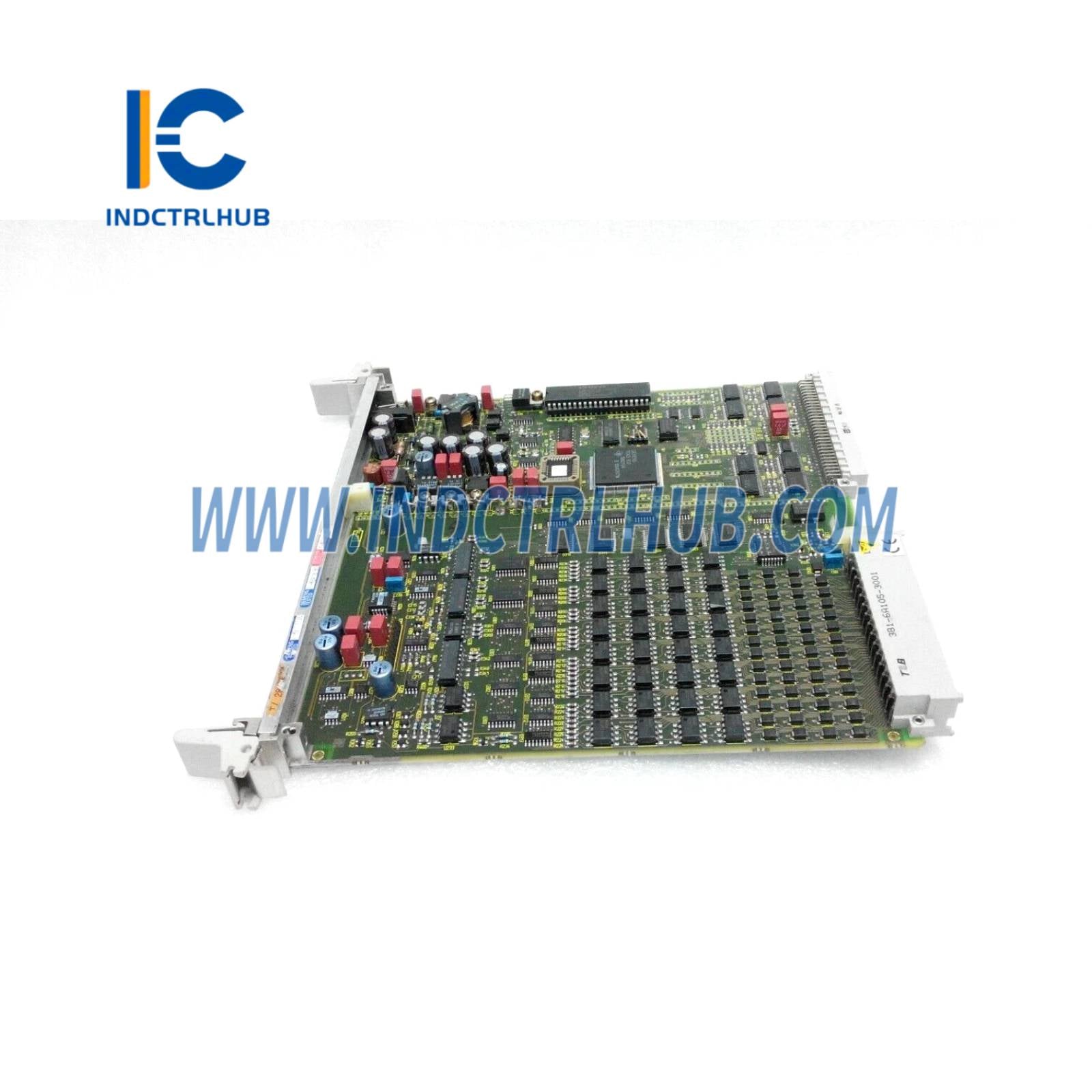

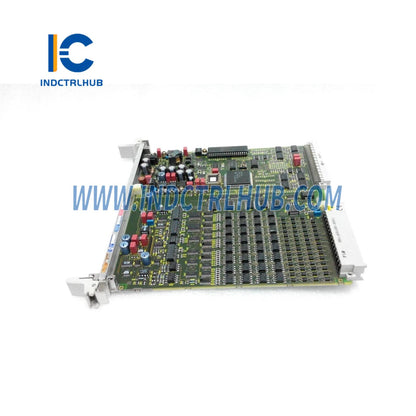

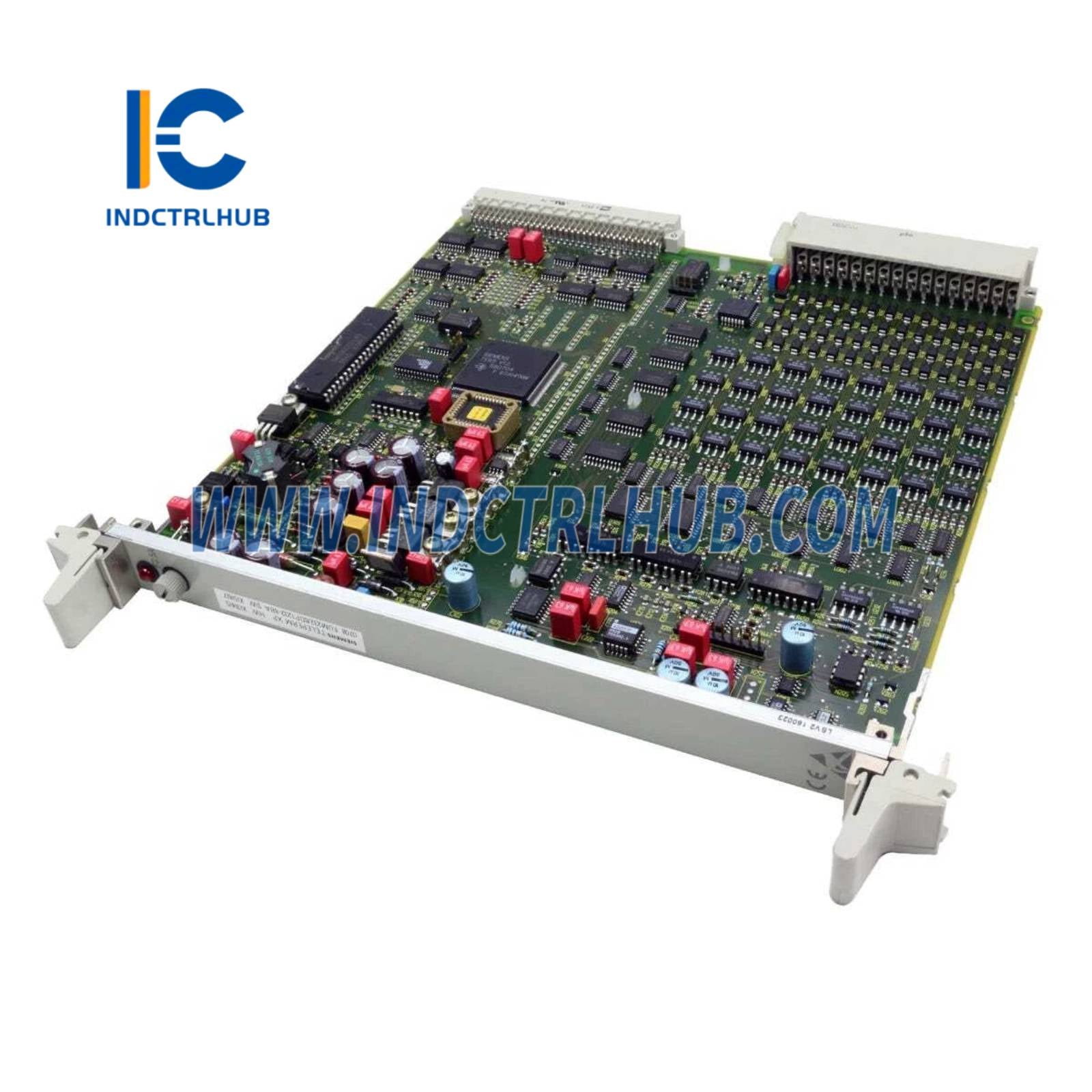

Siemens 6DP1232-8BA TELEPERM XP FUM 232 Analog Module
Product Overview
- The Siemens 6DP1232-8BA is a TELEPERM XP FUM 232 Analog Transmitter Signal Conditioning Module designed for the TELEPERM XP automation system. This module processes signals from PT100 resistance thermometers and thermocouples, supporting temperature measurements in industrial applications. It is used in sectors like chemical processing, power generation, and manufacturing for precise monitoring of process variables. The module is suitable for redundant configurations to ensure high reliability in critical systems.
Technical Specifications
- The 6DP1232-8BA has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1232-8BA |
| Manufacturer | Siemens |
| Description | TELEPERM XP FUM 232 Analog Transmitter Signal Conditioning Module |
| Series | TELEPERM XP |
| Function | Signal Conditioning: 14 PT100 resistance thermometers (4-wire) or 28 thermocouples (fixed or variable reference junction) Features: Monitoring of transmitter supply, measurement range overshoot/undershoot, wire break; differential temperature measurement; suitable for redundant use |
| Input/Output | 14 PT100 resistance thermometers (4-wire circuit) 28 thermocouples (optional fixed or variable reference junction) |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 28 cm (H) x 28 cm (W) x 5 cm (D) |
| Weight | Approx. 0.545 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1232-8BA includes the following additional information based on industry sources:
- Function: Conditions signals from 14 PT100 resistance thermometers (4-wire) or 28 thermocouples for precise temperature measurement; supports differential temperature measurement; monitors transmitter supply, measurement range overshoot/undershoot, and wire breaks; designed for redundant use to ensure high availability in critical applications.
