Product Description

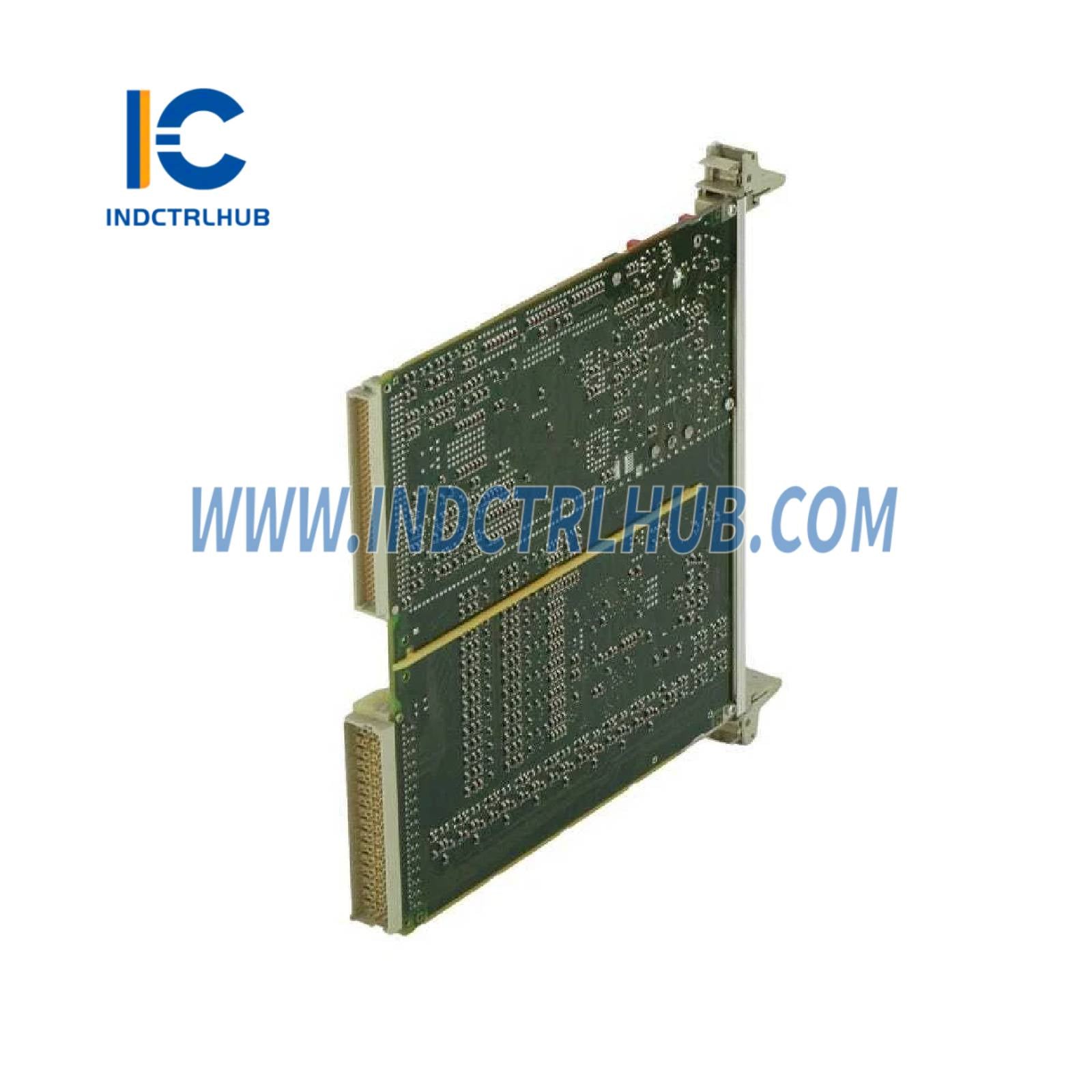

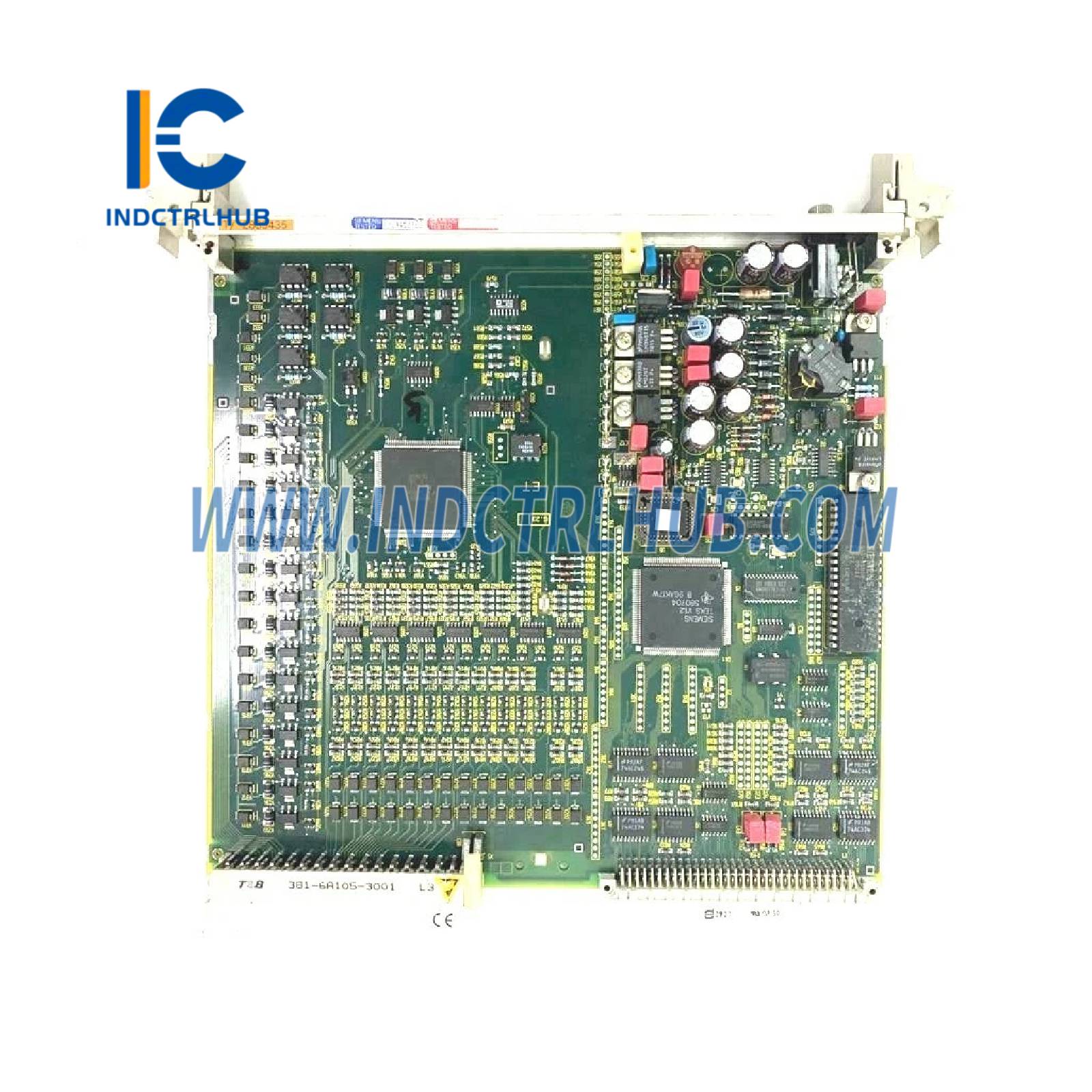

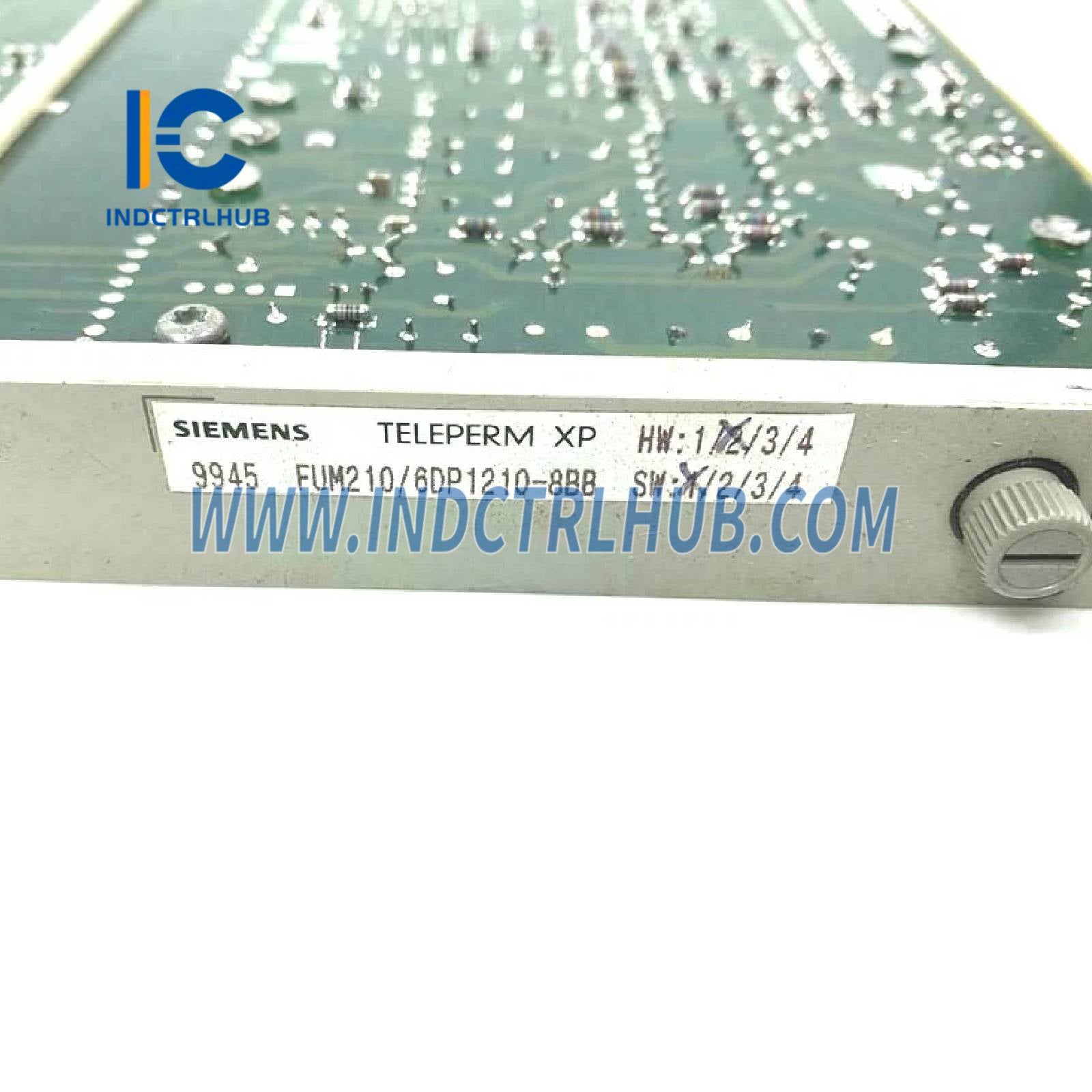

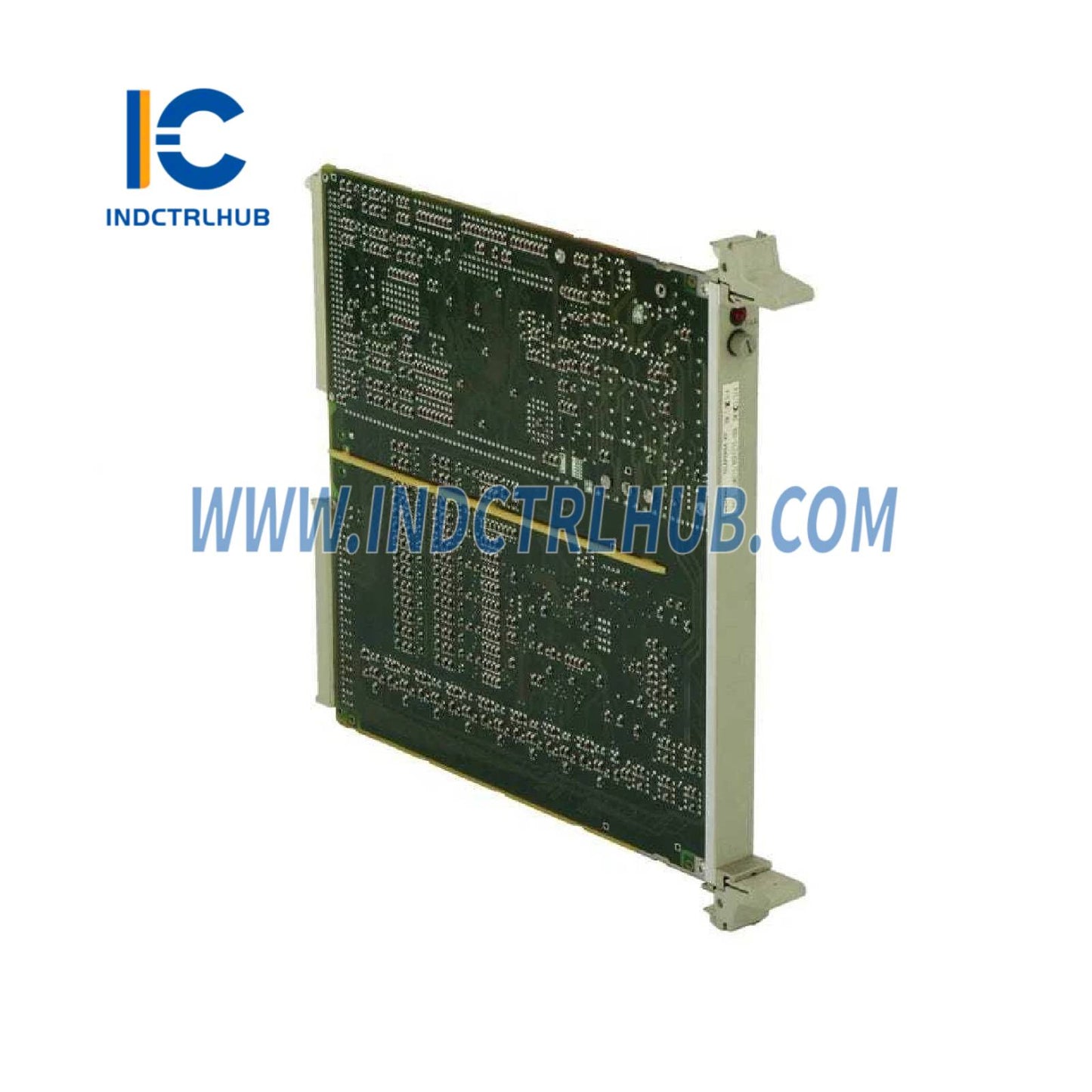

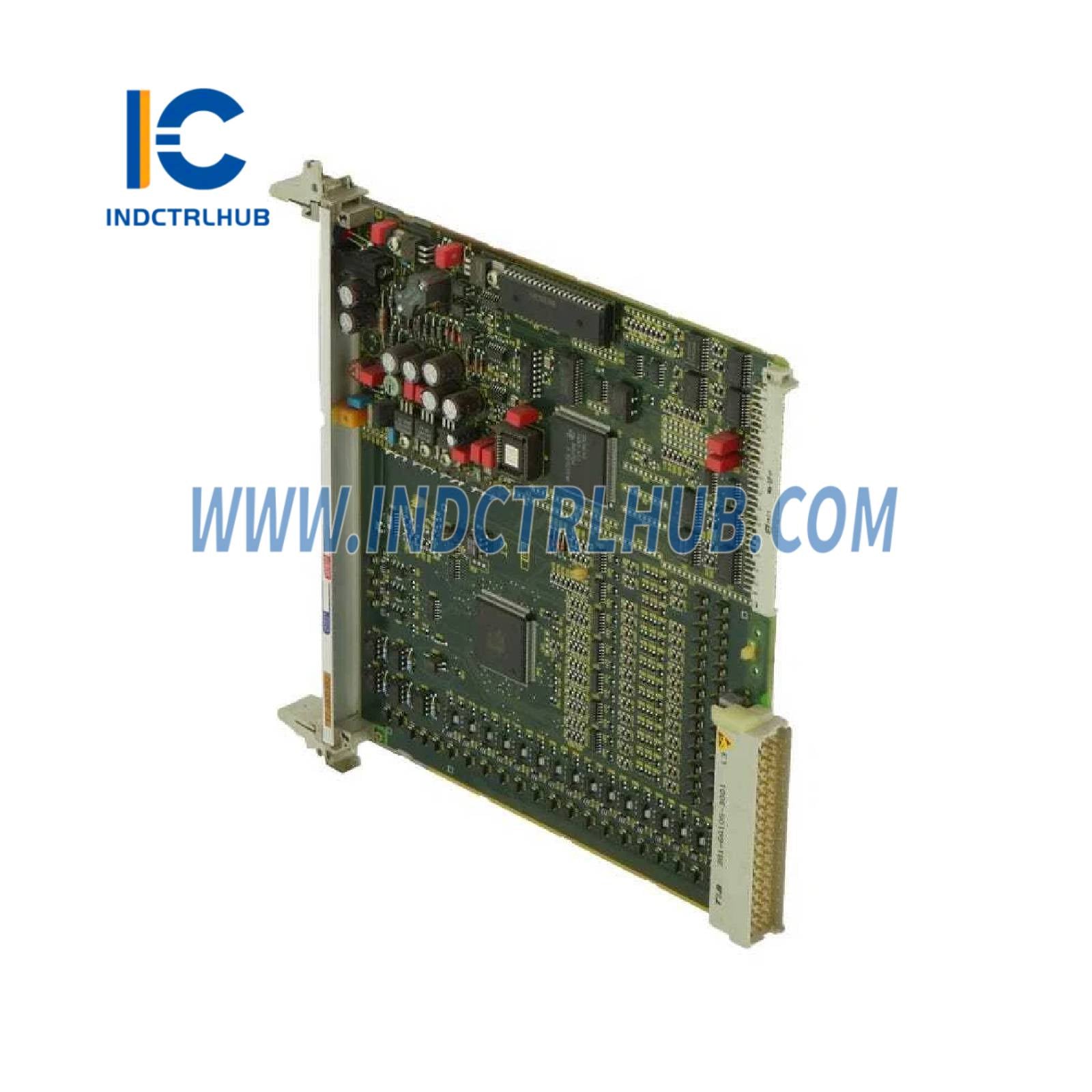

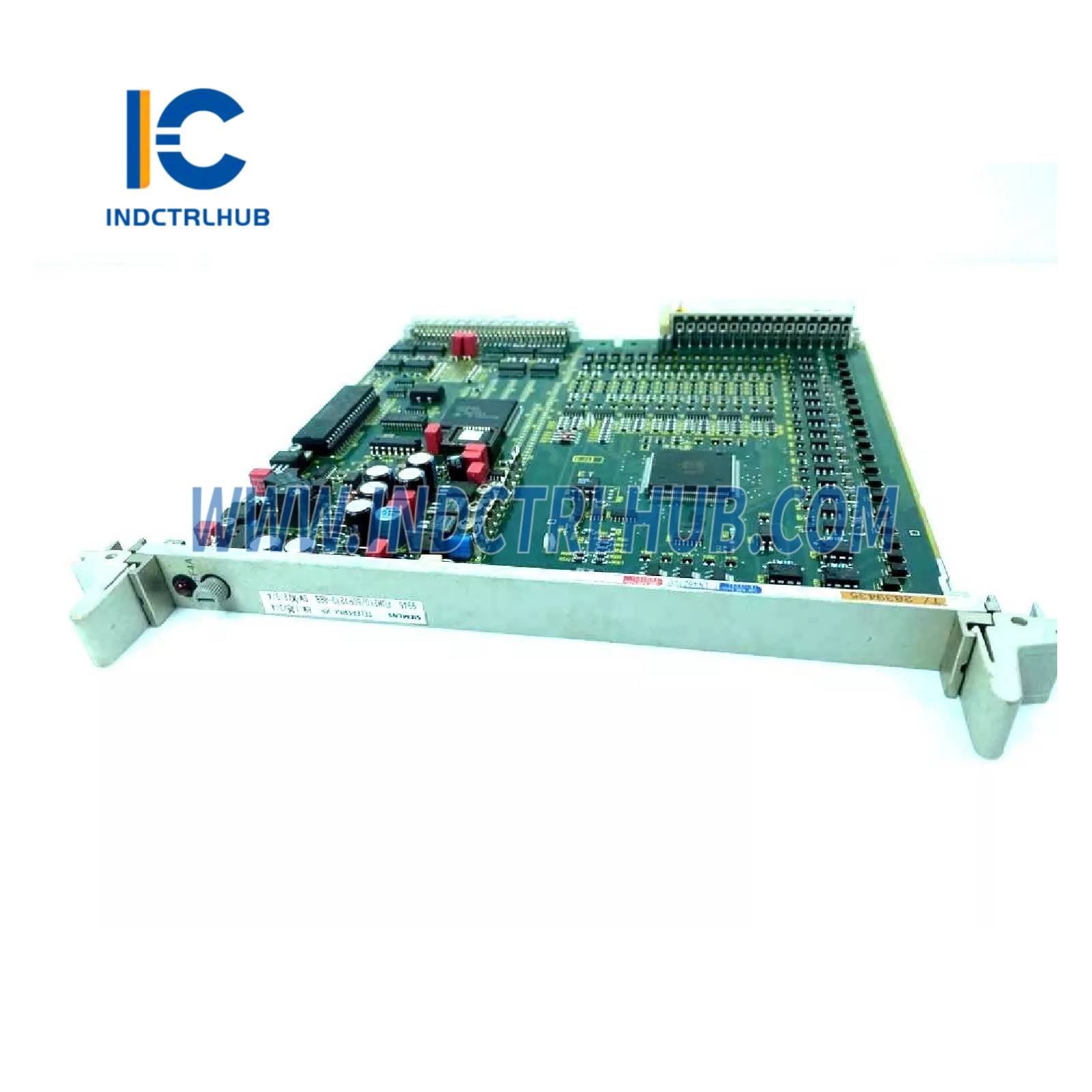

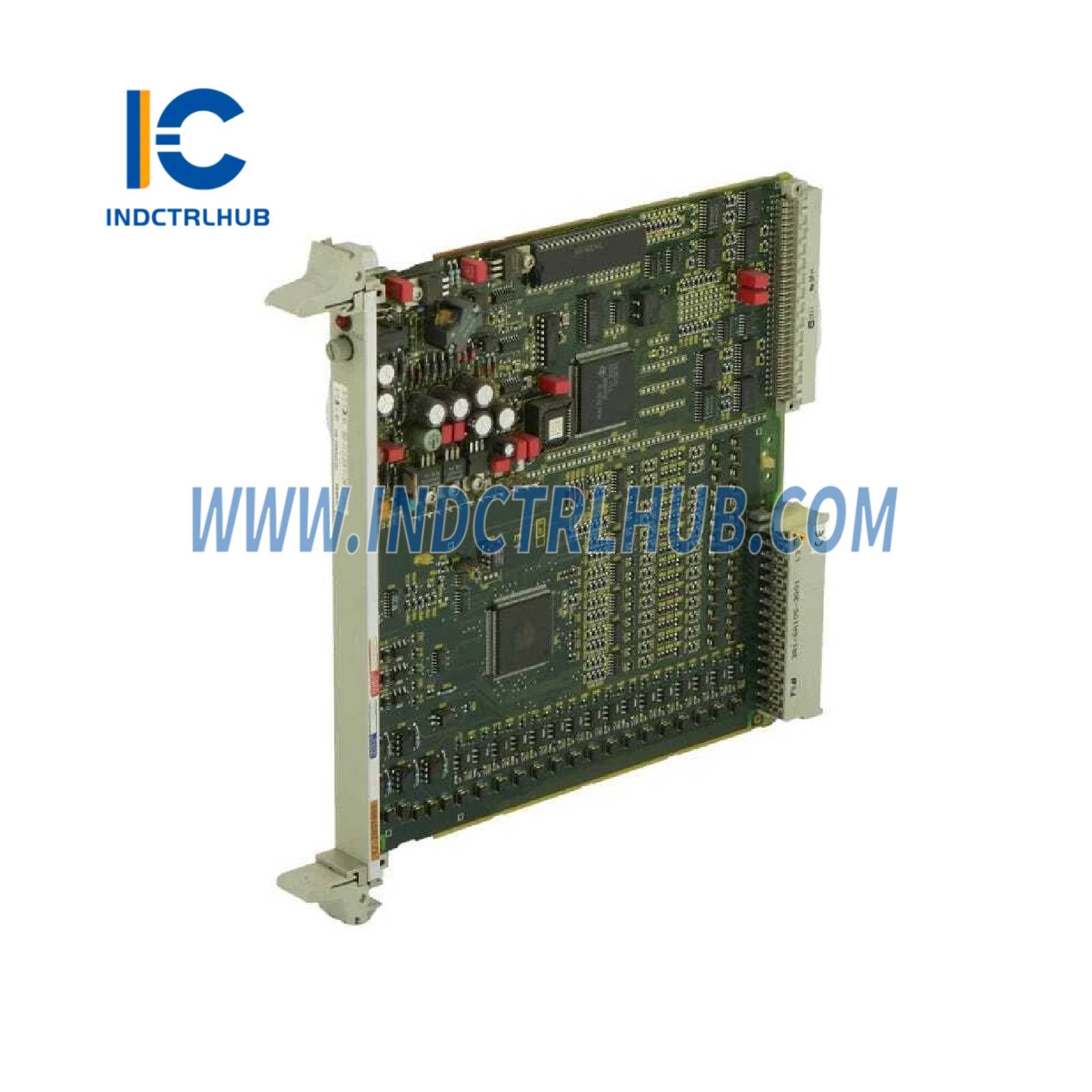

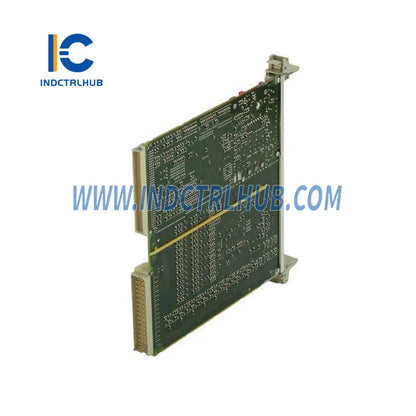

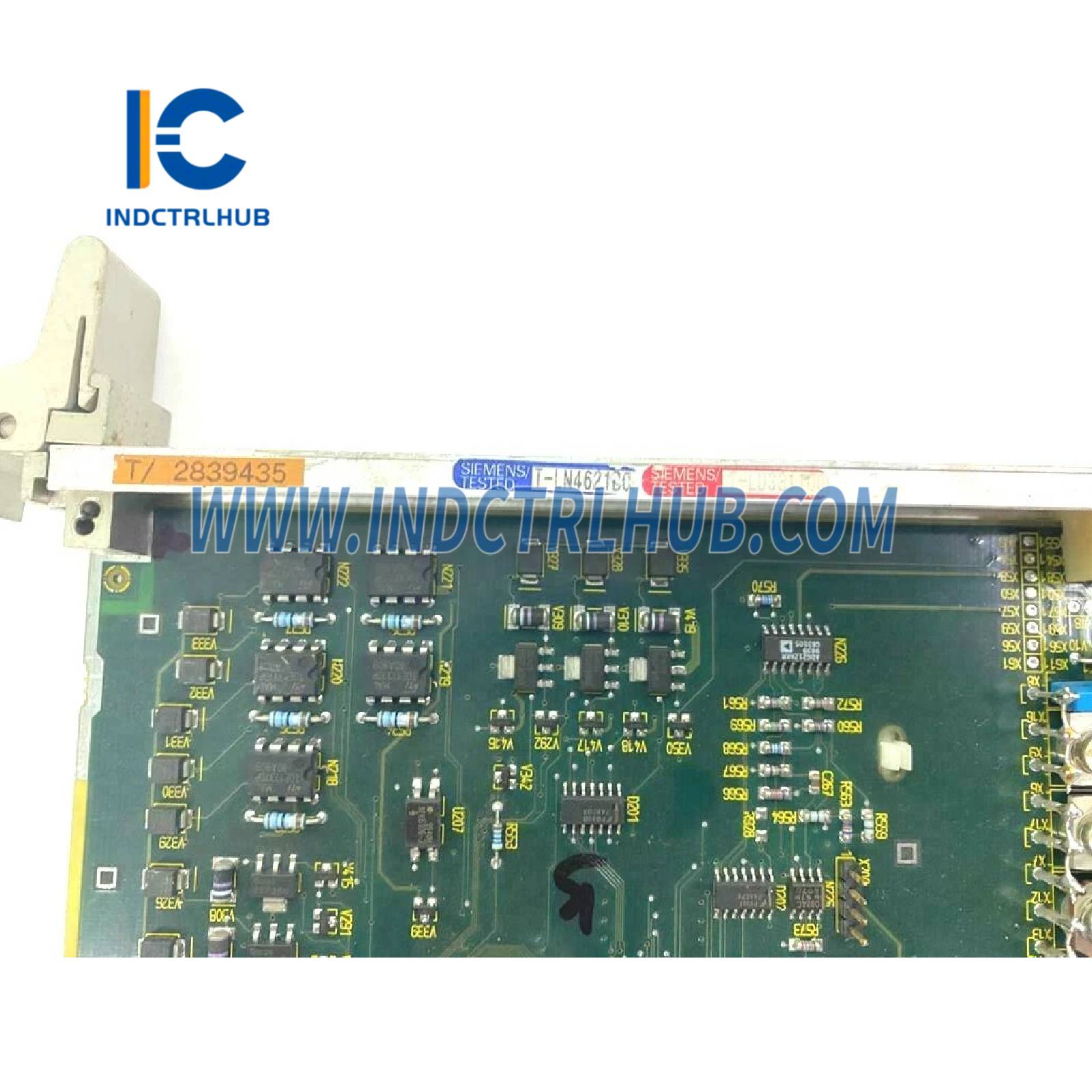

Siemens 6DP1210-8BB TELEPERM XP FUM 210 Binary Module
Product Overview
- The Siemens 6DP1210-8BB is a TELEPERM XP FUM 210 Binary Module designed for the TELEPERM XP automation system. This module handles binary transmitter signal conditioning and drive control, supporting applications such as motor control, solenoid valves, and positioning actuators. It is used in industrial automation environments, including chemical plants, power generation, and manufacturing, for reliable process control and monitoring.
Technical Specifications
- The 6DP1210-8BB has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1210-8BB |
| Manufacturer | Siemens |
| Description | TELEPERM XP FUM 210 Module for Binary Transmitter Signal Conditioning and Drive Control |
| Series | TELEPERM XP |
| Function | Signal Conditioning: 14 changeover or 28 individual contacts with 24 VDC supply and supervision Drive Control: 5/8 motors, 5/8 solenoid valves, 4/5 positioning actuators, 3/4 step controllers, or 2/3 reversing drives |
| Input/Output | Binary inputs/outputs with 24 VDC transmitter supply Monitoring for wire break, short circuit to M, short circuit to P, intercore short circuit |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1210-8BB includes the following additional information based on industry sources:
- Function: Performs binary signal conditioning for 14 changeover or 28 individual contacts with 24 VDC supply and fault monitoring; supports drive control for up to 5/8 motors, solenoid valves, 4/5 positioning actuators, 3/4 step controllers, or 2/3 reversing drives; suitable for redundant configurations in critical applications.
