Product Description

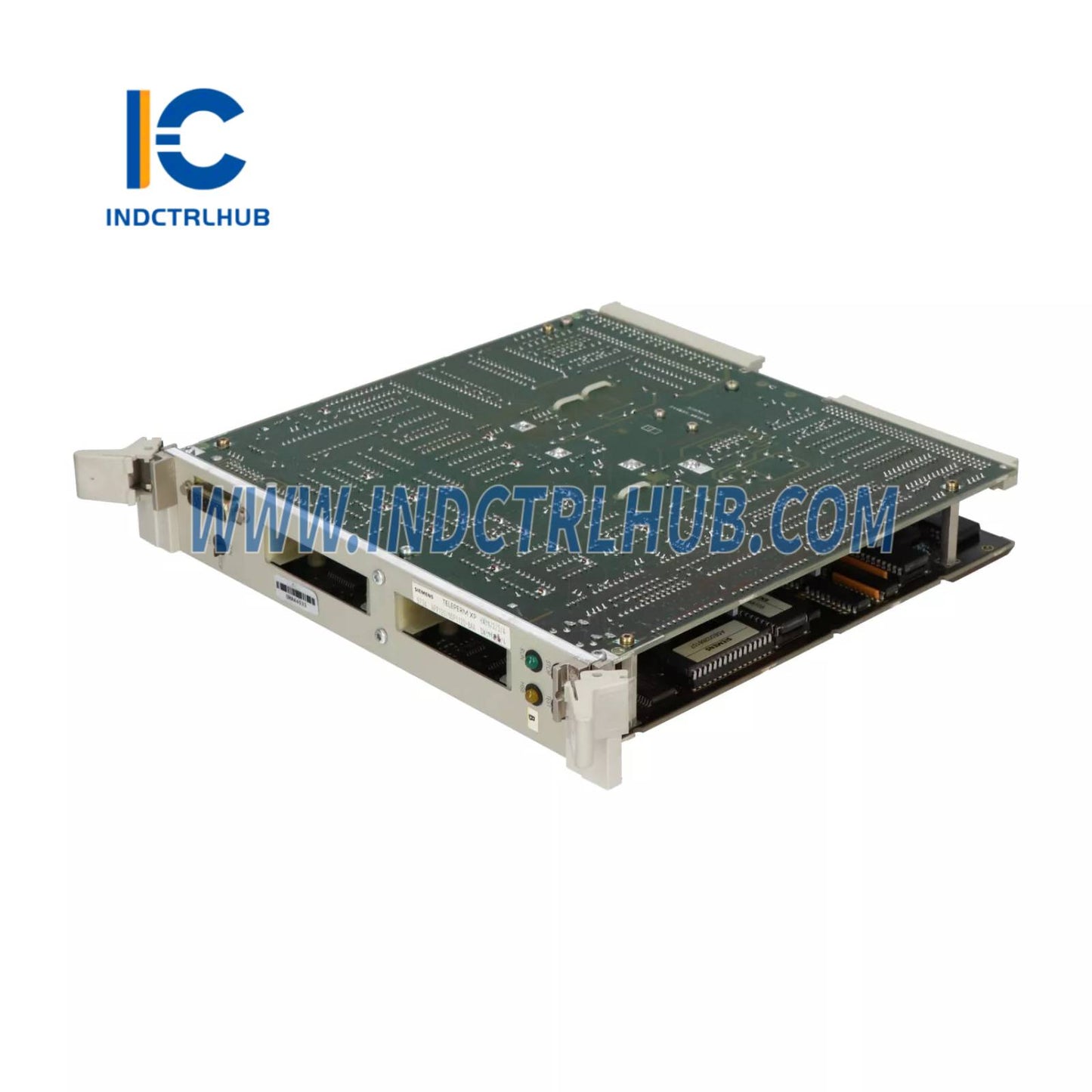

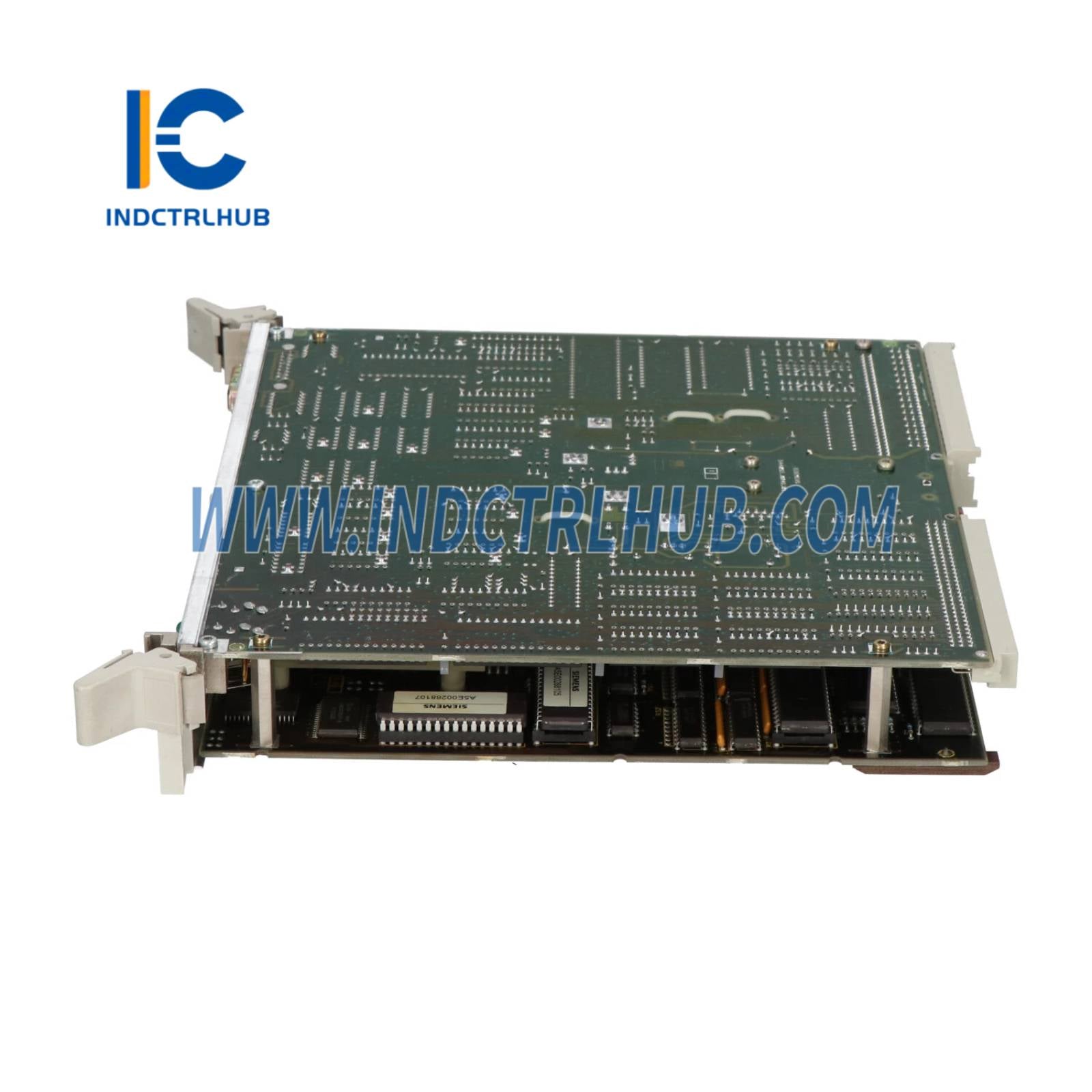

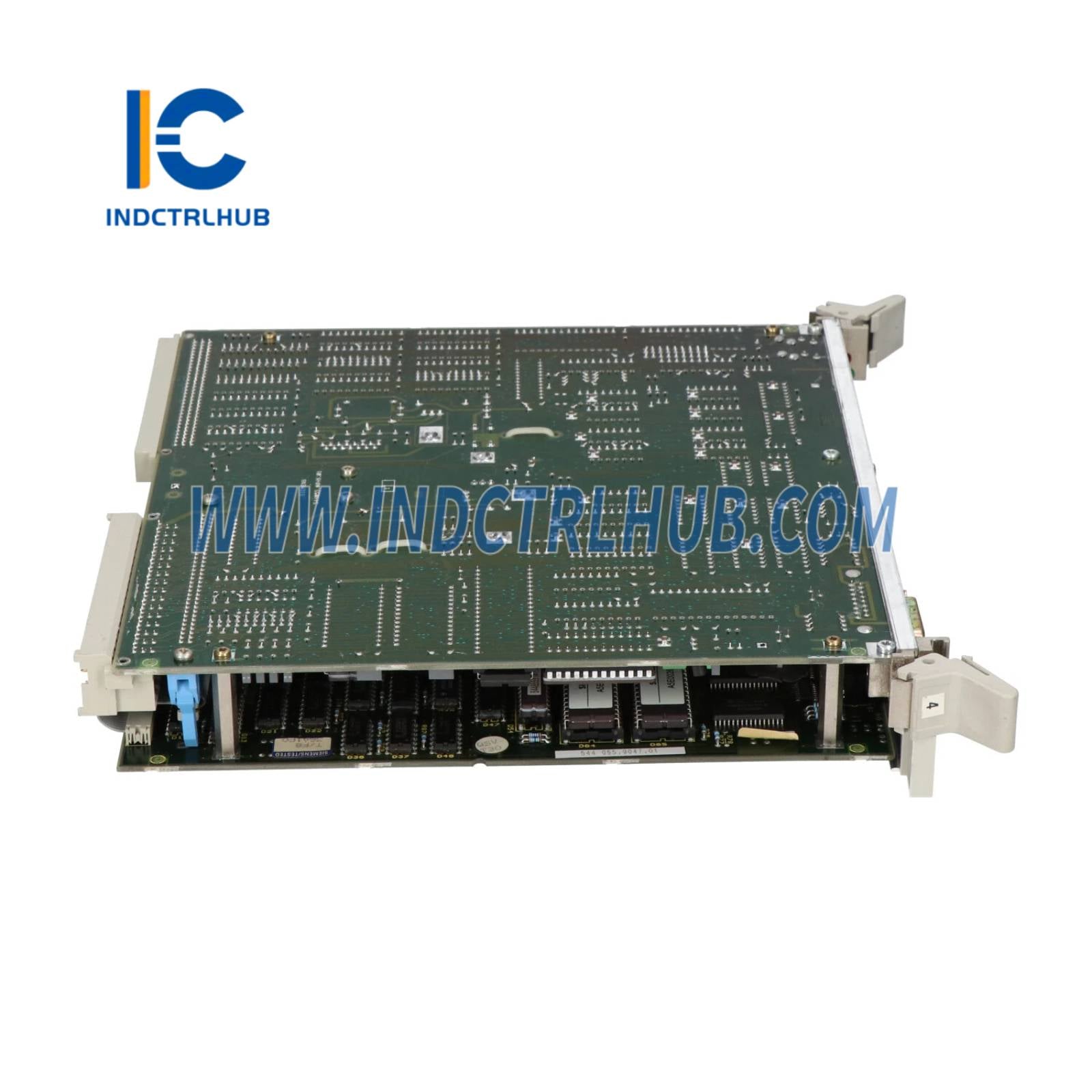

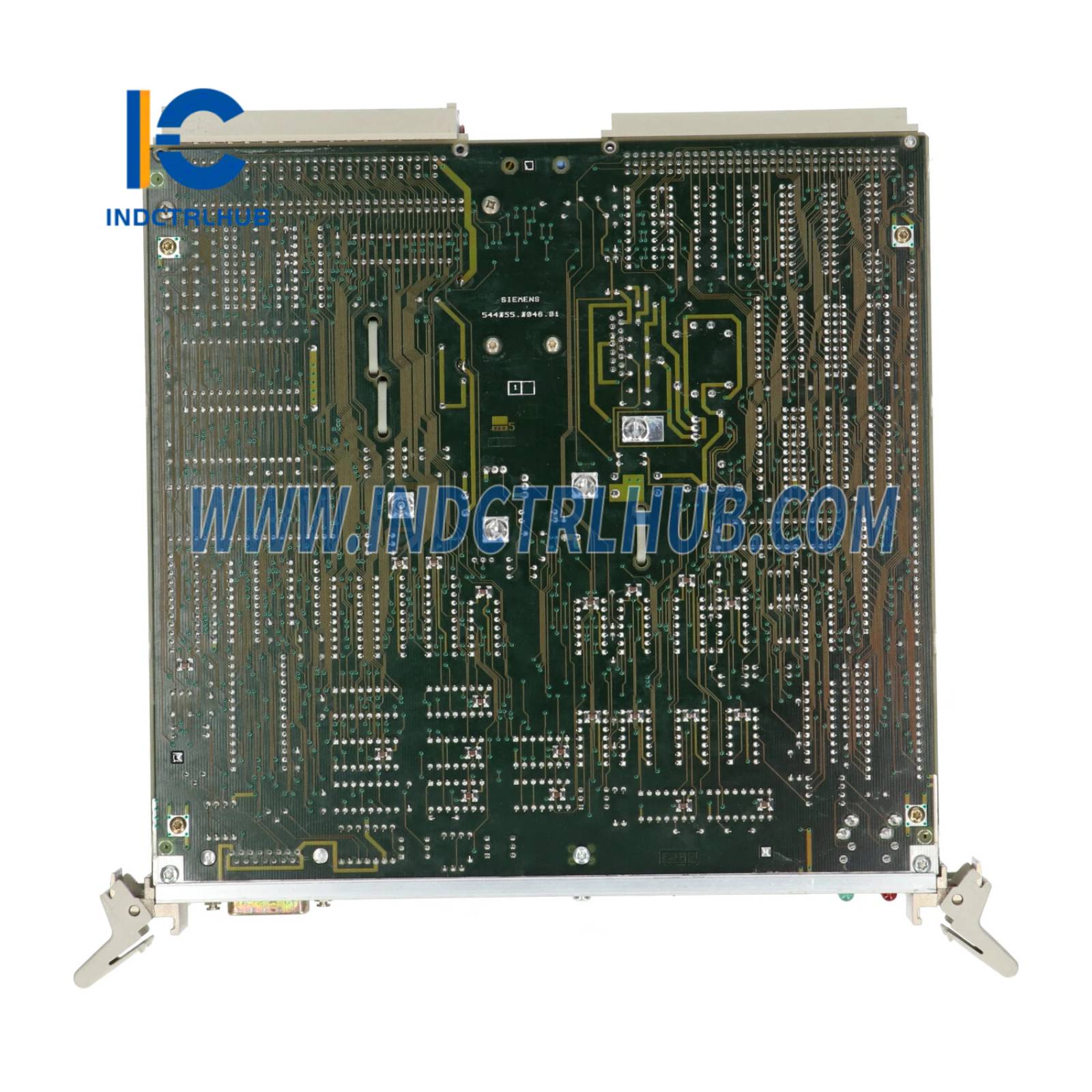

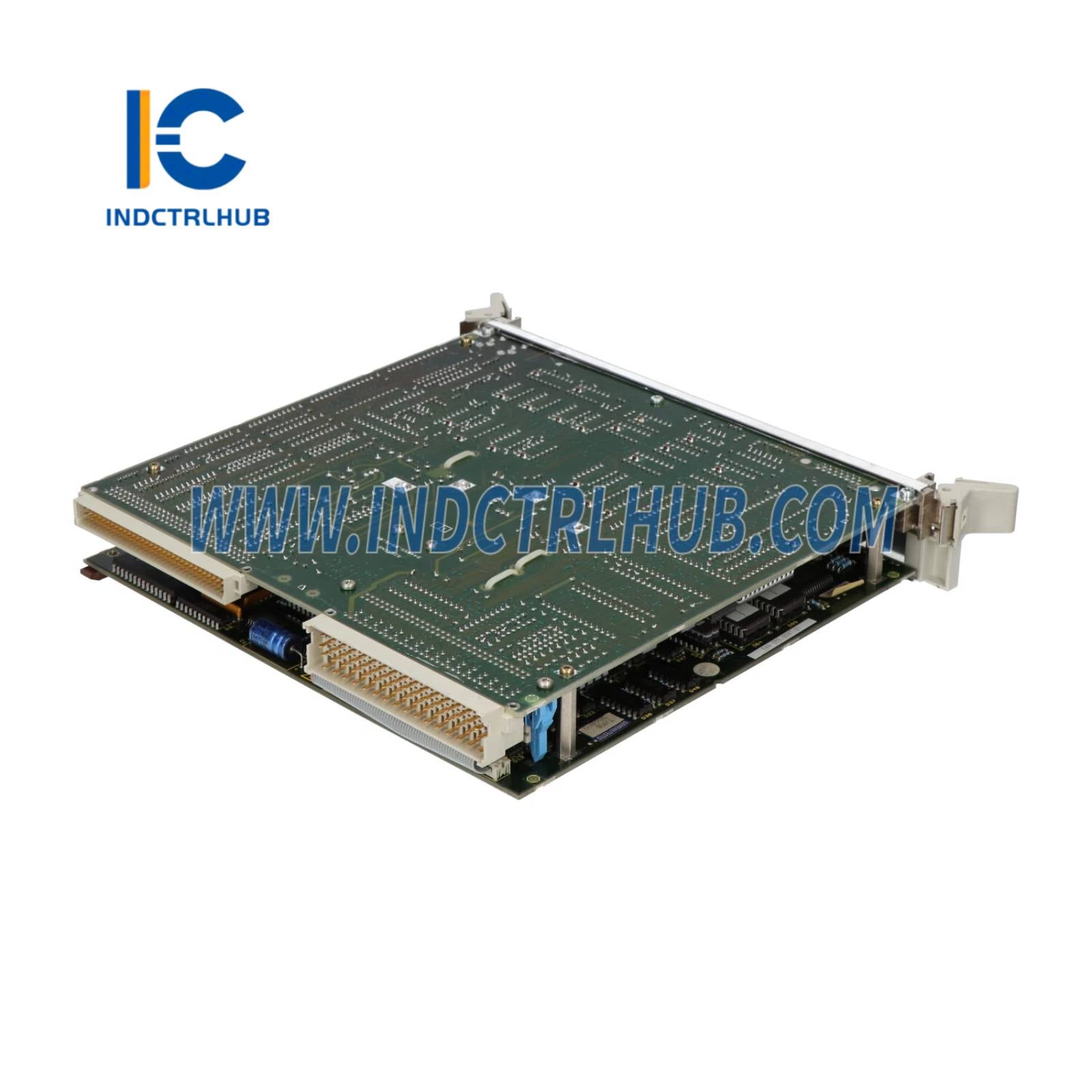

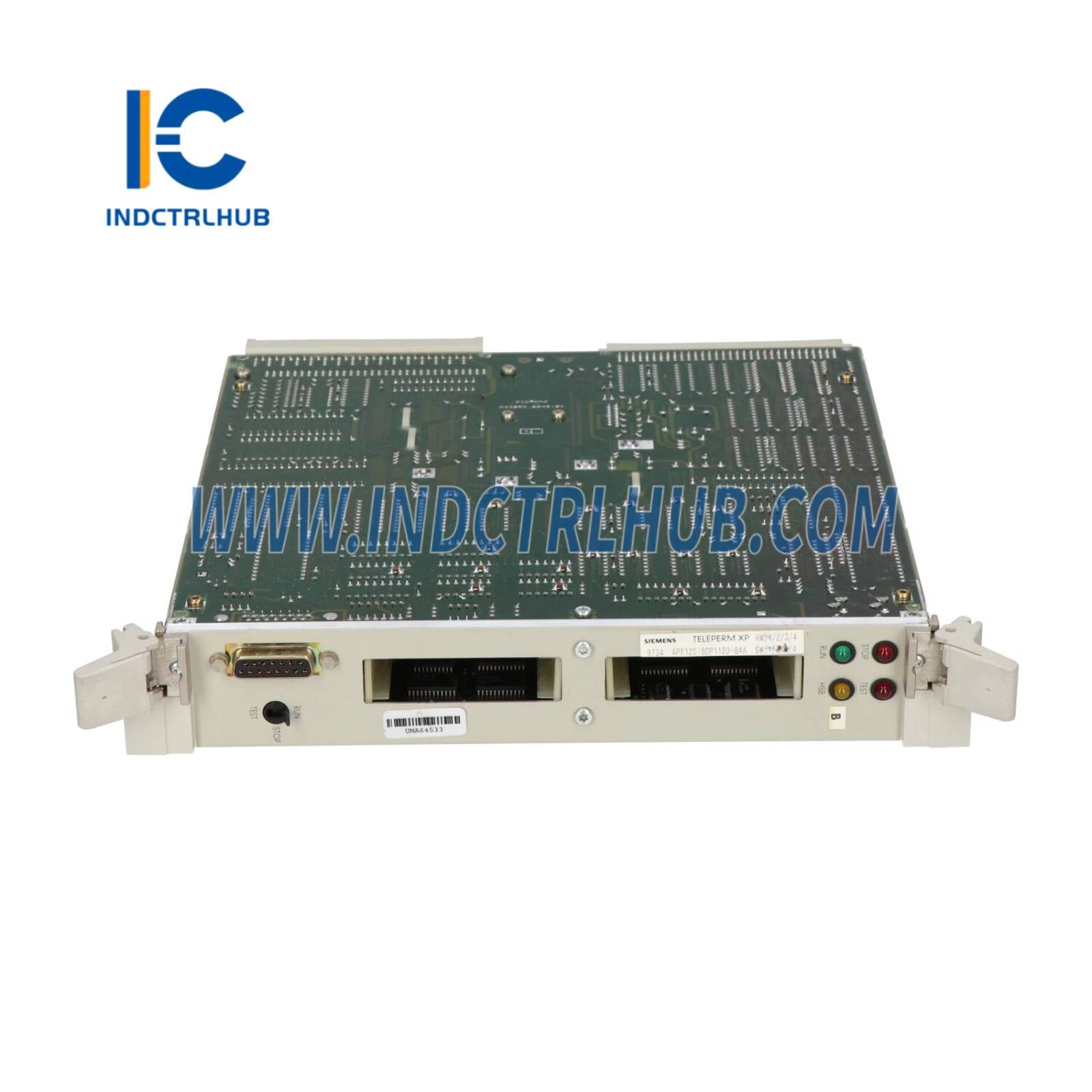

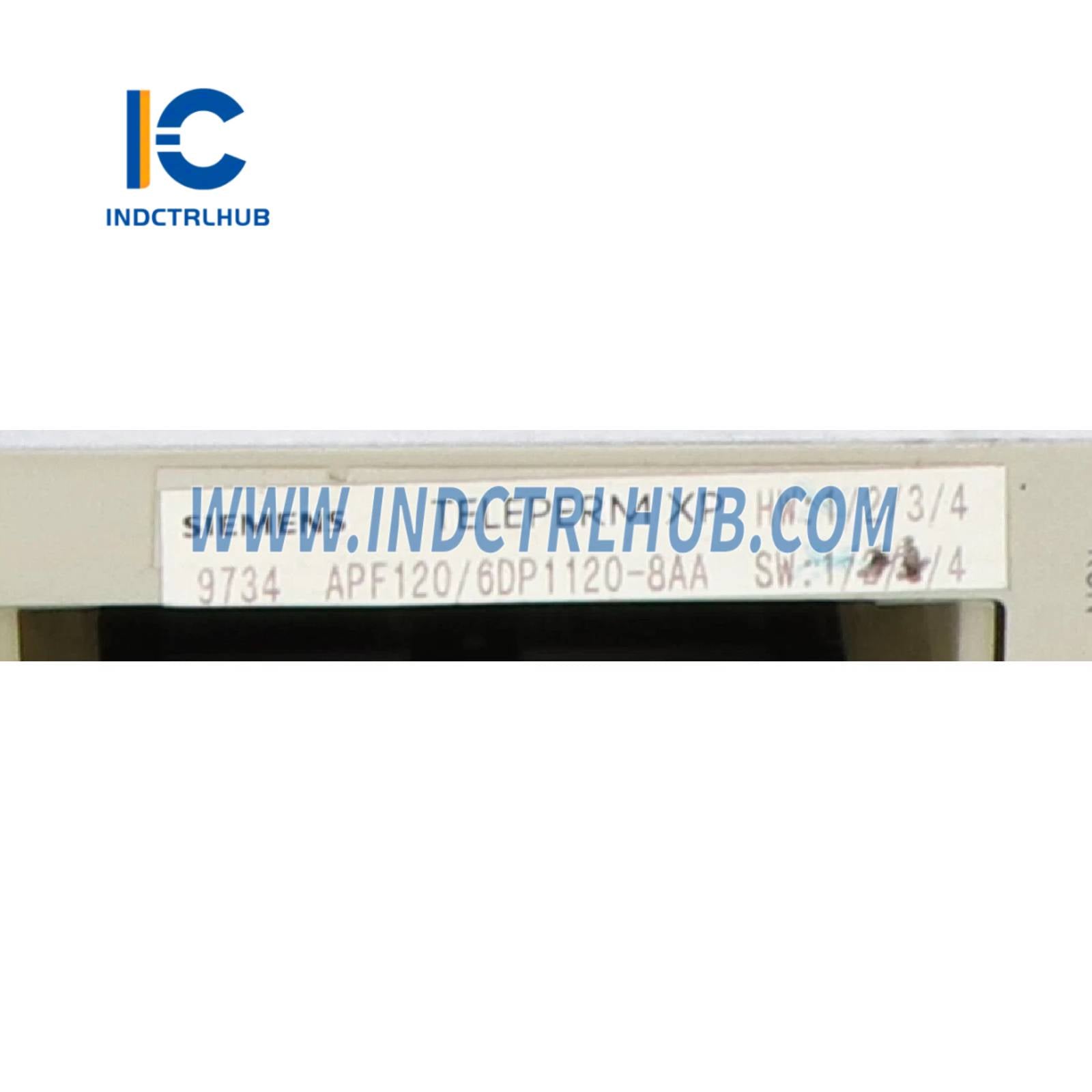

Siemens 6DP1120-8AA TELEPERM XP APF 120 Fail-Safe Coupling Processor Module
Product Overview
- The Siemens 6DP1120-8AA is an APF 120 Fail-Safe Coupling Processor Module designed for the TELEPERM XP automation system, specifically for the AS 620 F fail-safe automation system. This module ensures reliable and secure communication between TELEPERM XP components, supporting fail-safe operations in critical industrial applications. It is used in industries such as chemical processing, oil and gas, and power generation for robust process control.
Technical Specifications
- The 6DP1120-8AA has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DP1120-8AA |
| Manufacturer | Siemens |
| Description | TELEPERM XP APF 120 Fail-Safe Coupling Processor Module for AS 620 F |
| Series | TELEPERM XP |
| Function | Fail-safe communication and coupling for TELEPERM XP AS 620 F automation system |
| Communication | Interfaces with TELEPERM XP bus systems (e.g., CS 275) |
| Power Supply | 24 VDC (via TELEPERM XP rack backplane) |
| Power Consumption | Approx. 10 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard TELEPERM XP module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into TELEPERM XP rack |
| Certifications | CE, UL |
Additional Details
- The 6DP1120-8AA includes the following additional information based on industry sources:
- Function: Acts as a fail-safe coupling processor, ensuring secure and redundant communication within the TELEPERM XP AS 620 F system; supports critical process control applications by maintaining system integrity during faults; interfaces with the CS 275 bus system for data exchange between automation systems and operator stations.
