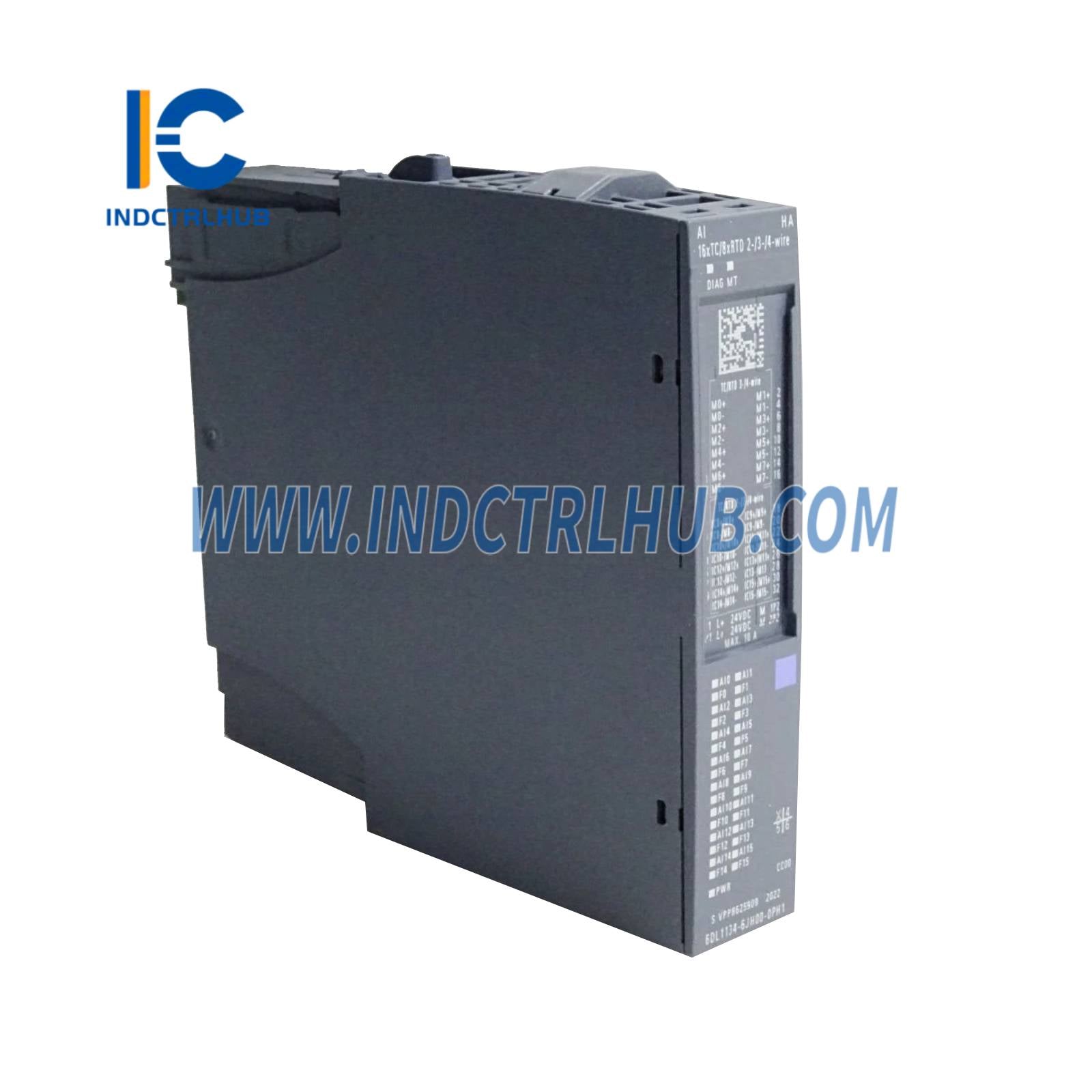

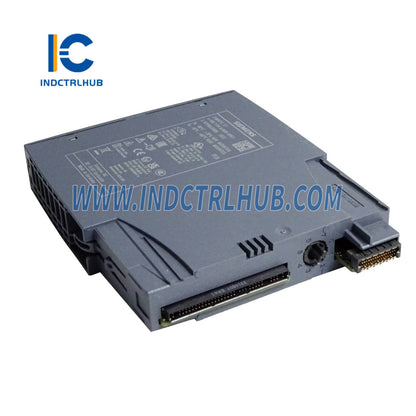

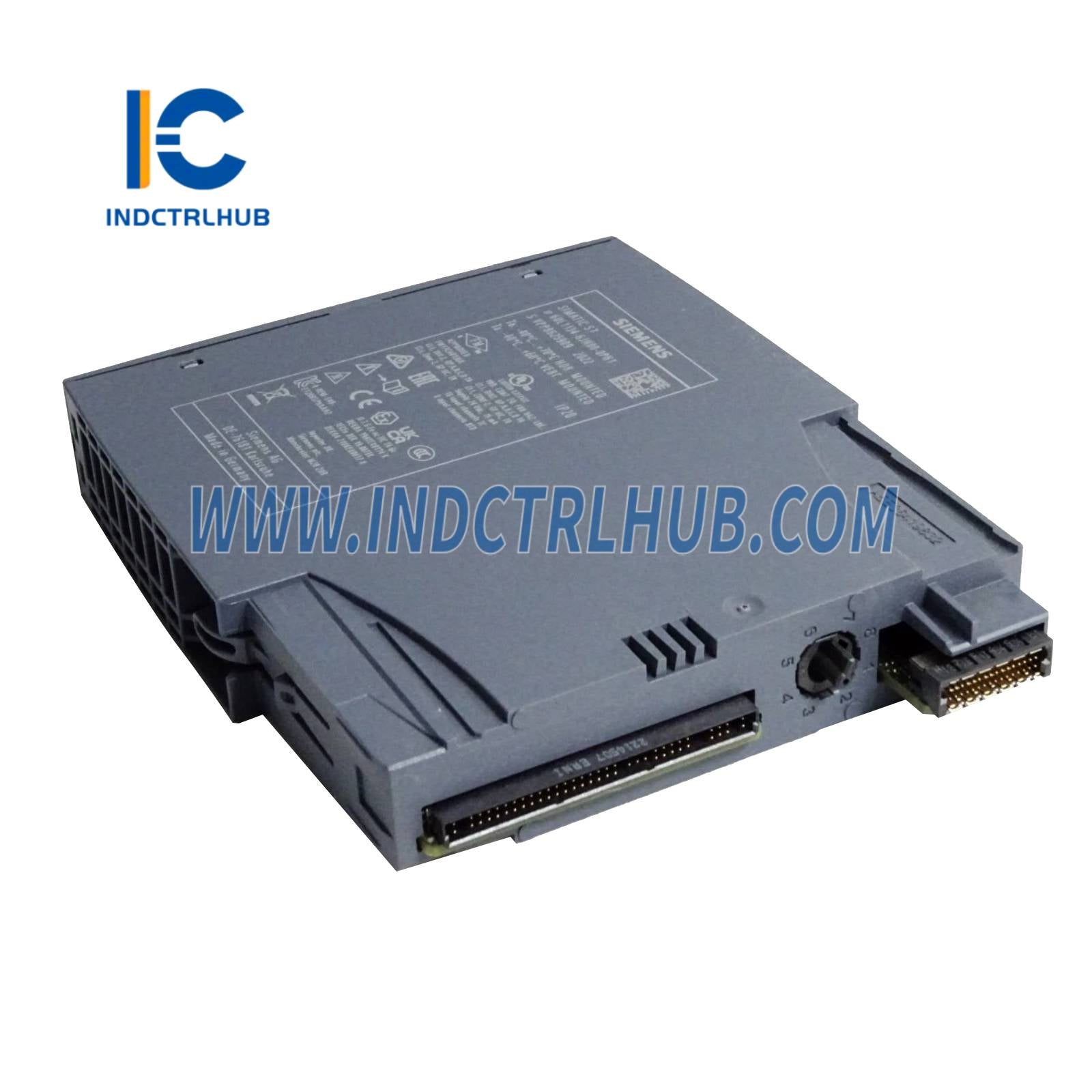

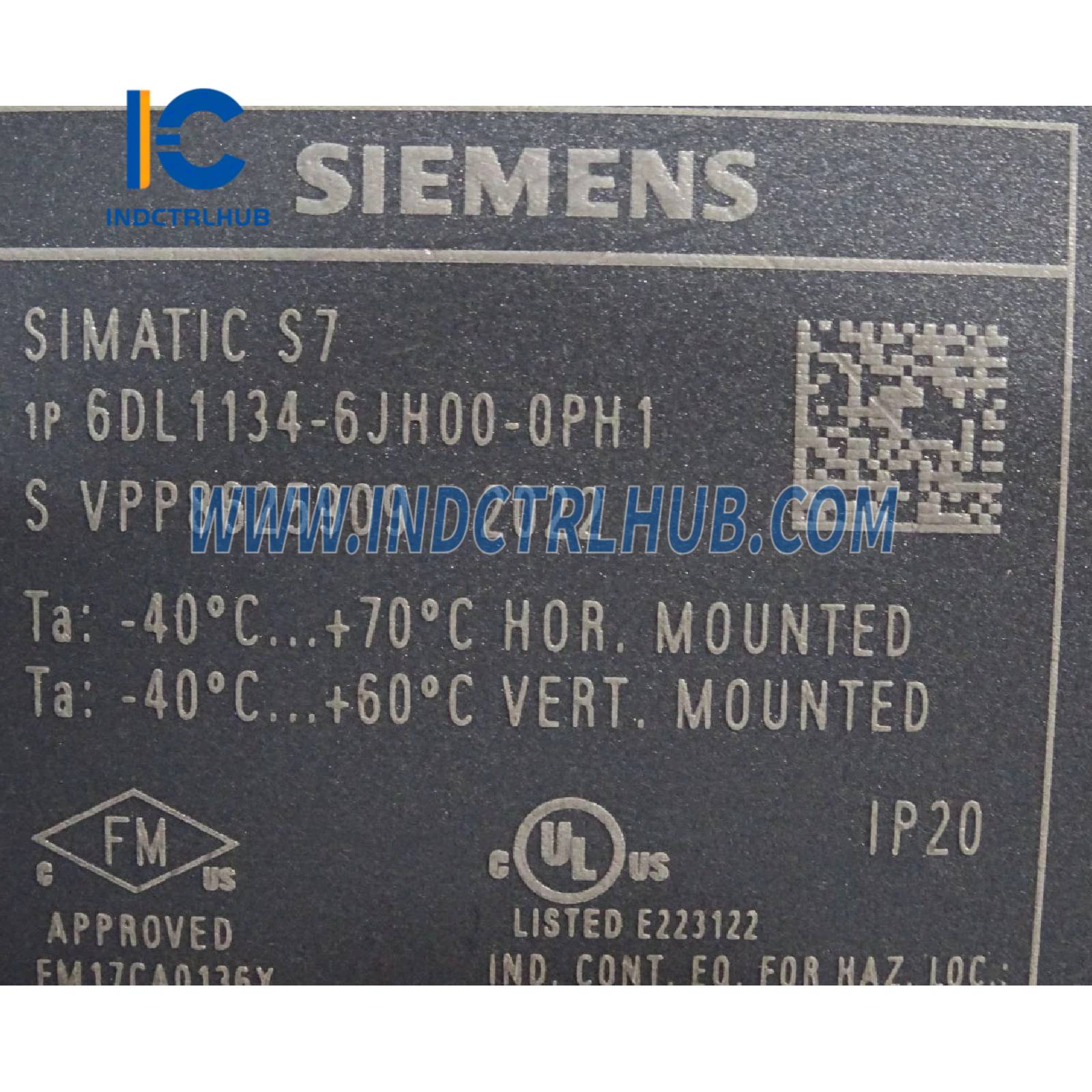

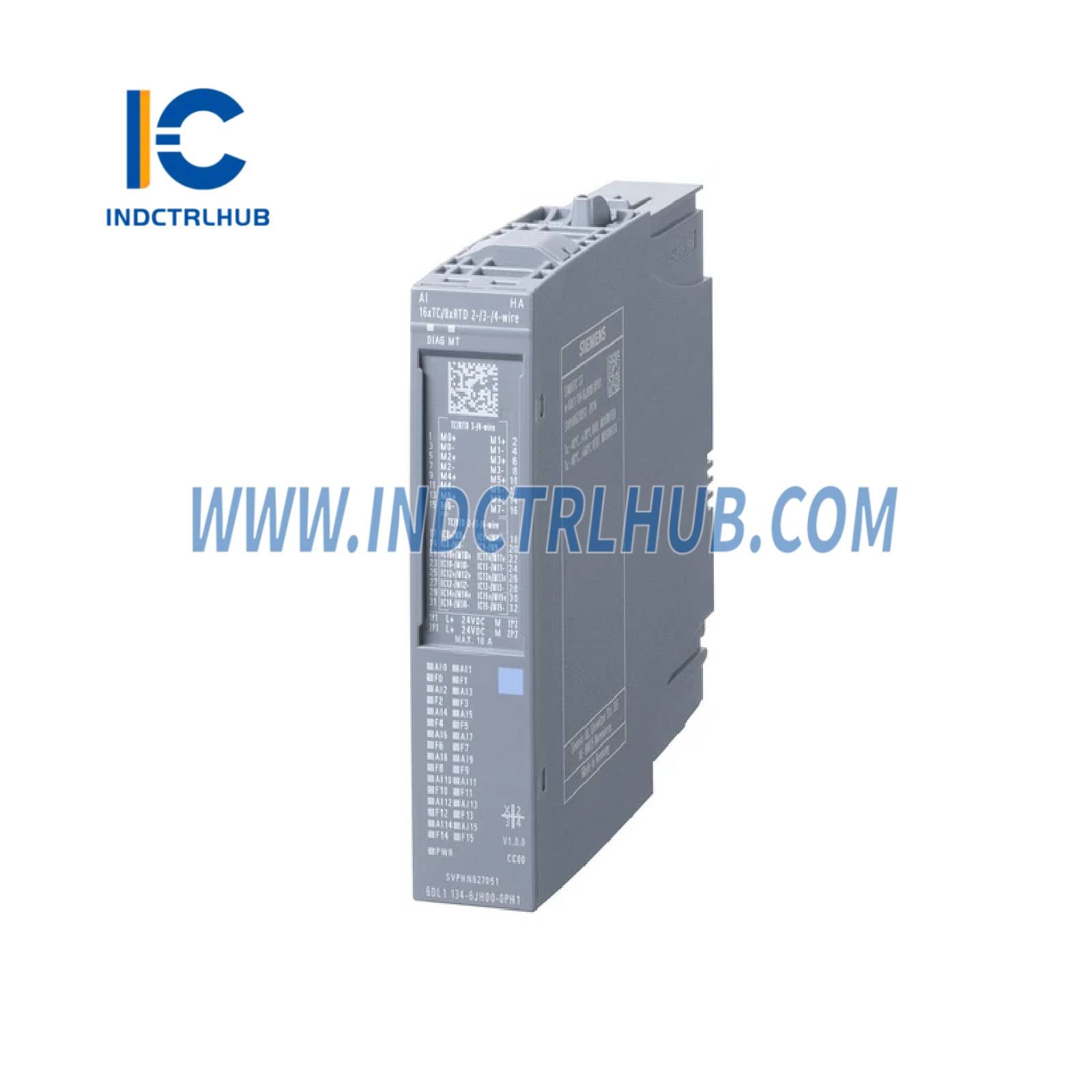

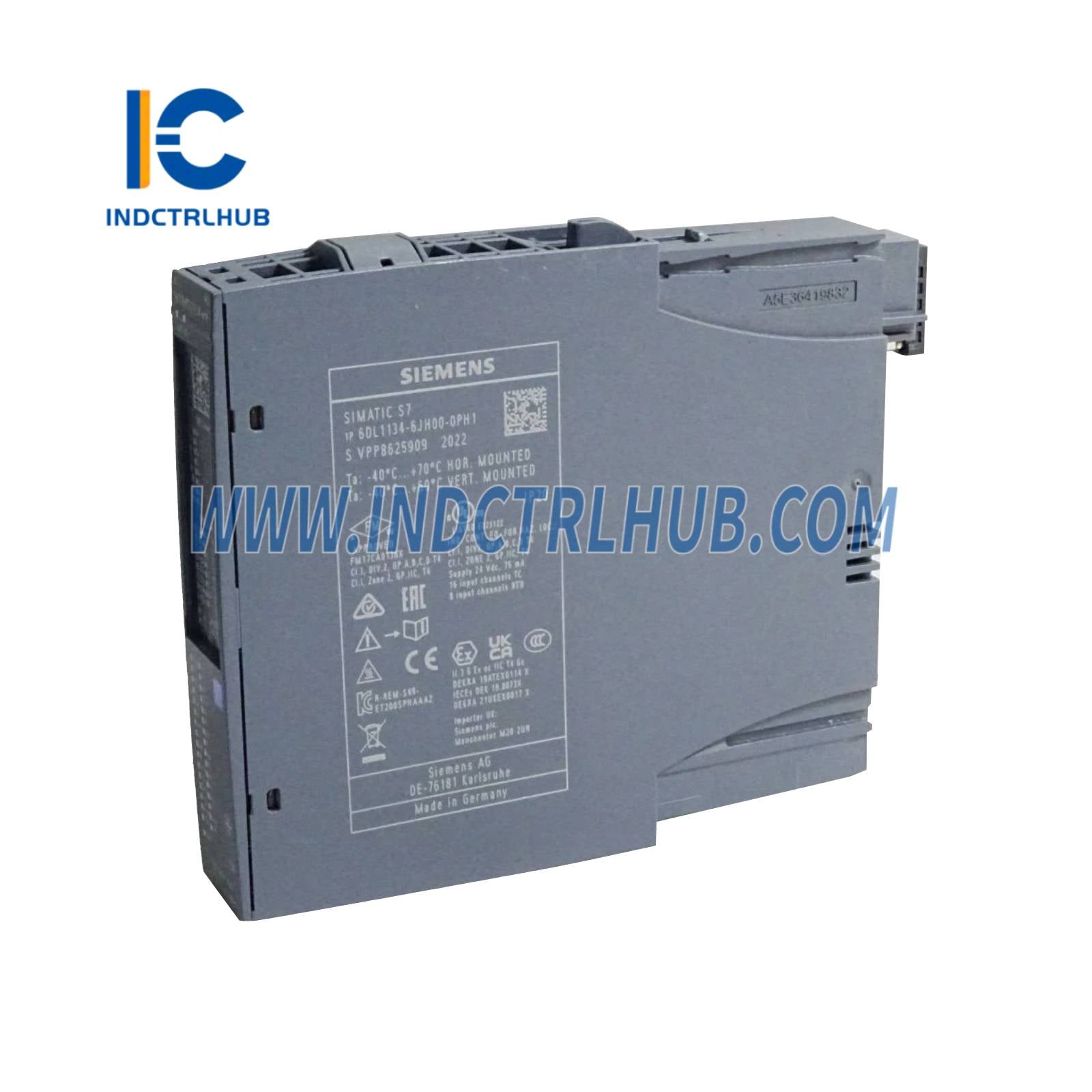

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6DL1134-6JH00-0PH1 |
|
Article Number |
6DL1134-6JH00-0PH1 |
|
Product Family |
Analog I/O modules |
|
Product Description |
AI 16x TC / 8x RTD 2-/3-/4-wire, 16-bit, ±0.05%, channel diagnostics |
|
Lifecycle Status (PLM) |
PM300: Active Product |
Technical Information
|
Specification |
Detail |
|---|---|
|
Type |
Analog Input |
|
Input Channels |
16x Thermocouple (TC) or 8x RTD |
|
Supported Wiring |
2-wire, 3-wire, 4-wire |
|
Resolution |
16-bit |
|
Accuracy |
±0.05% |
|
Diagnostics |
Yes (per channel) |
|
Compatible Terminal Blocks |
H1, M1 |
|
Color Code |
CC00 |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.300 kg |
|
Packaging Dimensions (L × W × H) |
3.50 × 15.00 × 13.00 cm |
Compliance & Environmental Information
|
Specification |
Detail |
|---|---|
|
RoHS Compliance |
Since 23.05.2017 |
|
WEEE Directive |
Yes |
|
REACH Art. 33 Substances |
Lead (CAS: 7439-92-1), Lead monoxide (CAS: 1317-36-8), Silicic acid, lead salt (CAS: 11120-22-2) |
|
SCIP Number |
25b48bde-376e-49da-8b63-1e3d80b45826 |
|
Country of Origin |
Germany |
Classification & Catalog Details
|
Specification |
Detail |
|---|---|
|
Commodity Code |
85389091 |
|
Catalog ID (LKZ_FDB) |
STPCS7 |
|
Product Group |
4D62 |
|
Group Code |
R336 |
|
Product Class |
A: Stock item, returnable within policy |
|
EAN |
4047622330678 |
|
UPC |
Not available |
