Product Description

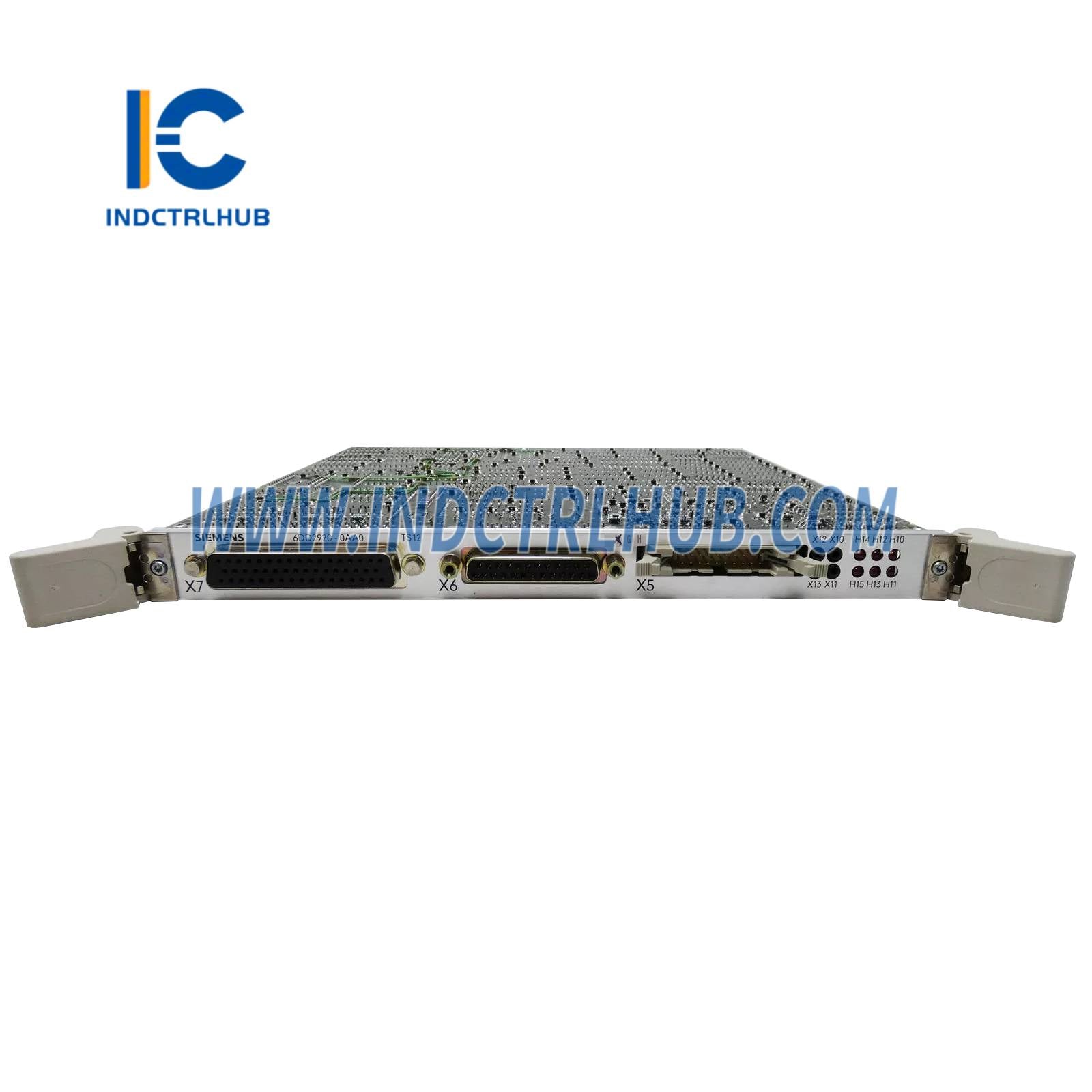

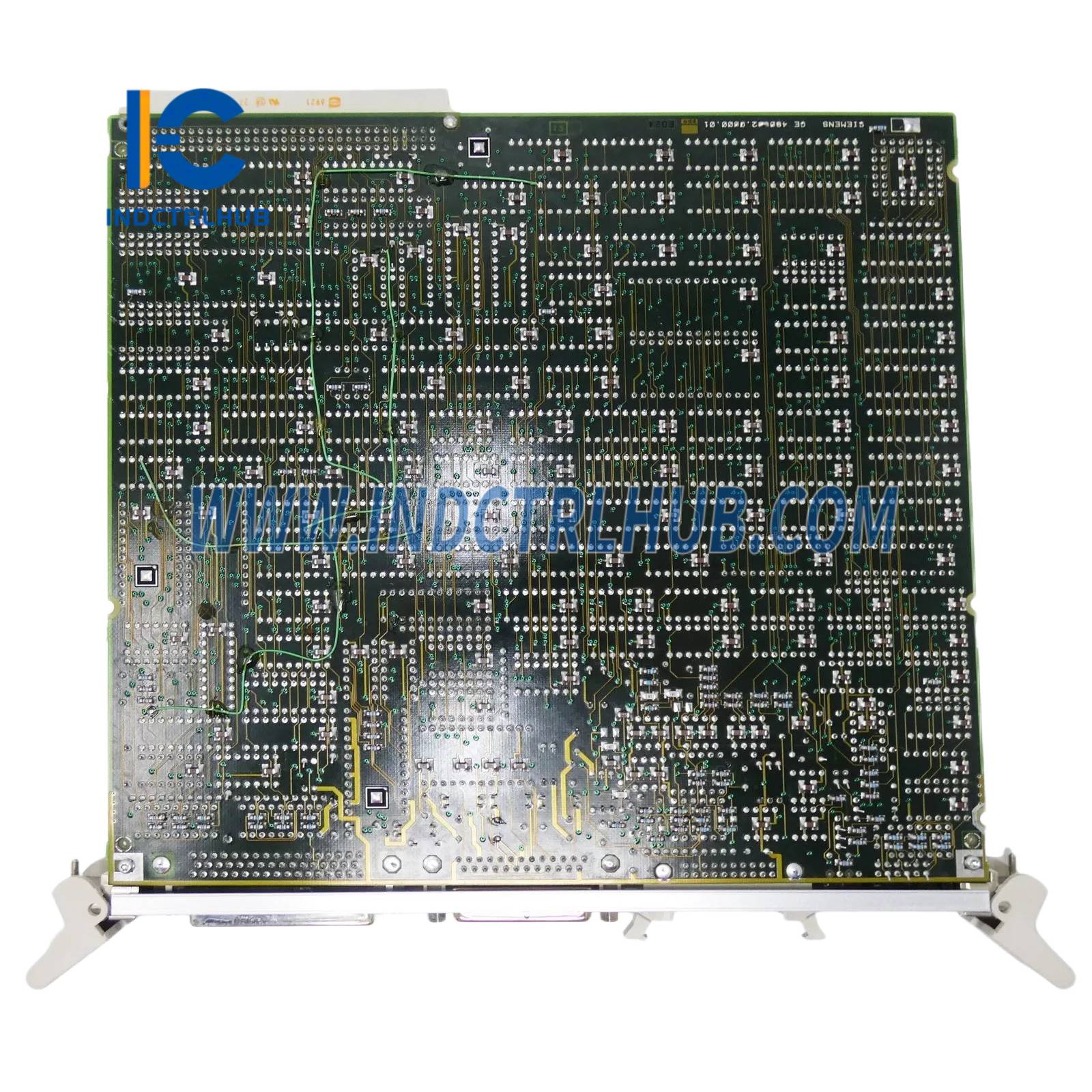

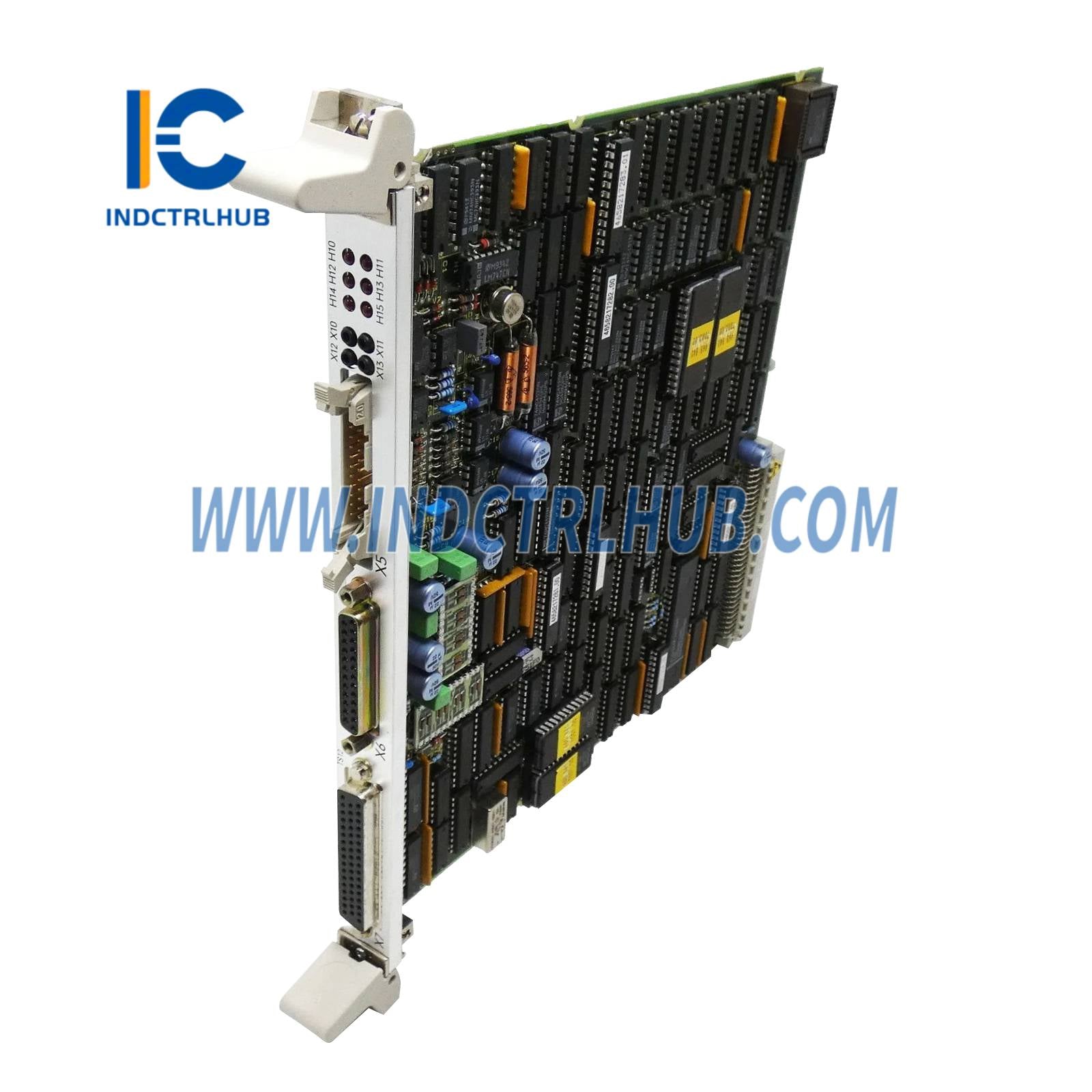

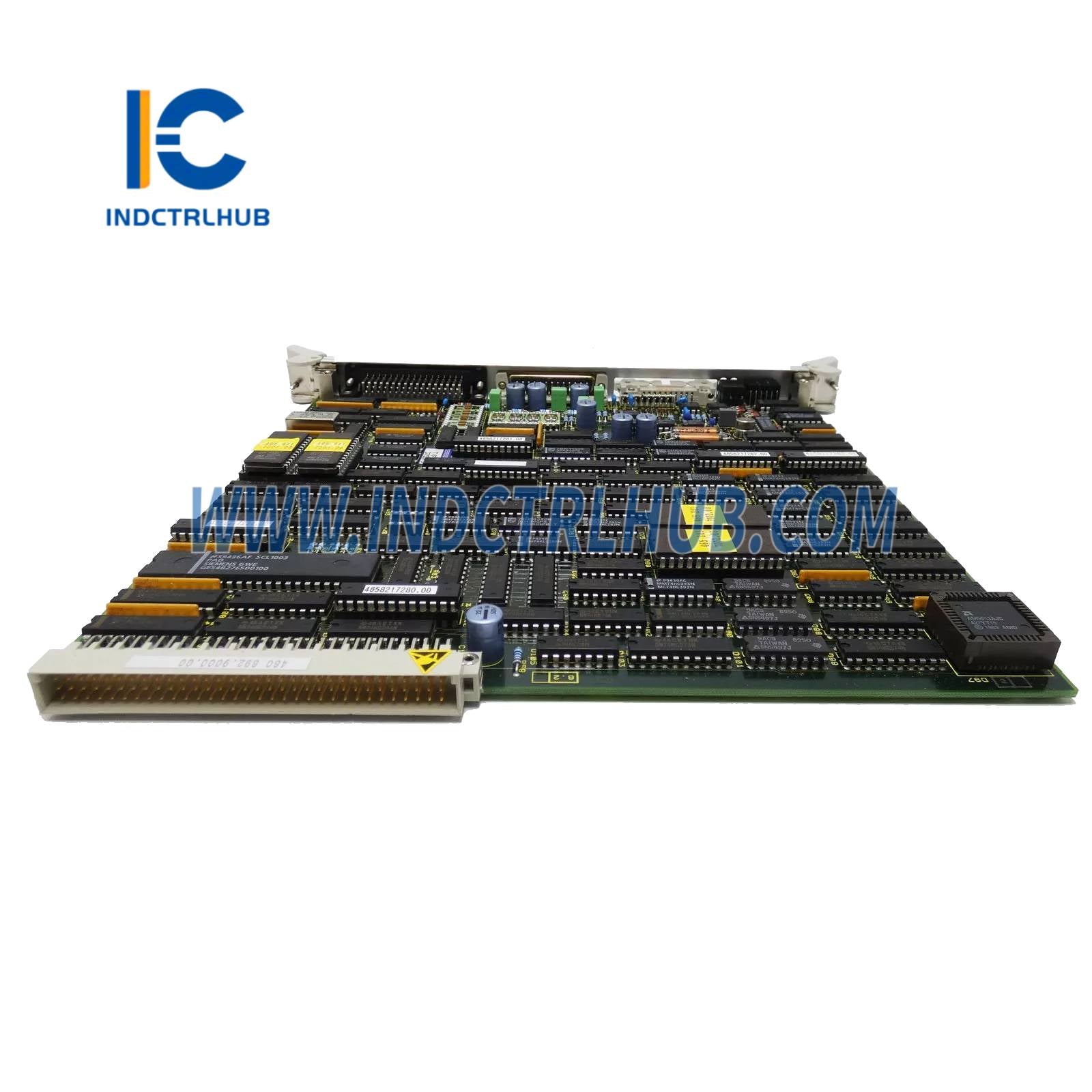

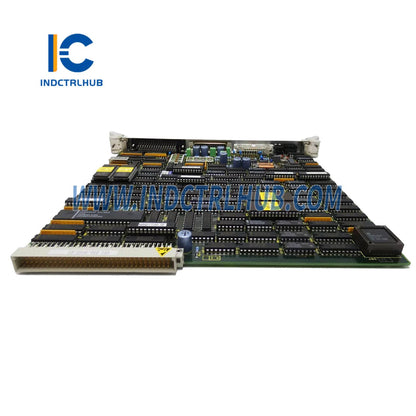

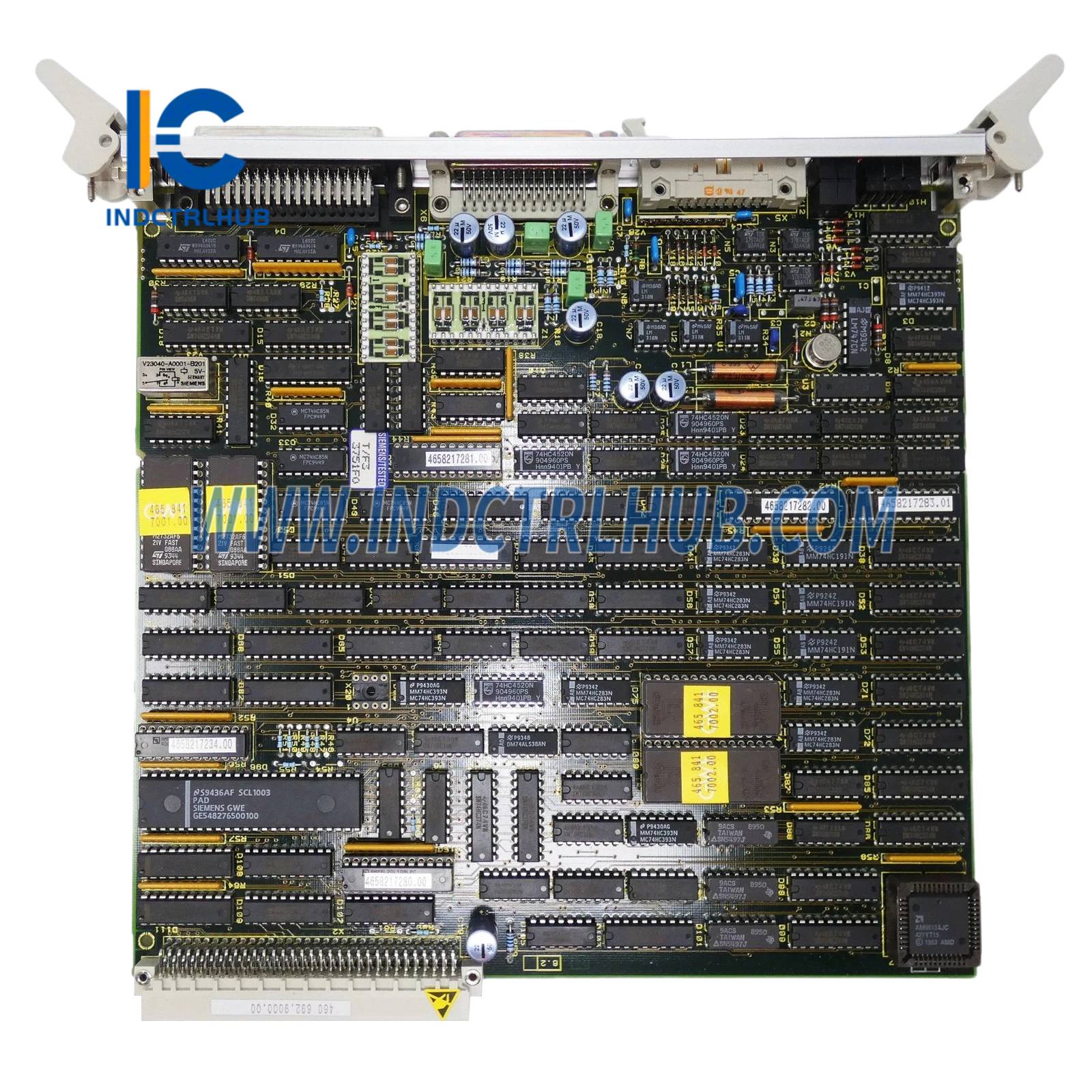

Siemens 6DD2920-0AA0 SIMADYN D Trigger Module TS12
Product Overview
- The Siemens 6DD2920-0AA0 is a Trigger Module TS12 designed for the SIMADYN D control system. This module provides hardware-controlled triggering for mechanical converters, specifically for thyristor-based systems, ensuring precise control in industrial automation applications. It is used in industries such as manufacturing, process control, and drive systems to support high-performance digital control tasks.
Technical Specifications
- The 6DD2920-0AA0 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 6DD2920-0AA0 |
| Manufacturer | Siemens |
| Description | SIMADYN D Trigger Module TS12, Hardware-Controlled Set for Mechanical Converter |
| Series | SIMADYN D |
| Function | Provides triggering signals for thyristor-based mechanical converters |
| Article Number | 460692900000 |
| Power Supply | 5 VDC (via SIMADYN D rack backplane) |
| Power Consumption | Approx. 5 W (estimated based on similar modules) |
| Environmental Specifications | Ambient Temperature: 0°C to +55°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 233 mm (H) x 160 mm (W) x 20 mm (D) (standard SIMADYN D module size) |
| Weight | Approx. 0.5 kg |
| Mounting | Plugs into SIMADYN D rack |
| Certifications | CE, UL |
Additional Details
- The 6DD2920-0AA0 includes the following additional information based on industry sources:
- Function: Generates precise triggering signals for thyristor-based mechanical converters, enabling accurate control in drive systems and other high-performance applications; integrates with SIMADYN D racks for modular automation setups; supports hardware-controlled operations for reliable performance.
