Product Description
Product Overview
| Parameter | Details |
|---|---|

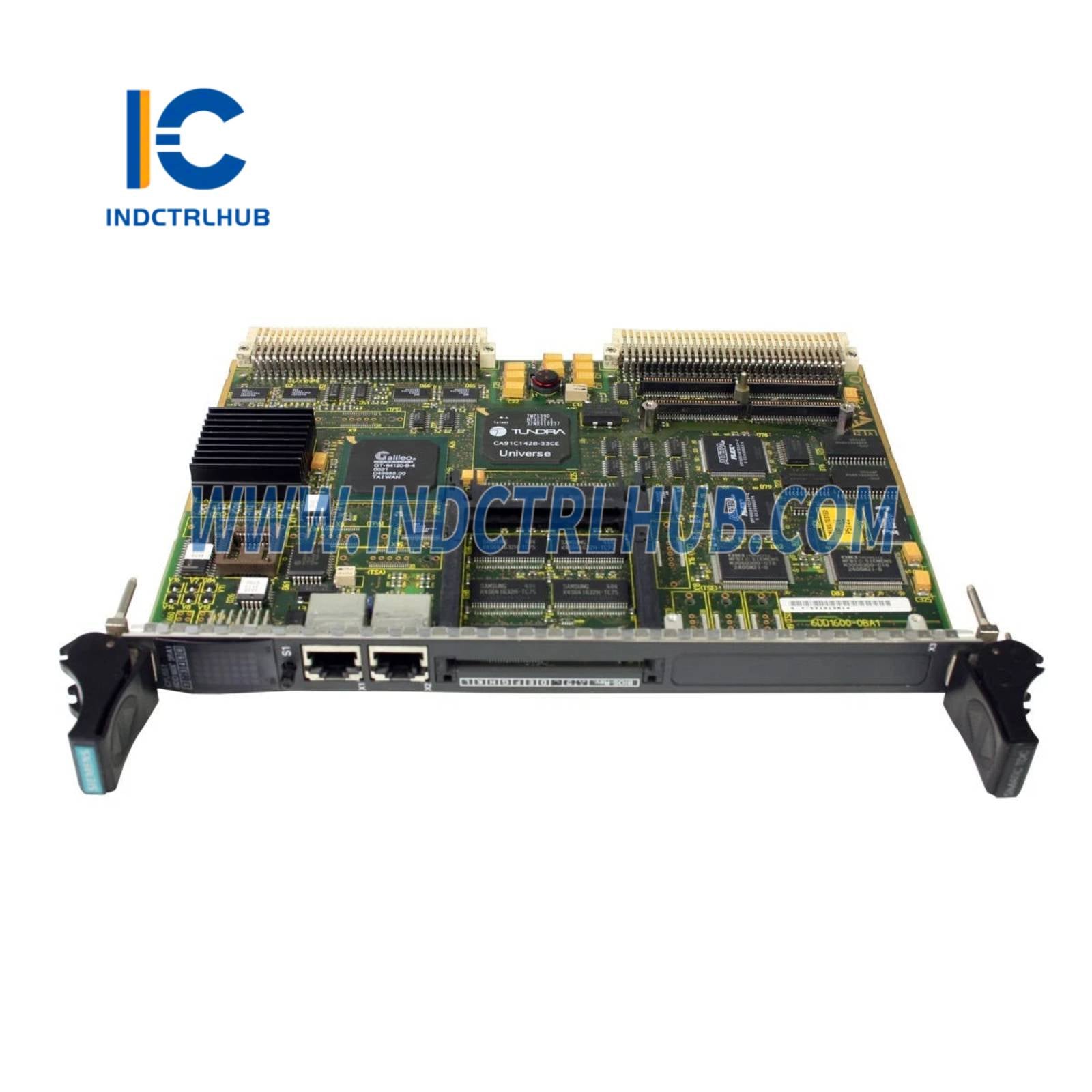

| Part Number | 6DD1600-0BA1 |
| Product Name | SIMATIC TDC CPU551 64-bit Processor Module with Digital Inputs |
| Application | High-speed, real-time control in industrial automation systems, such as process control, drive systems, and distributed control systems (DCS) |
| Compatibility | SIMATIC TDC series; integrates with Siemens SIMATIC TDC hardware, including expansion modules and I/O interfaces |
| Function | Serves as a central processing unit with integrated digital inputs for executing control programs, handling real-time tasks, and interfacing with field devices |
Functional Specifications
| Parameter | Details |
|---|---|
| Processor Type | 64-bit CPU |
| Memory Support | Integrated memory for programs and data (specific capacity configuration-dependent) |
| Digital Inputs | Integrated digital inputs for direct field signal processing |
| Communication Interface | Supports standard SIMATIC interfaces (e.g., RS-485, PROFIBUS optional) |
| Voltage Rating | 24 V DC (typical for SIMATIC modules) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | Standard SIMATIC module size (approximate: 25.4 mm x 130 mm x 120 mm) |
| Weight | Approximately 0.5 kg |
| Power Consumption | Typical 31 W |
| Certifications | CE marked; RoHS compliant |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 6DD1600-0BA1 (SIMATIC TDC CPU551 with digital inputs) |
| Available Options | Variants for different interfaces (e.g., 6DD1600-0BB0 with PROFINET); refurbished or new |
| Customization | Firmware updates or integration with specific SIMATIC TDC setups available upon request |
