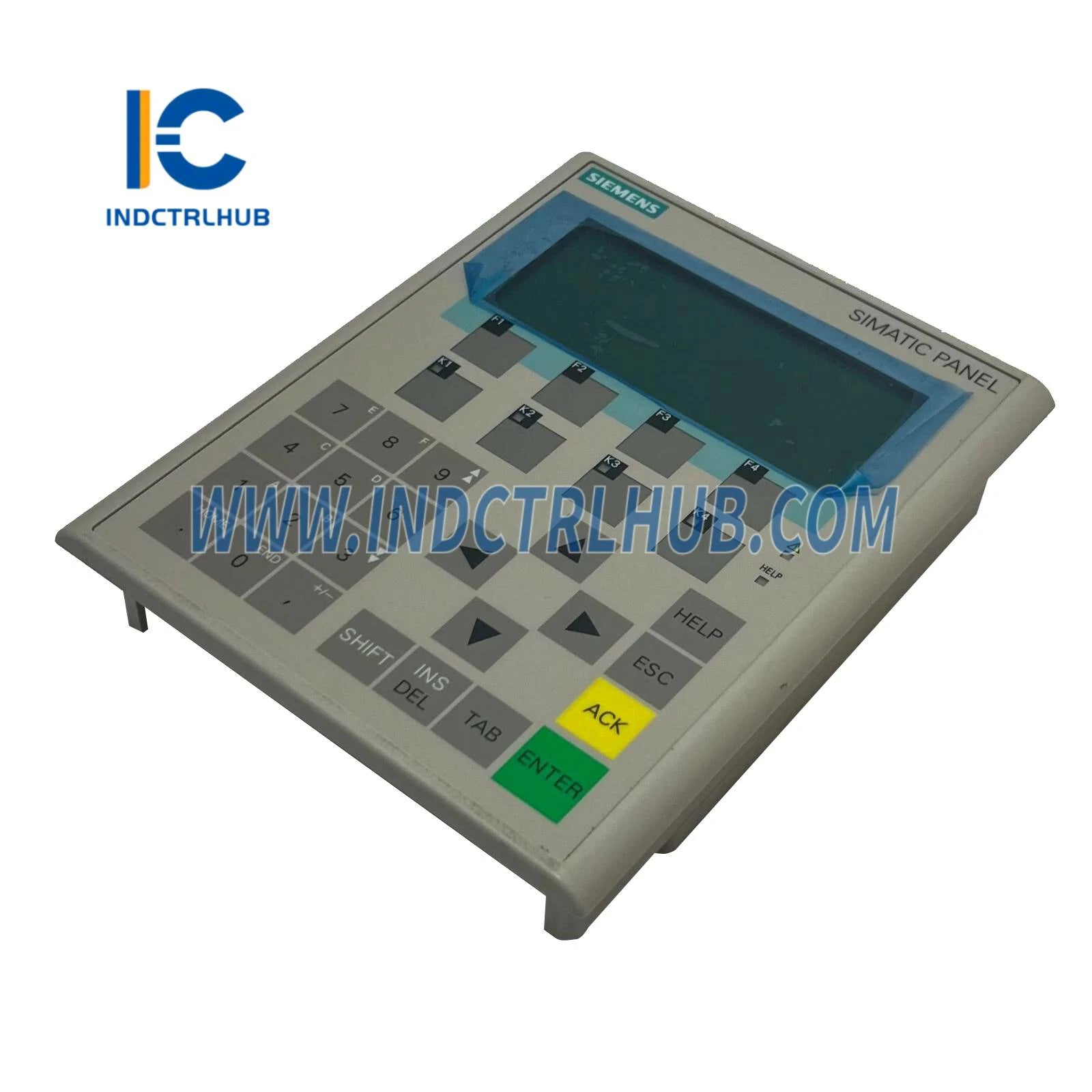

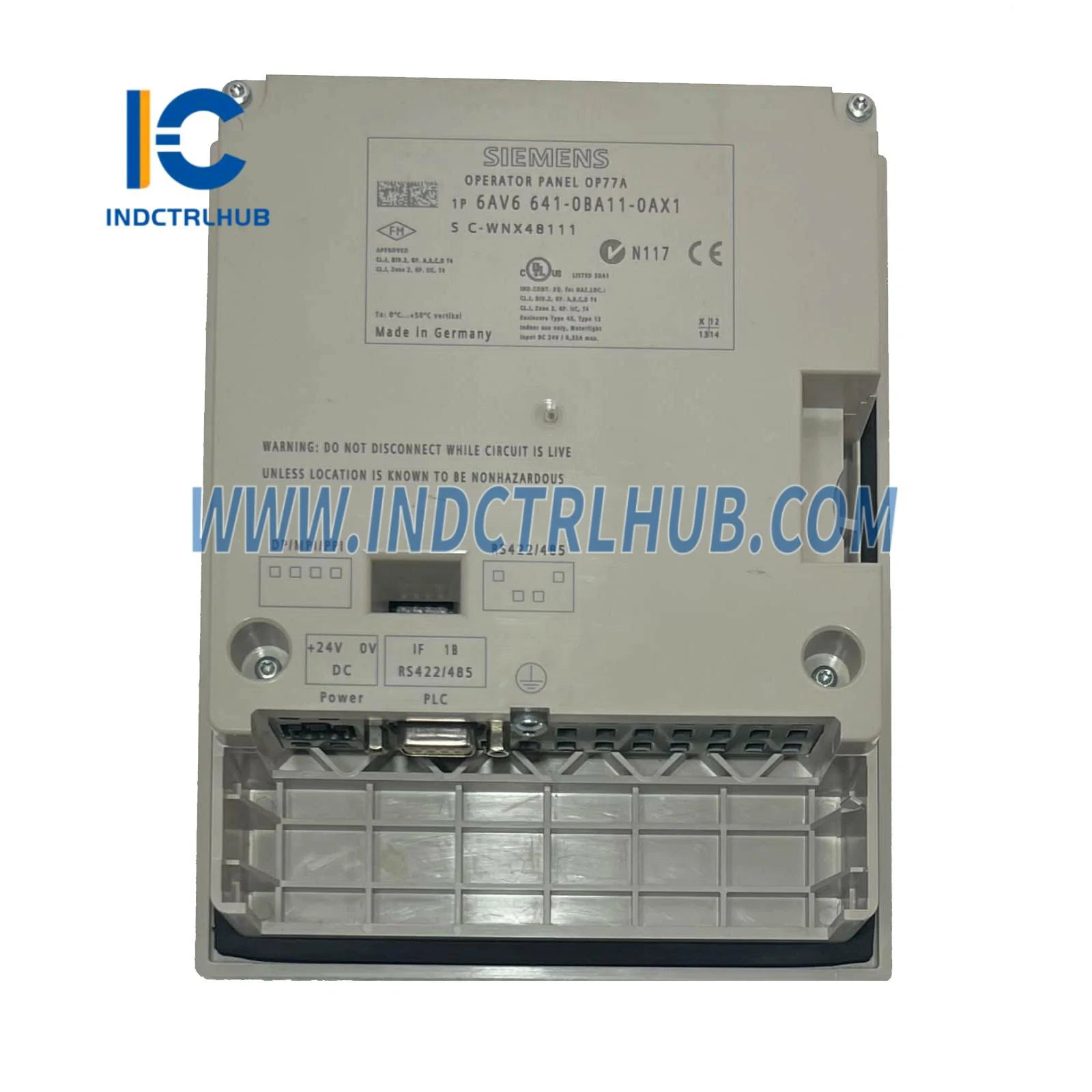

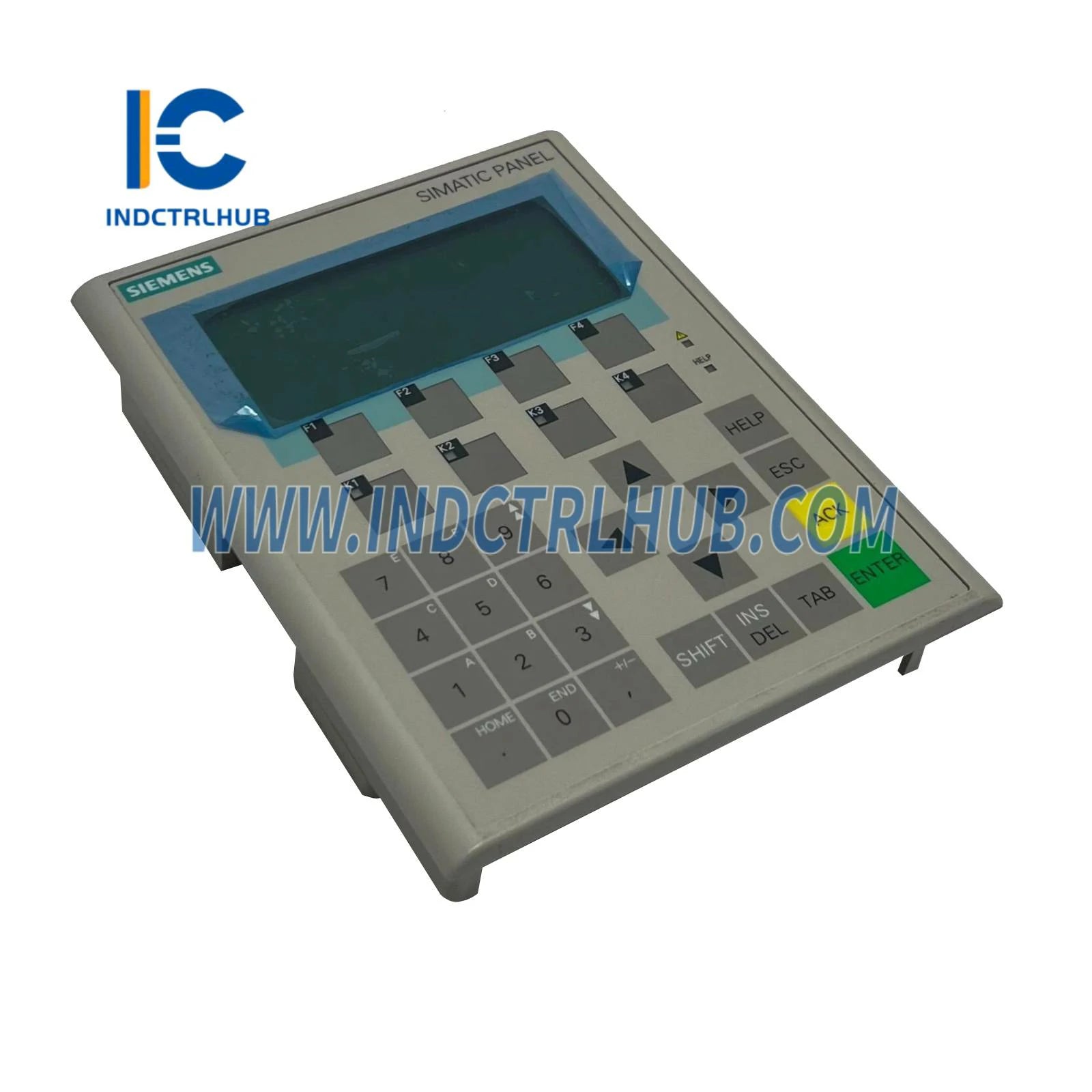

Siemens 6AV6641-0BA11-0AX1 OP 77A Operator Panel 4.5" LCD
Siemens 6AV6641-0BA11-0AX1 OP 77A Operator Panel 4.5" LCD
Manufacturer: Siemens
Product No.: 6AV6641-0BA11-0AX1
Condition:1000 in stock
Product Type: Operator Panel
Product Origin: 6419285730142
Payment: T/T, Western Union
Weight: 536g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Siemens 6AV6641-0BA11-0AX1 SIMATIC OP 77A Operator Panel
The Siemens 6AV6641-0BA11-0AX1 is a compact yet powerful operator panel from the SIMATIC OP 77A series, engineered to deliver reliable human-machine interface (HMI) functionality in demanding industrial environments. Featuring a 4.5-inch graphics-capable LCD display, this panel provides clear visualization for process monitoring and control applications.
Technical Specifications
- Display: 4.5" STN LCD, graphics-capable with adjustable contrast
- Resolution: 320 x 240 pixels (QVGA)
- Interface: MPI/PROFIBUS DP communication protocol
- Operating Voltage: 24V DC
- Protection Rating: IP65 front panel (when properly mounted)
- Memory: Integrated configuration storage
- Mounting: Panel cutout installation
Application Scenarios
This operator panel excels in manufacturing automation, packaging lines, material handling systems, and process control installations where space-efficient HMI solutions are required. The OP 77A integrates seamlessly with SIMATIC S7 controllers, enabling operators to monitor production parameters, acknowledge alarms, and adjust setpoints directly at the machine level. Its compact footprint makes it ideal for retrofitting existing control cabinets or embedding into machinery with limited panel space.
Solution Benefits
By deploying the 6AV6641-0BA11-0AX1, you gain a proven HMI platform backed by Siemens' industrial automation expertise. The MPI/PROFIBUS DP interface ensures fast, deterministic communication with your control system, while the rugged construction withstands vibration, temperature fluctuations, and industrial contaminants. Configuration is streamlined through WinCC flexible software, allowing rapid project deployment and easy modifications as your process evolves.
Frequently Asked Questions
Q: Is this panel compatible with S7-300 and S7-400 PLCs?
A: Yes, the OP 77A supports MPI and PROFIBUS DP protocols, making it fully compatible with SIMATIC S7-300, S7-400, and other PROFIBUS-enabled controllers.
Q: Can I use this panel in outdoor applications?
A: The OP 77A is designed for indoor industrial use. For outdoor installations, ensure proper enclosure protection and temperature management within the specified operating range of 0°C to 50°C.
Q: What software is required for programming?
A: Configuration is performed using Siemens WinCC flexible software, which provides a comprehensive development environment for creating operator interfaces, alarms, and trend displays.
Q: Does this model support Ethernet connectivity?
A: No, the 6AV6641-0BA11-0AX1 is equipped with MPI/PROFIBUS DP interface only. For Ethernet-based communication, consider newer SIMATIC HMI Comfort Panels.
Warranty & Support
Every unit is backed by a comprehensive 12-month warranty covering manufacturing defects and functional failures. Our technical support team is available to assist with installation guidance, configuration troubleshooting, and replacement part identification.
