Product Description
General Information
|
Manufacturer |
Siemens |
|---|---|
|
Model/Part Number |

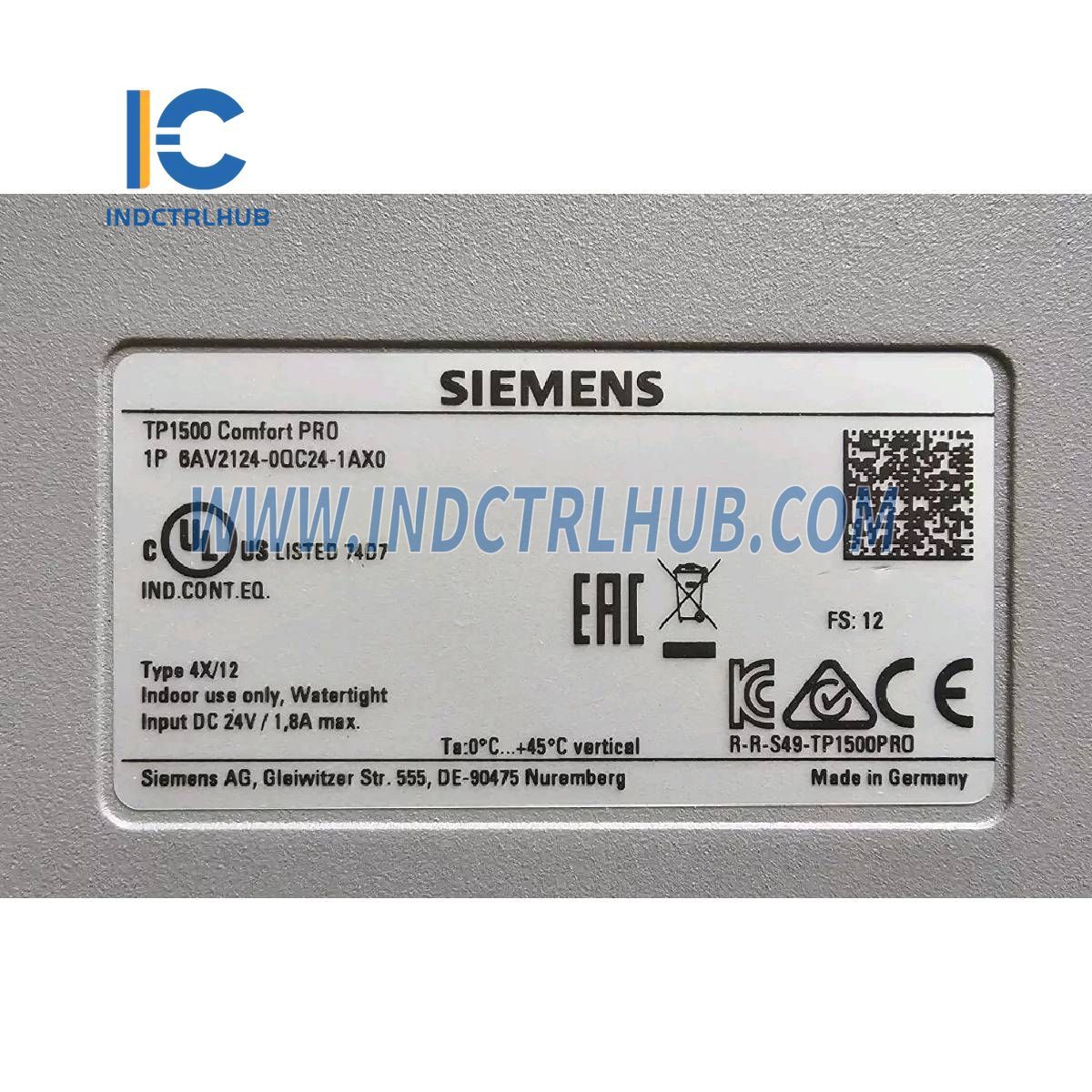

6AV2124-0QC24-1AX0 |
|
Product Type Designation |
TP1500 Comfort PRO |
|
Description |

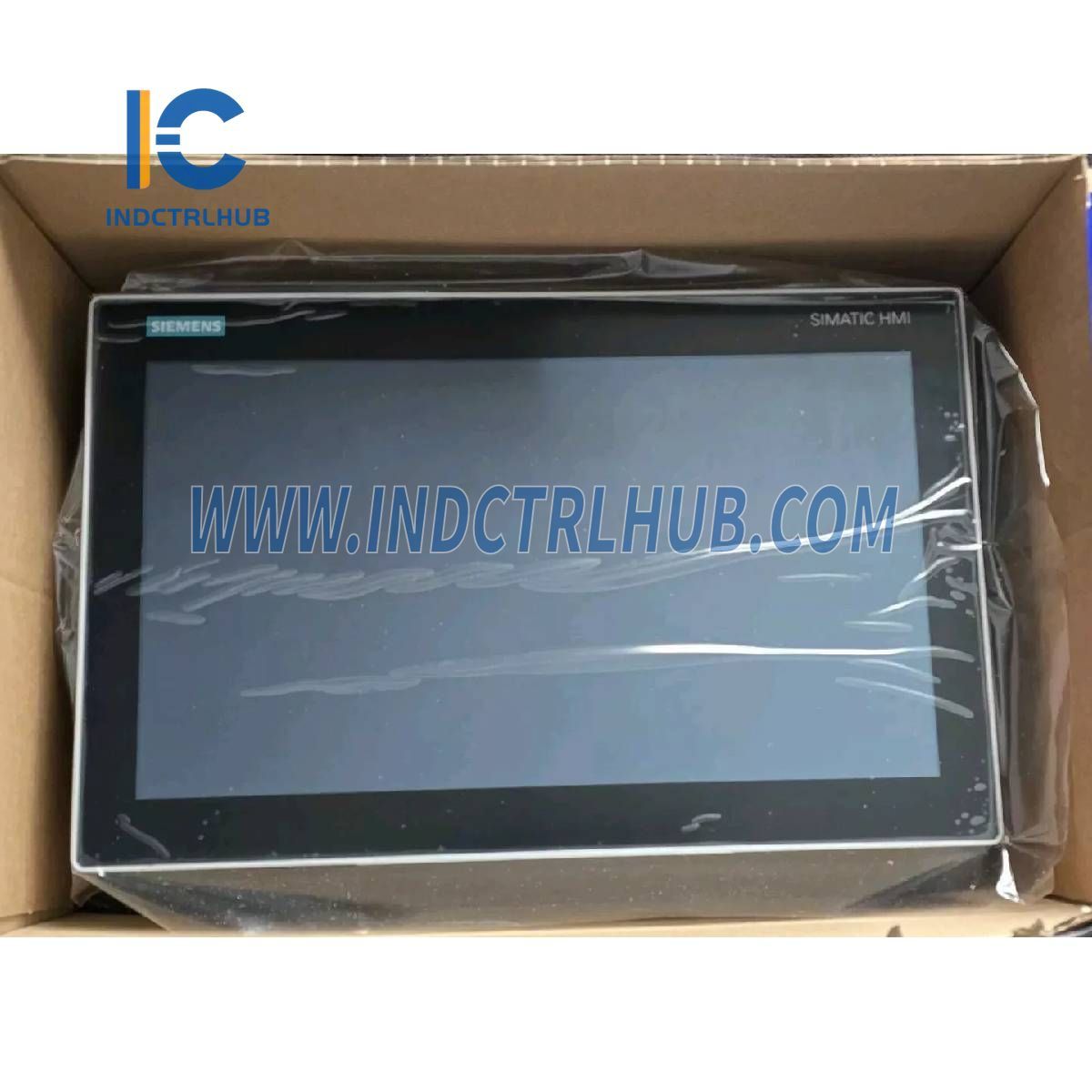

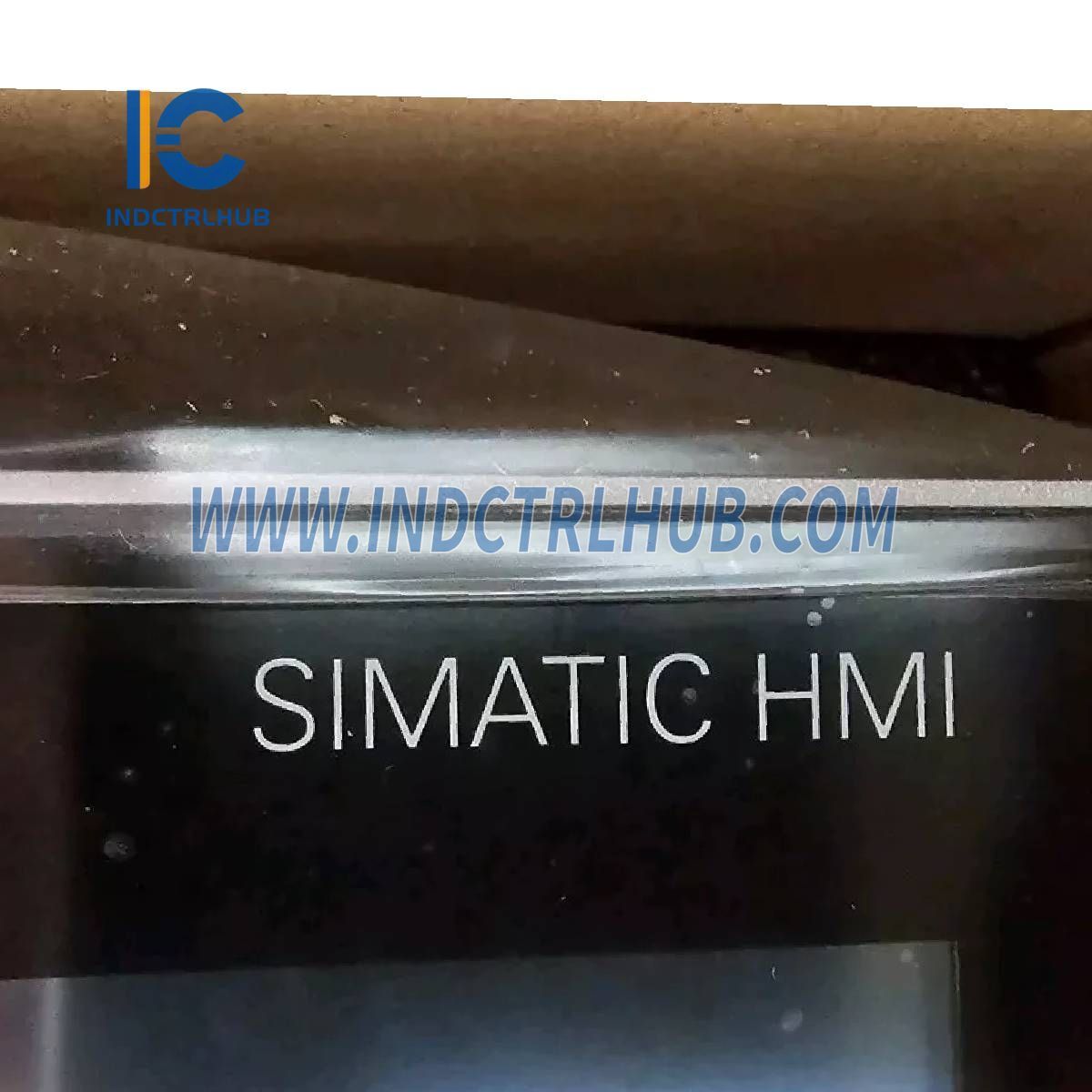

TP1500 Comfort PRO Touch Screen |
Display Specifications
|
Parameter |
Value |
|---|---|
|
Display Type |
TFT |
|
Screen Diagonal |
15.6 in |
|
Display Width |
344.2 mm |
|
Display Height |
193.5 mm |
|
Number of Colors |
16,777,216 |
|
Resolution (Pixels) |
1366 × 768 |
|
Backlighting MTBF (at 25 °C) |
50,000 h |
|
Backlight Dimmable |
Yes (0-100%) |
Installation & Mounting
|
Parameter |
Value |
|---|---|
|
Mounting Type |
Pedestal |
|
Mounting Position |
Vertical |
|
Portrait Format Mounting |
Not Possible |
|
Max. Permissible Inclination (without external ventilation) |
35° |
Power Supply
|
Parameter |
Value |
|---|---|
|
Supply Voltage Type |
DC |
|
Rated Voltage |
24 V DC |
|
Permissible Range (Lower Limit) |
19.2 V DC |
|
Permissible Range (Upper Limit) |
28.8 V DC |
Input Current & Power
|
Parameter |
Value |
|---|---|
|
Rated Current Consumption |
1.5 A |
|
Starting Current Inrush (I²t) |
0.5 A²·s |
|
Active Power Input (Typical) |
36 W |
Processor & Memory
|
Parameter |
Value |
|---|---|
|
Processor Type |
X86 |
|
User Memory Available |
24 MB |
Interfaces
|
Parameter |
Value |
|---|---|
|
Industrial Ethernet Interfaces |
2 (2 ports switch + independent port) |
|
RS 485 Interfaces |
1 (RS 422/485 combined) |
|
RS 422 Interfaces |
0 (Combined with RS 485) |
|
RS 232 Interfaces |
0 |
|
USB Interfaces |
2 (USB 2.0) |
|
SD Card Slots |
2 |
|
Software Interfaces |
No |
Physical Dimensions
|
Parameter |
Value |
|---|---|
|
Housing Front Width |
396 mm |
|
Housing Front Height |
256 mm (Without Basic Adapter) |
|
Overall Depth |
101 mm (Without Basic Adapter) |
Weight
|
Parameter |
Value |
|---|---|
|
Weight (Without Packaging) |
6.3 kg |
