Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic Panel
Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic Panel
Manufacturer: Siemens
Product No.: 6AV2123-2MB03-0AX0
Condition:1000 in stock
Product Type: HMI Touch Panel
Product Origin: 6942185473821
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic Panel Overview

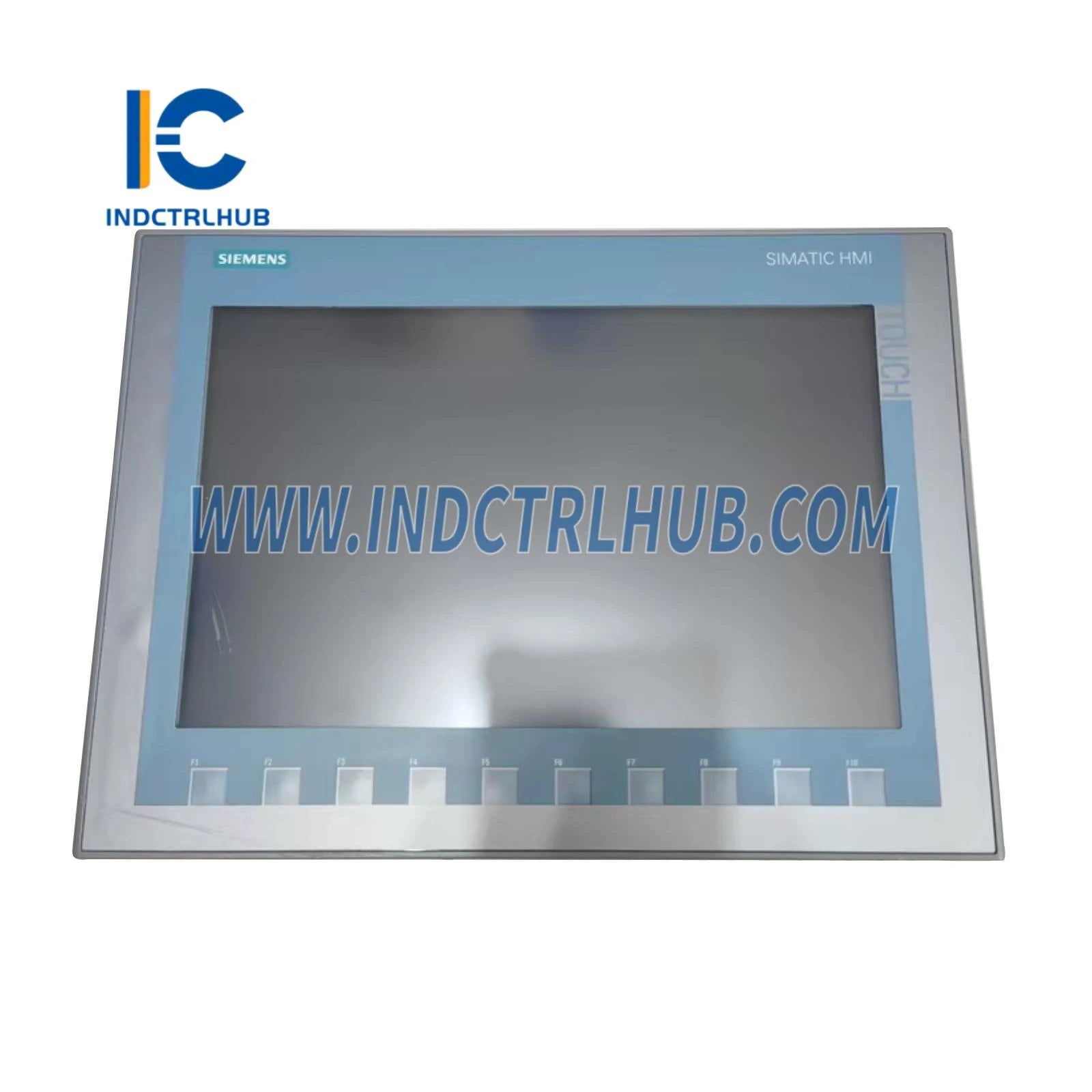

The Siemens 6AV2123-2MB03-0AX0 SIMATIC HMI KTP1200 Basic represents a powerful human-machine interface solution engineered for industrial automation environments. This 12-inch TFT display panel combines intuitive touch and key operation with robust PROFINET connectivity, delivering reliable operator control for manufacturing, process control, and machine automation applications.
Technical Specifications
- Display: 12-inch TFT color display with 65,536 colors
- Resolution: 800 × 600 pixels (SVGA)

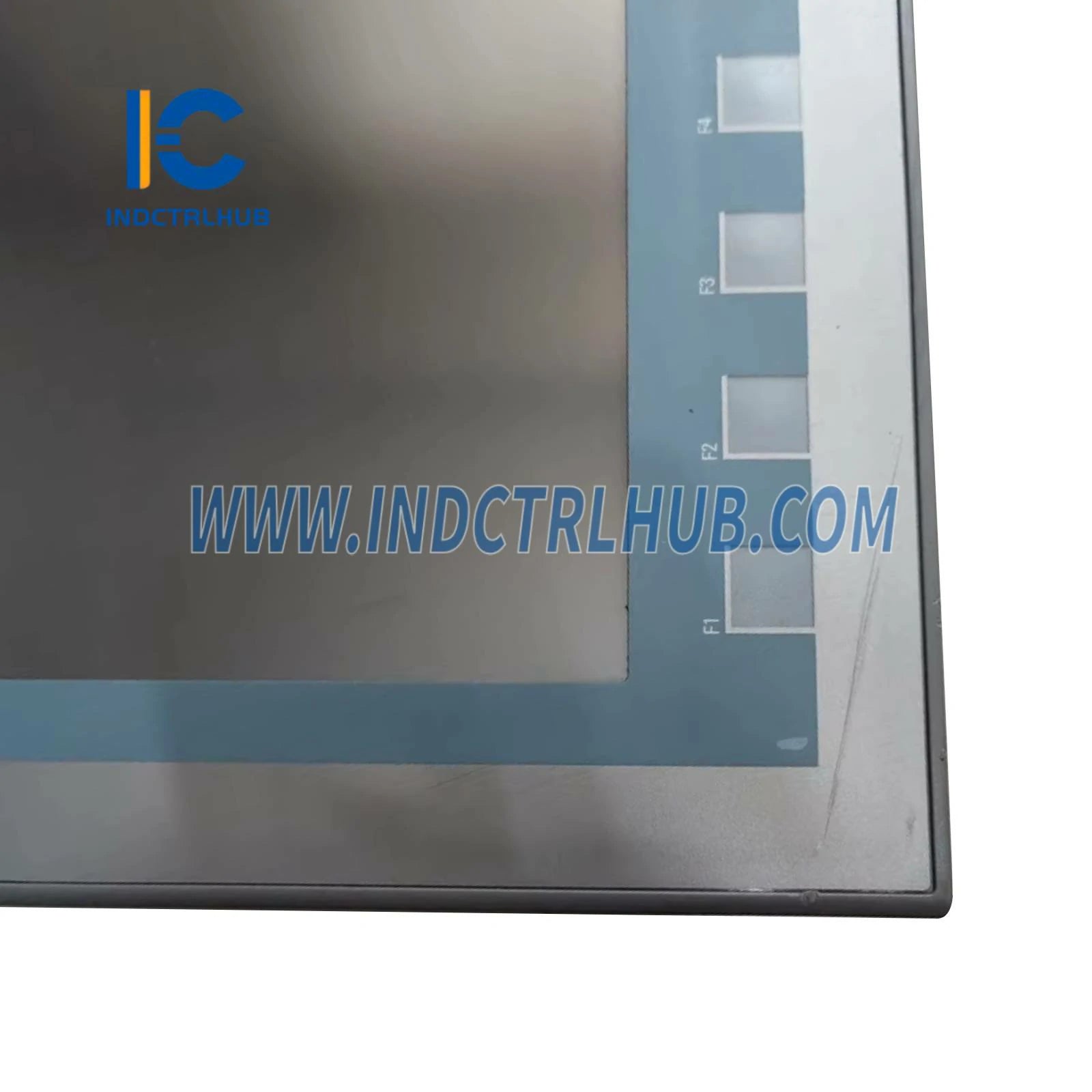

- Operation: Touch screen with integrated function keys
- Interface: PROFINET (1-port switch)
- Configuration: WinCC Basic V13 or higher
- Memory: 12 MB configuration memory
- Power Supply: 24 VDC
- Protection Rating: IP65 front panel (when properly mounted)
- Operating Temperature: 0°C to +50°C
- Mounting: Panel mount installation
Key Applications & Solutions
Manufacturing Automation: Monitor and control production lines with real-time process visualization, alarm management, and recipe handling for consistent quality output.
Machine Control: Integrate seamlessly with SIMATIC S7 controllers to provide operators with intuitive machine parameter adjustment, status monitoring, and diagnostic capabilities.
Process Industries: Deploy in chemical, pharmaceutical, and food processing facilities for batch control, trend visualization, and regulatory compliance documentation.
Building Automation: Manage HVAC systems, lighting controls, and energy monitoring through centralized operator interfaces with scheduling and setpoint management.
Engineering Benefits
The KTP1200 Basic streamlines commissioning through TIA Portal integration, enabling unified programming and configuration alongside your SIMATIC controllers. Pre-configured faceplates and object libraries accelerate development, while the panel's PROFINET interface eliminates additional gateway hardware for direct PLC communication.
Frequently Asked Questions
Q: Is this panel compatible with S7-1200 and S7-1500 controllers?
A: Yes, the 6AV2123-2MB03-0AX0 communicates natively with SIMATIC S7-1200, S7-1500, S7-300, and S7-400 controllers via PROFINET.
Q: What configuration software is required?
A: WinCC Basic V13 or later versions within the TIA Portal engineering framework are required for project development and panel configuration.
Q: Can I retrofit this panel to replace older OP/TP panels?
A: Yes, with appropriate cutout modifications. The KTP1200 Basic offers migration paths from legacy operator panels with enhanced functionality and modern connectivity.
Q: Does it support recipe management?
A: Yes, the panel supports recipe handling for storing and recalling production parameters, ideal for batch processes and product changeovers.
Warranty & Support
Every Siemens 6AV2123-2MB03-0AX0 panel includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Our technical support team provides configuration assistance, troubleshooting guidance, and replacement coordination to minimize downtime.
